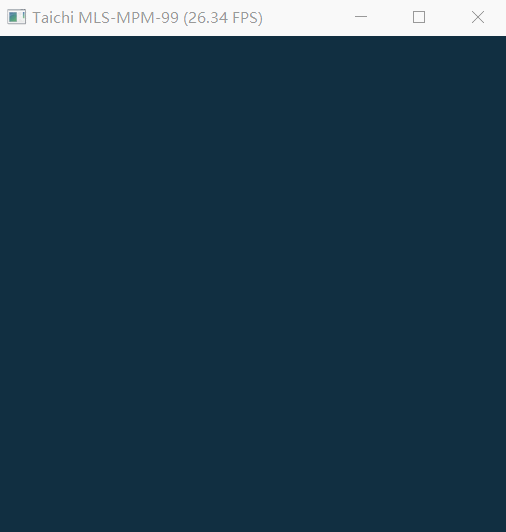

taichi: [Bug][opengl] mpm99.py rendering failed

Great! This is more than useful! Could you change ti.f32 to ti.f64, and I guess the result will be:

1 0 0 0 0 0 0 0 2 0 ...

If so, I think I have know what’s going on there!

All the prints are 0.0 with your exact code. But I assume you intended to run func() right? If I add func() before the print, the result for openGL end is below. It seems that the problem is related to pointers/movement operation, since the +1 is applied every 4 indices?

Using cpu backend will give you normal result 1 to 512.

are you sure you’re using the Intel card? Does your machine provide dual-card and the second one is AMD?

@archibate Well, I didn’t have time to touch the test machine this weekend. I will reply you on Monday of next week. Please wait.

A brief summary to 3 different results of each datatype.

1. i32/f32: the results after to_numpy (a here) shifts every 4 indices, x prints normally
2. f64: a shifts every 2 indices, x prints normally

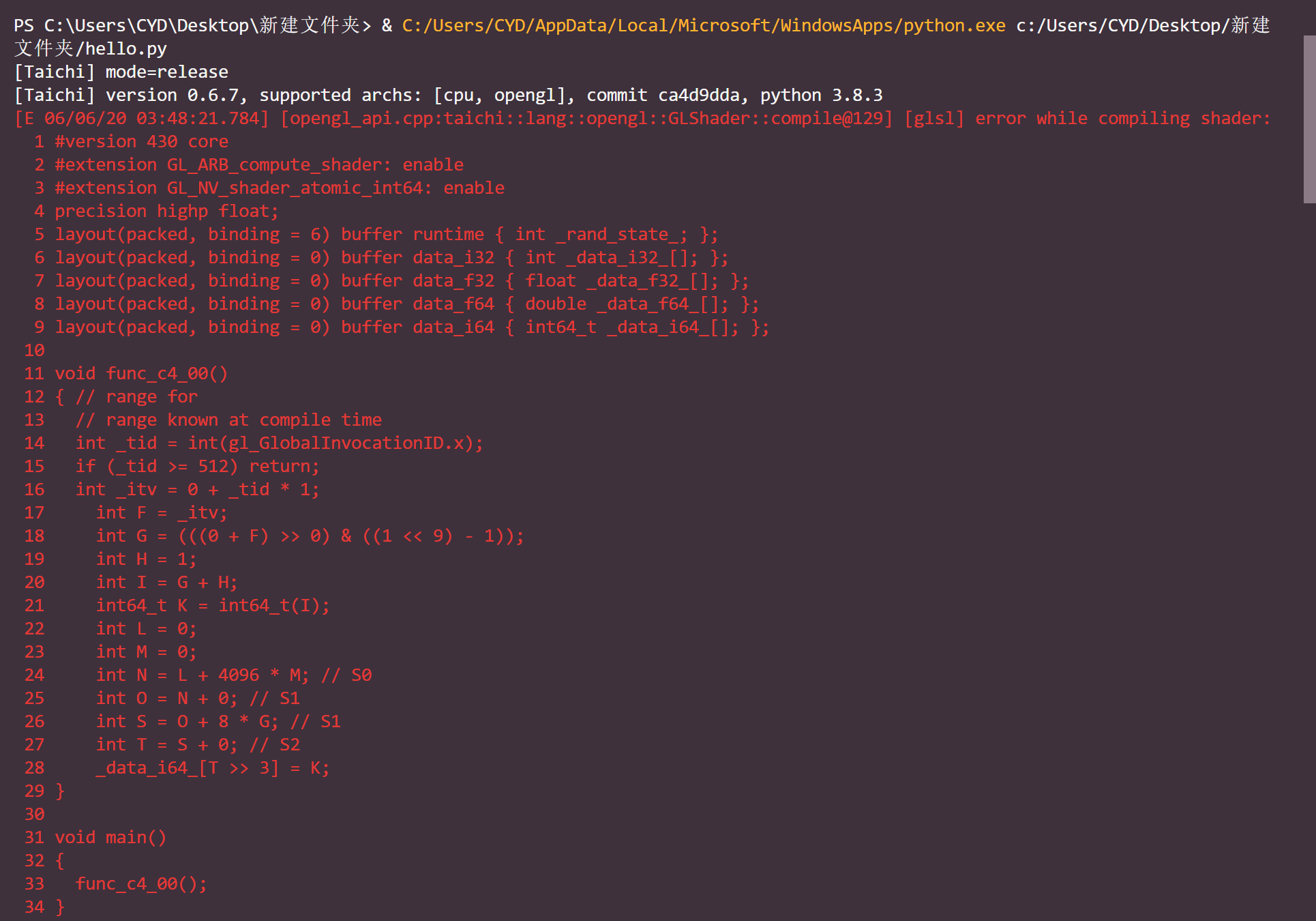

3. i64: the 2 screenshots below, seems to be error in func_c4_00

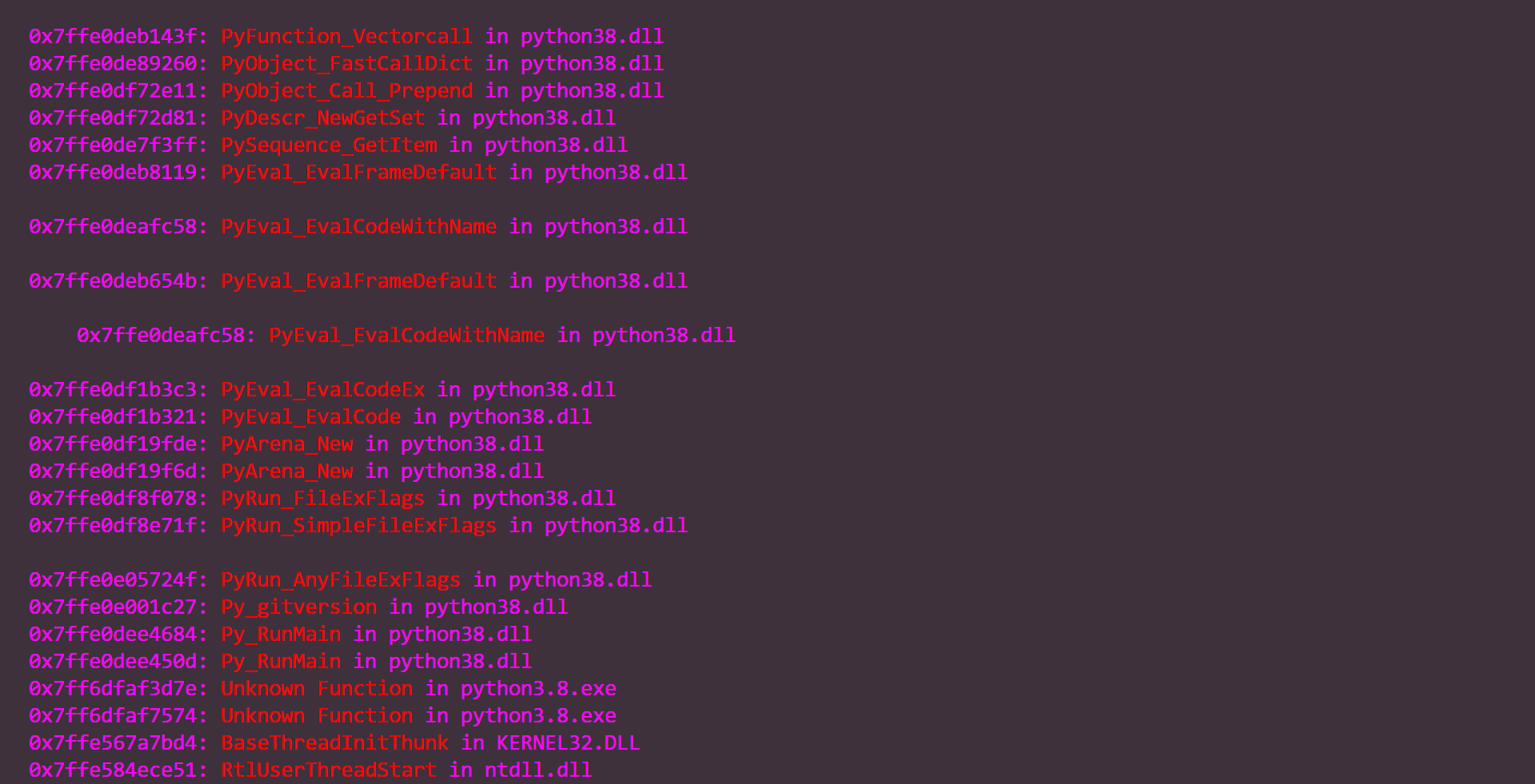

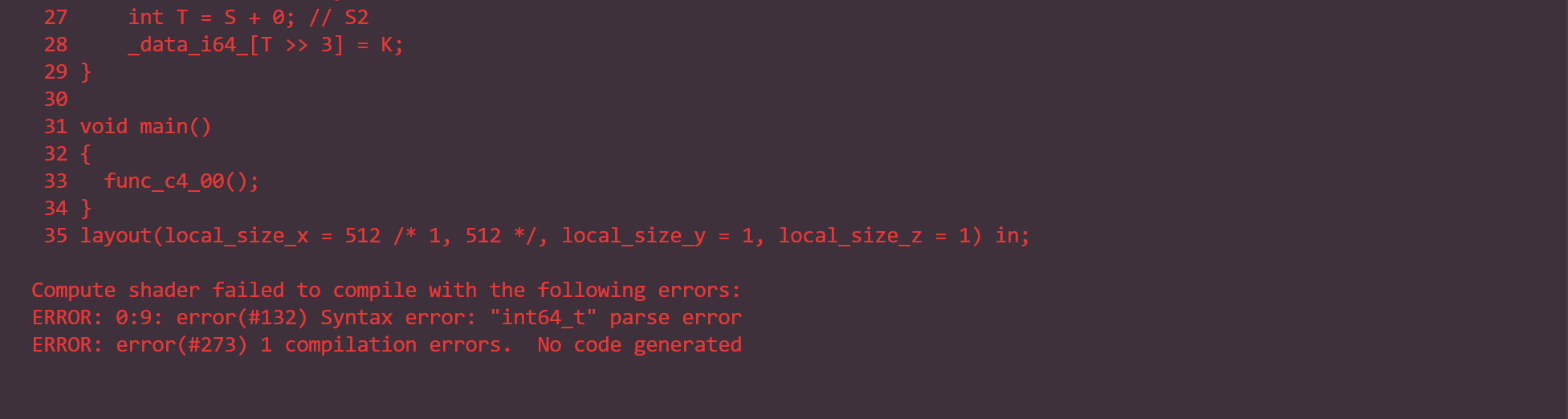

1. all other int and unsigned: the 2 screenshots below, it says not supported (datatype) directly

I found more problems if you change ti.f32 to ti.i32/i64/u32/u64, some errors related to compiler and opengl back-end datatype compatibility will show up (more than one type of error). I will collect those info tomorrow morning 😉 good night guys~

Congrats that you may find the pattern, while a bit different from what you predicted. Now it +1 every 2 indices (instead of 8 as predicted). Nonetheless, that is the problem.

[  1.   0.   2.   0.   3.   0.   4.   0. ...

Hi YuBin,

I also own a windows PC with AMD card and encountered the same problem on it this evening. If you make a fix later I would love to cope with you for further testing.

Best,

Here’s a very similar issue: https://forum.taichi.graphics/t/error-graphics-on-windows-with-opengl/161/3.

Could you run examples/fractal.py to confirm that you have this strange border too?

I confirmed that fractal.py shows strange border. It seems to be the same problem as I’m having. Thank you for checking.

Screenshot

Debug log

[T 06/04/20 09:51:40.554] [program.cpp:taichi::lang::Program::Program@48] Program initializing...
[T 06/04/20 09:51:40.554] [memory_pool.cpp:taichi::lang::MemoryPool::MemoryPool@9] Memory pool created. Default buffer size per allocator = 1024 MB
[T 06/04/20 09:51:40.554] [llvm_context.cpp:taichi::lang::TaichiLLVMContext::TaichiLLVMContext@46] Creating Taichi llvm context for arch: x64
[T 06/04/20 09:51:40.554] [llvm_context.cpp:taichi::lang::TaichiLLVMContext::get_this_thread_data@620] Creating thread local data for thread 10148
[T 06/04/20 09:51:40.555] [llvm_context.cpp:taichi::lang::TaichiLLVMContext::TaichiLLVMContext@71] Taichi llvm context created.
[W 06/04/20 09:51:40.555] [program.cpp:taichi::lang::Program::Program@126] Out-of-bound access checking is only implemented on CPUs backends for now.
[T 06/04/20 09:51:40.555] [program.cpp:taichi::lang::Program::Program@134] Program (0x19c3859b6c0) arch=opengl initialized.
[D 06/04/20 09:51:40.555] [snode.cpp:taichi::lang::SNode::create_node@51] Non-power-of-two node size 640 promoted to 1024.
[D 06/04/20 09:51:40.555] [snode.cpp:taichi::lang::SNode::create_node@51] Non-power-of-two node size 320 promoted to 512.
[T 06/04/20 09:51:40.573] [C:\Users\luozhiya\AppData\Local\Programs\Python\Python38\lib\site-packages\taichi\lang\kernel.py:materialize@256] Materializing layout...
[T 06/04/20 09:51:40.951] [program.cpp:taichi::lang::Program::materialize_layout@279] materialize_layout called
[T 06/04/20 09:51:40.951] [program.cpp:taichi::lang::Program::materialize_layout@304] OpenGL root buffer size: 2097152 B
[T 06/04/20 09:51:40.960] [C:\Users\luozhiya\AppData\Local\Programs\Python\Python38\lib\site-packages\taichi\lang\kernel.py:__call__@463] Compiling kernel paint_c4_0...
[T 06/04/20 09:51:40.981] [constant_fold.cpp:taichi::lang::irpass::constant_fold@211] config.debug enabled, ignoring constant fold
[T 06/04/20 09:51:40.981] [constant_fold.cpp:taichi::lang::irpass::constant_fold@211] config.debug enabled, ignoring constant fold
[T 06/04/20 09:51:40.982] [constant_fold.cpp:taichi::lang::irpass::constant_fold@211] config.debug enabled, ignoring constant fold
