harvester: [BUG] Multiple nodes are upgrading simultaneously in an RKE2 upgrade

Describe the bug

Upgrade to:

• RKE2: v1.24.6+rke2r1
• Rancher: v2.6.9-rc3

In a multi-node setup, the upgrade might be stuck in the middle. Behind the scenes, it is because there are multiple nodes (>= 2) upgrading simultaneously while upgrading RKE2, which implies they are in an unschedulable mode. This could result in the following while a node is in the pre-drain state:

• The Longhorn volumes cannot go back from “degraded” to “healthy” state due to the replicas scheduling failure
• The pre-drain job cannot live-migrate VMs out of the node they run on

Most of the time, the pre-drain Job will be stuck in the first situation because we only start to live-migrate VMs after all the volumes are healthy.

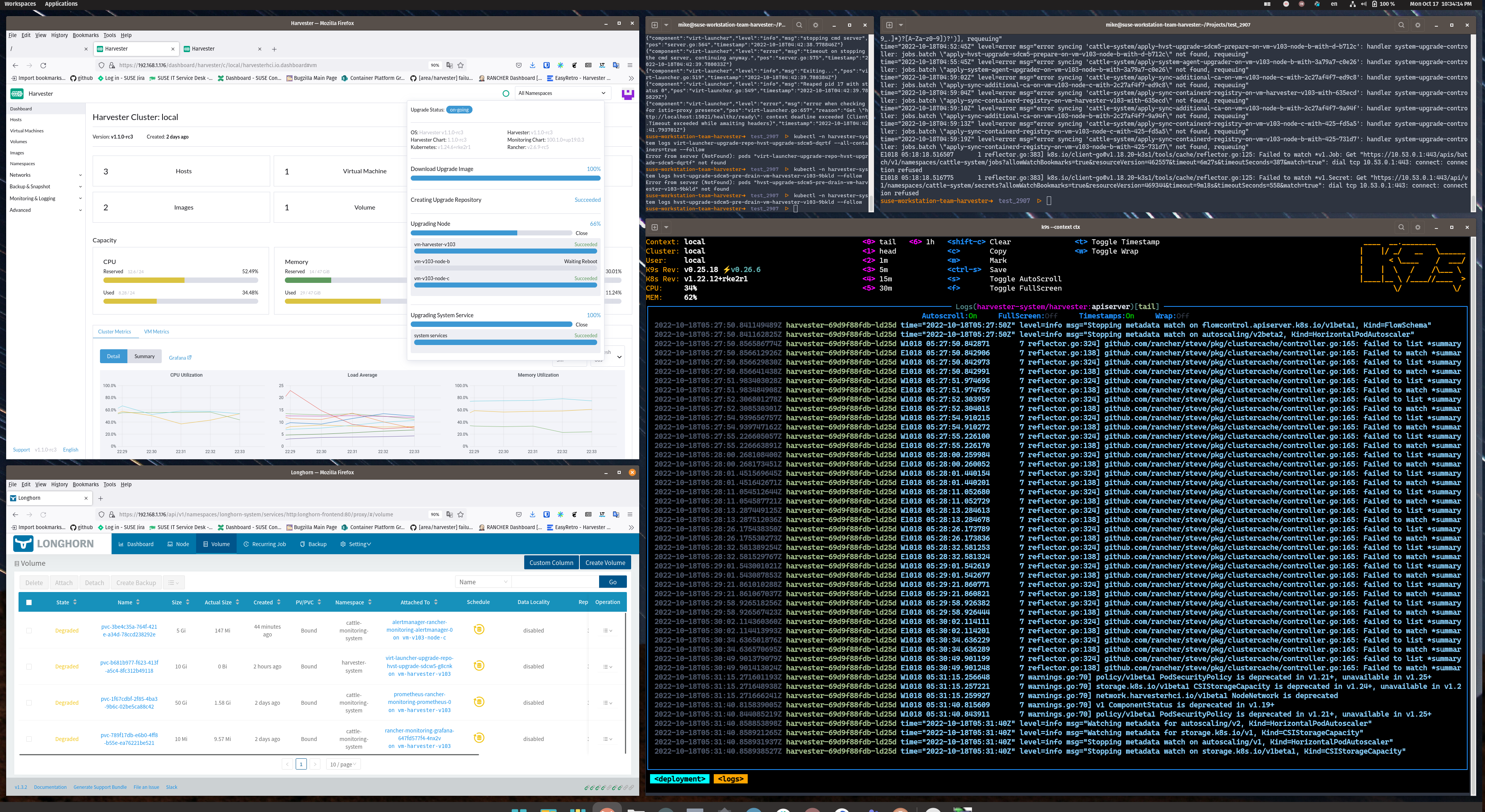

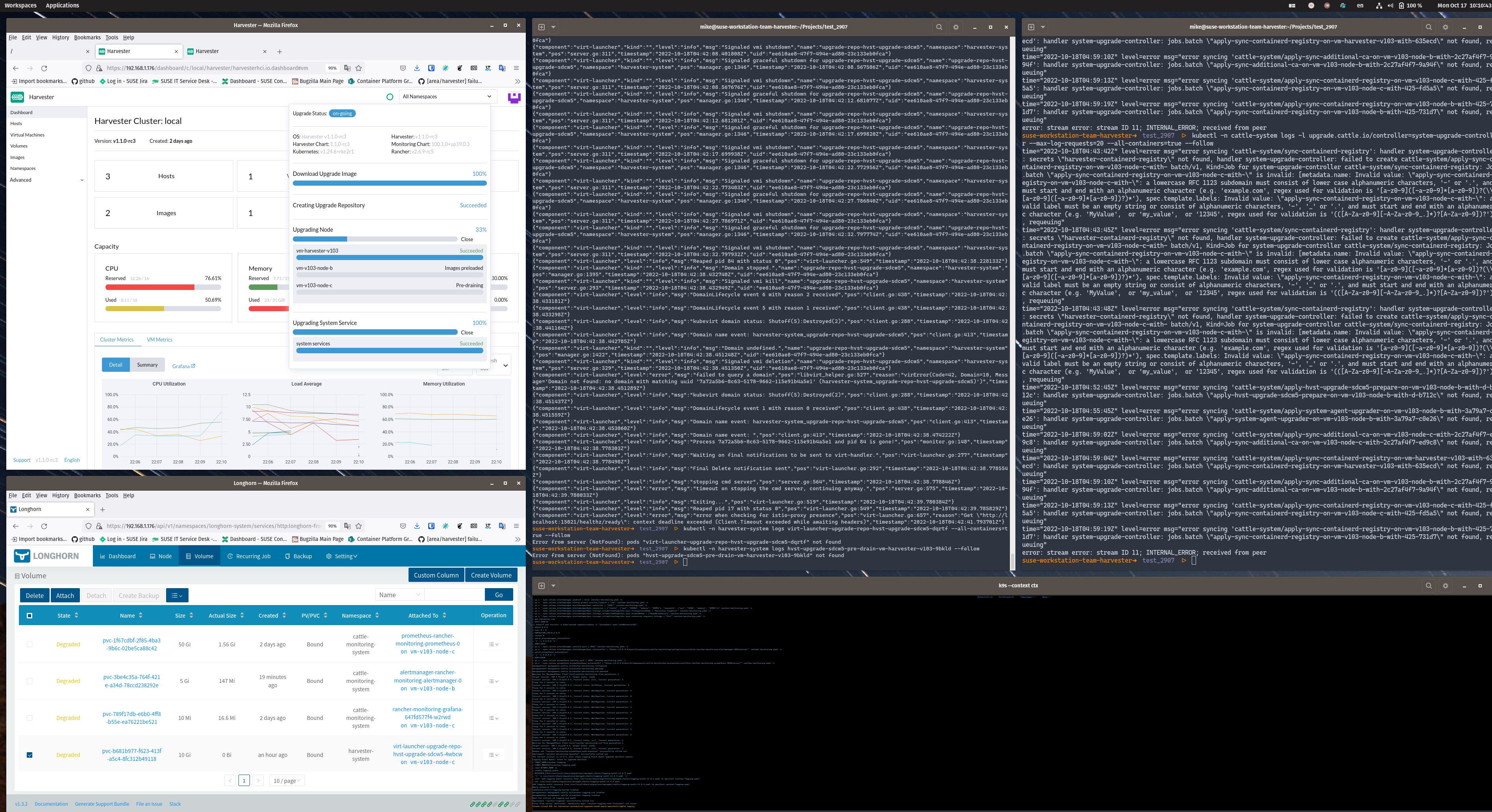

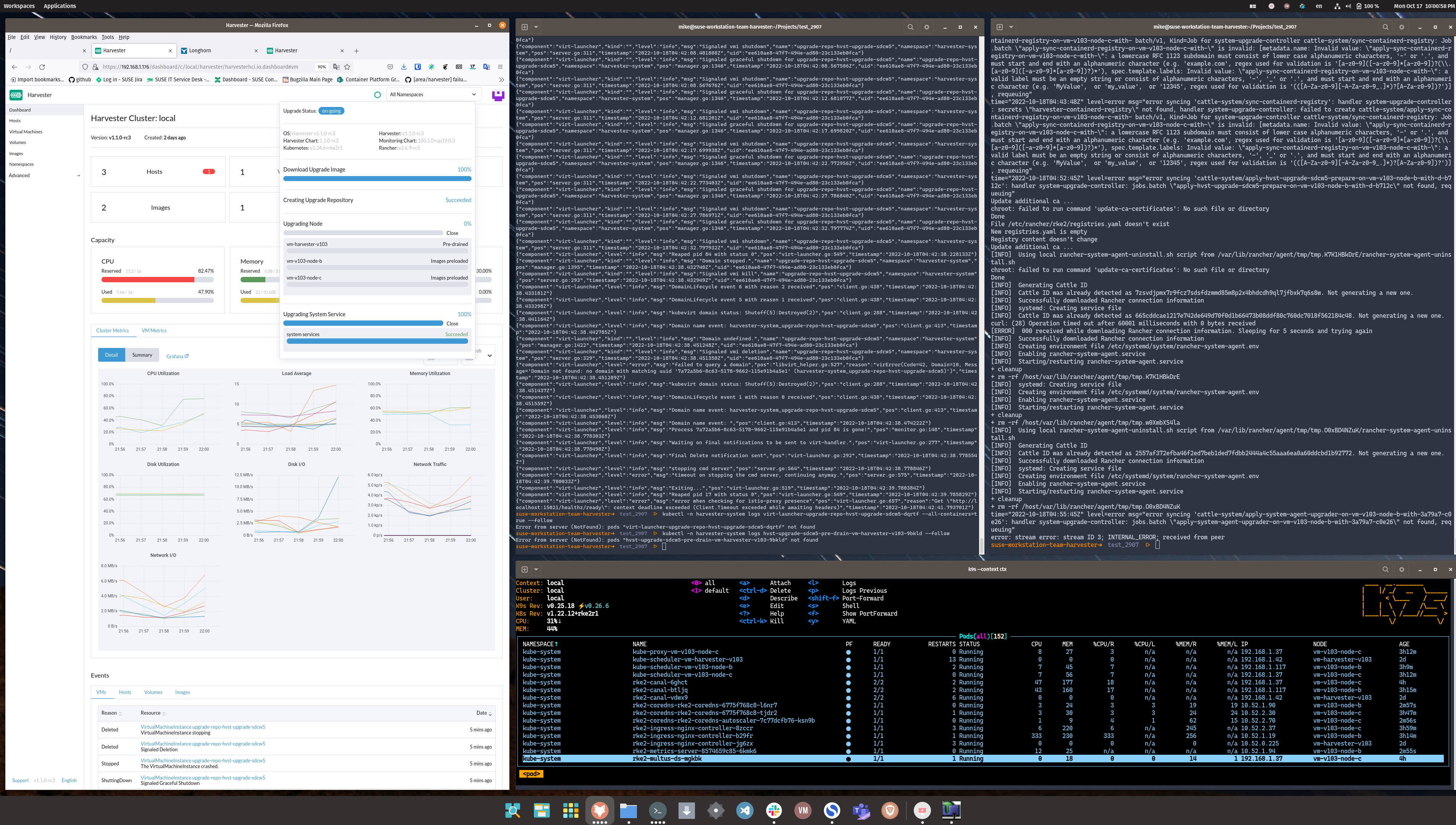

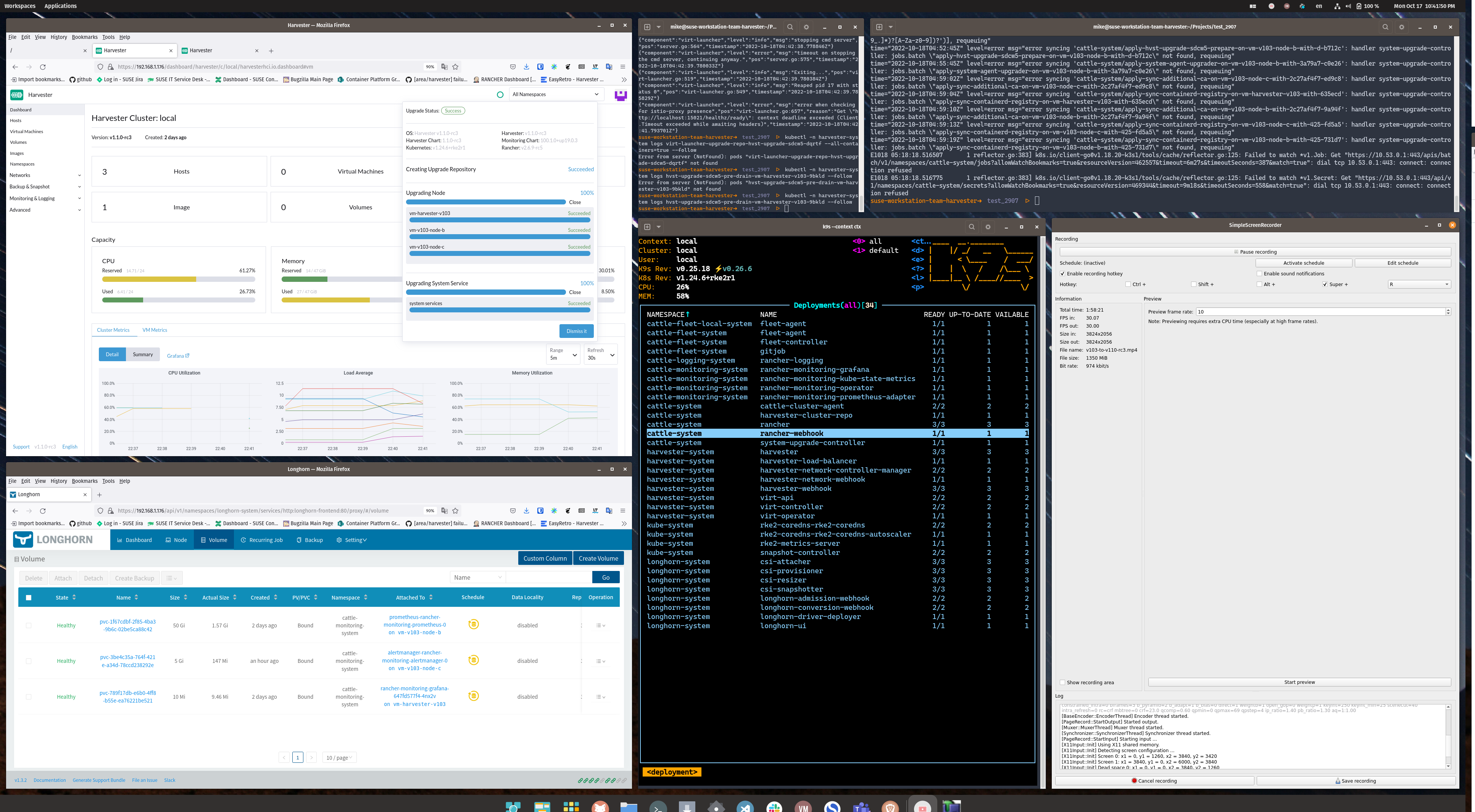

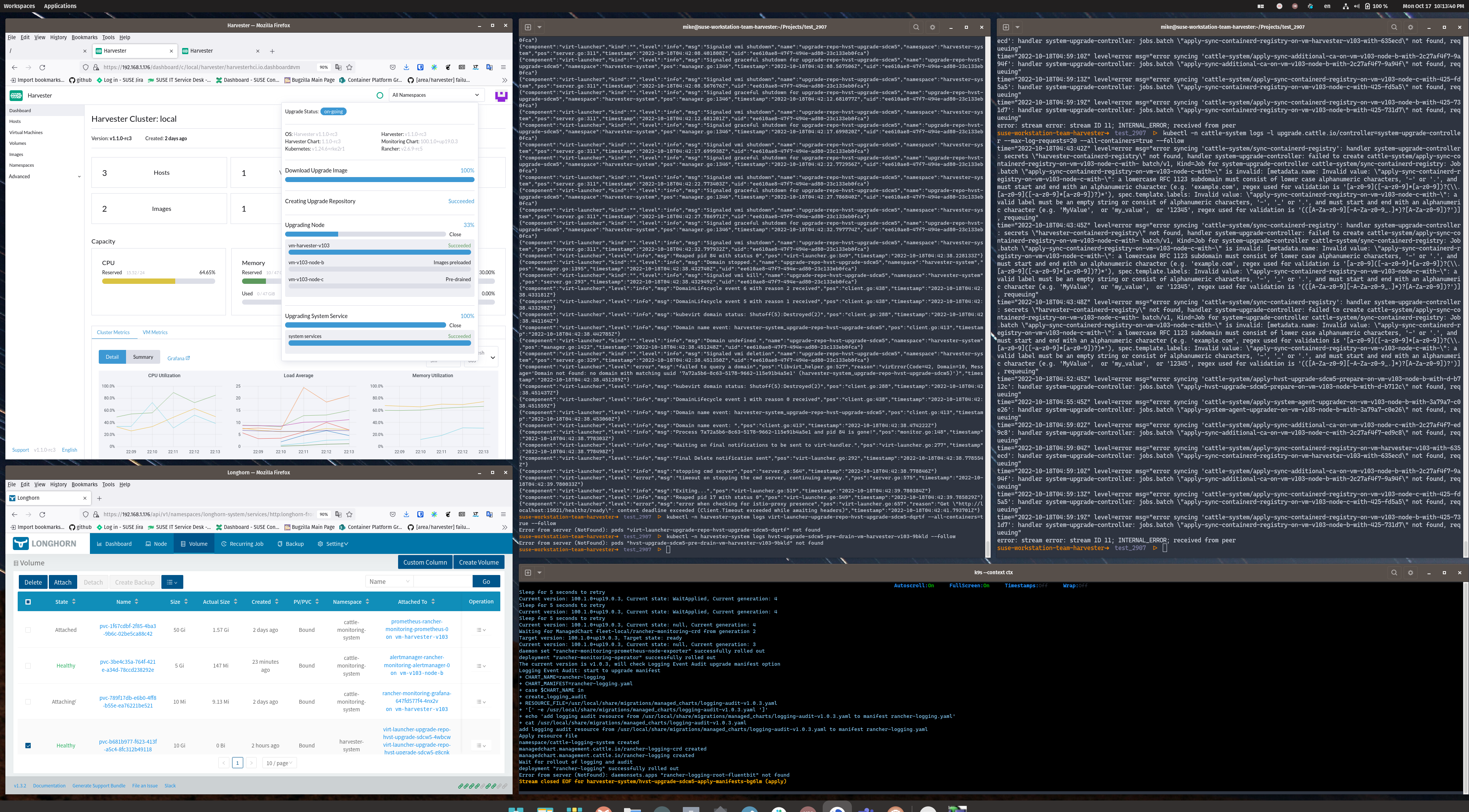

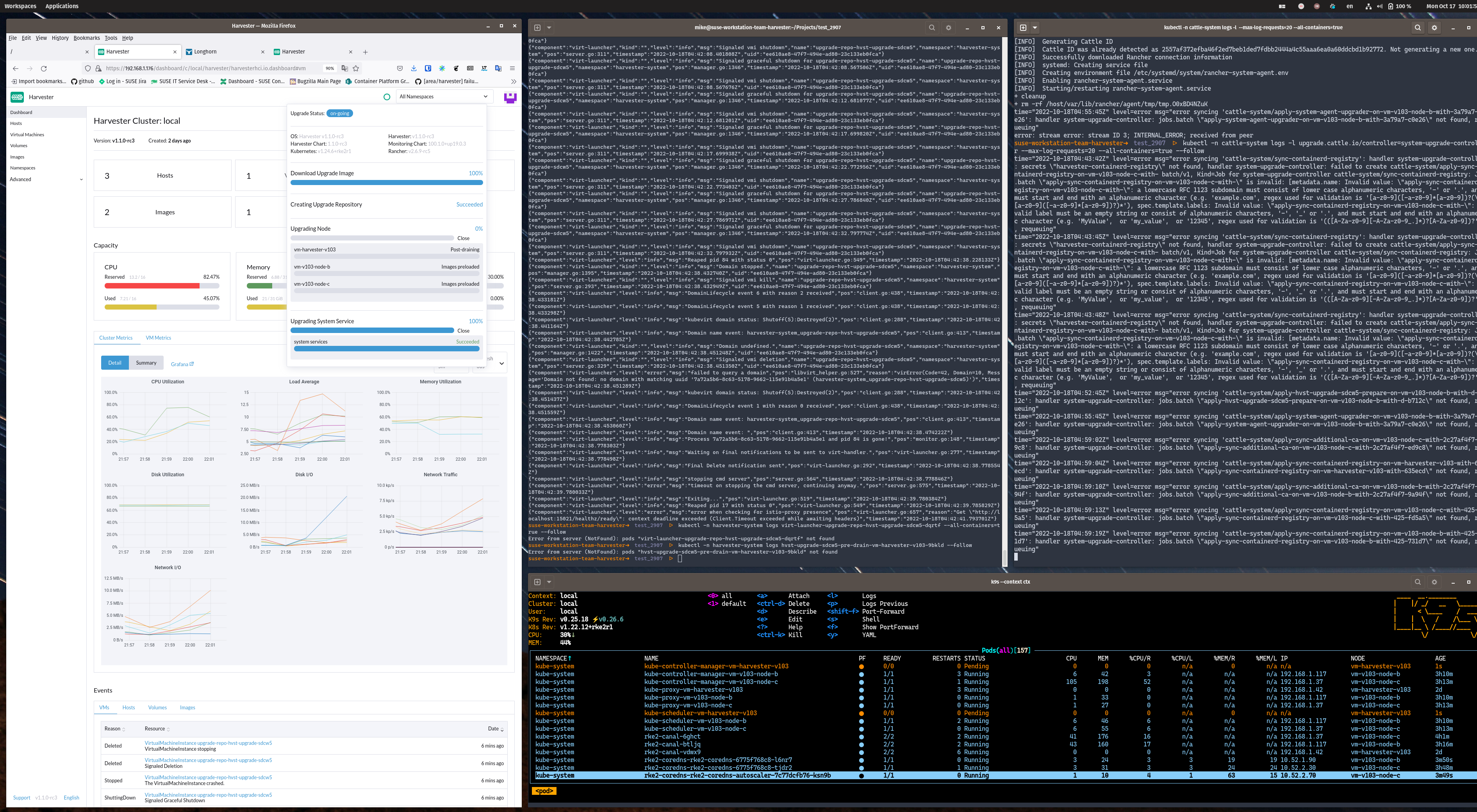

Below is the crime scene:

node-0:~ # k -n harvester-system get upgrades
NAME                 AGE
hvst-upgrade-t9mbq   4h29m
node-0:~ # k -n harvester-system get upgrades hvst-upgrade-t9mbq -o jsonpath='{.status.conditions}' | jq .
[
  {
    "status": "Unknown",
    "type": "Completed"
  },
  {
    "lastUpdateTime": "2022-10-11T09:46:52Z",
    "status": "True",
    "type": "ImageReady"
  },
  {
    "lastUpdateTime": "2022-10-11T09:49:11Z",
    "status": "True",
    "type": "RepoReady"
  },
  {
    "lastUpdateTime": "2022-10-11T10:36:19Z",
    "status": "True",
    "type": "NodesPrepared"
  },
  {
    "lastUpdateTime": "2022-10-11T10:59:49Z",
    "status": "True",
    "type": "SystemServicesUpgraded"
  },
  {
    "status": "Unknown",
    "type": "NodesUpgraded"
  }
]
node-0:~ # k -n harvester-system get upgrades hvst-upgrade-t9mbq -o jsonpath='{.status.nodeStatuses}' | jq .
{
  "node-0": {
    "state": "Succeeded"
  },
  "node-1": {
    "state": "Pre-drained"
  },
  "node-2": {
    "state": "Pre-draining"
  },
  "node-3": {
    "state": "Images preloaded"
  }
}

The first node node-0 is upgraded successfully. But node-1 and node-2 are being upgraded at the same time (though not exactly “start” at the “same time”, it violates what we expected, i.e. upgrade one node at a time). Both node-1 and node-2 are marked with SchedulingDisabled.

node-0:~ # k get no
NAME     STATUS                     ROLES                       AGE     VERSION
node-0   Ready                      control-plane,etcd,master   5d11h   v1.24.6+rke2r1
node-1   Ready,SchedulingDisabled   control-plane,etcd,master   5d10h   v1.24.6+rke2r1
node-2   Ready,SchedulingDisabled   control-plane,etcd,master   5d10h   v1.22.12+rke2r1
node-3   Ready                      <none>                      5d10h   v1.22.12+rke2r1

Go check the upgrade-related Pods. Here we can see the post-drain Job on the first upgraded node node-0 has been completed, which means node-0 is fully upgraded without issues. There is a pre-drain Job left on node-2 running. This implies that node-2 is in the pre-draining state, and VMs should be evacuated to other nodes. How about node-1? From the output of k get no shown above, we know that RKE2 on node-1 has been upgraded to v1.24.6+rke2r1. The uptime of node-1 is the same as node-2 and node-3 (given that all 4 nodes are booted up at the same time). We can infer that node-1 has never entered the post-drain state. But somehow node-2 is triggered to upgrade before the upgrade is completed on node-1.

node-0:~ # k -n harvester-system get po -l harvesterhci.io/upgradeComponent=node
NAME                                         READY   STATUS      RESTARTS   AGE
hvst-upgrade-t9mbq-post-drain-node-0-fbrwk   0/1     Completed   0          3h10m
hvst-upgrade-t9mbq-pre-drain-node-2-rbj2w    1/1     Running     0          160m

From the log of the pre-drain Job on node-2, we can see that it keeps waiting for the Longhorn volumes to become healthy.

node-0:~ # k -n harvester-system logs hvst-upgrade-t9mbq-pre-drain-node-2-rbj2w --since=1m
+ '[' true ']'
+ '[' 4 -gt 2 ']'
++ kubectl get volumes.longhorn.io/pvc-306f865e-5bfa-4d12-8779-fe3371425305 -n longhorn-system -o 'jsonpath={.status.robustness}'
+ robustness=degraded
+ '[' degraded = healthy ']'
+ '[' -f /tmp/skip-pvc-306f865e-5bfa-4d12-8779-fe3371425305 ']'
+ echo 'Waiting for volume pvc-306f865e-5bfa-4d12-8779-fe3371425305 to be healthy...'
+ sleep 10
Waiting for volume pvc-306f865e-5bfa-4d12-8779-fe3371425305 to be healthy...
+ '[' true ']'
+ '[' 4 -gt 2 ']'
++ kubectl get volumes.longhorn.io/pvc-306f865e-5bfa-4d12-8779-fe3371425305 -n longhorn-system -o 'jsonpath={.status.robustness}'
Waiting for volume pvc-306f865e-5bfa-4d12-8779-fe3371425305 to be healthy...
+ robustness=degraded
+ '[' degraded = healthy ']'
+ '[' -f /tmp/skip-pvc-306f865e-5bfa-4d12-8779-fe3371425305 ']'
+ echo 'Waiting for volume pvc-306f865e-5bfa-4d12-8779-fe3371425305 to be healthy...'
+ sleep 10
+ '[' true ']'
+ '[' 4 -gt 2 ']'
++ kubectl get volumes.longhorn.io/pvc-306f865e-5bfa-4d12-8779-fe3371425305 -n longhorn-system -o 'jsonpath={.status.robustness}'
Waiting for volume pvc-306f865e-5bfa-4d12-8779-fe3371425305 to be healthy...
+ robustness=degraded
+ '[' degraded = healthy ']'
+ '[' -f /tmp/skip-pvc-306f865e-5bfa-4d12-8779-fe3371425305 ']'
+ echo 'Waiting for volume pvc-306f865e-5bfa-4d12-8779-fe3371425305 to be healthy...'

That’s impossible for the current situation because there are only 2 schedulable nodes (node-1 and node-3) for all the 3 replicas to run on. We can prove this by examining the condition of the volume, it shows there’s a ReplicaSchedulingFailure:

node-0:~ # k -n longhorn-system get volumes pvc-306f865e-5bfa-4d12-8779-fe3371425305 -o jsonpath='{.status.conditions}' | jq .
[
  {
    "lastProbeTime": "",
    "lastTransitionTime": "2022-10-11T09:46:57Z",
    "message": "",
    "reason": "",
    "status": "False",
    "type": "restore"
  },
  {
    "lastProbeTime": "",
    "lastTransitionTime": "2022-10-11T11:30:29Z",
    "message": "",
    "reason": "ReplicaSchedulingFailure",
    "status": "False",
    "type": "scheduled"
  },
  {
    "lastProbeTime": "",
    "lastTransitionTime": "2022-10-11T09:46:57Z",
    "message": "",
    "reason": "",
    "status": "False",
    "type": "toomanysnapshots"
  }
]

And the running replicas of the volume only exist on node-0 and node-3

node-0:~ # k -n longhorn-system get lhr -l longhornvolume=pvc-306f865e-5bfa-4d12-8779-fe3371425305
NAME                                                  STATE     NODE     DISK                                   INSTANCEMANAGER               IMAGE                               AGE
pvc-306f865e-5bfa-4d12-8779-fe3371425305-r-4477ad68   running   node-0   24e133ac-90bf-47ea-bf3f-0a519adda3ec   instance-manager-r-7cffeda1   longhornio/longhorn-engine:v1.3.1   5h58m
pvc-306f865e-5bfa-4d12-8779-fe3371425305-r-8f915cdf   stopped                                                                                                                     4h14m
pvc-306f865e-5bfa-4d12-8779-fe3371425305-r-f902b787   running   node-3   1e8daca0-9a5b-47fc-b17a-e87da5c49edf   instance-manager-r-3bf011a4   longhornio/longhorn-engine:v1.3.1   5h58m

The whole upgrade is stuck in the pre-draining state on node-2 almost forever because the volume it waits for can never become a healthy one.

It’s time to take a look at the other side. The upgrade controller instructs Rancher to upgrade RKE2 on each node by updating the manifest of clusters.provisioning.cattle.io/local CR. Here we specified the upgrade concurrency of both the control plane and worker to 1 to make sure the upgrade of Harvester goes smoothly.

node-0:~ # k -n fleet-local get clusters local -o jsonpath='{.spec.rkeConfig}' | jq .
{
  "chartValues": null,
  "machineGlobalConfig": null,
  "provisionGeneration": 1,
  "upgradeStrategy": {
    "controlPlaneConcurrency": "1",
    "controlPlaneDrainOptions": {
      "deleteEmptyDirData": true,
      "enabled": true,
      "force": true,
      "ignoreDaemonSets": true,
      "postDrainHooks": [
        {
          "annotation": "harvesterhci.io/post-hook"
        }
      ],
      "preDrainHooks": [
        {
          "annotation": "harvesterhci.io/pre-hook"
        }
      ],
      "timeout": 0
    },
    "workerConcurrency": "1",
    "workerDrainOptions": {
      "deleteEmptyDirData": true,
      "enabled": true,
      "force": true,
      "ignoreDaemonSets": true,
      "postDrainHooks": [
        {
          "annotation": "harvesterhci.io/post-hook"
        }
      ],
      "preDrainHooks": [
        {
          "annotation": "harvesterhci.io/pre-hook"
        }
      ],
      "timeout": 0
    }
  }
}

The pre-drain and post-drain annotations are set on the corresponding secrets when the RKE2 of the node/machine is upgrading.

node-0:~ # k -n fleet-local get machines
NAME                  CLUSTER   NODENAME   PROVIDERID      PHASE     AGE     VERSION
custom-2d94d5d682dc   local     node-3     rke2://node-3   Running   5d13h
custom-7c1afab6e79d   local     node-0     rke2://node-0   Running   5d14h
custom-929d403d1670   local     node-1     rke2://node-1   Running   5d14h
custom-c05d0d11190c   local     node-2     rke2://node-2   Running   5d13h

Check the annotations of the secret custom-929d403d1670-machine-plan (node-1):

node-0:~ # k -n fleet-local get secrets custom-929d403d1670-machine-plan -o jsonpath='{.metadata.annotations}' | jq .
{
  "harvesterhci.io/pre-hook": "{\"IgnoreErrors\":false,\"deleteEmptyDirData\":true,\"disableEviction\":false,\"enabled\":true,\"force\":true,\"gracePeriod\":0,\"ignoreDaemonSets\":true,\"postDrainHooks\":[{\"annotation\":\"harvesterhci.io/post-hook\"}],\"
preDrainHooks\":[{\"annotation\":\"harvesterhci.io/pre-hook\"}],\"skipWaitForDeleteTimeoutSeconds\":0,\"timeout\":0}",
  "objectset.rio.cattle.io/applied": "H4sIAAAAAAAA/4xTwW7bOhD8lYc9i36iLMuUgF6K9pRDgaDope5htVzGqihSIOmkhaF/L6TEaO3Ebo8iZ4azo9kjDJxQY0JojoDO+YSp8y7On779zpQip1Xo/IowJcurzv/faWgg9CwGpH3nGLKrUP/kOIiHx/6Z8cfNo8z+u+ucfnd/9/G99ymmgONflRwODA3QISY/iLqodZmvtay2+T9R4
4g0841lTsJ6QgvZhTGLLdsIDRx3sMfwyDFx2FM33w3o8IH1DpodpHDgHUwwZUCBl9Q+dwPHhMMIjTtYm8FJ6whkD7PO6ofoVZylXg5OE528XHkRmuW9G0PuMe6hgZJVyVpLs1FbluWm1kySVIFG57piaTA3bZHjq7Gv+LkAeZeCt2K06FgEb/m3sXMkJ9I3AS/dEUuZyKDKDVY5ttsNb3K5xpwKhRuqeFOqqjV1JZlbY1BxhbxeV0pSqZTmbV7L
q+I363JOefKh53BmecrgusCp/EsW8Ix8u15L/e7ZcGBHHKH5egQcuy8cYufdG4sBGbTWU/9pJn5gy2nBzZ4yePkFlsPppO/cnOHFHt0c/bCkLg1TgYUSZNZSlKRroYoqF8xUV4hI27KG6duUQfo58iujZwFMvwIAAP//B0mT1koEAAA",
  "objectset.rio.cattle.io/id": "rke-machine",
  "objectset.rio.cattle.io/owner-gvk": "rke.cattle.io/v1, Kind=RKEBootstrap",
  "objectset.rio.cattle.io/owner-name": "custom-929d403d1670",
  "objectset.rio.cattle.io/owner-namespace": "fleet-local",
  "rke.cattle.io/drain-done": "{\"IgnoreErrors\":false,\"deleteEmptyDirData\":true,\"disableEviction\":false,\"enabled\":true,\"force\":true,\"gracePeriod\":0,\"ignoreDaemonSets\":true,\"postDrainHooks\":[{\"annotation\":\"harvesterhci.io/post-hook\"}],\"
preDrainHooks\":[{\"annotation\":\"harvesterhci.io/pre-hook\"}],\"skipWaitForDeleteTimeoutSeconds\":0,\"timeout\":0}",
  "rke.cattle.io/drain-options": "{\"IgnoreErrors\":false,\"deleteEmptyDirData\":true,\"disableEviction\":false,\"enabled\":true,\"force\":true,\"gracePeriod\":0,\"ignoreDaemonSets\":true,\"postDrainHooks\":[{\"annotation\":\"harvesterhci.io/post-hook\"}]
,\"preDrainHooks\":[{\"annotation\":\"harvesterhci.io/pre-hook\"}],\"skipWaitForDeleteTimeoutSeconds\":0,\"timeout\":0}",
  "rke.cattle.io/join-url": "https://192.168.122.121:9345",
  "rke.cattle.io/labels": "{\"harvesterhci.io/managed\":\"true\"}",
  "rke.cattle.io/post-drain": "{\"IgnoreErrors\":false,\"deleteEmptyDirData\":true,\"disableEviction\":false,\"enabled\":true,\"force\":true,\"gracePeriod\":0,\"ignoreDaemonSets\":true,\"postDrainHooks\":[{\"annotation\":\"harvesterhci.io/post-hook\"}],\"
preDrainHooks\":[{\"annotation\":\"harvesterhci.io/pre-hook\"}],\"skipWaitForDeleteTimeoutSeconds\":0,\"timeout\":0}",
  "rke.cattle.io/pre-drain": "{\"IgnoreErrors\":false,\"deleteEmptyDirData\":true,\"disableEviction\":false,\"enabled\":true,\"force\":true,\"gracePeriod\":0,\"ignoreDaemonSets\":true,\"postDrainHooks\":[{\"annotation\":\"harvesterhci.io/post-hook\"}],\"p
reDrainHooks\":[{\"annotation\":\"harvesterhci.io/pre-hook\"}],\"skipWaitForDeleteTimeoutSeconds\":0,\"timeout\":0}",
  "rke.cattle.io/uncordon": "{\"IgnoreErrors\":false,\"deleteEmptyDirData\":true,\"disableEviction\":false,\"enabled\":true,\"force\":true,\"gracePeriod\":0,\"ignoreDaemonSets\":true,\"postDrainHooks\":[{\"annotation\":\"harvesterhci.io/post-hook\"}],\"pr
eDrainHooks\":[{\"annotation\":\"harvesterhci.io/pre-hook\"}],\"skipWaitForDeleteTimeoutSeconds\":0,\"timeout\":0}"
}

Check the annotations of the secret custom-c05d0d11190c-machine-plan (node-2):

node-0:~ # k -n fleet-local get secrets custom-c05d0d11190c-machine-plan -o jsonpath='{.metadata.annotations}' | jq .
{
  "objectset.rio.cattle.io/applied": "H4sIAAAAAAAA/4xTzW7bPBB8lQ97Fv3xRz+WgF6K9pRDgaDope5hSa1iVRQpkHTSwtC7F1JitHZit0eRM8PZ0ewRRkrYYkJojoDO+YSp9y4un15/J5MipU3o/cZgSpY2vf+/b6GBMBAb0ex7R5BdhfonR4E9PA7PjD9uHkX2313v2nf3dx/fe59iCjj9VcnhSNCAOcTkR2Z40fJWCFFz80/UO
KFZ+J0lSsx6gxayC2MWNdkIDRx3sMfwSDFR2Jt+uRvR4QO1O2h2kMKBdjDDnIEJtKb2uR8pJhwnaNzB2gxOWkcw9rDobH6wYRsXqZeD00QnL1dehGZ978aQe4x7aEDUXFVVVZpC867OqdNFZbiSnSwqIkmC2iLXong19hU/FyDvUvCWTRYdseAt/TZ2jqRk2puAl+6wtUwSS8GraivzUnAjSCkjtFZc5LKotULTKSOR1FbVeVFKIlV32miqJKdc
mKviN+tyTnnyYaBwZnnO4LrAqfxrFvCMfLtea/3uqaNAzlCE5usRcOq/UIi9d28sBmSgrTfDp4X4gSylFbd4yuDlF1gKp5Ohd0uGF3t0c/TDmnpVtCi0RFbKHFle5i3TUhKrW56rnKtyW3cwf5szSD8nemX0LID5VwAAAP//98YwqkoEAAA",
  "objectset.rio.cattle.io/id": "rke-machine",
  "objectset.rio.cattle.io/owner-gvk": "rke.cattle.io/v1, Kind=RKEBootstrap",
  "objectset.rio.cattle.io/owner-name": "custom-c05d0d11190c",
  "objectset.rio.cattle.io/owner-namespace": "fleet-local",
  "rke.cattle.io/drain-options": "{\"IgnoreErrors\":false,\"deleteEmptyDirData\":true,\"disableEviction\":false,\"enabled\":true,\"force\":true,\"gracePeriod\":0,\"ignoreDaemonSets\":true,\"postDrainHooks\":[{\"annotation\":\"harvesterhci.io/post-hook\"}]
,\"preDrainHooks\":[{\"annotation\":\"harvesterhci.io/pre-hook\"}],\"skipWaitForDeleteTimeoutSeconds\":0,\"timeout\":0}",
  "rke.cattle.io/join-url": "https://192.168.122.122:9345",
  "rke.cattle.io/labels": "{\"harvesterhci.io/managed\":\"true\"}",
  "rke.cattle.io/pre-drain": "{\"IgnoreErrors\":false,\"deleteEmptyDirData\":true,\"disableEviction\":false,\"enabled\":true,\"force\":true,\"gracePeriod\":0,\"ignoreDaemonSets\":true,\"postDrainHooks\":[{\"annotation\":\"harvesterhci.io/post-hook\"}],\"p
reDrainHooks\":[{\"annotation\":\"harvesterhci.io/pre-hook\"}],\"skipWaitForDeleteTimeoutSeconds\":0,\"timeout\":0}"
}

node-0:~ # k -n cattle-system logs -l app=rancher
W1012 02:39:20.056363      33 warnings.go:80] policy/v1beta1 PodSecurityPolicy is deprecated in v1.21+, unavailable in v1.25+
W1012 02:45:04.057107      33 warnings.go:80] policy/v1beta1 PodSecurityPolicy is deprecated in v1.21+, unavailable in v1.25+
W1012 02:47:50.962077      33 warnings.go:80] network.harvesterhci.io/v1beta1 NodeNetwork is deprecated
W1012 02:52:42.058995      33 warnings.go:80] policy/v1beta1 PodSecurityPolicy is deprecated in v1.21+, unavailable in v1.25+
W1012 02:53:17.964514      33 warnings.go:80] network.harvesterhci.io/v1beta1 NodeNetwork is deprecated
W1012 03:00:00.096962      33 transport.go:288] Unable to cancel request for *client.addQuery
W1012 03:00:25.077424      33 warnings.go:80] policy/v1beta1 PodSecurityPolicy is deprecated in v1.21+, unavailable in v1.25+
W1012 03:00:36.965184      33 warnings.go:80] network.harvesterhci.io/v1beta1 NodeNetwork is deprecated
W1012 03:05:52.966654      33 warnings.go:80] network.harvesterhci.io/v1beta1 NodeNetwork is deprecated
W1012 03:08:43.085276      33 warnings.go:80] policy/v1beta1 PodSecurityPolicy is deprecated in v1.21+, unavailable in v1.25+
2022/10/12 03:00:05 [INFO] [planner] rkecluster fleet-local/local: waiting: uncordoning etcd node(s) custom-929d403d1670: waiting for uncordon to finish
2022/10/12 03:03:13 [INFO] Downloading repo index from http://harvester-cluster-repo.cattle-system/charts/index.yaml
2022/10/12 03:03:14 [INFO] Downloading repo index from https://releases.rancher.com/server-charts/stable/index.yaml
2022/10/12 03:08:13 [INFO] Downloading repo index from http://harvester-cluster-repo.cattle-system/charts/index.yaml
2022/10/12 03:08:14 [INFO] Downloading repo index from https://releases.rancher.com/server-charts/stable/index.yaml
2022/10/12 03:08:23 [INFO] [planner] rkecluster fleet-local/local: waiting: uncordoning etcd node(s) custom-929d403d1670: waiting for uncordon to finish
2022/10/12 03:08:23 [INFO] [planner] rkecluster fleet-local/local: waiting: uncordoning etcd node(s) custom-929d403d1670: waiting for uncordon to finish
2022/10/12 03:09:05 [INFO] [planner] rkecluster fleet-local/local: waiting: uncordoning etcd node(s) custom-929d403d1670: waiting for uncordon to finish
2022/10/12 03:09:08 [INFO] [planner] rkecluster fleet-local/local: waiting: uncordoning etcd node(s) custom-929d403d1670: waiting for uncordon to finish
2022/10/12 03:10:06 [INFO] [planner] rkecluster fleet-local/local: waiting: uncordoning etcd node(s) custom-929d403d1670: waiting for uncordon to finish
W1012 02:34:06.943613      33 warnings.go:80] policy/v1beta1 PodSecurityPolicy is deprecated in v1.21+, unavailable in v1.25+
W1012 02:39:19.762602      33 warnings.go:80] network.harvesterhci.io/v1beta1 NodeNetwork is deprecated
W1012 02:40:24.941360      33 warnings.go:80] policy/v1beta1 PodSecurityPolicy is deprecated in v1.21+, unavailable in v1.25+
W1012 02:47:05.943248      33 warnings.go:80] policy/v1beta1 PodSecurityPolicy is deprecated in v1.21+, unavailable in v1.25+
W1012 02:47:15.766388      33 warnings.go:80] network.harvesterhci.io/v1beta1 NodeNetwork is deprecated
W1012 02:52:50.945579      33 warnings.go:80] policy/v1beta1 PodSecurityPolicy is deprecated in v1.21+, unavailable in v1.25+
W1012 02:54:48.767367      33 warnings.go:80] network.harvesterhci.io/v1beta1 NodeNetwork is deprecated
W1012 02:59:23.961176      33 warnings.go:80] policy/v1beta1 PodSecurityPolicy is deprecated in v1.21+, unavailable in v1.25+
W1012 03:04:26.770103      33 warnings.go:80] network.harvesterhci.io/v1beta1 NodeNetwork is deprecated
W1012 03:05:31.964012      33 warnings.go:80] policy/v1beta1 PodSecurityPolicy is deprecated in v1.21+, unavailable in v1.25+

To Reproduce

Steps to reproduce the behavior:

1. Prepare a multi-node (>= 3) Harvester cluster in v1.0.3
2. Trigger an upgrade to v1.1.0-rc2
3. Wait for the upgrade stuck in the pre-draining state (not always reproducible), and check the nodes’ state to confirm the issue has happened

Expected behavior

The RKE2 upgrade should be kicked off one node at a time and the upgrade of Harvester should end up successfully.

Support bundle

supportbundle_ebe4b217-6355-4356-823a-f9e5f09e28b4_2022-10-11T16-46-36Z.zip

Environment

• Harvester ISO version: v1.1.0-rc2
• Underlying Infrastructure (e.g. Baremetal with Dell PowerEdge R630):

Additional context

Related issue: rancher/rancher#39167 Related issues in previous versions: rancher/rancher#35999, rancher/rancher#37502

The issue could be work around temporarily with uncordoning the node manually, say kubectl uncordon node-1 from the above case. Then the upgrade will proceed. But there’s high chance encountering other RKE2 issues like #2893, restarting the rke2-server on the corresponding node might be necessary.
