fastlane: [Regression] Frameit text is small

New Issue Checklist

Issue Description

I was using frameit to frame my screenshots and when I was on version 2.136.0 it was working great.

I updated fastlane to 2.146.0 to be able to use the new device frames and now all the text is really small. The area where the text would be rendered didn’t change, only the text size. I tracked down the issue to version 2.139.0. Using version 2.138.0 doesn’t cause this issue.

This is my Framefile.json

{
  "default": {
    "title": {
      "color": "#FFFFFF",
      "font": "./fonts/Font.ttc"
    },
    "background": "./background.png",
    "font_scale_factor": 0.25,
    "padding": "5%",
    "stack_title": true
  },

“data”: [ { “filter”: “0_Countdowns”, “background”: “./background-red.jpg” }, { “filter”: “1_DarkMode”, “background”: “./background-darkgray.jpg” }, { “filter”: “2_Images”, “background”: “./background-green.jpg”, “title_below_image”: true }, { “filter”: “3_Share”, “background”: “./background-purple.jpg”, “title_below_image”: true } ] }

I’ve I’ve played around with font_scale_factor and padding and also tried removing stack_title, as well as the custom font. Neither of these changes worked.

I also tried reinstalling imagemagick to make sure it was the latest version, but that didn’t make a difference.

I’m attaching two images of how the output used to look and how it does now. I’m also attaching a folder with the required files to reproduce this.

screenshots.zip

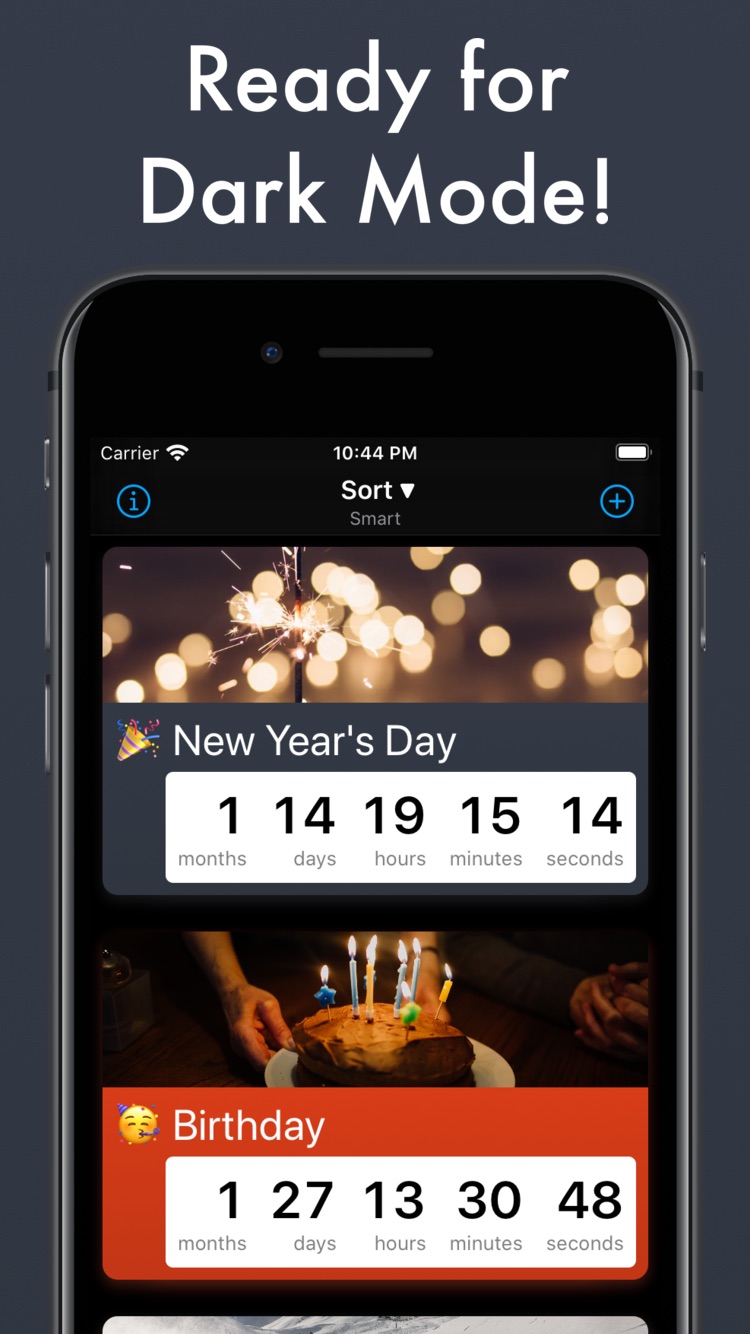

Previous Output iPhone 8-1_DarkMode_framed

Command executed

fastlane frameit

Complete output when running fastlane, including the stack trace and command used
$fastlane frameit
[✔] 🚀
[12:39:26]: Get started using a Gemfile for fastlane https://docs.fastlane.tools/getting-started/ios/setup/#use-a-gemfile
[12:39:27]: Using device frames version 'latest'
[⠏] Framing screenshot './en-US/iPhone 8-1_DarkMode.png' composite: invalid profile length `/var/folders/l7/268fs7bx3hb_9xpfmq_jhjy40000gn/T/mini_magick20200423-41545-1o7v9yv.png' @ warning/png.c/MagickPNGWarningHandler/1748.
[⠹] Framing screenshot './en-US/iPhone 8-1_DarkMode.png' convert: invalid profile length `/var/folders/l7/268fs7bx3hb_9xpfmq_jhjy40000gn/T/mini_magick20200423-41545-1t0n13v.png' @ warning/png.c/MagickPNGWarningHandler/1748.
[✔] Framing screenshot './en-US/iPhone 8-1_DarkMode.png'
[12:39:32]: Added frame: '/Users/emiliopelaez/Desktop/screenshots/en-US/iPhone 8-1_DarkMode_framed.png'

Environment

🚫 fastlane environment 🚫

Stack

Key Value
OS 10.15.4
Ruby 2.6.3
Bundler? true
Git git version 2.24.2 (Apple Git-127)
Installation Source ~/.rvm/gems/ruby-2.6.3/bin/fastlane
Host Mac OS X 10.15.4 (19E287)
Ruby Lib Dir ~/.rvm/rubies/ruby-2.6.3/lib
OpenSSL Version OpenSSL 1.1.1d 10 Sep 2019
Is contained false
Is homebrew false
Is installed via Fabric.app false
Xcode Path /Applications/Xcode.app/Contents/Developer/
Xcode Version 11.4.1

System Locale

Error
No Locale with UTF8 found 🚫

fastlane files:

`./fastlane/Fastfile`
# This file contains the fastlane.tools configuration
# You can find the documentation at https://docs.fastlane.tools
#
# For a list of all available actions, check out
#
#     https://docs.fastlane.tools/actions
#
# For a list of all available plugins, check out
#
#     https://docs.fastlane.tools/plugins/available-plugins
#

# Uncomment the line if you want fastlane to automatically update itself
# update_fastlane

default_platform(:ios)

platform :ios do
  desc "Build app, test, create screenshots and upload to AppStore"
  lane :release do
    build_app(scheme: "Countdown", output_directory: "./build")
    run_tests(skip_build: true)
    capture_screenshots
    frame_screenshots
    upload_to_app_store(force: true)
  end
end

platform :ios do
  desc "Build App"
  lane :build do
    build_app(scheme: "Countdown", output_directory: "./build")
  end
 end

 platform :ios do
  desc "Run Tests"
  lane :test do
    run_tests
  end
end

platform :ios do
  desc "Generate new localized screenshots"
  lane :screenshots do
    capture_screenshots
    frame_screenshots
  end
end

platform :ios do
  desc "Upload App to AppStore"
  lane :upload do
    upload_to_app_store
  end
end
`./fastlane/Appfile`
app_identifier("identifier") # The bundle identifier of your app
# apple_id("[[APPLE_ID]]") # Your Apple email address


# For more information about the Appfile, see:
#     https://docs.fastlane.tools/advanced/#appfile

fastlane gems

Gem Version Update-Status
fastlane 2.146.1 ✅ Up-To-Date

Loaded fastlane plugins:

No plugins Loaded

Loaded gems
Gem Version
did_you_mean 1.3.0
executable-hooks 1.6.0
bundler-unload 1.0.2
rubygems-bundler 1.4.5
bundler 1.17.3
etc 1.0.1
forwardable 1.2.0
CFPropertyList 3.0.2
public_suffix 2.0.5
addressable 2.7.0
atomos 0.1.3
aws-eventstream 1.1.0
aws-partitions 1.301.0
aws-sigv4 1.1.2
jmespath 1.4.0
aws-sdk-core 3.94.0
aws-sdk-kms 1.30.0
aws-sdk-s3 1.63.0
babosa 1.0.3
claide 1.0.3
colored 1.2
colored2 3.1.2
highline 1.7.10
commander-fastlane 4.4.6
declarative 0.0.10
declarative-option 0.1.0
digest-crc 0.5.1
unf_ext 0.0.7.7
unf 0.1.4
domain_name 0.5.20190701
dotenv 2.7.5
emoji_regex 1.0.1
excon 0.73.0
multipart-post 2.0.0
faraday 0.17.3
http-cookie 1.0.3
faraday-cookie_jar 0.0.6
faraday_middleware 0.13.1
fastimage 2.1.7
gh_inspector 1.1.3
jwt 2.1.0
memoist 0.16.2
multi_json 1.14.1
os 1.1.0
signet 0.14.0
googleauth 0.12.0
httpclient 2.8.3
mini_mime 1.0.2
uber 0.1.0
representable 3.0.4
retriable 3.1.2
google-api-client 0.36.4
google-cloud-env 1.3.1
google-cloud-errors 1.0.0
google-cloud-core 1.5.0
google-cloud-storage 1.26.0
json 2.3.0
mini_magick 4.10.1
multi_xml 0.6.0
plist 3.5.0
rubyzip 1.3.0
security 0.1.3
naturally 2.2.0
simctl 1.6.8
slack-notifier 2.3.2
terminal-notifier 2.0.0
unicode-display_width 1.7.0
terminal-table 1.8.0
tty-screen 0.7.1
tty-cursor 0.7.1
tty-spinner 0.9.3
word_wrap 1.0.0
nanaimo 0.2.6
xcodeproj 1.16.0
rouge 2.0.7
xcpretty 0.3.0
xcpretty-travis-formatter 1.0.0

generated on: 2020-04-23

About this issue

  • Original URL
  • State: closed
  • Created 4 years ago
  • Reactions: 8
  • Comments: 17 (2 by maintainers)

Most upvoted comments

v2.158.0 - Same here.

Install v2.138: sudo gem install fastlane:2.138 Use it: fastlane _2.138.0_ frameit

Looks like this is still an issue, I’d like to keep this issue open as it seems to be affecting too many people 😥

I had some luck with changing the padding and title_min_height:

  "data": [
    {
      "filter": "iPad Pro (12.9-inch) (3rd generation)",
      "padding": "3%x8%",
      "interline_spacing": 30,
      "font_size": 130,
      "title_min_height": "15%"
    },
    {
      "filter": "iPhone 6 Plus",
      "padding": "3%x8%",
      "interline_spacing": 30,
      "font_size": 130,
      "title_min_height": "20%"
    }
]
