electron: [Bug]: Warning: Class WebSwapCGLLayer is implemented in both system library and electron distribution

Preflight Checklist

I have read the Contributing Guidelines for this project.
I agree to follow the Code of Conduct that this project adheres to.
I have searched the issue tracker for a bug report that matches the one I want to file, without success.

Electron Version

18.0.0

What operating system are you using?

macOS

Operating System Version

12.3.1

What arch are you using?

x64

Last Known Working Electron version

17.3.1

Expected Behavior

Starting electron using the npm script "app": "electron ." starts the app with no warnings.

Actual Behavior

Electron starts normally, but with the following warning:

Class WebSwapCGLLayer is implemented in both /System/Library/Frameworks/WebKit.framework/Versions/A/Frameworks/WebCore.framework/Versions/A/Frameworks/libANGLE-shared.dylib (0x7ffa5a006318) and /{path/to/app}/node_modules/electron/dist/Electron.app/Contents/Frameworks/Electron Framework.framework/Versions/A/Libraries/libGLESv2.dylib (0x10f8a89c8). One of the two will be used. Which one is undefined.

({path/to/app} has been substituted for the actual path to the app on my system.)

Testcase Gist URL

No response

Additional Information

No response

About this issue

Original URL
State: closed
Created 2 years ago
Reactions: 27
Comments: 32 (8 by maintainers)

Most upvoted comments

I have the same problem

+41

WuYunlong on Apr 11, 2022

@miniak When fix will be available as built in electron package?

+15

Delagen on May 6, 2022

@codebytere LOL, we’ll just need to change it to yet another name here to avoid the conflict then.

miniak on May 10, 2022

Hi! electron@20.0.1 the same problem

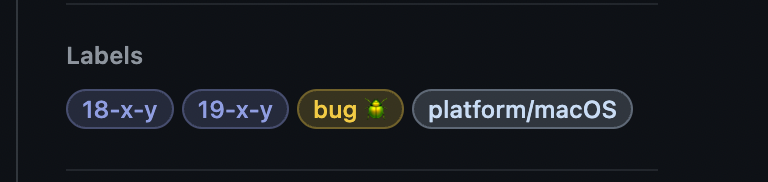

need to add tag 20.x.y

AndreiSoroka on Aug 5, 2022

Commenting is a way to bring attention. Sorry if this is not allowed, will subscribe now.

adrorocker on Jul 15, 2022

it can be fixed by applying this patch in third_party/angle

diff --git a/src/libANGLE/renderer/gl/cgl/WindowSurfaceCGL.h b/src/libANGLE/renderer/gl/cgl/WindowSurfaceCGL.h
index 783a3dff4..8cfca6aa6 100644
--- a/src/libANGLE/renderer/gl/cgl/WindowSurfaceCGL.h
+++ b/src/libANGLE/renderer/gl/cgl/WindowSurfaceCGL.h
@@ -17,8 +17,7 @@ typedef _CGLContextObject *CGLContextObj;
 struct __IOSurface;
 typedef __IOSurface *IOSurfaceRef;

-// WebKit's build process requires that every Objective-C class name has the prefix "Web".
-@class WebSwapCGLLayer;
+@class SwapCGLLayer;

 namespace rx
 {
@@ -87,7 +86,7 @@ class WindowSurfaceCGL : public SurfaceGL
                                               const gl::FramebufferState &state) override;

   private:
-    WebSwapCGLLayer *mSwapLayer;
+    SwapCGLLayer *mSwapLayer;
     SharedSwapState mSwapState;
     uint64_t mCurrentSwapId;

diff --git a/src/libANGLE/renderer/gl/cgl/WindowSurfaceCGL.mm b/src/libANGLE/renderer/gl/cgl/WindowSurfaceCGL.mm
index 21894682d..fd95c07df 100644
--- a/src/libANGLE/renderer/gl/cgl/WindowSurfaceCGL.mm
+++ b/src/libANGLE/renderer/gl/cgl/WindowSurfaceCGL.mm
@@ -24,7 +24,7 @@
 #    include "libANGLE/renderer/gl/StateManagerGL.h"
 #    include "libANGLE/renderer/gl/cgl/DisplayCGL.h"

-@interface WebSwapCGLLayer : CAOpenGLLayer {
+@interface SwapCGLLayer : CAOpenGLLayer {
     CGLContextObj mDisplayContext;

     bool initialized;
@@ -38,7 +38,7 @@ - (id)initWithSharedState:(rx::SharedSwapState *)swapState
             withFunctions:(const rx::FunctionsGL *)functions;
 @end

-@implementation WebSwapCGLLayer
+@implementation SwapCGLLayer
 - (id)initWithSharedState:(rx::SharedSwapState *)swapState
               withContext:(CGLContextObj)displayContext
             withFunctions:(const rx::FunctionsGL *)functions
@@ -213,9 +213,9 @@ - (void)drawInCGLContext:(CGLContextObj)glContext
     mSwapState.lastRendered   = &mSwapState.textures[1];
     mSwapState.beingPresented = &mSwapState.textures[2];

-    mSwapLayer = [[WebSwapCGLLayer alloc] initWithSharedState:&mSwapState
-                                                  withContext:mContext
-                                                withFunctions:mFunctions];
+    mSwapLayer = [[SwapCGLLayer alloc] initWithSharedState:&mSwapState
+                                               withContext:mContext
+                                             withFunctions:mFunctions];
     [mLayer addSublayer:mSwapLayer];
     [mSwapLayer setContentsScale:[mLayer contentsScale]];

miniak on Apr 12, 2022

Same issue here, any fix?

I think no~ because, i still console that with using the latest version, just now now now

GoetheDady on Jun 23, 2022

@miniak any news? Issue is blocking update on current supported version. 17 is last working version, but not supported by electron team.

Delagen on May 25, 2022

Does this warning cause any actual problems? I’m on a Mac and get this in my console, but it still seems to work fine. The warning says “which one is undefined” which seems to imply it could be using the wrong one, but so far the Electron app runs OK for me.

pickhardt on May 15, 2022
