vuetify: [Bug Report] VInput: outlined fieldset legend clipped when dynamically shown

Versions and Environment

Vuetify: 2.0.0-beta.1 Vue: 2.6.10 Browsers: Chrome 74.0.3729.131 OS: Linux x86_64

Steps to reproduce

  1. Create an outlined VTextField, VTextarea or VSelect with a default value so that the fieldset legend is initially set/shown at the top.

  2. Place the previously created element in a wrapper with display: none.

  3. Dynamically (through JavaScript) change the wrapper style to display: block.

Expected Behavior

The fieldset legend will have a width in pixels corresponding to the fieldset legend text width. This makes the outlined border not “strike” the fieldset legend text.

Actual Behavior

The fieldset legend will have a width of 6px regardless after the wrapper style is dynamically changed, thus making it appear “clipped” with the outlined border.

Reproduction Link

https://codepen.io/anon/pen/mZyEmE

About this issue

  • Original URL
  • State: closed
  • Created 5 years ago
  • Comments: 24 (7 by maintainers)

Most upvoted comments

My workaround was inspired by this similar Material-UI issue, where one suggestion was to make the label border white.

Using this Stackoverflow answer as guidance, I have this scoped styling:

    >>>label{
        background-color:white
    }

Beyond the suggestion that @jacekkarczmarczyk provided, you could also use a dynamic key to force re-rendering of the inputs. This will also retain the state of the inner items.

https://codepen.io/johnjleider/pen/rExOod

Otherwise, there is not much we can do.

If you have any additional questions, please reach out to us in our Discord community.

@danielchodusov looks like you just need some padding or margin between your tabs items and content. (not a text-field issue)

This is because of how we calculate the dimensions of the label - offsetWidth is 0 when it’s hidden. Probably could be done by creating a visible copy of the label, but that could be inefficient with a large amount of inputs, I’d say this is won't fix and advise to use v-if instead of hiding the fields with css

hi @jacekkarczmarczyk , this seems like a major issue affecting many people. Even with the v-app, it still does the same. I found a temp fix.

Add this to your styles css in the component.


.v-label.theme–light.error–text { left: 0 !important; } .v-label.v-label–active.theme–light { left: -27px !important; }

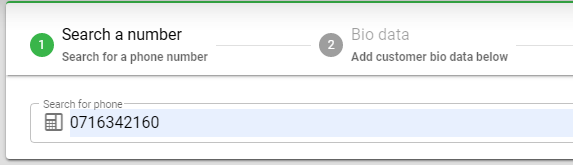

This issue affects outlined inputs in expansion panels & steppers For instance, this, image

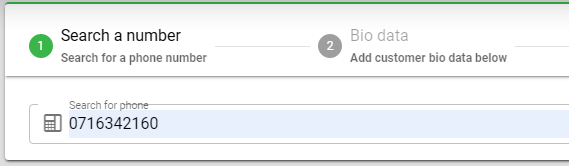

Changes to this image

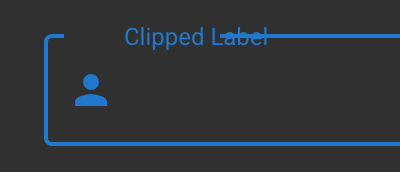

Note that there are some undesired results that seam related to this issue when introducing the prepend-inner-icon attribute too: https://codepen.io/spencercap/pen/vYYbbqg

Screen Shot 2019-11-19 at 9 50 50 PM
