traefik: Failing health check but still available

Any update on this issue ? I’m using traefik 2.0 rc2 and I’m in the same situation.

Just upgraded my LB cluster and confirmed this is resolved in release 2.0.1.

Reproducted on a simpler setup (see below). The case arise when there are 2 routers with a common service on a given container. If there are only 1 router and 1 service, then it works at expected.

version: '3'

services:
  proxy:
    image: traefik:v2.0.1
    command:
      - --entrypoints.web.address=:80
      - --entrypoints.websecure.address=:443
      - --providers.docker
      - --api.insecure
    ports:
      - "80:80"
      - "443:443"
      - "8080:8080"
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
    labels:
      - "traefik.enable=false"

  app:
    image: nginx:alpine
    labels:
      - "traefik.http.routers.webapphttpsec.rule=Host(`localhost`)"
      - "traefik.http.routers.webapphttpsec.entrypoints=websecure"
      - "traefik.http.routers.webapphttpsec.tls=true"
      - "traefik.http.services.webapphttpsec-svc.loadbalancer.healthcheck.path=/health.on"

      - "traefik.http.routers.webapphttp.rule=Host(`localhost`)"
      - "traefik.http.routers.webapphttp.entrypoints=web"

$ docker-compose up -d
$ docker-compose logs app # Check that there is a 404 for the healthcheck from backend's logs
...

$ curl --insecure --location --verbose --silent https://localhost/index.html # Expected: "HTTP/2 503", but it is "HTTP/2 200".
...
< HTTP/2 200
...

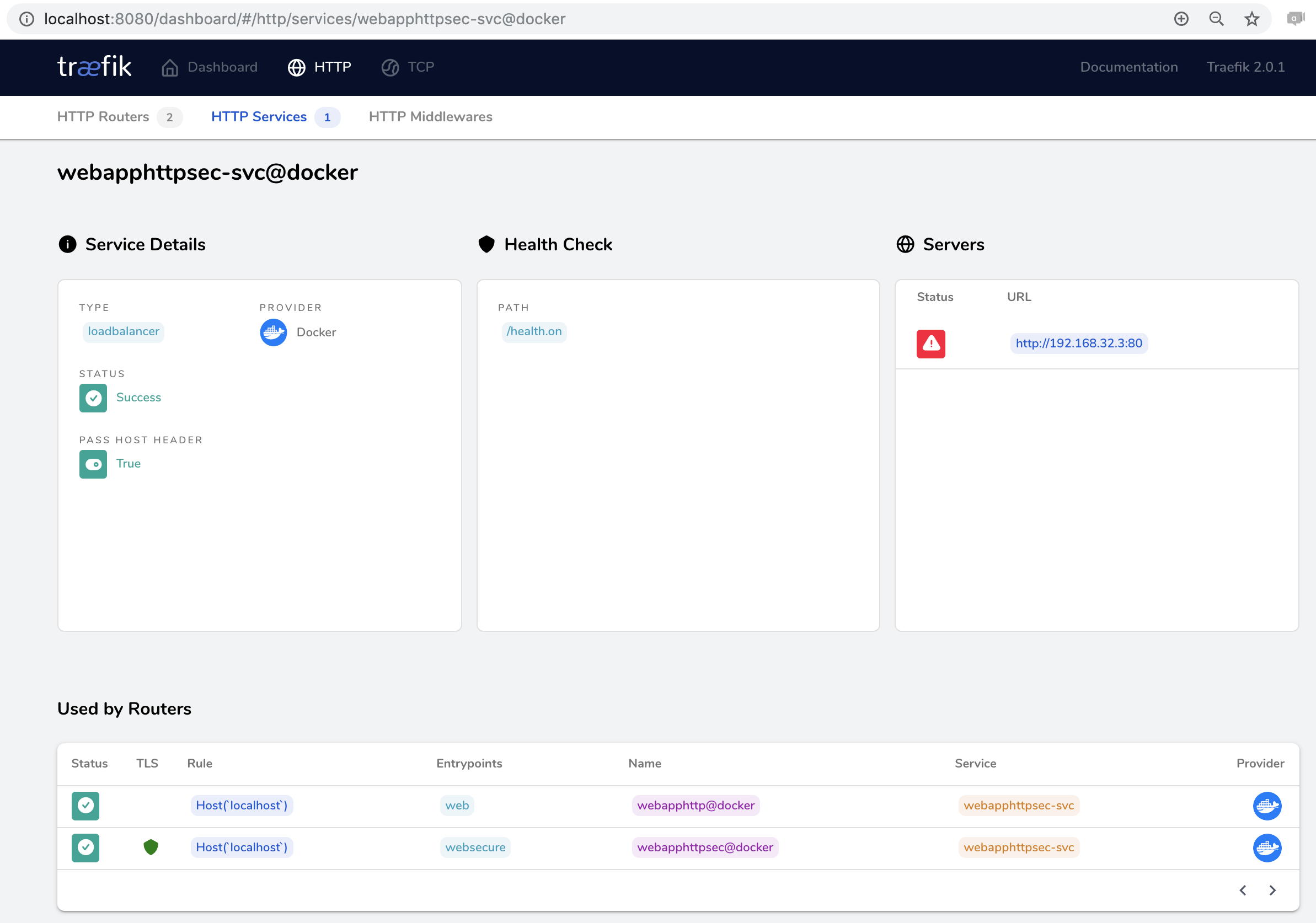

View from the dashboard:

If the router webapphttp is commented out, then you have a HTTP/2 503 - Service Unavailable as expected:

$ #Comment out the 2 labels related to `traefik.http.routers.webapphttp.*` router
$ docker-compose up -d
$ curl --insecure --location --verbose --silent https://localhost/index.html # Expected: "HTTP/2 503", got "HTTP/2 200".
...
< HTTP/2 503
...
Service Unavailable
$

No worries - it was an odd proof of concept, but the clearest I could come up with.

Thanks for the awesome project. I use it daily in my job, and my personal life.

I understood your goal after posting.

Thanks again.

Thanks Idez - I have followed those practices in my production file, I was paring it down for my example.

In the case of the service names, I was trying to simulate a failure of one of the two backend nodes for a single service - intentionally adding both containers to the same service.

In my production config, it looks like:

[...]
  [http.services]
[...]
    # Backend servers
    [http.services.svc1]
      [http.services.svc1.loadBalancer]
        [[http.services.svc1.loadBalancer.servers]]
          url = "http://backend1.example.com:8000"
        [[http.services.svc1.loadBalancer.servers]]
          url = "http://backend2.example.com:8000"
[...]

In this case, when one of the two backends (say, backend2.example.com) goes offline, the behavior mentioned above occurs, where half the requests fail.

Hope that helps explain the purpose of my POC.

I am also in the same situation - the logs are noting:

time="2019-09-13T14:19:08Z" level=warning msg="Health check still failing. Backend: \"backend-service@file\" URL: \"http://backend.server.example.com:8080\" Reason: HTTP request failed: Get http://backend.server.example.com:8080/some/file/script.js: dial tcp 10.20.10.4:8080: connect: connection refused"

But the dashboard still shows as healthy (status, green checkmark in services), and requests are still sometimes getting sent to it, resulting in 502 to end users.

I have also confirmed in the access logs that the 502 client requests are indeed being routed to the backend.
