OpenLane: OpenLane flow causes segfaults during groute
Description
I get the following error during groute:
[ERROR]: during executing openroad script /openlane/scripts/openroad/groute.tcl
Environment
OpenLane environment has been installed as part of Caravel User Project - mpw-5c release
$ python3 ./env.py issue-survey
dependencies.get_tag.NoGitException: Cannot determine git branch. Please specify OPENLANE_IMAGE_NAME manually.
Full output: error: unknown option `show-current'
Commands used to run the design:
make oc_can MGMT_AREA_ROOT=$UPRJ_ROOT/mgmt_core_wrapper
Reproduction Material
openroad_issue_reproducible.tar.gz
Expected behavior
Process should not cause segfaults.
Logs
[INFO GRT-0103] Extra Run for hard benchmark.
Stack trace:
0# 0x0000000000FD1B49 in openroad
1# 0x00007F469DF93400 in /lib64/libc.so.6
2# grt::FastRouteCore::mazeRouteMSMD(int, int, float, int, int, bool, int, float, int, int, int) in openroad
3# grt::FastRouteCore::run() in openroad
4# grt::GlobalRouter::findRouting(std::vector<grt::Net*, std::allocator<grt::Net*> >&, int, int) in openroad
5# grt::GlobalRouter::globalRoute() in openroad
6# 0x00000000017ADF1F in openroad
7# 0x00007F46A0F26EB2 in /lib64/libtcl8.5.so
8# 0x00007F46A0F6B36C in /lib64/libtcl8.5.so
9# TclObjInterpProcCore in /lib64/libtcl8.5.so
10# 0x00007F46A0F26EB2 in /lib64/libtcl8.5.so
11# 0x00007F46A0F6B36C in /lib64/libtcl8.5.so
12# 0x00007F46A0F73647 in /lib64/libtcl8.5.so
13# TclEvalObjEx in /lib64/libtcl8.5.so
14# 0x00007F46A0FAE27F in /lib64/libtcl8.5.so
15# 0x00007F46A0F26EB2 in /lib64/libtcl8.5.so
16# 0x00007F46A0F6B36C in /lib64/libtcl8.5.so
17# 0x00007F46A0F73647 in /lib64/libtcl8.5.so
18# TclEvalObjEx in /lib64/libtcl8.5.so
19# 0x00007F46A0F2E1D0 in /lib64/libtcl8.5.so
20# 0x00007F46A0F26EB2 in /lib64/libtcl8.5.so
21# 0x00007F46A0F6B36C in /lib64/libtcl8.5.so
22# 0x00007F46A0F73647 in /lib64/libtcl8.5.so
23# TclEvalObjEx in /lib64/libtcl8.5.so
24# 0x00007F46A0F31F00 in /lib64/libtcl8.5.so
25# 0x00007F46A0F26EB2 in /lib64/libtcl8.5.so
26# 0x00007F46A0F6B36C in /lib64/libtcl8.5.so
27# TclObjInterpProcCore in /lib64/libtcl8.5.so
28# 0x00007F46A0F26EB2 in /lib64/libtcl8.5.so
29# 0x00007F46A0F6B36C in /lib64/libtcl8.5.so
30# TclObjInterpProcCore in /lib64/libtcl8.5.so
31# 0x00007F46A0F26EB2 in /lib64/libtcl8.5.so
32# 0x00007F46A0F27F1E in /lib64/libtcl8.5.so
33# Tcl_EvalEx in /lib64/libtcl8.5.so
34# Tcl_Eval in /lib64/libtcl8.5.so
35# sta::sourceTclFile(char const*, bool, bool, Tcl_Interp*) in openroad
36# ord::tclAppInit(Tcl_Interp*) in openroad
37# Tcl_Main in /lib64/libtcl8.5.so
38# main in openroad
39# __libc_start_main in /lib64/libc.so.6
40# 0x0000000000FCE417 in openroad
[ERROR]: during executing openroad script /openlane/scripts/openroad/groute.tcl
About this issue
- Original URL
- State: closed
- Created 2 years ago
- Comments: 15 (4 by maintainers)
The crash is fixed with https://github.com/The-OpenROAD-Project/OpenROAD/pull/1742
The crash still needs to be resolved so I’m reopening for that.
Hello @abdullahyildiz ,
This is to confirm that the flow passes using the configuration changes mentioned above.
Please note that the flow may also pass with a target utilization in the range [0.25, 0.6).
Here is a screenshot showing that the flow succeeded at 0.25 target utilization.
Thanks,
Mousa
Hello,
@Prit1097 and I are working on this issue. We cloned the design and updated config.tcl in /openlane/oc_can by removing PL_BASIC_PLACEMENT. We also changed PL_TARGET_DENSITY to 0.25.
The design passed global routing. It is currently in detailed routing. I will update you with the results when detailed routing completes.
Thanks,
Mousa
@abdullahyildiz yes.
PL_BASIC_PLACEMENT is generally a bad idea imho

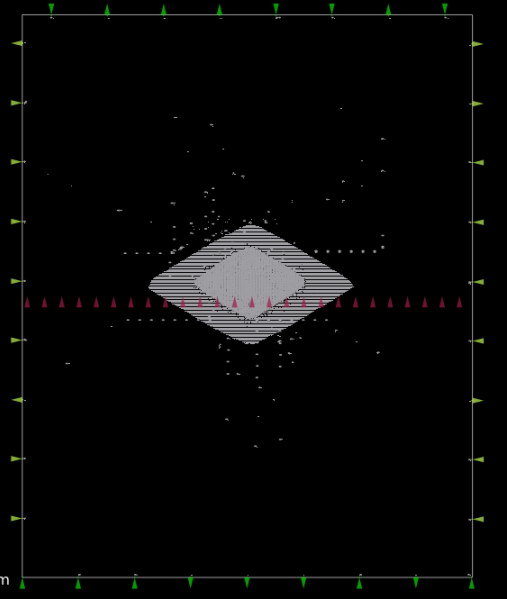

This design has a very high placement density at the center:
I suggest you try lowering the placement density as a workaround for now. Was this actually run through OR’s global placer? It seems unusual to have a diamond pattern and it suggests it wasn’t.
