tensorflow: High memory consumption with model.fit in TF 2.0.0 and 2.1.0-rc0

An update on the problem: Lambda layer has no memory usage issue, and it looks like memory_profiler has a wrong mapping between line # and memory usage/increment. When inserting pdb.set_trace() before model.fit(), htop (or top) shows no memory increase after model = build_model(), but it increases dramatically in model.fit:

  model = build_model()

  optimizer = tf.keras.optimizers.Adam()
  loss = tf.keras.losses.BinaryCrossentropy()

  model.compile(optimizer=optimizer, loss=loss)
  import pdb
  pdb.set_trace()
  model.fit(x=x_train, y=y_train, validation_data=(x_val,y_val), batch_size=64, epochs=1, steps_per_epoch=10)

The root cause is from the way TF handles how to convert numpy array to tensors. If you run the following code:

x_train = np.random.randint(MAX_SIGNAL+1,size=(K,N,N,1),dtype=np.uint16)  # Should be 2 560 000 kB
y = tf.data.Dataset.from_tensor_slices(x_train)

You will see an increase of 2.5GB on the memory usage (which is almost the dataset size). Even for yy = tf.convert_to_tensor(x_train), the memory usage is increased too.

We are working on the fix. Please stay tuned.

I have the same issue here and found out that it happens when we provide validation data. if you remove validation data from fit() then memory usage will remain constant and without any increaing. I also noticed that if we provide validation data, after each epoch, memory usage goes up, but after 10 epochs a portion of it gets cleared and again it will go up until the next 10th epoch. these steps will go on until ram is full and training crashes. I should also mention I am using tf2.2

Not exactly. The issue is with the system RAM, not with GPU RAM.

I can see that in both of your gists you get similar usage of system RAM: 9.8 GB for 2.0.0-beta1 and 10.2 GB for 2.1.0-rc1. Yes, this is the expected behavior. Said that, I cannot reproduce this expected behavior on my workstation. I obtain 9.6 GB for 2.0.0-beta1 and 18.7 GB for 2.1.0-rc1. The latter is twice that much as the former.

I have just discovered that TF 2.1.0-rc1 was released today. Unfortunately, the issue persists in 2.1.0-rc1.

I am also experiencing continually increasing memory usage with tensorflow 2.1.0 and 2.0.0 I’m not using Lambda layers - just Dense and Dropout layers. Adding calls to del model, tf.keras.backend.clear_session() and gc.collect() slows the rate of growth, but it still grows endlessly.

I’m using Python 3.6.9 on Linux Mint 19.1 Like others, I’ve been unable to reproduce the issue in colab.

I’ve been able to reproduce the issue locally with the following packages: tensorflow-2.1.0 tensorflow-cpu-2.1.0 tensorflow-gpu-2.1.0 tensorflow-2.0.0 tensorflow-1.15.0

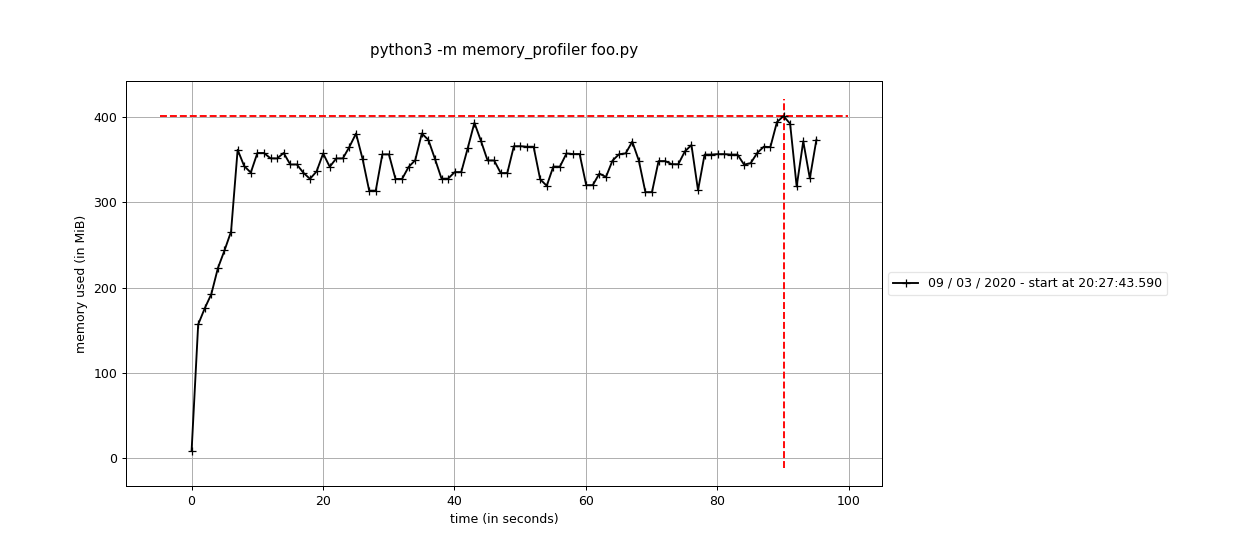

This package gives stable memory usage: tensorflow-cpu-1.15.0

Here’s the code I used to test:

import sys
import random
import numpy as np
import tensorflow as tf
import gc
import memory_profiler

@profile
def create_neural_network_model(input_size, output_size):

    print("Creating model: input_size={}, output_size={}".format(input_size, output_size))

    model = tf.keras.models.Sequential([
        tf.keras.layers.Input(shape=(input_size,)),
        tf.keras.layers.Dense(1024, activation='relu'),
        tf.keras.layers.Dropout(0.2),
        tf.keras.layers.Dense(output_size),
    ])

    model.compile(optimizer='adam',
              loss=tf.keras.losses.SparseCategoricalCrossentropy(from_logits=True),
              metrics=['accuracy'])

    return model


@profile
def train_model():

    input_size = 80 * 24
    output_size = 60

    print("Generating data.....")
    # simulate 100 moves
    inputs = np.random.uniform(size=(100, input_size))
    outputs = np.random.random_integers(low=0, high=output_size-1, size=(100,))

    print("Training model.....")

    tf.keras.backend.clear_session()
    gc.collect()

    model = create_neural_network_model(input_size, output_size)

    model.fit(x=inputs, y=outputs, epochs=3)
    return model


@profile
def main():
    model = None
    for i in range(50):
        print("Iteration {}...".format(i+1))
        del model
        model = train_model()

main()

Excuse me for the late answer. I’m back to the topic now.

First, let me acknowledge your effort in digging into the issue which I appreciate. But unfortunately, I cannot confirm the issue is fixed.

To reiterate briefly, the original problem was as follows. It would be reasonable to expect that the memory usage by the test code for this issue is ca. the size of the data arrays (plus some overhead). But in TF 2.0 and 2.1 the memory usage was twice the size of the data arrays (plus overhead). Hence this issue.

The current state is as follows:

• In TF 2.2 things indeed have changed albeit it’s hard to call it fixed. Now, with the test code posted in this issue, I have a memory leak about 0.5 x data size in each epoch. In other words, if the size of the data arrays is ca. 8 GB, then the memory usage increases ca. 4 GB each epoch.

• If I wrapp the numpy data arrays in datasets:

  ds_train = tf.data.Dataset.from_tensor_slices((x_train,y_train)).batch(8)
  ds_val = tf.data.Dataset.from_tensor_slices((x_val,y_val)).batch(8)
  ...
  model.fit(ds_train, validation_data=ds_val, epochs=10)


  then the behavior is the same in TF 2.2 as in 2.1 and 2.0, namely the memory usage is twice the data size plus overhead.

Can you confirm these results, @yhliang2018, @mihaimaruseac?

Coming late to the issue.

Concerning 2.1.0-rc1, it turned out that the allegedly non-GPU pip package (tensorflow==2.1.0-rc1) is actually distributed with GPU support (similarly to tensorflow-gpu==2.1.0-rc1).

That is expected. 1.15 and 2.1 and later will have a single pip package for both CPU and GPU builds. If you want only the cpu pip, you should install tensorflow-cpu. This is documented in the release notes

I’m going to try some bisection on nightly, provided I can reproduce the issue

No problem. I have just reinstalled with pip install --no-cache-dir tensorflow-gpu==2.1.0-rc1. The issue is still present. I have also tried tf-nightly (version 2.1.0-dev20191219) and the results are the same as in 2.1.0-rc1.

The issue apparently is system-dependent. So, to exclude a few possibilities I have also run tests with some non-GPU versions of Tensorflow (1.14.0, 2.0.0-b1, 2.0.0-rc0 and 2.0.0). My earlier results concerning RAM usage has been reproduced: for 1.14.0 and 2.0.0-b1 I have observed the expected behavior while for 2.0.0-rc0 and 2.0.0 the RAM usage was two times higher.

Concerning 2.1.0-rc1, it turned out that the allegedly non-GPU pip package (tensorflow==2.1.0-rc1) is actually distributed with GPU support (similarly to tensorflow-gpu==2.1.0-rc1). So for this version, I have manually switched off the GPU support by adding the following lines:

import os
os.environ["CUDA_VISIBLE_DEVICES"] = "-1"

Result: the memory usage for 2.1.0-rc1 with GPU disabled by this line is as with enabled GPU.

Please let me know what further diagnostic info could be helpful for you. I will try to provide all necessary details.
