node-red-contrib-knx-ultimate: GA import doesn't work
I have tried to import a simple KNX CSV formated export, generated as described in wiki and youtube video.
It looks like
[…] “Zentral” “0/-/-” “” “” “” “” “Auto” “Zeit” “0/0/-” “” “” “” “” “Auto” “Uhrzeit” “0/0/1” “” “” “” “DPST-10-1” “Auto” “Datum” “0/0/2” “” “” “” “DPST-11-1” “Auto” “Tag/Nacht” “0/0/3” “” “” “1=Tag, 0=Nacht” “DPST-1-2” “Auto” “Uhrzeit anfordern” “0/0/4” “” “” “” “DPST-1-1” “Auto” […]
On deploy the debug window states
msg : string[175] "knxUltimate: ERROR: Found an UNCERTAIN datapoint in ESF ETS. Please set the datapoint with ETS and export the group addresses again. ->. An ideal datapoint has been set: 5.004"
What is wrong?
About this issue
- Original URL
- State: closed
- Created 4 years ago
- Comments: 27 (16 by maintainers)
Hi Matteo I see you’ve different datapoints type, for example dmx. To allow knx-ultimate to automatic decode your telegrams, you must set the right datapoint in ETS. Setting the right datapoint is required for all supervisor, for example for homeassistant too. If you leave knx-ultimate import all group addresses with a default datapoint 1.001(boolean), you won’t be able to dim a light, to read a % or to set anything other than a boolean value true/false. Put your Headphones, plays some gorgeous music playlist and set the right datapoints in ets. Ciao!!!
OK - perfect - yes - now it works! 😃 Thank you for your support! Once again! 😃
Hello it worked, with GA_1_1.csv

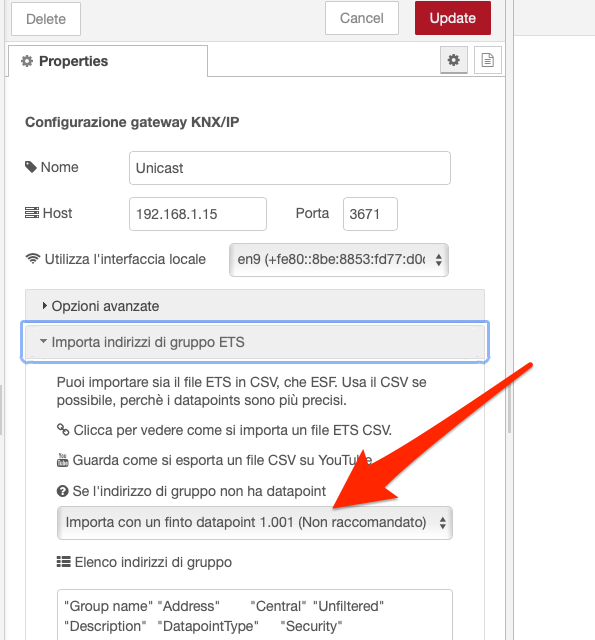

But i had to select the second option here
