react-native: React Native server stories list infinitely loading

Did you try it?

1. Connect Android device
2. Run storybook server, you need to check $ (adb reverse tcp:7007 tcp:7007 || true) && start-storybook working well.
3. Run react native to your device
4. Reload your app in debug mode

I found there is an issue when using a real android device with expo. It can be resolved by specifying your port and host explicitly

When you start up the server you should see something with your IP here On your network: http://xxx.xxx.x.xx:7007/

Take this IP and set it explicitly as the host and then the storybookui should be able to reach the server

In code

const StorybookUIRoot = getStorybookUI({
  host: "192.111.1.11", // replace this ip address with your local ip address
  port: "7007"
});

In package.json "storybook": "start-storybook -p 7007 -h 192.111.1.11" (replace this ip address with your local ip address port: “7007”)

This should resolve the connection issues

This might also help some people if the above isn’t working

adb reverse tcp:7007 tcp:7007

Hello everyone 👋🏻

I tried everything mentioned but the only solution was to use my network IP address instead of “0.0.0.0”. To avoid hardcoding the address in two places (package.json and storybook.js), I created a simple bash script automates this task for us.

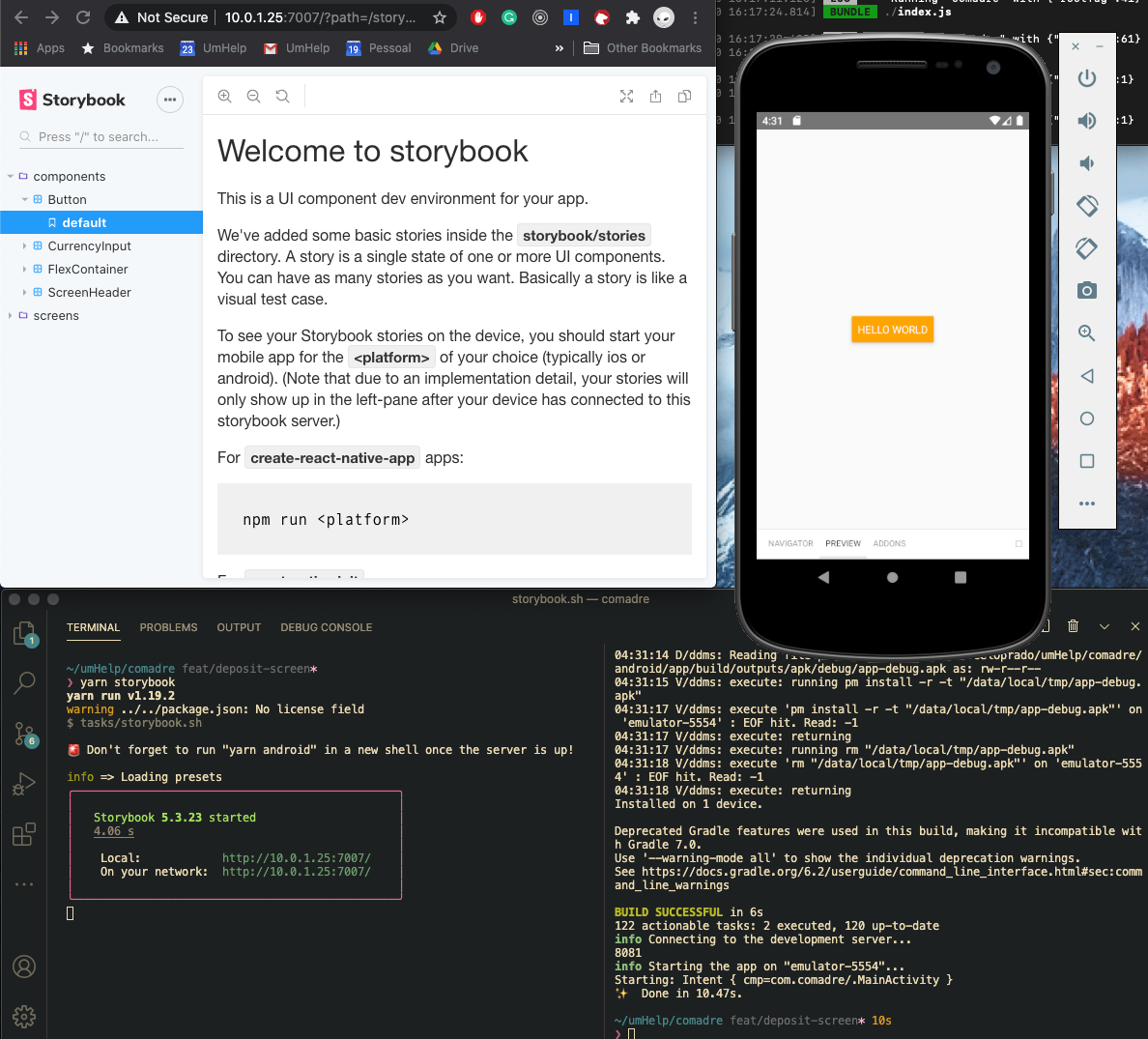

The final solution looks like this:

1. In package.json, under scripts, add the following line: "storybook": "tasks/storybook.sh",

2. Add the bash script below under a tasks folder. Name it storybook.sh.

#!/bin/bash
set -euo pipefail

# Returns computer IP address
# This is used in config/storybook, fixing the infinite loading sidebar bug
# See: https://github.com/storybookjs/react-native/issues/55
host=$(ifconfig en0 | grep inet | grep -v inet6 | awk '{print $2}')

json="{\"runStorybook\": true, \"host\": \"$host\", \"port\": 7007 }"
echo $json > config/storybook/config.json

printf "\n🚨 ️Don't forget to run \"yarn android\" in a new shell once the server is up!\n\n"
start-storybook -p 7007 -h $host

2.1 Don’t forget to give the right permission to the script: chmod +x tasks/storybook.sh

3. Modify your storybooks.js to support the new format:

import { getStorybookUI, configure } from '@storybook/react-native';
import { AppRegistry } from 'react-native';

import { name as appName } from '../../app.json';

import { host, port } from './config.json';
import { loadStories } from './storyLoader';

configure(() => {
  loadStories();
}, module);

const StorybookUIRoot = getStorybookUI({
  asyncStorage: null,
  // `host` and `port` are dynamically generated from storybook.sh
  host,
  port,
});

export default StorybookUIRoot;

AppRegistry.registerComponent(appName, () => StorybookUIRoot);

4. DONE! Execute yarn storybook and, in a new shell, yarn android or yarn ios.

Hello! I had a problem with loading Storybook web explorer, it doesn’t load the left menu. But on a device Storybook works well. I met the problem both during Intro React Native Storybook Tutorial and in my bare workflow project. It just doesn’t build a web version.

Steps

1. In a terminal to a project folder: npx -p @storybook/cli sb init --type react_native yarn add -D @storybook/addon-ondevice-actions
2. In storybook/rn-addons.js import '@storybook/addon-ondevice-actions/register';
3. In the terminal I tried this and reverse order: yarn storybook yarn start a – both Android simulator and a real Android device, Storybook works well on both options but does not in a browser.
4. On yarn storybook the answer:

yarn run v1.22.4
$ start-storybook -p 7007
info => Loading presets
info => Loading custom manager config.
╭────────────────────────────────────────────────────╮
│                                                    │
│   Storybook 5.3.18 started                         │
│   4.39 s                                           │
│                                                    │
│    Local:            http://localhost:7007/        │
│    On your network:  http://192.168.0.104:7007/    │
│                                                    │
╰────────────────────────────────────────────────────╯

From the tutorial it should be this

But I have this result on any projects and environments I tried

Environment Info: System: OS: macOS Mojave 10.14.6 CPU: (8) x64 Intel® Core™ i7-4980HQ CPU @ 2.80GHz Binaries: Node: 12.16.3 - /usr/local/bin/node Yarn: 1.22.4 - /usr/local/bin/yarn Browsers: Chrome: 81.0.4044.138 Firefox: 76.0 Safari: 12.1.2 npmPackages: @storybook/addon-actions: ^5.3.18 => 5.3.18 @storybook/addon-links: ^5.3.18 => 5.3.18 @storybook/addon-ondevice-actions: ^5.3.18 => 5.3.18 @storybook/addons: ^5.3.18 => 5.3.18 @storybook/react-native: ^5.3.18 => 5.3.18 @storybook/react-native-server: ^5.3.18 => 5.3.18

Also, I tried with the older 5.2.1 Storybook version, an Android simulator, and an Android phone via USB, Ubuntu, manual server setup, but the same error.

I also set up React Storybook Tutorial for a try to see if there is this error there. No problem, all works properly with React.

I found the solution. Same problem happened with me.

Please start your story book with this argument -> -h 0.0.0.0. The whole command would be -> start-storybook -h 0.0.0.0, You can also change it in your “package.json” file, so that you can just use “yarn storybook”.

After the server starts, if the browser says “This site can’t be reached”, for the ip 0.0.0.0, just open the server with your local ip address, for example, my address is 192.168.45.150, so I would open it with 192.168.45.150:7007, (I have my server running on 7007 port, if you have it bind to some other port, please use that).

There seems to be some network issue with storybook and it runs only on your localhost if the command start-storybook is used without “host” argument. As a result the emulator or your device can’t find the storybook server, hence no stories are displayed. You can see below the screenshot, I can see the stories now.

Also no need of writing any port or host in getStorybookUI({}). It will work without it.

Found the major hint in this reply.

EDIT 1: Okay… sometimes we do need to mention port and host in getStorybookUI({}).

Following steps will work in case you are able to load stories on your emulator and control them via on-device navigator, preview and addons and just want to add the server control along with on device one. I faced this problem and @dannyhw helped me.

Advantages:

1. Storybook server is used to control the component visible on the device via a web ui.
2. It is useful to control multiple devices at once and compare them at the same time.
3. It provides far better UI then the on-device one.

Steps:

1. If you have installed storybook then your package.json file will have "storybook": "start-storybook -c .storybook in scripts
2. Now you will run npm run storybook and the server will open in which the stories will load infinitely.
3. Now before starting your app make the following changes.
4. Copy the host and the port part from the terminal where you ran npm run storybook. It will look like this

╭─────────────────────────────
│
│   Storybook 5.3.23 started
│   4.18 s
│
│    Local:            http://localhost:7007/
│    On your network:  http://192.168.137.15:7007/
│
╰────────────────────────────

host-> 192.168.137.15(copy your host) and port -> 7007 5. Now specify these at exactly two places :

1. `package.json` -> `"storybook": "start-storybook -c .storybook -p 7007 -h 192.168.137.15" `  and
2. `storybook/stories/index.js` ->  `const StorybookUIRoot = getStorybookUI({ port: 7007, host: '192.168.137.15' })`

1. Now stop that npm run storybook command by pressing ctrl +c and run it again
2. If you did it all right then it will look like below , else recheck if you followed all the steps.

╭─────────────────────────────
│
│   Storybook 5.3.23 started
│   5.13 s
│
│    Local:            http://192.168.137.15:7007/
│    On your network:  http://192.168.137.15:7007/
│
╰─────────────────────────────

1. Now start you app as usual: npm start and all in other terminals (keep the npm run storybook running) and reload the storybook server. You will see it working now.

You should run storybook server and then after run the react native app then if you refresh the webpage for react native server the stories should load.

@Shhhhhreyas I followed the steps as you mentioned, still getting the same error.

@EsackN Did you add host in getStorybookUI({}). Example -> getStorybookUI({host:"192.168.43.66"}); (your local IP or the one which storybook mentions in the box after starting)

This function is used in index.js inside storybook folder in your project.

Also you have to start the app in your phone, without it stories won’t show.

I figured it out. I did not follow instructions properly and failed to put the export {default} from ‘./storybook’; into my App.js file. You all rock @kenchoong and @dannyhw. Your earlier posts saved me a ton of time.

I am still struggling with the sidebar not loading and I have completed everything exactly as explained by @kenchoong. I’m not sure what I would be doing wrong at this point? Does it matter what server expo is running on?

add this to your package.json

"storybook": "start-storybook -p 7007 -h 192.156.1.2",

The value of the host should start with 192, other than that, certainly it is wrong. Restart your computer, and get the new IP.

I did everything above and it is still not working 😕

@Shhhhhreyas Thank you so much. @dannyhw Thanks for the words. @Shhhhhreyas Helped me and the issue got fixed,

I am still struggling with the sidebar not loading and I have completed everything exactly as explained by I’m not sure what I would be doing wrong at this point? Does it matter what server expo is running on?

@jordanlang410 The important thing is having the same ip and port for both the storybook script in package.json and also in getStorybookUI. Also make sure its the right ip address for your machine. It should be the local network address, this ip will be shown when you initially run the server. This solution has been shown to work multiple times so I imagine you just need to double check your setup and double check the IP address.

In package.json

“storybook”: “start-storybook -p 7007 -h 172.1.1.1”,

and getStorybookUI

const StorybookUIRoot = getStorybookUI({ host:‘172.1.1.1’, port:‘7007’, asyncStorage: null });

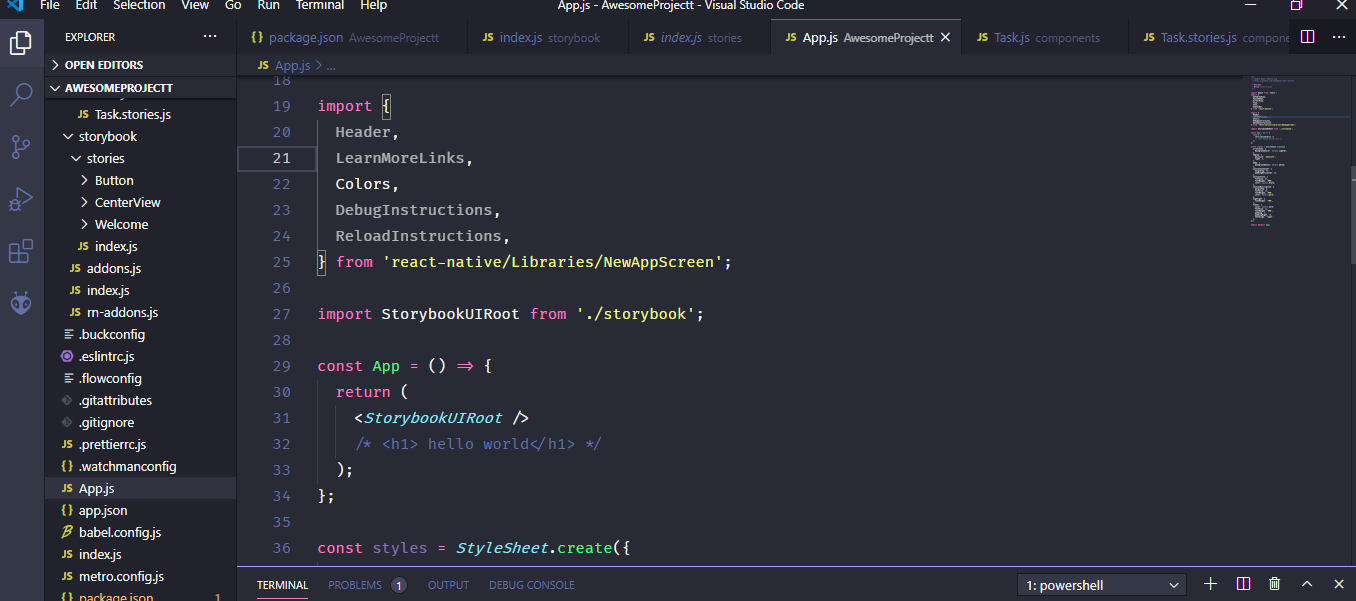

Hello!! Thanks to @Shhhhhreyas I was able to configurate the Storybook. We did a call and we can notice I wasn’t importing in my app.js my storybook/index.js and rendering that component I will show what it was missing on a image below:

• Just need to import the storybook/index.js to your app.
• Comment all code you are rendering
• Render the component you just imported

Hope you all get the problem done.

Thanks @Shhhhhreyas

Best regards,

Tomás Santos

@EsackN that’s not how it works, the server doesn’t show any preview. You’ll only see the selected story change. To see it on the web you need to run the on-device UI on the web. Like yarn web if on expo.

FYI: the cli is currently a bit broken for react native. I’ve already updated this but its in alpha. If you need to setup a new project I recommend you use the @next version of the cli

npx -p @storybook/cli@next sb init --type react_native

Also please bear in mind that the screenshots in the storybook tutorial actually show the web version of the tutorial and you won’t see the same thing on your side (it will be kind of similar). I’m currently working with the maintainer of the tutorial to improve it however it will take some time to update everything.

Hi @bouncycatt … How do you run the story book on the mobile or simulator? I have the same problem on web version and I did follow the tutorial steps but I feel something is missing. For Android and IOS … when I run “yarn ios” for example it runs the app on the ios but not the story book, so am not sure which commands runs the storybook on the device.

You should run storybook server and then after run the react native app then if you refresh the webpage for react native server the stories should load.

Omg, I’ve been banging my head against the wall for hours. I feel like such a dolt. Thank you!

@kxmatejka sorry to hear that, if you have issues like this is the future feel free to ask questions on the Discord I’m active there and I can help with these types of issues 😃

Another thing is that the server isn’t needed for a normal use cases and I would advise people to use the on device ui without the server for most cases.

@Shhhhhreyas thanks for going out of your way to help people in the community, its great to see 🙂.

Thank you @dannyhw 😅. Just trying to help people. 😃

@Shhhhhreyas thanks for going out of your way to help people in the community, its great to see 🙂.

@EsackN I think the link maybe correct I didn’t setup it this way. It seems long and lot of stuff has to be done.

I used the below steps ->

# Add Storybook: npx -p @storybook/cli sb init --type react_native

(During Storybook’s install process, you’ll be prompted to install react-native-server, do so as this package will help out immensely throughout the tutorial.)

We’ll also want to add another package and make a change to storybook/rn-addons.js to allow the actions (you’ll see them in action later in the tutorial) to be logged correctly in the Storybook UI.

Run the following command:

yarn add -D @storybook/addon-ondevice-actions

Change storybook/rn-addons.js to the following:

// storybook/rn-addons.js import '@storybook/addon-ondevice-actions/register';

This was all I did. Source - https://www.learnstorybook.com/intro-to-storybook/react-native/en/get-started/

And then that -h 0.0.0.0 thing.

Try this and let me know.

EDIT: The link given by you is not for storybook server. It is for react native web. Don’t follow that.

@Shhhhhreyas thanks for sharing, hopefully this will help others with the same problem 🙌

I have the same issue, but, I resolve that, plz check your rn storybook port and storybook port are the same, in my case, default storybook server port is 6006, I change to 7007, or you can follow those document: https://github.com/storybookjs/react-native#storybook-for-react-native

getStorybookUI Options port: Number (7007) – port to use

hi @Esxiel … thanks i will give that ago by adding storybook to my other project using the manual steps.

But the idea is I was following the story book official React Native tutorial. and their app.js file looks very different compared to these manual steps … here is the code they ask you to add

// App.js async function loadResourcesAndDataAsync() { try { SplashScreen.preventAutoHide();

// Load our initial navigation state
setInitialNavigationState(await getInitialState());

// Load fonts
await Font.loadAsync({
  ...Ionicons.font,
  'space-mono': require('./assets/fonts/SpaceMono-Regular.ttf'),
  percolate: require('./assets/icon/percolate.ttf'),
  'NunitoSans-Bold': require('./assets/font/NunitoSans-Bold.ttf'),
  'NunitoSans-Italic': require('./assets/font/NunitoSans-Italic.ttf'),
  NunitoSans: require('./assets/font/NunitoSans-Regular.ttf'),
});

} catch (e) { // We might want to provide this error information to an error reporting service console.warn(e); } finally { setLoadingComplete(true); SplashScreen.hide(); } }

@akhudairy Hi! If I’m not mistaken, a Storybook viewer appeared on a device when I tried previous versions of Storybook. Unfortunately, I don’t remember. Today I retook all the tutorial steps with abd command but nothing happened.
