react-stockcharts: xAccessor: cannot read property 'date' of undefind

Trying to plugin my own data source, but it fails with xaccessor setting.

Here’s the source:

import * as React from 'react';
import * as ReactDOM from 'react-dom';
import * as d3 from 'd3';

import { ChartCanvas, Chart, series, axes, helper } from 'react-stockcharts';
const { AreaSeries } = series;
const { XAxis, YAxis } = axes;

const { fitWidth, TypeChooser } = helper;

type ChartType = 'svg' | 'hybrid';

interface AreaChartProps {
    data: any[],
    width: number,
    ratio: number,
    type: ChartType;
};

class AreaChart extends React.Component<AreaChartProps, any> {
    constructor(props: AreaChartProps) {
        super(props);
    }

    render() {
        const { data, type, width, ratio } = this.props;
        return (
            <ChartCanvas ratio={ratio} width={width} height={400}
                margin={{ left: 50, right: 50, top: 10, bottom: 30 }}
                seriesName="TEST SERIES"
                data={data} type={type} xScale={d3.scaleTime()}
                xAccessor={(d: any) => d.date}
                xExtents={[new Date(2017, 4, 20), new Date(2017, 4, 30)]}
                >
                <Chart id={0} yExtents={(d: any) => d.close}>
                    <XAxis axisAt="bottom" orient="bottom" ticks={10} />
                    <YAxis axisAt="left" orient="left" />
                    <AreaSeries
                        yAccessor={(d: any) => d.close}
                    />
                </Chart>
            </ChartCanvas>
        );
    }
}

const FixedWidthChart: any = fitWidth(AreaChart);

const parseDate = d3.timeParse('%Y-%m-%d %H:%M:%S');

// This tsv works:
//d3['tsv']('//rrag.github.io/react-stockcharts/data/MSFT.tsv', (err, data) => {

// This one doesn't
d3['tsv']('http://localhost:5000/data.tsv', (err, data) => {
    data.forEach((d:any, i:number) => {
        d.date = new Date(d3.timeParse('%m/%d/%Y %X')(d.date).getTime());
        d.close = parseFloat(d.close);
    });

    /* change the type from hybrid to svg to compare the performance between svg and canvas */
    ReactDOM.render(<TypeChooser type="hybrid">
        {(type: 'svg' | 'hybrid') => <FixedWidthChart data={data} type={type} />}
        </TypeChooser>, document.getElementById('chart'));
});

Here’s the stack trace:

Uncaught TypeError: Cannot read property 'date' of undefined
    at xAccessor (bundle-chart.js?v=4C1FKVHSSIfyq0xZhXoJPqUqGcZYajd8Tp5HbmYTexo:49564)
    at domain (bundle-chart.js?v=4C1FKVHSSIfyq0xZhXoJPqUqGcZYajd8Tp5HbmYTexo:43432)
    at calculateState (bundle-chart.js?v=4C1FKVHSSIfyq0xZhXoJPqUqGcZYajd8Tp5HbmYTexo:35104)
    at resetChart (bundle-chart.js?v=4C1FKVHSSIfyq0xZhXoJPqUqGcZYajd8Tp5HbmYTexo:34995)
    at ChartCanvas.componentWillMount (bundle-chart.js?v=4C1FKVHSSIfyq0xZhXoJPqUqGcZYajd8Tp5HbmYTexo:35703)
    at performInitialMount (react.min.js:13)
    at p.mountComponent (react.min.js:13)
    at Object.mountComponent (react.min.js:15)
    at performInitialMount (react.min.js:13)
    at p.mountComponent (react.min.js:13)
xAccessor @ bundle-chart.js?v=4C1FKVHSSIfyq0xZhXoJPqUqGcZYajd8Tp5HbmYTexo:49564
domain @ bundle-chart.js?v=4C1FKVHSSIfyq0xZhXoJPqUqGcZYajd8Tp5HbmYTexo:43432
calculateState @ bundle-chart.js?v=4C1FKVHSSIfyq0xZhXoJPqUqGcZYajd8Tp5HbmYTexo:35104
resetChart @ bundle-chart.js?v=4C1FKVHSSIfyq0xZhXoJPqUqGcZYajd8Tp5HbmYTexo:34995
componentWillMount @ bundle-chart.js?
...
...

About this issue

  • Original URL
  • State: closed
  • Created 7 years ago
  • Comments: 21 (7 by maintainers)

Most upvoted comments

Hi @rrag , when you say

xExtents has to be [small, big] but you have it as [big, small]

Could you please clarify why it should be that way? I can see that even in the example chart like https://codesandbox.io/s/pj4l0jwkpm, xExtents is in [big, small].

Question related to xExtent, why do I get an error message saying Showing 0 datapoints, review the 'xExtents' prop of ChartCanvas when the end value of my xExtent is on 0? Wont the chart consider it as the first index of the data? Or it is related to other problem?

Actual value in console logs: xExtents (2) [44, 0]

Appreciate your response. Thanks!

just do a JSON.parse on this, and you will also have to parse the date which is a string into a Date object.

if you are using fetch you can do response.json() which will parse the result for you. Then console.log the output and find where the data is present.

could you enable some debug like

// from console
localStorage.debug="react-stockcharts:*"

and then refresh the page

few things which you might want to check

  1. xExtents has to be [small, big] but you have it as [big, small]
  2. xAccessor can you make it as d => d.date I am not sure why do new Date(d) inside xAccessor d would be an object { date, open, high, low, close }

@rrag mind giving me a pointer as well?

Is there a minimum amount of data points we need have for CanvasCharts to work? I’m trying to implement this CandleStick chart and I’ve been troubleshooting for some time now and can’t seem to figure it out.

I searched through the documentation and couldn’t seem to find something I understood to explain it. I also read through other posts and implemented the correct sort, but I’m sorta outta ideas of what to do at this point.

Works, when I specify the default range:

const xExtents = [
  xAccessor(last(data)),
  xAccessor(data[data.length - 100])
];

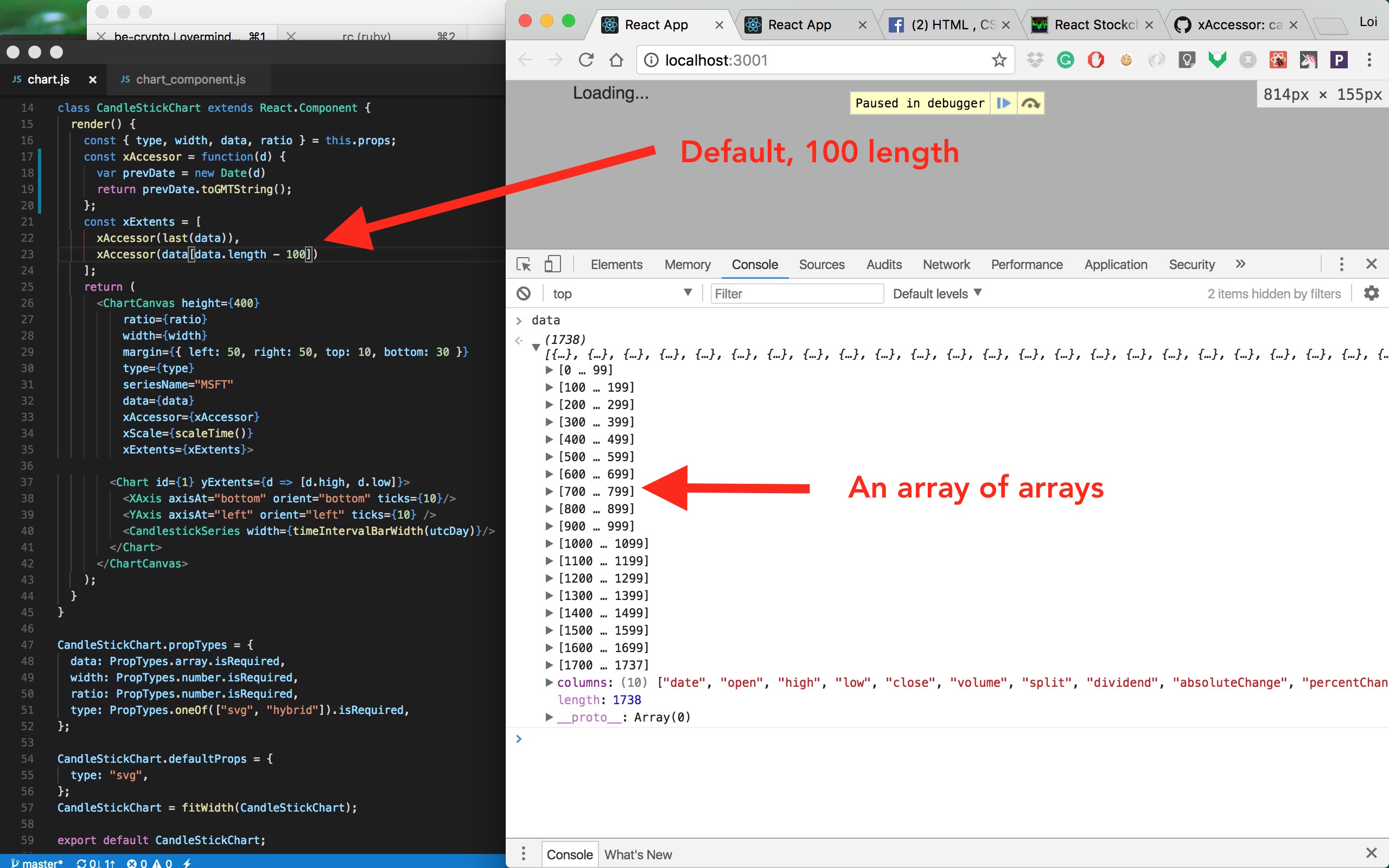

screen shot 2018-01-13 at 12 24 01 am

Fails when I specify a custom range:

const xExtents = [
  xAccessor(last(data)),
  xAccessor(data[data.length - 10])
];

screen shot 2018-01-13 at 12 23 47 am

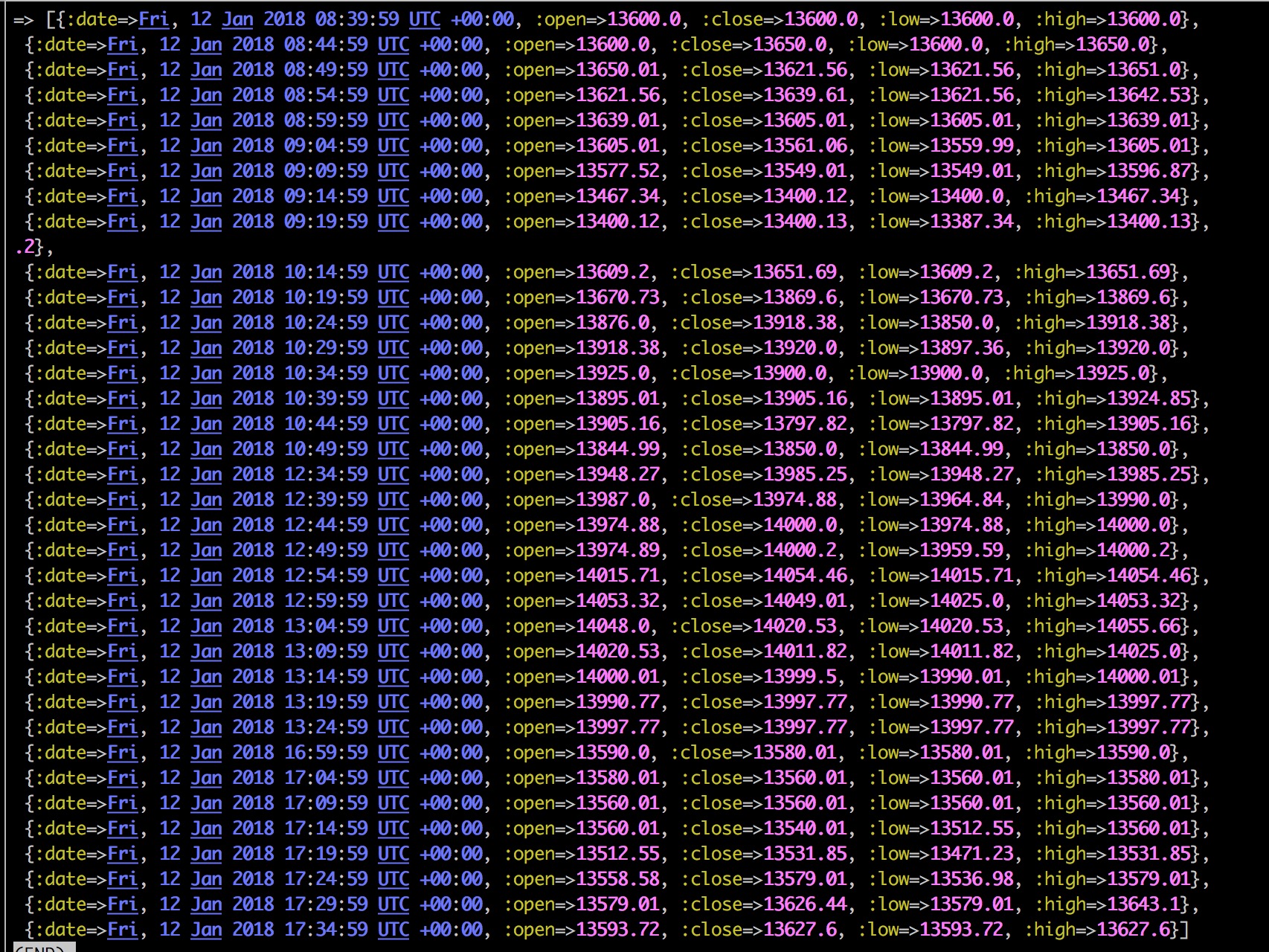

Correctly sorted:

screen shot 2018-01-13 at 12 33 15 am

Thanks for reading and for the awesome library!

🤔 I think the problem is that my market data was ordered in descending order. I sorted correctly and now working as expected. Thanks for all the help! your library rocks!
