graphql-ruby: NewRelic Tracing + Dataloader makes for slow queries

Describe the bug

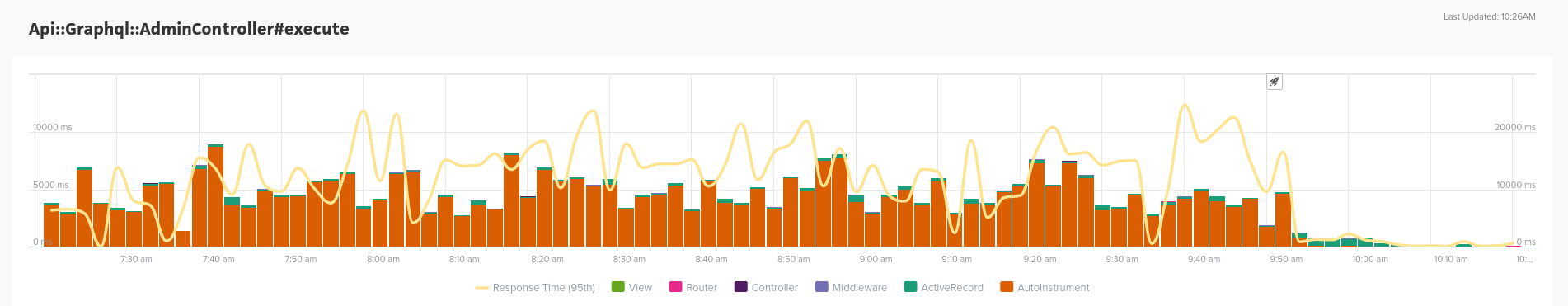

Yesterday we started using Dataloader to batch queries, and to our surprise, it made our GraphQL endpoint significantly slower. Here’s the Scout chart:

The individual traces are not very helpful as they just indicate that a single code line (the query execution in the controller) takes most of the time.

This went against all my local benchmarks, so I knew it had something to do with a production config. We’re moving away from NewRelic to Scout, but we still have NewRelicTracing enabled, and we don’t use ScoutTracing.

After disabling NewRelicTracing, response times plummeted:

I don’t know if this is specific to NewRelicTracing or PlatformTracing in general.

Versions

graphql version: 1.13.1 rails : 6.1.4.6 newrelic_rpm: 8.4.0

GraphQL schema

Here’s the schema before removing the tracer:

class AdminSchema < GraphQL::Schema
  INTROSPECTION_QUERY_DEPTH = 13

  use(GraphQL::Tracing::NewRelicTracing)

  query_analyzer QueryLogger

  mutation(Types::Mutation)
  query(Types::AdminQuery)

  use GraphQL::Dataloader

  default_max_page_size 100
  max_depth 10

  rescue_from ActiveRecord::RecordNotFound do |exception|
    raise GraphQL::ExecutionError.new("Resource not found.", options: { type: "NOT_FOUND" })
  end

  rescue_from StandardError do |exception|
    if Rails.env.production? && !exception.is_a?(GraphQL::ExecutionError)
      Rollbar.error(exception)
      GraphQL::ExecutionError.new("Unknown error occurred. Please try again later.", options: { type: "INTERNAL_SERVER_ERROR" })
    else
      raise exception
    end
  end
end

My dataloader sources:

class Sources::ActiveRecord < GraphQL::Dataloader::Source
  def initialize(model_class)
    @model_class = model_class
  end

  # The resulting *array* must be of the same length and order as `ids`,
  # so we set missing objects to `nil`.
  def fetch(ids)
    @model_class.where(id: ids).index_by(&:id).values_at(*ids)
  end
end

class Sources::ActiveRecordAssociation < GraphQL::Dataloader::Source
  def initialize(model_class, association_name)
    @model_class = model_class
    @association_name = association_name

    if !@model_class.reflect_on_association(@association_name)
      raise ArgumentError, "No association #{@association_name} on #{@model_class}"
    end
  end

  def load(record)
    raise TypeError, "#{@model_class} loader can't load association for #{record.class}" unless record.is_a?(@model_class)

    super
  end

  def fetch(records)
    ::ActiveRecord::Associations::Preloader.new.preload(records, @association_name)

    records.map { |record| read_association(record) }
  end

  private

  def read_association(record)
    record.public_send(@association_name)
  end
end

The objects involved in the query

class Types::AdminQuery < Types::BaseObject
  graphql_name "Query"
  description "The query root of this schema."

  field :members, Types::Member.connection_type, "A list of all members.", null: true

  def members
    context[:current_site].members.order(:id)
  end
end

class Types::Member < Types::BaseObject
  graphql_name "Member"

  field :orders, [Types::Order, null: true], "A list of all orders for this member.", null: true
  field :subscriptions, [Types::SubscriptionType], "A list of all subscriptions for this member.", null: false

  def orders
    dataloader.with(Sources::ActiveRecordAssociation, Member, :orders).load(object)
  end

  def subscriptions
    dataloader.with(Sources::ActiveRecordAssociation, Member, :subscriptions).load(object)
  end
end

class Types::SubscriptionType < Types::BaseObject
  graphql_name "Subscription"

  field :plan, Types::Plan, "The plan this subscription is associated with.", null: true

  def plan
    dataloader.with(Sources::ActiveRecord, Plan).load(object.plan_id)
  end
end

GraphQL query

{
  members(last: 100) {
    nodes {
      fullName
      email
      subscriptions {
      	expiresAt
        active
        plan {
          name
        }
      }
      orders {
        uuid
        totalCents
        purchasableType
      }
    }
  }
}

Expected behavior

I expected the Dataloader to significantly reduce query execution time

Actual behavior

Instead, it made things worse.

Additional context

My uneducated guess is that the tracer is going crazy with all the batching going on, but I’m not too familiar with the gem internals to understand why.

Because we’re moving away from NewRelic, we don’t have any plans of bringing back the tracer, so this is more of a heads-up kind of issue.
