RxSwift: RxTest referencing to invalid libswiftXCTest.dylib

Hello everyone, I was wondering if someone here had my same issue.

I have an iOS project in which there are multiple modules. each module has its own test bundle. Tests run perfectly until I install via cocoa pods RxTest.

After install, test bundles crash with the following message in console:

2019-09-25 17:46:29.756701+0100 xctest[70947:11876875] The bundle “MyModuleTests” couldn’t be loaded because it is damaged or missing necessary resources. Try reinstalling the bundle. 2019-09-25 17:46:29.756838+0100 xctest[70947:11876875] (dlopen_preflight(/Users/…/Library/Developer/Xcode/DerivedData/…/Products/Debug-Dev-iphonesimulator/MyModuleTests.xctest/MyModuleTests): Library not loaded: /usr/lib/swift/libswiftXCTest.dylib Referenced from: /Users/…/Library/Developer/Xcode/DerivedData/…/Build/Products/Debug-Dev-iphonesimulator/MyModuleTests.xctest/MyModuleTests/RxTest.framework/RxTest Reason: no suitable image found. Did find: /usr/lib/swift/libswiftXCTest.dylib: mach-o, but not built for iOS simulator) Program ended with exit code: 9

I checked already the usual suspects: The run path searchPath is $(inherited) '@executable_path/Frameworks' '@loader_path/Frameworks'as it should be.

I tried for quite a lot of time to get this to work playing with build configurations, but all without any success. If I remove RxTest, everything goes back to normal and tests start running again.

Suggestions?

About this issue

Original URL
State: closed
Created 5 years ago
Reactions: 12
Comments: 34 (19 by maintainers)

Most upvoted comments

I noticed the same issue. But it seems that I can run the tests from XCode 11 on the iOS 13 simulator. But when I try to run them on a simulator with an older iOS version (in my case iOS 11.4) I see that exact same errors as you do

schroepf on Sep 30, 2019

I solved the same issue in my project by switching everything to Swift 5 and adding a line of code in the podspec that requires XCTest.

Before:

  s.frameworks = 'XCTest', 'XCTAutomationSupport'

  s.xcconfig = {
    'LD_RUNPATH_SEARCH_PATHS' => '$(inherited) "$(PLATFORM_DIR)/Developer/Library/Frameworks" "$(PLATFORM_DIR)/Developer/Library/PrivateFrameworks"',
    'FRAMEWORK_SEARCH_PATHS' => '$(inherited) "$(PLATFORM_DIR)/Developer/Library/Frameworks" "$(PLATFORM_DIR)/Developer/Library/PrivateFrameworks"'
  }

After:

  s.frameworks = 'XCTest', 'XCTAutomationSupport'

  s.xcconfig = {
    'LIBRARY_SEARCH_PATHS' => '$(TOOLCHAIN_DIR)/usr/lib/swift-$(SWIFT_VERSION)/$(PLATFORM_NAME) $(inherited)',
    'LD_RUNPATH_SEARCH_PATHS' => '$(inherited) "$(PLATFORM_DIR)/Developer/Library/Frameworks" "$(PLATFORM_DIR)/Developer/Library/PrivateFrameworks"',
    'FRAMEWORK_SEARCH_PATHS' => '$(inherited) "$(PLATFORM_DIR)/Developer/Library/Frameworks" "$(PLATFORM_DIR)/Developer/Library/PrivateFrameworks"'
  }

I hope this can help.

artyom-razinov on Oct 16, 2019

@schroepf Same for me. Tests run on iOS 13 simulator, but fail on everything older than that.

muehlemann on Sep 30, 2019

I am using XCode 12.4

I tried everything above, but when I changed from app to test target, the problem finish.

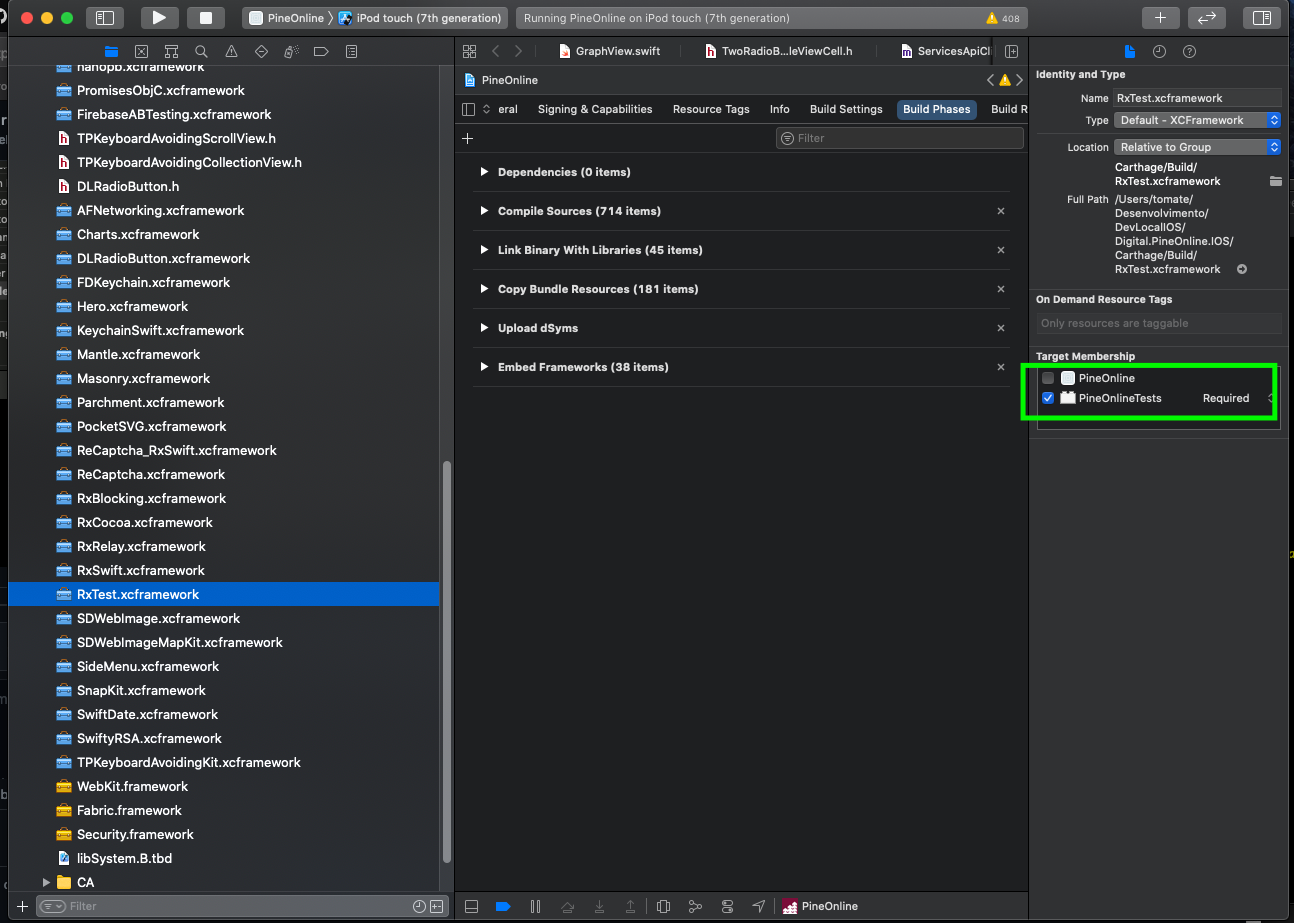

Screen Shot 2021-04-11 at 02 57 25

ralbertini on Apr 11, 2021

I finally found a solution for this issue. Turns out that it’s an Apple bug. Anybody thats looking for a fix should reference this gist: https://gist.github.com/liamnichols/3507faf70ecca201cb4300645caa9b74

Just swap out your simulator version and you should be good to go.

muehlemann on Nov 12, 2019

@muehlemann I just removed the xcconfig files and add the custom configurations as user defined build configs directly to the project (which is equivalent if you have just one project).

gringoireDM on Oct 30, 2019
