calico: Windows Pod cannot access external network

On Windows, Pods cannot access external networks, but Nodes in the cluster are able to communicate.

Expected Behavior

From inside the Pod on Windows, it should be possible to access external networks, such as Google.com.

Current Behavior

My Service Exception:

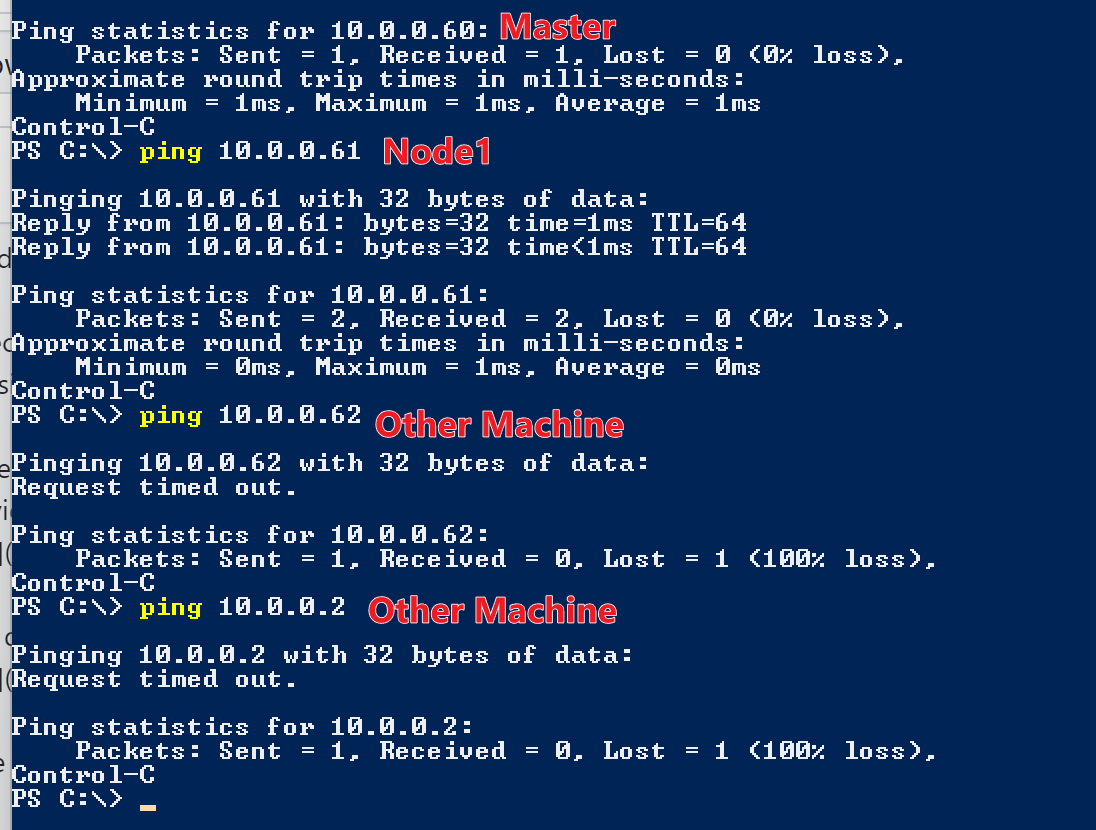

Use the docker exec command to enter the container and execute the ping command.

Ping the nodes in the cluster.

Possible Solution

• None

Steps to Reproduce (for bugs)

1. On Linux master, I disabled the IPinIP feature and ran the calicoctl ipam configure --strictaffinity=true command to prevent the Linux node from borrowing the Windows IP address.
2. Follow the documentation for Install Calico for Windows.(BGP mode.)

Context

IPPool

[root@k8s-master bin]# cat ippool.yaml
apiVersion: projectcalico.org/v3
kind: IPPool
metadata:
  creationTimestamp: "2022-03-14T03:18:58Z"
  name: default-ipv4-ippool
  resourceVersion: "540"
  uid: 044e9f56-c143-4cab-8136-90a9706d36be
spec:
  blockSize: 26
  cidr: 100.64.0.0/10
  ipipMode: Never
  natOutgoing: true
  nodeSelector: all()
  vxlanMode: Never

felixconfig

[root@k8s-master bin]# cat felixconfig.yaml
apiVersion: crd.projectcalico.org/v1
kind: FelixConfiguration
metadata:
  annotations:
    projectcalico.org/metadata: '{"uid":"52bf77b0-a467-4502-871e-f5840161c593","creationTimestamp":"2022-03-14T03:18:58Z"}'
  creationTimestamp: "2022-03-14T03:18:58Z"
  generation: 2
  managedFields:
  - apiVersion: crd.projectcalico.org/v1
    fieldsType: FieldsV1
    fieldsV1:
      f:metadata:
        f:annotations:
          .: {}
          f:projectcalico.org/metadata: {}
      f:spec:
        .: {}
        f:bpfLogLevel: {}
        f:ipipEnabled: {}
        f:logSeverityScreen: {}
        f:reportingInterval: {}
    manager: Go-http-client
    operation: Update
    time: "2022-03-14T03:18:58Z"
  name: default
  resourceVersion: "542"
  uid: 52bf77b0-a467-4502-871e-f5840161c593
spec:
  bpfLogLevel: ""
  ipipEnabled: false
  logSeverityScreen: Info
  reportingInterval: 0s

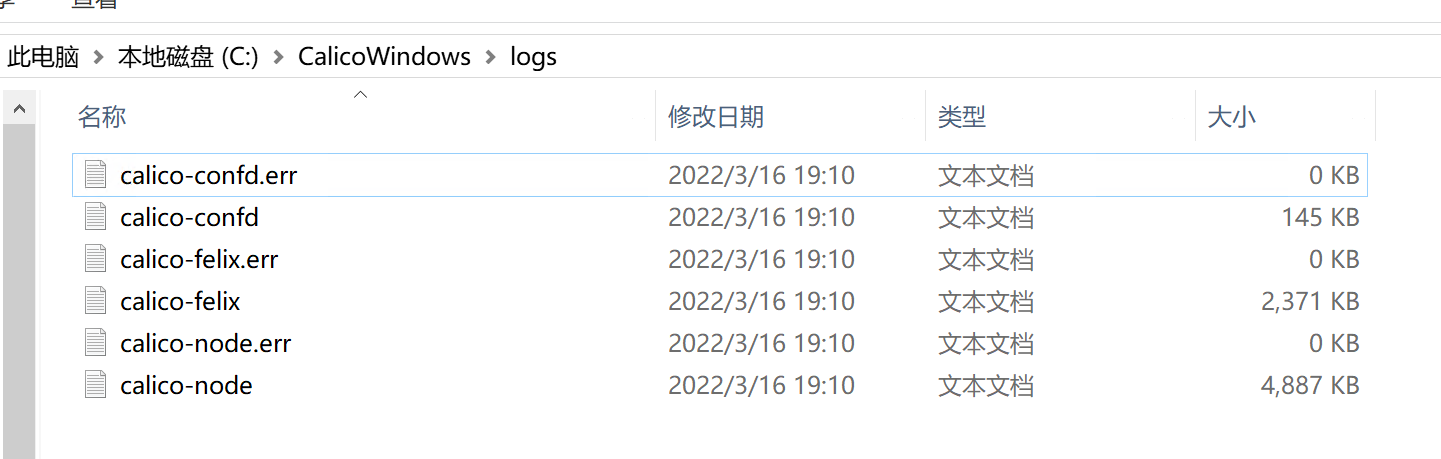

Logs Everything seems to be working fine and there are no error messages.

Your Environment

• Calico version: v3.22.0
• Orchestrator version: Kubernetes 1.20.15
• Operating System and version: Windows Server 2019 - 1809 - 17763.2686
