portainer: Environments page is slow to load when the docker nodes have lots of volumes

Bug description When I have lots on volumes (500 - 3000) on multiple docker swarm endpoints (10), loading the endpoints list takes a long time, mostly due to the DockerSnapshotRaw property that includes details on every single volume on every endpoint.

Expected behavior I expect the Environments(endpoints) list to load fast since it’s the first thing that opens when a user logs in and it gives a very bad impression for end users when the first page takes so long to load.

Older Portainer versions (at least 1.19.1) didn’t have the DockerSnapshotRaw data and just showed the numbers of volumes etc. which makes the Environments page (/api/endpoints call) small and quick, 190 KB on old compared to 2.9 MB on the current version.

Portainer Logs Nothing special in the logs, normal startup.

$ docker logs 8dab049a2b65
2022/12/12 02:32PM INF github.com/portainer/portainer/api/cmd/portainer/main.go:530 > encryption key file not present | filename=portainer
2022/12/12 02:32PM INF github.com/portainer/portainer/api/cmd/portainer/main.go:549 > proceeding without encryption key |
2022/12/12 02:32PM INF github.com/portainer/portainer/api/database/boltdb/db.go:124 > loading PortainerDB | filename=portainer.db
2022/12/12 14:32:36 server: Reverse tunnelling enabled
2022/12/12 14:32:36 server: Fingerprint 07:cc:a5:b5:95:89:d6:43:ff:39:49:7a:0d:9f:7a:5c
2022/12/12 14:32:36 server: Listening on 0.0.0.0:8000...
2022/12/12 02:32PM INF github.com/portainer/portainer/api/cmd/portainer/main.go:789 > starting Portainer | build_number=25294 go_version=1.19.3 image_tag=linux-amd64-2.16.2 nodejs_version=18.12.1 version=2.16.2 webpack_version=5.68.0 yarn_version=1.22.19
2022/12/12 02:32PM INF github.com/portainer/portainer/api/http/server.go:337 > starting HTTPS server | bind_address=:9443
2022/12/12 02:32PM INF github.com/portainer/portainer/api/http/server.go:322 > starting HTTP server | bind_address=:9000

Steps to reproduce the issue: We can reproduce this same thing on a single node since it’s just about the combined amount of raw data from the endpoints.

1. Create 10000 volumes on a docker swarm node, a simple shell command to do this for n in {1..10000};do docker volume create;done
2. Install a clean Portainer instance,

$ curl -L https://downloads.portainer.io/ce2-16/portainer-agent-stack.yml -o portainer-agent-stack.yml
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100   791  100   791    0     0    658      0  0:00:01  0:00:01 --:--:--   658

$ docker stack deploy -c portainer-agent-stack.yml portainer
Creating network portainer_agent_network
Creating service portainer_portainer
Creating service portainer_agent

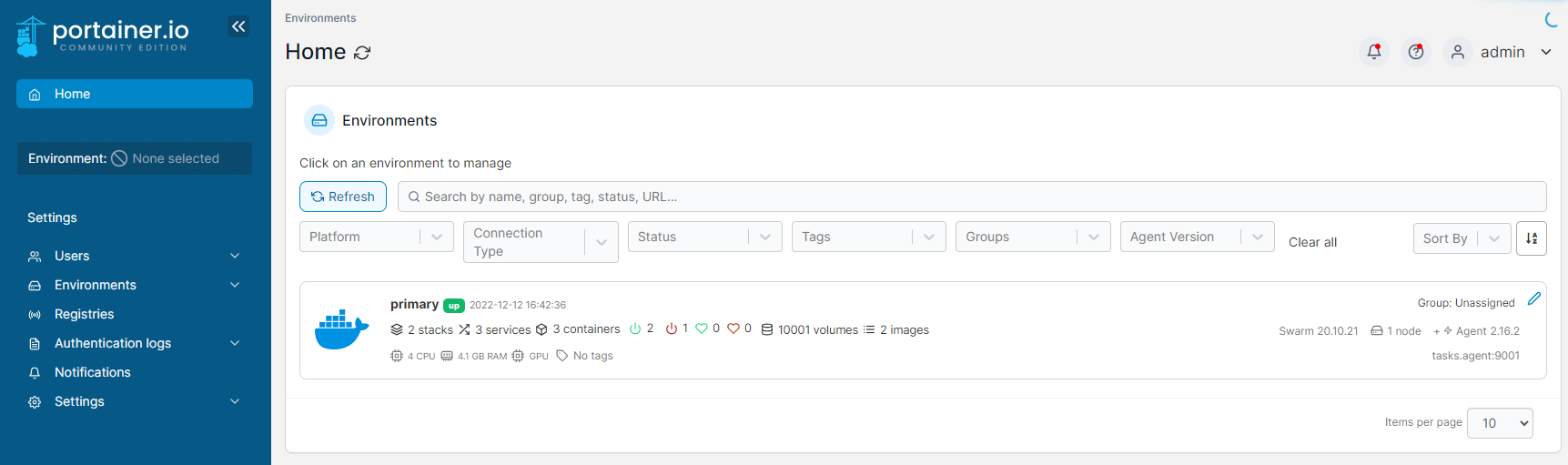

1. Open Portainer, notice it takes a long time to load the first page (Environments) after logging in. (Note: if you do this on the local machine then it’s faster, but the data amount is still very big)

Technical details:

• Portainer version: 2.16.2
• Docker version (managed by Portainer): 20.10.21
• Kubernetes version (managed by Portainer): n/a
• Platform (windows/linux): linux / Ubuntu 22.04.1 LTS
• Command used to start Portainer: docker stack deploy -c portainer-agent-stack.yml portainer
• Browser: Brave, Version 1.46.138 Chromium: 108.0.5359.94 (Official Build) (64-bit)
• Use Case (delete as appropriate): Using Portainer in a Commercial setup.
• Have you reviewed our technical documentation and knowledge base? Yes

Additional context Another thing that makes this issue more prominent is the fact that if I jump from the Portainer Endpoints list to another browser tab and back to Portainer again it immediately loads the whole endpoints list again…

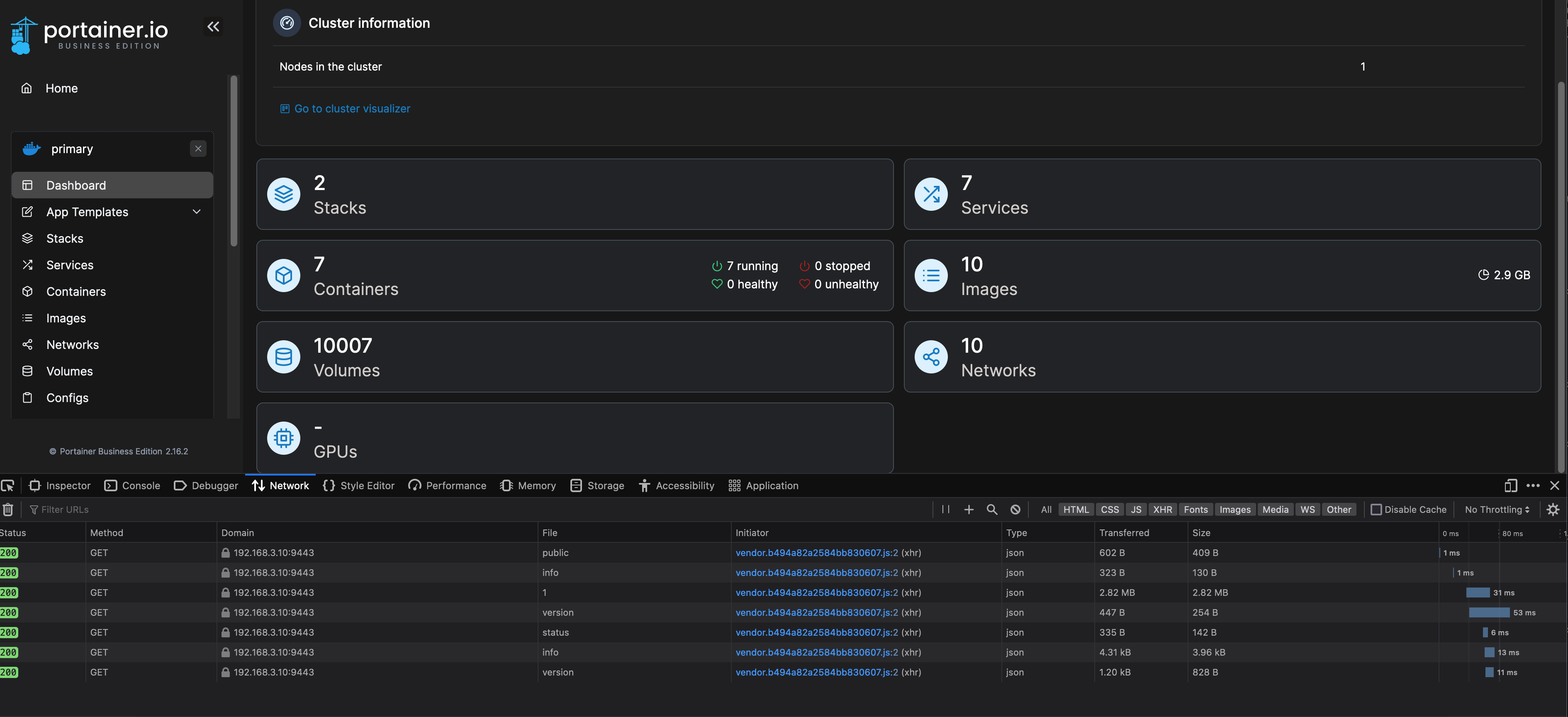

In this browser dev tools image you can see the 10k volumes results in a 2.9 MB reply on the /api/endpoints call. Since this is a local test instance the data loads fast, but using our real Portainer instance and over VPN it can take 5-30 seconds to load.
