openvino: [Bug] Decoding Semantic Segmentation output blob

@vladimir-dudnik I have tested it in my application and it works fine. Thank you for your support. I am closing the issue. I’m also posting a very simple segmentation example in-case if anyone needs a very simple example.

#include <iostream>
#include "inference_engine.hpp"
#include "opencv2/opencv.hpp"
#include <random>
#include "ie_blob.h"
#include "ocv_common.h"

/// Random color palette ///
std::vector<std::vector<uint8_t>> get_color_map()
{
    std::vector<std::vector<uint8_t>> color_map(256, std::vector<uint8_t>(3));
    std::minstd_rand rand_engg(123);
    std::uniform_int_distribution<uint8_t> u(0, 255);
    for (int i{0}; i < 256; ++i) {
        for (int j{0}; j < 3; j++) {
            color_map[i][j] = u(rand_engg);
        }
    }
    return color_map;
}

int main(int argc, char* argv[] ) {
    try {
        if (argc != 5){
            std::cout << "Usage :" << argv[0] << "<path_to_model> <path_to_image> <device_name> <path_to_store_result>" << std::endl;
        }

        const std::string input_model {argv[1]};
        const std::string input_image_path {argv[2]};
        const std::string device_name = {argv[3]};
        const std::string save_pth = {argv[4]};


    /// Inference Engine setup ///
    InferenceEngine::Core core;
    InferenceEngine::CNNNetwork network;
    InferenceEngine::ExecutableNetwork executable_network;
    network = core.ReadNetwork(input_model);

    if (network.getOutputsInfo().size() != 1)
        throw std::logic_error("Inference Engine supports only single frame inference output");

    if (network.getInputsInfo().size() != 1)
        throw std::logic_error("Inference Engine supports only single input");

    InferenceEngine::InputInfo::Ptr input_info = network.getInputsInfo().begin()->second;
    std::string input_name = network.getInputsInfo().begin()->first;

    input_info->setPrecision(InferenceEngine::Precision::U8);
    input_info->setLayout(InferenceEngine::Layout::NCHW);
    input_info->getPreProcess().setColorFormat(InferenceEngine::ColorFormat::RGB);

    if (network.getOutputsInfo().empty()){
        std::cerr << "Network outputs info is empty" << std::endl;
        return EXIT_FAILURE;
    }

    InferenceEngine::DataPtr output_info = network.getOutputsInfo().begin()->second;
    std::string output_name = network.getOutputsInfo().begin()->first;
    output_info->setPrecision(InferenceEngine::Precision::I32);
    output_info->setLayout(InferenceEngine::Layout::CHW);


    ///Load Network and Synchronous Infer Request Creation///
    executable_network = core.LoadNetwork(network, device_name);
    InferenceEngine::InferRequest infer_request = executable_network.CreateInferRequest();

    ///Read image and convert to Blob ///
    cv::Mat image = cv::imread(input_image_path);
    InferenceEngine::Blob::Ptr imgBlob = wrapMat2Blob(image);
    imgBlob->allocate();

    ///Inference ///
    infer_request.SetBlob(input_name, imgBlob);
    infer_request.Infer();
    imgBlob->deallocate();
    InferenceEngine::Blob::Ptr output = infer_request.GetBlob(output_name);

    ///Decoding and applying color map///
    auto const memLocker = output->cbuffer();
    const auto *res = memLocker.as<const int *>();
    auto oH = output_info->getTensorDesc().getDims()[1];
    auto oW = output_info->getTensorDesc().getDims()[2];

    cv::Mat pred(cv::Size(oW, oH), CV_8UC3);
    std::vector<std::vector<uint8_t>> color_map = get_color_map();

    int idx{0};
    for (int i = 0; i < oH; ++i)
    {
        auto *ptr = pred.ptr<uint8_t>(i);

        for (int j = 0; j < oW; ++j)
        {
            ptr[0] = color_map[res[idx]][0];
            ptr[1] = color_map[res[idx]][1];
            ptr[2] = color_map[res[idx]][2];
            ptr += 3;
            ++idx;

        }

    }

    /// Saving the output ///
    cv::imwrite(save_pth, pred);
    output->deallocate();

    } catch (const std::exception& ex){
        std::cerr << ex.what() << std::endl;
        return EXIT_FAILURE;
    }
    return EXIT_SUCCESS;
}

@vladimir-dudnik I think this looks promising, 2 represents class ‘person’ but with specific uniforms and 1 represents our object of interest which is not very common and 0 is the background class. Technically its a 3 class problem, sorry that I mentioned it as a 2 class problem earlier. Thanks once again.

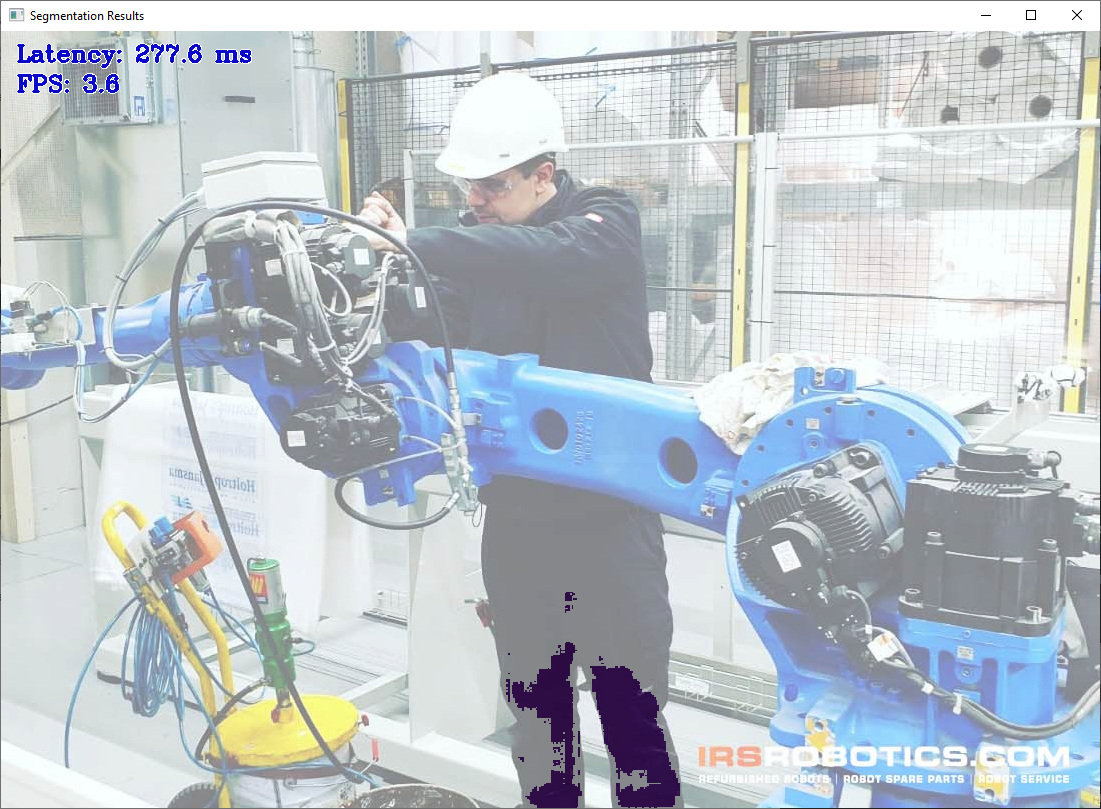

@Eashwar93 sure, that is OMZ Python segmentation demo output for some random “industrial” picture (we do understand that this is not a target scene, but at least model detected class 0 and class 2 on it)

@Eashwar93 thanks, there was an issue with MO in OpenVINO 2021.3 which cause generating IR with two outputs. This was fixed in the latest OpenVINO 2021.4 release, which you can try. On our side, we tried to convert your ONNX model to IR with 2021.4 release and IR contain single output, which allow to run inference with OMZ demo (although, I do not know what object classes it was trained for, it seems for generic street scene it does not detect anything meaningful). By the way, as you probably know, OpenVINO Inference Engine also support ONNX directly (again, starting from 2021.4 release OMZ segmentation demo is able to accept ONNX file instead of XML, although this support in demo should be improved. We provided such support in object_detection_demo, so when you use ONNX instead of XML, it also allow you to specify mean/scale values, required for data preprocessing. This step not implemented yet in segmentation demo, but it should be easy to add)
