material-components-android: [Chip] Layout preview window does not render Chip elements

Description: After upgrading to version 1.2.0-alpha03 the layout preview window does not render Chip elements. They are drawn completely blank without any background, stroke, text or icons. This is solely a visual issue with the preview window as Chips are properly rendered when running on a device. The preview window messages show the following render problems:

Path.op() not supported
java.awt.geom.IllegalPathStateException: missing initial moveto in path definition

These elements are properly rendered when using version 1.2.0-alpha02

Expected behavior: Chips should be rendered properly in the preview window. This is using 1.2.0-alpha03 This is using 1.2.0-alpha02

Source code:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

        <com.google.android.material.chip.Chip
            android:layout_height="wrap_content"
            android:layout_width="wrap_content"
            android:text="This chip should be visible"
            android:theme="@style/Widget.MaterialComponents.Chip.Choice"/>

</LinearLayout>

Android API version: 23

Material Library version: 1.2.0-alpha03

Device: Android Studio 3.5.3 Build #AI-191.8026.42.35.6010548, built on November 15, 2019

About this issue

Original URL
State: closed
Created 4 years ago
Reactions: 13
Comments: 29 (7 by maintainers)

Commits related to this issue

Use experimental rendering - fixes bug with chips not rendering in layout preview - https://github.com/material-components/material-components-android/issues/895 — committed to kungpaogao/flux-android by kungpaogao 3 years ago

Most upvoted comments

The issue is still present in 1.2.0-alpha04

+19

pappbence96 on Jan 29, 2020

Okay, I did some more digging, and it turns out that enabling “Use new Layout Rendering Engine” under the “Experimental” section in settings fixed it for me!!

This is the post that suggested the fix: https://stackoverflow.com/questions/64060759/render-problem-path-op-not-supported-in-latest-material-design-version

kungpaogao on Jan 22, 2021

I’m also having the same issue with Android Studio 4.1.1 and Material 1.2.1. If I downgrade the Material library to 1.1.0, it renders without errors.

kungpaogao on Jan 18, 2021

@someAndroidDeveloper Last I tried, 1.2.0-alpha02 still worked fine in the layout preview. You may have to run a ./gradlew clean and re-sync your project. The other reason is a dependency you have may have a dependency on >= 1.2.0-alpha03. This is not recommended as it could cause unknown issues, but if you want to force a version, I’ve found this to work (put it in your projects build.gradle, not the modules’):


allprojects {
    repositories {
          . . .
     }
     . . .

    configurations {
        all {
            resolutionStrategy.eachDependency { details ->
                def requested = details.requested
                if (requested.group == 'com.google.android.material') {
                    details.useVersion '1.2.0-alpha02'
                }
            }
        }
    }
}

Also for those wondering, updating to Android Studio 3.6 RC 3 doesn’t help. 😔

joshuamking-driveclutch on Feb 18, 2020

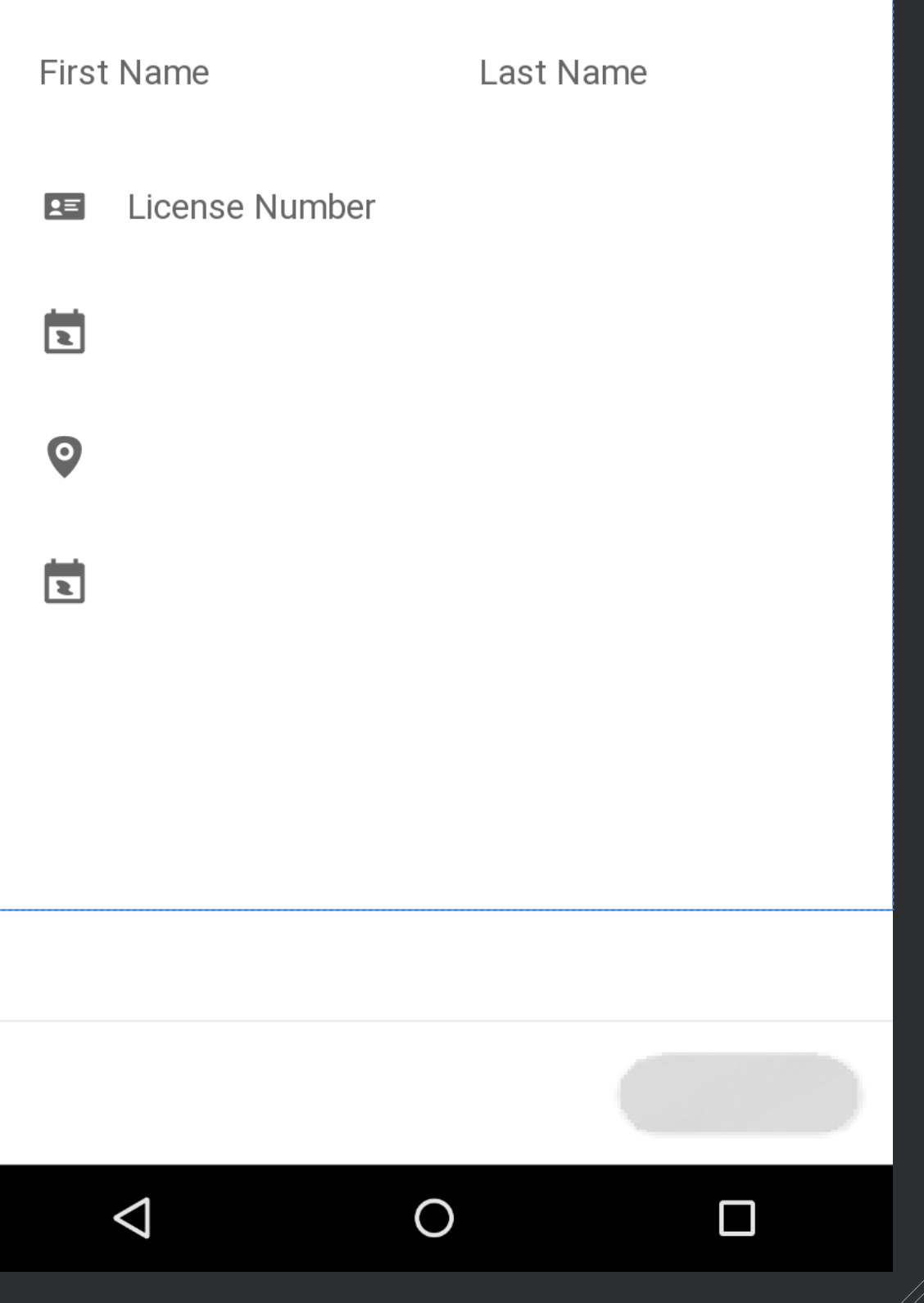

And buttons and TextInputLayouts render like this:

joshuamking-driveclutch on Jan 15, 2020
