TOMPD-63LW Breaker

Log Message

      "dps_strings": [
        "1 (value: 0)",
        "9 (value: 0)",
        "11 (value: False)",
        "13 (value: 0)",
        "15 (value: 0)",
        "16 (value: True)",
        "19 (value: 1234)"

Information about DPS mappings

{
  "result": {
    "category": "dlq",
    "functions": [
      {
        "code": "switch_prepayment",
        "dp_id": 11,
        "type": "Boolean",
        "values": "{}"
      },
      {
        "code": "energy_reset",
        "dp_id": 12,
        "type": "Enum",
        "values": "{\"range\":[\"empty\"]}"
      },
      {
        "code": "charge_energy",
        "dp_id": 14,
        "type": "Integer",
        "values": "{\"unit\":\"kW·h\",\"min\":0,\"max\":99999,\"scale\":1,\"step\":1}"
      },
      {
        "code": "switch",
        "dp_id": 16,
        "type": "Boolean",
        "values": "{}"
      },
      {
        "code": "alarm_set_1",
        "dp_id": 17,
        "type": "Raw",
        "values": "{}"
      },
      {
        "code": "alarm_set_2",
        "dp_id": 18,
        "type": "Raw",
        "values": "{}"
      },
      {
        "code": "leakagecurr_test",
        "dp_id": 21,
        "type": "Boolean",
        "values": "{}"
      }
    ],
    "status": [
      {
        "code": "total_forward_energy",
        "dp_id": 1,
        "type": "Integer",
        "values": "{\"unit\":\"kW·h\",\"min\":0,\"max\":99999999,\"scale\":2,\"step\":1}"
      },
      {
        "code": "phase_a",
        "dp_id": 6,
        "type": "Raw",
        "values": "{}"
      },
      {
        "code": "fault",
        "dp_id": 9,
        "type": "Bitmap",
        "values": "{\"label\":[\"short_circuit_alarm\",\"surge_alarm\",\"overload_alarm\",\"leakagecurr_alarm\",\"temp_dif_fault\",\"fire_alarm\",\"high_power_alarm\",\"self_test_alarm\",\"ov_cr\",\"unbalance_alarm\",\"ov_vol\",\"undervoltage_alarm\",\"miss_phase_alarm\",\"outage_alarm\",\"magnetism_alarm\",\"credit_alarm\",\"no_balance_alarm\"]}"
      },
      {

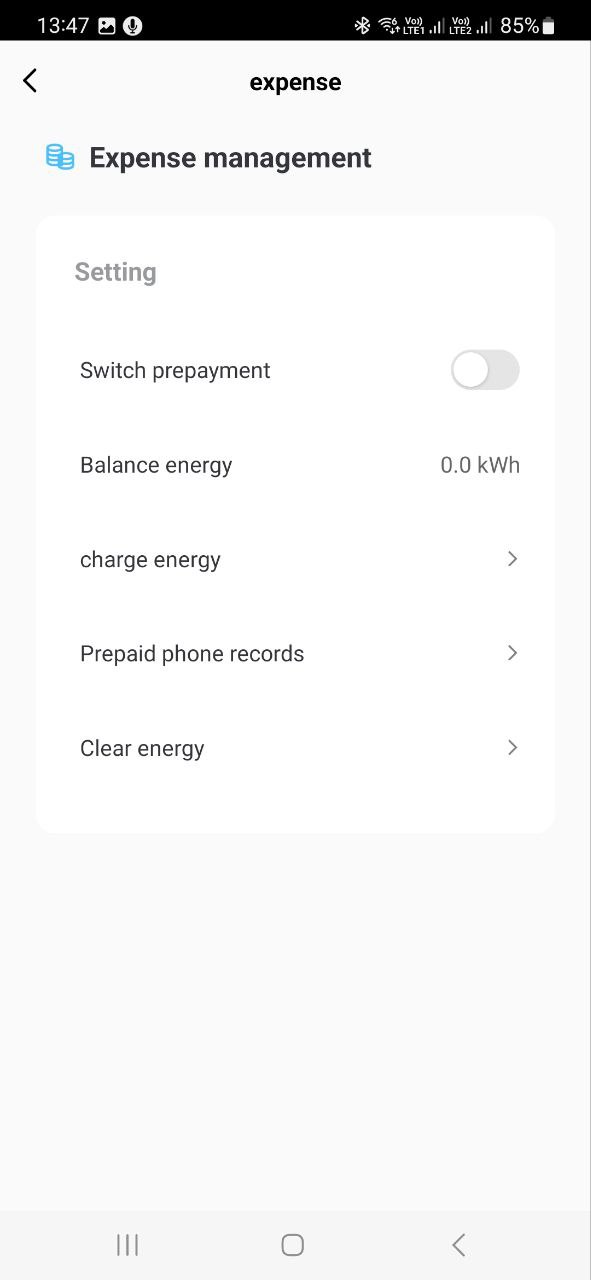

        "code": "switch_prepayment",
        "dp_id": 11,
        "type": "Boolean",
        "values": "{}"
      },
      {
        "code": "energy_reset",
        "dp_id": 12,
        "type": "Enum",
        "values": "{\"range\":[\"empty\"]}"
      },
      {
        "code": "balance_energy",
        "dp_id": 13,
        "type": "Integer",
        "values": "{\"unit\":\"kW·h\",\"min\":0,\"max\":999999,\"scale\":1,\"step\":1}"
      },
      {
        "code": "charge_energy",
        "dp_id": 14,
        "type": "Integer",
        "values": "{\"unit\":\"kW·h\",\"min\":0,\"max\":99999,\"scale\":1,\"step\":1}"
      },
      {
        "code": "leakage_current",
        "dp_id": 15,
        "type": "Integer",
        "values": "{\"unit\":\"mA\",\"min\":0,\"max\":1000,\"scale\":0,\"step\":1}"
      },
      {
        "code": "switch",
        "dp_id": 16,
        "type": "Boolean",
        "values": "{}"
      },
      {
        "code": "alarm_set_1",
        "dp_id": 17,
        "type": "Raw",
        "values": "{}"
      },
      {
        "code": "alarm_set_2",
        "dp_id": 18,
        "type": "Raw",
        "values": "{}"
      },
      {
        "code": "breaker_number",
        "dp_id": 19,
        "type": "String",
        "values": "{\"maxlen\":255}"
      },
      {

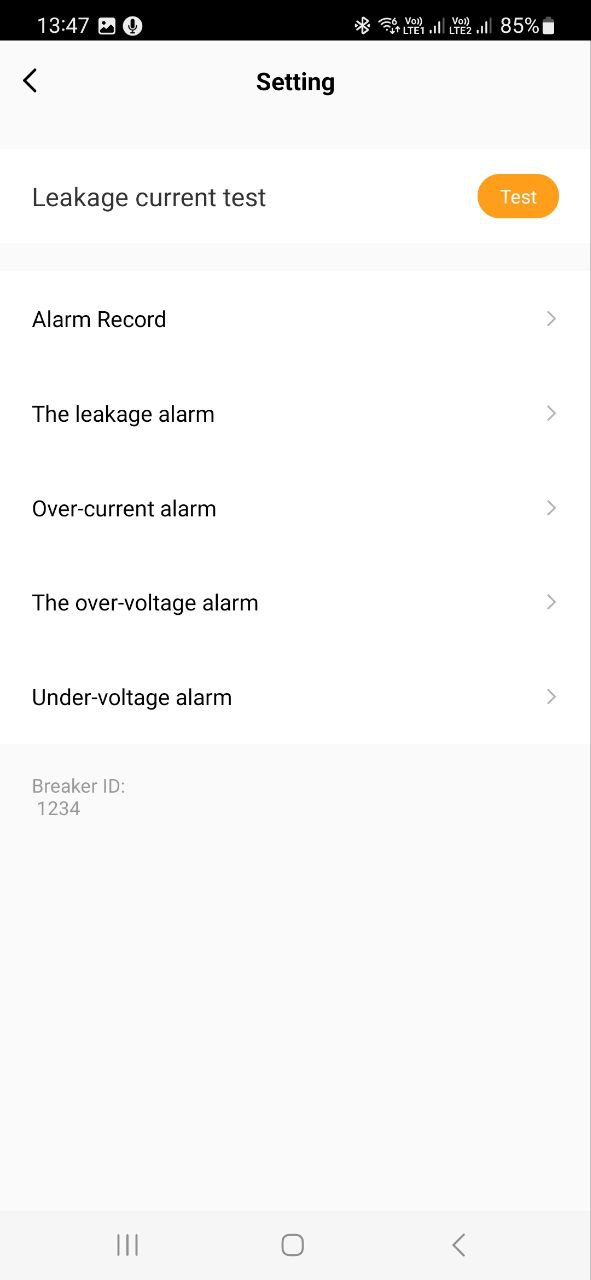

        "code": "leakagecurr_test",
        "dp_id": 21,
        "type": "Boolean",
        "values": "{}"
      }
    ]
  },
  "success": true,
  "t": 1676111968259,
  "tid": "5c2c6eb3a9f811edbe05a63cfb33a057"
}

Product ID

    "product_id": "rrmpzckqm5pfd642",
    "model": "",
    "name": "Breaker",
    "online": true,
    "owner_id": "44613254",
    "product_name": "Breaker",

Information about how the device functions

https://aliexpress.ru/item/1005004774173382.html

1. Remote control ON/OFF at anytime from anywhere by phone.
2. Review current ,voltage, leakage current, total kWh on phone
3. Timer function in smartlife TUYA app

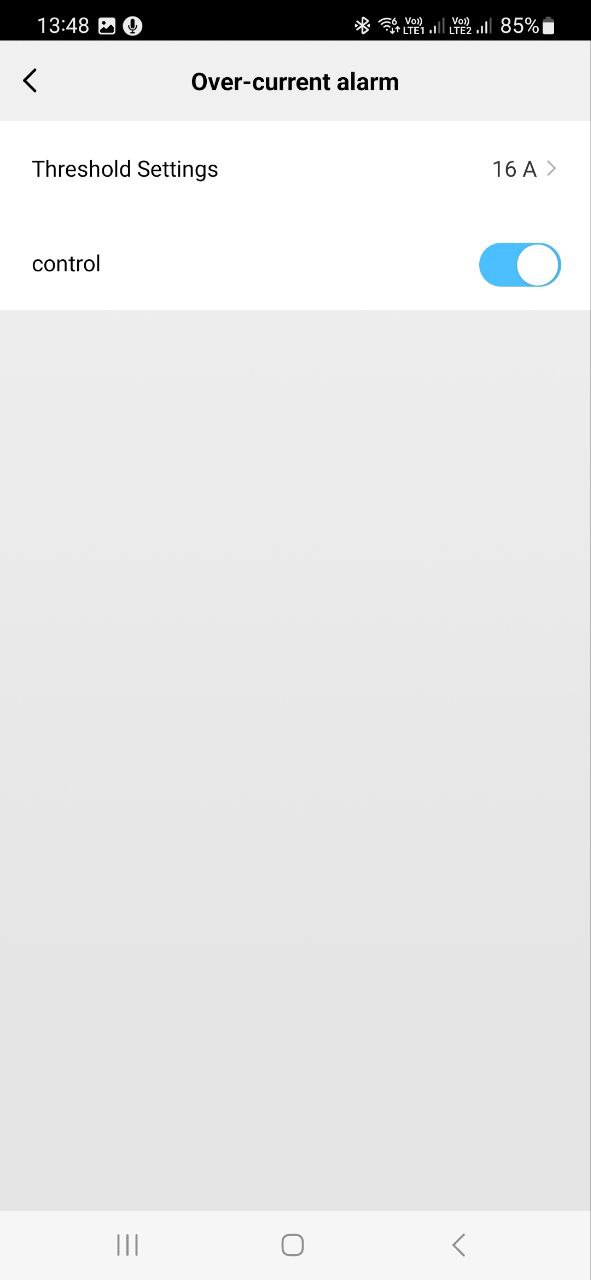

4. Can set over voltage/under voltage/over current /leakage current in app or can set these by manual
5. Undervoltage protection 140V-210V (adjustable) (default: 170V)
6. Over voltage proteciton225V-295V (adjustable) (default: 265)
7. Over current protection1A-63A (adjustable) (default: 40A)
8. Reconnect time (delay on time): 1s-500s (default: 30s)
9. Voltage/current/kW calibration: -9.9%-9.9%
10. Action time: 1-30s (detault 1s)
11. power consumption less than 2W
