magento2: Multivalued filters don't work correctly with ElasticSearch

Preconditions

Install Magento 2.2.6 and ES 5.x
Create a multiselect filterable attribute and assign 3 values to it : “A”, “B”, “C”
Create a category, an enabled product and select “A” and “C” values for the previous attribute. Put the product in the category.
Configure ES as search engine
Reindex all

Steps to reproduce

Go to the category page, the product should be displayed

Expected result

In the filter block the attribute should appear with the options “A” and “C” (the only values with non-null result after filtering)

Actual result

The filter won’t appear.

The cause seems to be because the attribute is registered in ES with the keyword analyzer which creates a single term with the attribute’s option IDs (let’s say “23 24”) and the search request is sent with the term query which searches for an exact match for each option ID (let’s say “23” or “24”, which obviously won’t match here).

Of course, switching to MySQL search engine instead of ES solves the issue.

About this issue

Original URL
State: closed
Created 6 years ago
Comments: 25 (15 by maintainers)

Most upvoted comments

Preconditions

# Import GPG Key
wget -qO - https://artifacts.elastic.co/GPG-KEY-elasticsearch | sudo apt-key add -

# Install ElasticSearch 5.6 on Debian Stretch
sudo apt-get install apt-transport-https
echo "deb https://artifacts.elastic.co/packages/5.x/apt stable main" | sudo tee -a /etc/apt/sources.list.d/elastic-5.x.list
sudo apt-get update && sudo apt-get install elasticsearch

Magento 2.3-develop commit d7012b2ca1495676478d8afed8bf016ccd03bc8a

Steps to reproduce

Login to admin
Create Simple Product 1 and assign it to Category 1 during the product creation(it will be existing product that got an attribute later)
Navigate to Stores -> Attributes -> Product
Click Add New Attribute

Default label attr_multisel
Catalog Input Type for Store Owner Multiple Select
Options: A, B, C (none of them is required or default)
Advanced Attribute Properties:
Scope: Global
Storefront Properties:
Use in Search Yes
Use in Layered Navigation: Filterable (with results)

Click Save Attribute
Navigate to Stores -> Attributes -> Attribute Set
Add attr_multisel to the Default attribute set
Perform Full Reindex and Flush Cache
Edit Simple Product 1 to add A and C values and Save the product
Create Simple Product 2 and assign it to Category 2 and Category 1
Navigate to Stores -> Configuration -> Catalog -> Catalog -> Catalog Search and set Search Engine to Elasticsearch 5.0+ then press Test Connection
Verify that button value changed to Successful! Test again? and click Save Config
Perform Full Reindex and Flush Cache
Navigate to Category 1 and Category 2

Expected result

In the filter block the attribute should appear with the options “A” and “C” (the only values with non-null result after filtering)

Actual result

There has been an error processing your request Exception printing is disabled by default for security reasons.

Error log record number: XXXXXXXXXXXX

Exception log:

{"0":"Notice: Undefined index: manufacturer_bucket in \/var\/www\/html\/pr\/app\/code\/Magento\/Elasticsearch\/SearchAdapter\/Aggregation\/Builder\/Term.php on line 23","1":"#0 \/var\/www\/html\/pr\/app\/code\/Magento\/Elasticsearch\/SearchAdapter\/Aggregation\/Builder\/Term.php(23): Magento\\Framework\\App\\ErrorHandler->handler(8, 'Undefined index...', '\/var\/www\/html\/p...', 23, Array)\n#1 \/var\/www\/html\/pr\/app\/code\/Magento\/Elasticsearch\/SearchAdapter\/Aggregation\/Builder.php(90): Magento\\Elasticsearch\\SearchAdapter\\Aggregation\\Builder\\Term->build(Object(Magento\\Framework\\Search\\Request\\Aggregation\\TermBucket), Array, Array, Object(Magento\\Elasticsearch\\SearchAdapter\\Dynamic\\DataProvider))\n#2 \/var\/www\/html\/pr\/app\/code\/Magento\/Elasticsearch\/Elasticsearch5\/SearchAdapter\/Adapter.php(127): Magento\\Elasticsearch\\SearchAdapter\\Aggregation\\Builder->build(Object(Magento\\Framework\\Search\\Request), Array)\n#3 \/var\/www\/html\/pr\/app\/code\/Magento\/Search\/Model\/SearchEngine.php(42): Magento\\Elasticsearch\\Elasticsearch5\\SearchAdapter\\Adapter->query(Object(Magento\\Framework\\Search\\Request))\n#4 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/Search\/Search.php(72): Magento\\Search\\Model\\SearchEngine->search(Object(Magento\\Framework\\Search\\Request))\n#5 \/var\/www\/html\/pr\/app\/code\/Magento\/CatalogSearch\/Model\/ResourceModel\/Fulltext\/Collection.php(359): Magento\\Framework\\Search\\Search->search(Object(Magento\\Framework\\Api\\Search\\SearchCriteria))\n#6 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/Data\/Collection\/AbstractDb.php(341): Magento\\CatalogSearch\\Model\\ResourceModel\\Fulltext\\Collection->_renderFiltersBefore()\n#7 \/var\/www\/html\/pr\/app\/code\/Magento\/CatalogSearch\/Model\/ResourceModel\/Fulltext\/Collection.php(409): Magento\\Framework\\Data\\Collection\\AbstractDb->_renderFilters()\n#8 \/var\/www\/html\/pr\/app\/code\/Magento\/Eav\/Model\/Entity\/Collection\/AbstractCollection.php(920): Magento\\CatalogSearch\\Model\\ResourceModel\\Fulltext\\Collection->_renderFilters()\n#9 \/var\/www\/html\/pr\/app\/code\/Magento\/Catalog\/Model\/ResourceModel\/Product\/Collection.php(790): Magento\\Eav\\Model\\Entity\\Collection\\AbstractCollection->load(false, false)\n#10 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/Interception\/Interceptor.php(58): Magento\\Catalog\\Model\\ResourceModel\\Product\\Collection->load(false, false)\n#11 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/Interception\/Interceptor.php(138): Magento\\CatalogSearch\\Model\\ResourceModel\\Fulltext\\Collection\\Interceptor->___callParent('load', Array)\n#12 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/Interception\/Interceptor.php(153): Magento\\CatalogSearch\\Model\\ResourceModel\\Fulltext\\Collection\\Interceptor->Magento\\Framework\\Interception\\{closure}()\n#13 \/var\/www\/html\/pr\/generated\/code\/Magento\/CatalogSearch\/Model\/ResourceModel\/Fulltext\/Collection\/Interceptor.php(325): Magento\\CatalogSearch\\Model\\ResourceModel\\Fulltext\\Collection\\Interceptor->___callPlugins('load', Array, Array)\n#14 \/var\/www\/html\/pr\/app\/code\/Magento\/Review\/Observer\/CatalogBlockProductCollectionBeforeToHtmlObserver.php(38): Magento\\CatalogSearch\\Model\\ResourceModel\\Fulltext\\Collection\\Interceptor->load()\n#15 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/Event\/Invoker\/InvokerDefault.php(72): Magento\\Review\\Observer\\CatalogBlockProductCollectionBeforeToHtmlObserver->execute(Object(Magento\\Framework\\Event\\Observer))\n#16 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/Event\/Invoker\/InvokerDefault.php(60): Magento\\Framework\\Event\\Invoker\\InvokerDefault->_callObserverMethod(Object(Magento\\Review\\Observer\\CatalogBlockProductCollectionBeforeToHtmlObserver), Object(Magento\\Framework\\Event\\Observer))\n#17 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/Event\/Manager.php(66): Magento\\Framework\\Event\\Invoker\\InvokerDefault->dispatch(Array, Object(Magento\\Framework\\Event\\Observer))\n#18 \/var\/www\/html\/pr\/generated\/code\/Magento\/Framework\/Event\/Manager\/Proxy.php(95): Magento\\Framework\\Event\\Manager->dispatch('catalog_block_p...', Array)\n#19 \/var\/www\/html\/pr\/app\/code\/Magento\/Catalog\/Block\/Product\/ListProduct.php(471): Magento\\Framework\\Event\\Manager\\Proxy->dispatch('catalog_block_p...', Array)\n#20 \/var\/www\/html\/pr\/app\/code\/Magento\/Catalog\/Block\/Product\/ListProduct.php(116): Magento\\Catalog\\Block\\Product\\ListProduct->initializeProductCollection()\n#21 \/var\/www\/html\/pr\/app\/code\/Magento\/Catalog\/Block\/Product\/ListProduct.php(348): Magento\\Catalog\\Block\\Product\\ListProduct->_getProductCollection()\n#22 \/var\/www\/html\/pr\/generated\/code\/Magento\/Catalog\/Block\/Product\/ListProduct\/Interceptor.php(154): Magento\\Catalog\\Block\\Product\\ListProduct->getIdentities()\n#23 \/var\/www\/html\/pr\/app\/code\/Magento\/PageCache\/Model\/Layout\/LayoutPlugin.php(71): Magento\\Catalog\\Block\\Product\\ListProduct\\Interceptor->getIdentities()\n#24 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/Interception\/Interceptor.php(146): Magento\\PageCache\\Model\\Layout\\LayoutPlugin->afterGetOutput(Object(Magento\\Framework\\View\\Layout\\Interceptor), '\\n    <script ty...')\n#25 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/Interception\/Interceptor.php(153): Magento\\Framework\\View\\Layout\\Interceptor->Magento\\Framework\\Interception\\{closure}()\n#26 \/var\/www\/html\/pr\/generated\/code\/Magento\/Framework\/View\/Layout\/Interceptor.php(494): Magento\\Framework\\View\\Layout\\Interceptor->___callPlugins('getOutput', Array, Array)\n#27 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/View\/Result\/Page.php(257): Magento\\Framework\\View\\Layout\\Interceptor->getOutput()\n#28 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/View\/Result\/Layout.php(170): Magento\\Framework\\View\\Result\\Page->render(Object(Magento\\Framework\\App\\Response\\Http\\Interceptor))\n#29 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/Interception\/Interceptor.php(58): Magento\\Framework\\View\\Result\\Layout->renderResult(Object(Magento\\Framework\\App\\Response\\Http\\Interceptor))\n#30 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/Interception\/Interceptor.php(138): Magento\\Framework\\View\\Result\\Page\\Interceptor->___callParent('renderResult', Array)\n#31 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/Interception\/Interceptor.php(153): Magento\\Framework\\View\\Result\\Page\\Interceptor->Magento\\Framework\\Interception\\{closure}(Object(Magento\\Framework\\App\\Response\\Http\\Interceptor))\n#32 \/var\/www\/html\/pr\/generated\/code\/Magento\/Framework\/View\/Result\/Page\/Interceptor.php(130): Magento\\Framework\\View\\Result\\Page\\Interceptor->___callPlugins('renderResult', Array, Array)\n#33 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/App\/Http.php(139): Magento\\Framework\\View\\Result\\Page\\Interceptor->renderResult(Object(Magento\\Framework\\App\\Response\\Http\\Interceptor))\n#34 \/var\/www\/html\/pr\/generated\/code\/Magento\/Framework\/App\/Http\/Interceptor.php(24): Magento\\Framework\\App\\Http->launch()\n#35 \/var\/www\/html\/pr\/lib\/internal\/Magento\/Framework\/App\/Bootstrap.php(257): Magento\\Framework\\App\\Http\\Interceptor->launch()\n#36 \/var\/www\/html\/pr\/index.php(39): Magento\\Framework\\App\\Bootstrap->run(Object(Magento\\Framework\\App\\Http\\Interceptor))\n#37 {main}","url":"\/category-1.html","script_name":"\/index.php"}

TomashKhamlai on Nov 9, 2018

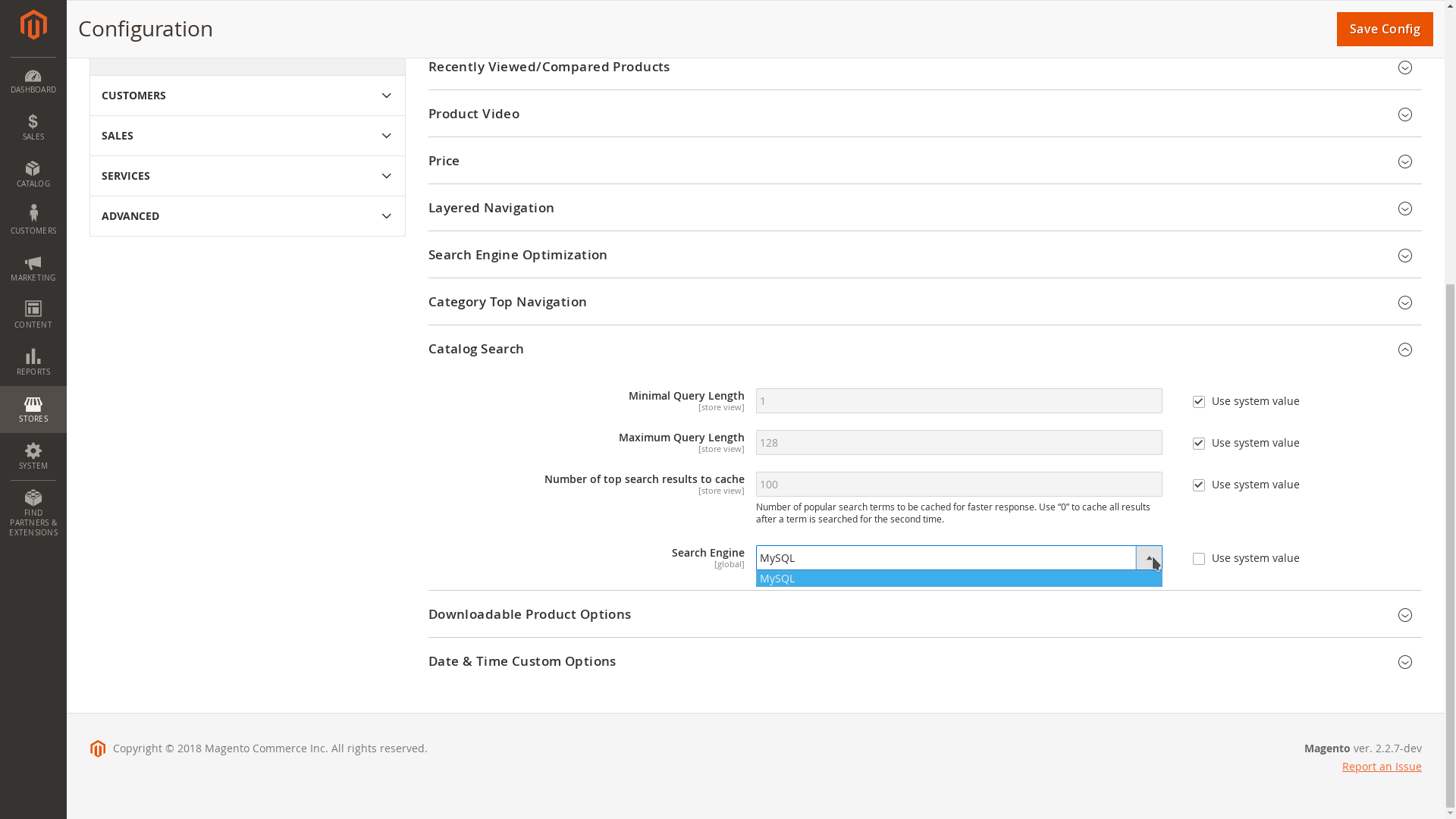

I was not able to reproduce the issue on latest 2.2-develop and latest available ElasticSearch 5+, because ElasticSearch was not in the list of available search providers.

screenshot_20181109_161614

Additional information:

"version" : {
    "number" : "5.6.13",
    "build_hash" : "4d5320b",
    "build_date" : "2018-10-30T19:05:08.237Z",
    "build_snapshot" : false,
    "lucene_version" : "6.6.1"
  }

@xi-ao, please specify your version of ElasticSearch. I check the version by executing this request:

curl -X GET "localhost:9200/"

TomashKhamlai on Nov 9, 2018

Hi @sdzhepa , Indeed im unable to reproduce the error. The bug seems to be absent from current 2.3-develop. Tested on elasticsearch 5.6.1 with magento backend option elasticsearch 5.0+

{
  "name" : "kjc7x2r",
  "cluster_name" : "elasticsearch",
  "cluster_uuid" : "wlx_aKCYRtSBNjSOjGumfQ",
  "version" : {
    "number" : "5.6.1",
    "build_hash" : "667b497",
    "build_date" : "2017-09-14T19:22:05.189Z",
    "build_snapshot" : false,
    "lucene_version" : "6.6.1"
  },
  "tagline" : "You Know, for Search"
}

Also tested on elasticsearch 6.X, with magento option elasticsearch 6.0+ no issues there as well.

Side note: I encountered the error on 2.3.0 with elasticsearch 5.0. (see @TomashKhamlai steps to reproduce the bug )

Regards.

seyuf on Nov 1, 2019

I’ll help with the documentation updates.

keharper on Nov 9, 2018

@TomashKhamlai Thank you for verifying the issue. Based on the provided information internal tickets MAGETWO-96261 were created

magento-engcom-team on Nov 9, 2018
