kubernetes: the volume is not detached after the pod and PVC objects are deleted

What happened?

Hello, I’ve recently been testing the reliability of storage for k8s v1.25.0. A strange phenomenon occurs occasionally during the test: the volume cannot be detached after the PVC and pod are deleted(the reclaimPolicy of pv is delete）. So I first went to check the corresponding pv and volumeAttachment objects and found that they both existed. Then I checked the kube-controllerManager and kubelet logs and found that kubelet logs kept printing:

I1125 10:28:42.931263 3908451 reconciler.go:389] "Starting operationExecutor.UnmountDevice for volume \"pvc-1a4bcff1-f11d-456c-b91a-1aaa5c3ea5db\" (UniqueName: \"kubernetes.io/csi/xxx^f2ee34c4-f297-49cb-8730-4442ceb1df4f\") on node \"192.168.x.x\" "

But I found that at the beginning, the volume was unmountDevice succeed, as shown in the following kubelet log:

I1125 10:20:43.948800 3908451 reconciler.go:389] "Starting operationExecutor.UnmountDevice for volume \"pvc-1a4bcff1-f11d-456c-b91a-1aaa5c3ea5db\" (UniqueName: \"kubernetes.io/csi/xxx^f2ee34c4-f297-49cb-8730-4442ceb1df4f\") on node \"192.168.x.x\" "

I1125 10:20:43.948819 3908451 reconciler.go:396] "operationExecutor.UnmountDevice started for volume \"pvc-1a4bcff1-f11d-456c-b91a-1aaa5c3ea5db\" (UniqueName: \"kubernetes.io/csi/xxx^f2ee34c4-f297-49cb-8730-4442ceb1df4f\") on node \"192.168.x.x\" "

I1125 10:20:44.356818 3908451 operation_generator.go:1013] UnmountDevice succeeded for volume "pvc-1a4bcff1-f11d-456c-b91a-1aaa5c3ea5db" (UniqueName: "kubernetes.io/csi/xxx^f2ee34c4-f297-49cb-8730-4442ceb1df4f") on node "192.168.x.x"

it is so wired !

Then I added some log variables to the unmountDetachDevices method:

func (rc *reconciler) unmountDetachDevices() {
        for _, attachedVolume := range rc.actualStateOfWorld.GetUnmountedVolumes() {
                // Check IsOperationPending to avoid marking a volume as detached if it's in the process of mounting.
               klog.InfoS("===================condition1=================", !rc.desiredStateOfWorld.VolumeExists(attachedVolume.VolumeName, attachedVolume.SELinuxMountContext),"volumeName", attachedVolume.VolumeName)
               klog.InfoS("=====================condition2===============", !rc.operationExecutor.IsOperationPending(attachedVolume.VolumeName, nestedpendingoperations.EmptyUniquePodName, nestedpendingoperations.EmptyNodeName), "volumeName", attachedVolume.VolumeName)

                if !rc.desiredStateOfWorld.VolumeExists(attachedVolume.VolumeName, attachedVolume.SELinuxMountContext) &&
                        !rc.operationExecutor.IsOperationPending(attachedVolume.VolumeName, nestedpendingoperations.EmptyUniquePodName, nestedpendingoperations.EmptyNodeName) {

                        klog.InfoS("attachedVolume.DeviceMountState", attachedVolume.DeviceMountState, "volumeName", attachedVolume.VolumeName)
                        if attachedVolume.DeviceMayBeMounted() {
							...
			}
		}
}


func (asw *actualStateOfWorld) MarkDeviceAsUnmounted(
        volumeName v1.UniqueVolumeName) error {
       klog.InfoS("==================MarkDeviceAsUnmounted volumeName===================", volumeName)
       err := asw.SetDeviceMountState(volumeName, operationexecutor.DeviceNotMounted, "", "", "")
       if err!=nil{
               klog.InfoS("==================unmount err appear===================", volumeName)
       }
       return err
}

The results show that

I1125 10:20:43.948776 3908451 reconciler.go:381] "===================condition1=================" %!s(bool=true)="volumeName" kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f="(MISSING)"
I1125 10:20:43.948783 3908451 reconciler.go:382] "=====================condition2===============" %!s(bool=true)="volumeName" kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f="(MISSING)"
I1125 10:20:43.948789 3908451 reconciler.go:386] "attachedVolume.DeviceMountState" DeviceGloballyMounted="volumeName" kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f="(MISSING)"
I1125 10:20:43.948800 3908451 reconciler.go:389] "Starting operationExecutor.UnmountDevice for volume \"pvc-1a4bcff1-f11d-456c-b91a-1aaa5c3ea5db\" (UniqueName: \"kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f\") on node \"192.168.3.181\" "
I1125 10:20:43.948819 3908451 reconciler.go:396] "operationExecutor.UnmountDevice started for volume \"pvc-1a4bcff1-f11d-456c-b91a-1aaa5c3ea5db\" (UniqueName: \"kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f\") on node \"192.168.3.181\" "
I1125 10:20:44.356818 3908451 operation_generator.go:1013] UnmountDevice succeeded for volume "pvc-1a4bcff1-f11d-456c-b91a-1aaa5c3ea5db" (UniqueName: "kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f") on node "192.168.3.181"
I1125 10:20:44.356824 3908451 actual_state_of_world.go:510] "==================MarkDeviceAsUnmounted volumeName===================" kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f="(MISSING)"


################################### pay attention to this log timestamp ###################################
I1125 10:20:44.237720 3908451 reconciler.go:381] "===================condition1=================" %!s(bool=true)="volumeName" kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f="(MISSING)"
I1125 10:20:44.356906 3908451 reconciler.go:382] "=====================condition2===============" %!s(bool=true)="volumeName" kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f="(MISSING)"

################################### pay attention to this DeviceMountState variable ###################################
I1125 10:20:44.356914 3908451 reconciler.go:386] "attachedVolume.DeviceMountState" DeviceGloballyMounted="volumeName" kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f="(MISSING)"


I1125 10:20:44.356926 3908451 reconciler.go:389] "Starting operationExecutor.UnmountDevice for volume \"pvc-1a4bcff1-f11d-456c-b91a-1aaa5c3ea5db\" (UniqueName: \"kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f\") on node \"192.168.3.181\" "
I1125 10:20:44.357045 3908451 reconciler.go:396] "operationExecutor.UnmountDevice started for volume \"pvc-1a4bcff1-f11d-456c-b91a-1aaa5c3ea5db\" (UniqueName: \"kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f\") on node \"192.168.3.181\" "

################################### Error ###################################
################################### pay attention to persistentvolumes property ###################################
E1125 10:20:44.902890 3908451 nestedpendingoperations.go:348] Operation for "{volumeName:kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f podName: nodeName:}" failed. No retries permitted until 2022-11-25 10:20:45.402877857 +0800 CST m=+777.855686189 (durationBeforeRetry 500ms). Error: UnmountDevice failed for volume "pvc-1a4bcff1-f11d-456c-b91a-1aaa5c3ea5db" (UniqueName: "kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f") on node "192.168.3.181" : persistentvolumes "e6104b10fea107e004e3307b0444fd7b775fedd804ab47aa997118b7927c32e0" is forbidden: User "system:node:192.168.3.181" cannot get resource "persistentvolumes" in API group "" at the cluster scope: no relationship found between node '192.168.3.181' and this object


I1125 10:20:44.961066 3908451 reconciler.go:381] "===================condition1=================" %!s(bool=true)="volumeName" kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f="(MISSING)"
I1125 10:20:44.961083 3908451 reconciler.go:382] "=====================condition2===============" %!s(bool=true)="volumeName" kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f="(MISSING)"
I1125 10:20:44.961090 3908451 reconciler.go:386] "attachedVolume.DeviceMountState" DeviceMountUncertain="volumeName" kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f="(MISSING)"
I1125 10:20:44.961104 3908451 reconciler.go:389] "Starting operationExecutor.UnmountDevice for volume \"pvc-1a4bcff1-f11d-456c-b91a-1aaa5c3ea5db\" (UniqueName: \"kubernetes.io/csi/xxx.csi.xxx.io^f2ee34c4-f297-49cb-8730-4442ceb1df4f\") on node \"192.168.3.181\" "

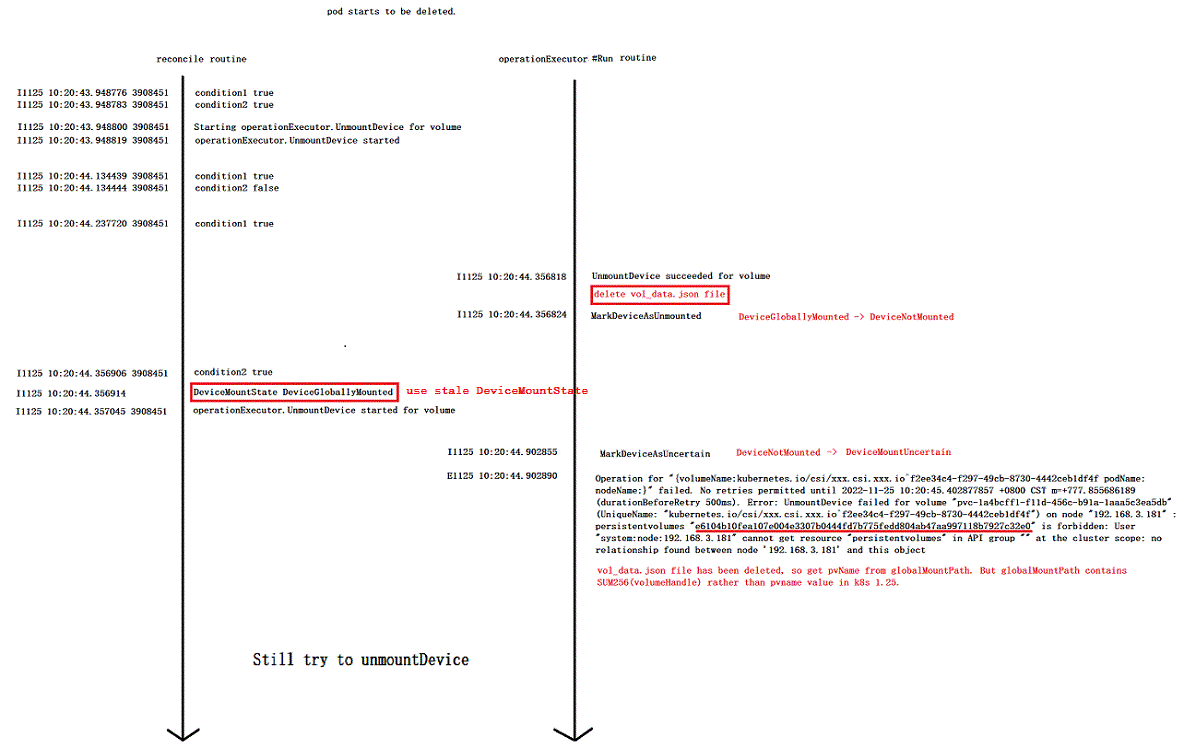

And I’ve drawn up a time-series chart of the contents of the log.

Let’s go back to the unmountDetachDevices method.

func (rc *reconciler) unmountDetachDevices() {
        for _, attachedVolume := range rc.actualStateOfWorld.GetUnmountedVolumes() {
                // Check IsOperationPending to avoid marking a volume as detached if it's in the process of mounting.
                if !rc.desiredStateOfWorld.VolumeExists(attachedVolume.VolumeName, attachedVolume.SELinuxMountContext) &&
                        !rc.operationExecutor.IsOperationPending(attachedVolume.VolumeName, nestedpendingoperations.EmptyUniquePodName, nestedpendingoperations.EmptyNodeName) {
                        if attachedVolume.DeviceMayBeMounted() {
							...
			}
		}
}

According to the above-mentioned log content, the first unmountDetachDevices operation successfully changes DeviceMountState of the corresponding attachedVolume to DeviceNotMounted, but the attachedVolume.DeviceMayBeMounted() function in the subsequent unmountDetachDevices operation still uses stale DeviceMountState.

In my opinion:

1. Ensure that the unmountDevice operation is not performed after the first unmountDevice operation succeeds.
2. If multiple unmountDevice operations are allowed, ensure that the correct pvname can be obtained in the getDriverAndVolNameFromDeviceMountPath method.

What did you expect to happen?

the volume is detached after the pod and PVC objects are deleted

How can we reproduce it (as minimally and precisely as possible)?

This problem can be reproduced by repeatedly deleting and recreating pods that require PVC in k8s 1.25.0 cluster

Anything else we need to know?

No response

Kubernetes version

$ kubectl version
# paste output here

Cloud provider

OS version

# On Linux:
$ cat /etc/os-release
# paste output here
$ uname -a
# paste output here

# On Windows:
C:\> wmic os get Caption, Version, BuildNumber, OSArchitecture
# paste output here

Install tools

Container runtime (CRI) and version (if applicable)

Related plugins (CNI, CSI, …) and versions (if applicable)
