kubernetes: Inconsistent reset of changes to kubernetes endpoints

What happened:

If you change some attributes of the kubernetes endpoint in the default namespace, they are not reset

Attributes that are reset (correctly)

• IP address

Attributes that are not reset (incorrect)

• Port
• Port name
• Protocol

If you change those attibutes of the kubernetes endpoint in the default namespace it is not reset to the correct value. This differs from the IP address which is reset rapidly.

What you expected to happen:

All attributes to be reset to the correct values.

Example of what I expect to happen

Here’s an example of the IP being reset to 192.168.65.4 rather than being left at the wrong values (1.1.1.1)

$ kubectl patch endpoints kubernetes -n default --type='json' -p='[{"op": "replace", "path": "/subsets/0/addresses/0/ip", "value":"1.1.1.1"}]' && sleep 60 && kubectl -n default get endpoints kubernetes -ojsonpath="{.subsets[0].addresses[0].ip}{'\n'}"
endpoints/kubernetes patched
192.168.65.4

How to reproduce it (as minimally and precisely as possible):

Example to patch the port to some nonsense that won’t work

kubectl patch endpoints kubernetes -n default --type='json' -p='[{"op": "replace", "path": "/subsets/0/ports/0/port", "value":443}]'

To reset to default

kubectl patch endpoints kubernetes -n default --type='json' -p='[{"op": "replace", "path": "/subsets/0/ports/0/port", "value":6443}]'

Example to patch the port name

kubectl patch endpoints kubernetes -n default --type='json' -p='[{"op": "replace", "path": "/subsets/0/ports/0/name", "value":"http"}]'

To reset to default

kubectl patch endpoints kubernetes -n default --type='json' -p='[{"op": "replace", "path": "/subsets/0/ports/0/name", "value":"https"}]'

Example to patch the protocol

kubectl patch endpoints kubernetes --type='json' -n default -p='[{"op": "replace", "path": "/subsets/0/ports/0/protocol", "value":"UDP"}]'

To reset to default

kubectl patch endpoints kubernetes --type='json' -n default -p='[{"op": "replace", "path": "/subsets/0/ports/0/protocol", "value":"TCP"}]'

Anything else we need to know?:

The resetting behaviour of the IP address prevents #97076 being used to MITM traffic to the kubernetes API, so that’s good.

Environment:

• Kubernetes version (use kubectl version): Client Version: version.Info{Major:“1”, Minor:“21”, GitVersion:“v1.21.2”, GitCommit:“092fbfbf53427de67cac1e9fa54aaa09a28371d7”, GitTreeState:“clean”, BuildDate:“2021-06-16T12:59:11Z”, GoVersion:“go1.16.5”, Compiler:“gc”, Platform:“darwin/amd64”} Server Version: version.Info{Major:“1”, Minor:“21”, GitVersion:“v1.21.2”, GitCommit:“092fbfbf53427de67cac1e9fa54aaa09a28371d7”, GitTreeState:“clean”, BuildDate:“2021-06-16T12:53:14Z”, GoVersion:“go1.16.5”, Compiler:“gc”, Platform:“linux/amd64”}

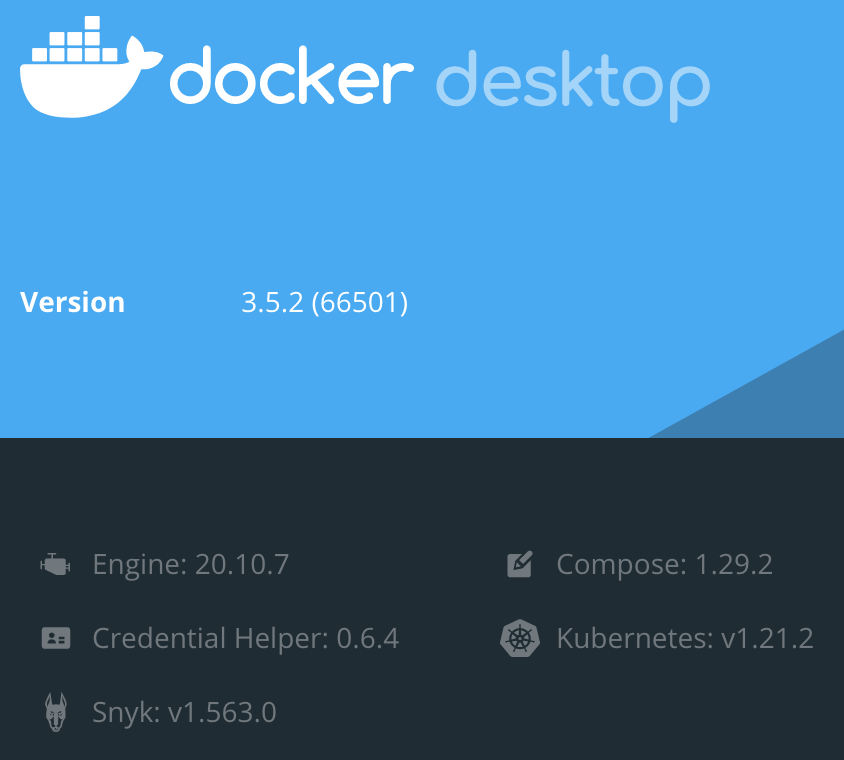

• Cloud provider or hardware configuration: Kubernetes enabled on docker desktop on macos

• OS (e.g: cat /etc/os-release):

• Kernel (e.g. uname -a): N/A

• Install tools:

• Network plugin and version (if this is a network-related bug):

• Others:
