LaTeX-Workshop: PDFviewer broken in VS Code 1.47.0 over remote ssh

Preliminary questions [Required]

Disable all the other extensions except for LaTeX Workshop, and check that you still see this issue. [Required]

You still see this issue?: Yes

Make sure to visit the wiki FAQ before filling an issue.

You visited the wiki?: Yes

If your issue is with compiling a document (not having to do with finding the root file of a project), check first that you can compile manually.

You can compile a TeX document manually?: Yes

Describe the bug [Required]

A clear and concise description of what the bug is.

The PDFviewer does not display the PDF in VS Code 1.47.0 over remote ssh.

To Reproduce

Steps to reproduce the behavior:

  1. Open a latex project on a remote server via remote ssh plugin
  2. Click on the “View Latex PDF file” button
  3. A new tab opens but nothing is displayed

Expected behavior

A clear and concise description of what you expected to happen.

The pdf file should be displayed in the new tab.

Logs [Required]

Please paste the whole log messages here, not parts of ones. The log should start with Initializing LaTeX Workshop. It is very important to identify problems.

LaTeX Workshop Output [Required]

To access the log, click the 'TeX' icon on the Activity Bar on the left side, select 'View Log Messages', then select 'View LaTeX Workshop extension log'.

[01:53:41] Initializing LaTeX Workshop.
[01:53:41] Creating PDF file watcher.
[01:53:41] Creating LaTeX Workshop http and websocket server.
[01:53:41] LaTeX Workshop initialized.
[01:53:41] Found root file of this subfile from active editor: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/main.tex
[01:53:41] Root file changed: from undefined to /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/main.tex
[01:53:41] Start to find all dependencies.
[01:53:41] Instantiating a new file watcher for /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/main.tex
[01:53:41] Creating Bib file watcher.
[01:53:41] Parsing a file and its subfiles: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/main.tex
[01:53:41] Parsing a file and its subfiles: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/NetsortTMain.tex
[01:53:41] Parse fls file.
[01:53:41] Cannot find fls file: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/NetsortTMain.fls
[01:53:41] Parsing a file and its subfiles: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/semicircleLaw.tex
[01:53:41] Parse fls file.
[01:53:41] Cannot find fls file: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/semicircleLaw.fls
[01:53:41] Parsing a file and its subfiles: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/FreeIndependence.tex
[01:53:41] Parse fls file.
[01:53:41] Fls file found: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/FreeIndependence.fls
[01:53:41] Parse aux file: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/FreeIndependence.aux
[01:53:41] Parsing a file and its subfiles: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/proofsketch.tex
[01:53:41] Parse fls file.
[01:53:41] Cannot find fls file: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/proofsketch.fls
[01:53:41] Parsing a file and its subfiles: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/extraTheorems.tex
[01:53:41] Parse fls file.
[01:53:41] Cannot find fls file: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/extraTheorems.fls
[01:53:41] Parsing a file and its subfiles: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/Generalized_GP4A_NTK4A.tex
[01:53:41] Parse fls file.
[01:53:41] Cannot find fls file: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/Generalized_GP4A_NTK4A.fls
[01:53:41] Parsing a file and its subfiles: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/advancedNetsorT.tex
[01:53:41] Parse fls file.
[01:53:41] Cannot find fls file: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/advancedNetsorT.fls
[01:53:41] Parsing a file and its subfiles: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/proofs.tex
[01:53:41] Parse fls file.
[01:53:41] Cannot find fls file: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/proofs.fls
[01:53:41] Found .bib file: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/references.bib
[01:53:41] Added to bib file watcher: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/references.bib
[01:53:41] Parsing .bib entries from /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/references.bib
[01:53:41] Parse fls file.
[01:53:41] Cannot find fls file: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/main.fls
[01:53:41] Server created on 127.0.0.1:46137
[01:53:41] Added to file watcher: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/main.tex
[01:53:41] Added to file watcher: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/NetsortTMain.tex
[01:53:41] Added to file watcher: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/semicircleLaw.tex
[01:53:41] Added to file watcher: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/FreeIndependence.tex
[01:53:41] Added to file watcher: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/proofsketch.tex
[01:53:41] Added to file watcher: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/extraTheorems.tex
[01:53:41] Added to file watcher: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/Generalized_GP4A_NTK4A.tex
[01:53:41] Added to file watcher: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/advancedNetsorT.tex
[01:53:41] Added to file watcher: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/proofs.tex
[01:53:41] Snippet data loaded.
[01:53:41] LaTeX Workshop version: 8.11.1
[01:53:41] Parsed 1132 bib entries from /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/references.bib.
[01:55:01] VIEW command invoked with mode: file:///home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/FreeIndependence.tex.
[01:55:01] Found root file of this subfile from active editor: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/main.tex
[01:55:01] Keep using the same root file: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/main.tex.
[01:55:01] Serving PDF file at http://localhost:46137/viewer.html?file=pdf..JTJGaG9tZSUyRmdyZWd5YW5nJTJGc2FtYmFzaGFyZSUyRnRleC13b3Jrc3BhY2UlMkZUZW5zb3JQcm9ncmFtRnVsbFBvd2VyJTJGRnJlZUluZGVwZW5kZW5jZS5wZGY
[01:55:01] The encoded path is /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/FreeIndependence.pdf
[01:55:01] Open PDF tab for /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/FreeIndependence.pdf
[01:55:01] Found root file of this subfile from active editor: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/main.tex
[01:55:01] Keep using the same root file: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/main.tex.
[01:55:15] Found root file of this subfile from active editor: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/main.tex
[01:55:15] Keep using the same root file: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/main.tex.
[01:55:16] VIEW command invoked with mode: file:///home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/FreeIndependence.tex.
[01:55:16] Found root file of this subfile from active editor: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/main.tex
[01:55:16] Keep using the same root file: /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/main.tex.
[01:55:16] Serving PDF file at http://localhost:46137/viewer.html?file=pdf..JTJGaG9tZSUyRmdyZWd5YW5nJTJGc2FtYmFzaGFyZSUyRnRleC13b3Jrc3BhY2UlMkZUZW5zb3JQcm9ncmFtRnVsbFBvd2VyJTJGRnJlZUluZGVwZW5kZW5jZS5wZGY
[01:55:16] The encoded path is /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/FreeIndependence.pdf
[01:55:16] Open PDF tab for /home/gregyang/sambashare/tex-workspace/TensorProgramFullPower/FreeIndependence.pdf

Developer Tools Console [Required]

To access the log, click 'help' -> 'Toggle Developer Tools' -> 'Console'. Paste anything suspicious.

workbench.desktop.main.js:sourcemap:266 [Extension Host] (node:19832) [DEP0005] DeprecationWarning: Buffer() is deprecated due to security and usability issues. Please use the Buffer.alloc(), Buffer.allocUnsafe(), or Buffer.from() methods instead.
t.log @ workbench.desktop.main.js:sourcemap:266
workbench.desktop.main.js:sourcemap:1670   ERR Cannot read property 'state' of undefined: TypeError: Cannot read property 'state' of undefined
	at PdfViewerPanelSerializer.deserializeWebviewPanel (/home/gregyang/.vscode-server/extensions/james-yu.latex-workshop-8.11.1/out/src/components/viewer.js:64:30)
	at K.$deserializeWebviewPanel (/home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:805:485)
	at m._doInvokeHandler (/home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:823:683)
	at m._invokeHandler (/home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:823:375)
	at m._receiveRequest (/home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:822:14)
	at m._receiveOneMessage (/home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:821:6)
	at /home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:819:34
	at l.fire (/home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:45:801)
	at v.fire (/home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:235:849)
	at /home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:997:744
	at l.fire (/home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:45:801)
	at v.fire (/home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:235:849)
	at t.PersistentProtocol._receiveMessage (/home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:240:276)
	at /home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:237:357
	at l.fire (/home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:45:801)
	at p.acceptChunk (/home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:233:393)
	at /home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:232:753
	at Socket.t (/home/gregyang/.vscode-server/bin/d5e9aa0227e057a60c82568bf31c04730dc15dcd/out/vs/server/remoteExtensionHostProcess.js:241:826)
	at Socket.emit (events.js:200:13)
	at addChunk (_stream_readable.js:294:12)
	at readableAddChunk (_stream_readable.js:275:11)
	at Socket.Readable.push (_stream_readable.js:210:10)
	at TCP.onStreamRead (internal/stream_base_commons.js:166:17)
workbench.desktop.main.js:sourcemap:1670   ERR read ECONNRESET: Error: read ECONNRESET
	at TCP.onStreamRead (internal/stream_base_commons.js:183:27)

Screenshots

If applicable, add screenshots to help explain your problem.

Desktop [Required]

  • OS: Windows 10
  • VS Code version: 1.47.0
  • Extension version: 8.11.1
  • TeX distribution version: TeX Live 2019

Additional questions

Are you using VSCodium?

No

Are you using LaTeX Workshop with VS Code Remote?

Yes

If the answer is Yes, please write which one you are using. Write the versions of the remote extension.

  • Remote SSH
  • Remote Extension Version: 0.51.0

Additional context

Add any other context about the problem here.

About this issue

  • Original URL
  • State: closed
  • Created 4 years ago
  • Reactions: 17
  • Comments: 33 (5 by maintainers)

Most upvoted comments

Facing the same issue. The solution by @guitsilva was working for me earlier, but since last couple of days when try that, I get the following tab that asks for a password to open the file image

+22
rohitgirdhar on Aug 14, 2020

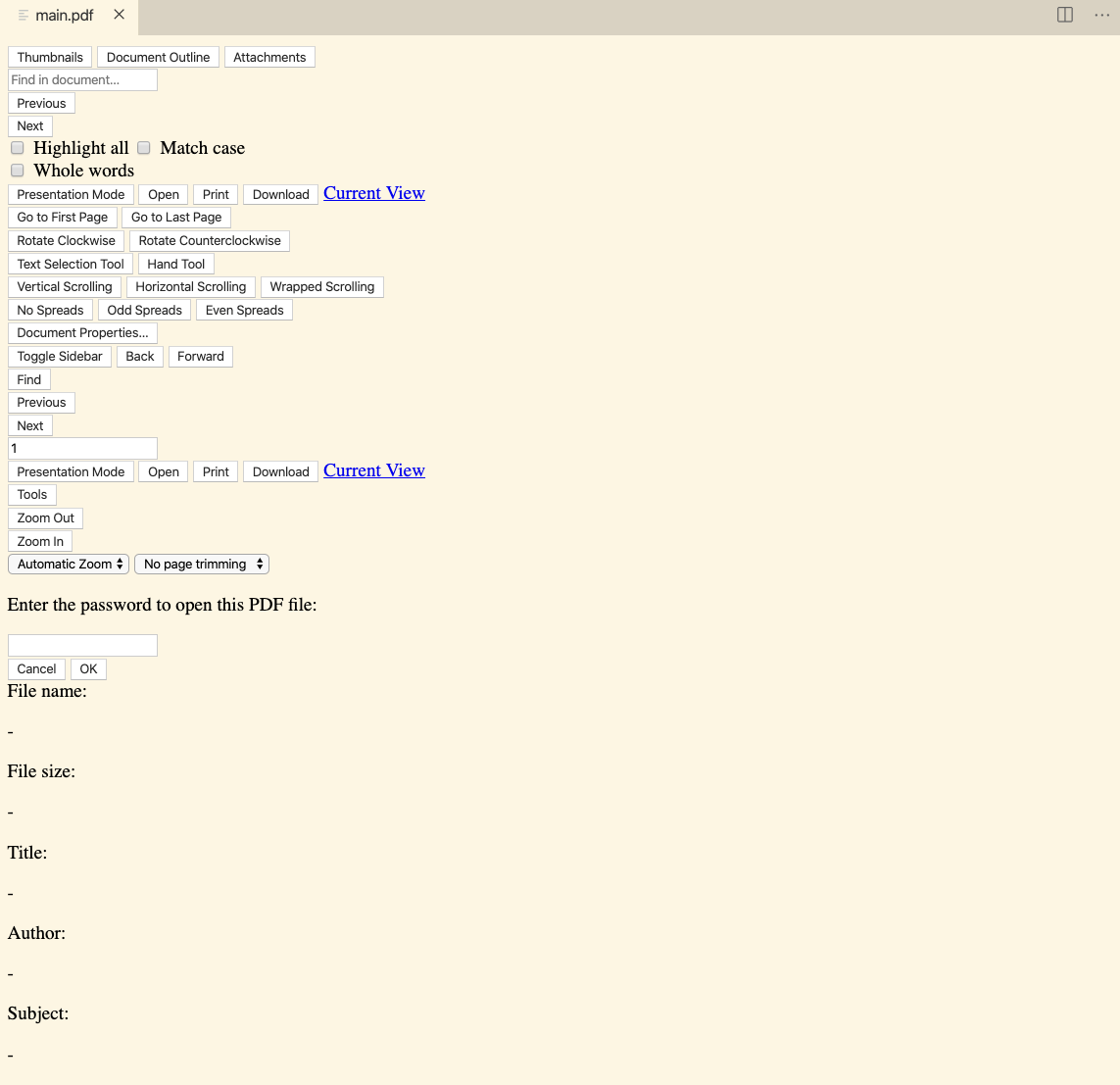

Same issue with Remote Container (Docker). Strangely, as reported at the VSCode issues mentioned above, the following workaround temporarily solves the issue:

  1. Open a browser preview: “LaTeX-Workshop side panel” -> “Commands” -> “View LaTeX PDF” -> “View in web browser”.

  2. Close the browser preview.

  3. Open a VSCode tab preview: “LaTeX-Workshop side panel” -> “Commands” -> “View LaTeX PDF” -> “View in VSCode tab”.

This workaround is just a palliative and only fix the problem until you restart VSCode.

+22
guitsilva on Jul 16, 2020

You can downgrade to VS Code 1.46 with binaries in the release note:

If you want this issue fixed soon, please upvote microsoft/vscode/issues/102449. I doubt this issue will be fixed in the next release, VS Code 1.49.

We can do nothing on our side as far as I tried.

+6
tamuratak on Sep 3, 2020

(fyi) VS Code 1.49 was just released, and so far PDF preview has been working fine again (at least for connections into WSL2). There also was some update for the remote extensions related to “Automatically forward ports”, which might actually remedy the issue.

+5
bwegge on Sep 11, 2020

For what it’s worth, if you click on the ‘View LaTeX PDF file’ button (Ctrl + Alt + v) while VSCode is starting the PDF tab loads correctly.

+5
watermarkhu on Aug 20, 2020

I could fix the bug in 1.47.3 by applying the following config to devcontainer.json:

{
   ...
  "forwardPorts": [ 35556 ],
  "settings": {
     "latex-workshop.viewer.pdf.internal.port": 35556,
    ...
  },
}

I guess the problem occurs due to the default value "0" of the property latex-workshop.viewer.pdf.internal.port. Either because it is randomly chosen, or because it is a string instead of a number?

+5
CheariX on Aug 14, 2020

In 1.48, the behavior got worse. Opening does not work out of the box, still. But when using the browser-work-around, the PDF is not rendered. I just see strange buttons and text 😦

+5
CheariX on Aug 15, 2020

I can reproduce. It seems to be a vscode webview+remote dev bug. Also see https://github.com/Ikuyadeu/vscode-R/issues/380

+3
James-Yu on Aug 14, 2020

I am still seeing this issue in v1.49.1 with Remote SSH v0.55.0. Same on today’s insiders 1.50.0 with the same Remote SSH.

For remote ssh it works but only after I set up port forwarding manually or by clicking “View in web browser”.

May I ask how you did that? Did you just enable “port forwarding” somewhere, or did you have to set up specific ports?

Sure, there are two different ways to do the same thing (i.e., set up port forwarding), so choose only one of them:

  1. Manual setup: follow instructions here. The key is to choose the correct port to forward. Usually the one listened by /home/<username>/.vscode-server/bin/.../node is the one to go.
  2. Open preview in browser: follow instructions here. Somehow doing so sets up the port forwarding automatically.
+2
Blaok on Sep 19, 2020

For remote ssh it works but only after I set up port forwarding manually or by clicking “View in web browser”.

(fyi) VS Code 1.49 was just released, and so far PDF preview has been working fine again (at least for connections into WSL2).

+2
Blaok on Sep 11, 2020

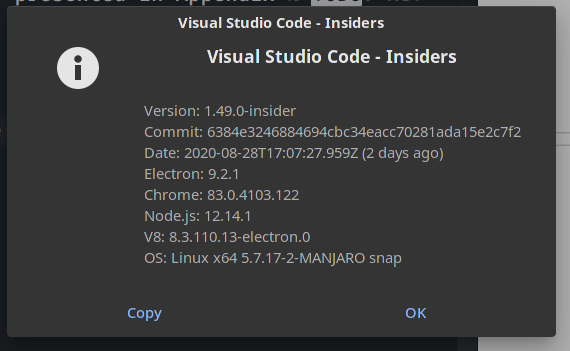

PDF Preview is working again for me with the latest insiders build (snap).


+2
BerriJ on Sep 3, 2020

  1. If I close the PDF tab before I exit vscode, then next time I can preview PDF in vscode. Everything works for me.

  2. If I forget close the PDF tab before I exit vscode, next time when I open vscode, the PDF tab will be there but no pdf showing. And I can not preview PDF any more.

+1
Infinemen on Oct 29, 2020

It seems like its working again for me after the latest 1.49 insider

+1
Queuecumber on Sep 3, 2020

Can confirm that the workaround @guitsilva mentioned also works for Remote SSH.

+1
GeckoEidechse on Aug 24, 2020
