istio: Multicluster Mixer Error with Single Control Plane

Describe the bug After following instructions on https://istio.io/docs/setup/kubernetes/multicluster-install/ using 1.1.0-snapshot4 (tested with 1.0.5 also), I’ve deployed bookinfo application and moved reviews-v3 to the remote cluster. Traffic goes fine, application works fine, I can see traces also on Jaeger UI, however, Mixer is not able to identify the pod, and I’m getting some “unknown” on Kiali and ServiceGraph.

Expected behavior According to PR https://github.com/istio/istio/pull/8536 in version 1.1.0-snapshot4 kubernetesenv adapter on Mixer should be able to connect to the remote cluster to get pod information.

Steps to reproduce the bug Install Istio Multicluster, with routes on both clusters so that PODs from each cluster can ping each other. Deploy bookinfo application, remove reviews-v3 from the control-plane cluster and install it on the remote cluster.

Version istio-1.0.5 istio-1.1.0-snapshot4.

Installation On master: helm template install/kubernetes/helm/istio --name istio --namespace istio-system --set tracing.enabled=true --set ingress.enabled=true --set gateways.enabled=true --set gateways.istio-ingressgateway.enabled=true --set gateways.istio-egressgateway.enabled=true --set sidecarInjectorWebhook.enabled=true --set galley.enabled=true --set mixer.enabled=true --set mixer.istio-policy.autoscaleEnabled=true --set mixer.istio-telemetry.autoscaleEnabled=true --set pilot.enabled=true --set telemetry-gateway.grafanaEnabled=true --set telemetry-gateway.prometheusEnabled=true --set grafana.enabled=true --set prometheus.enabled=true --set servicegraph.enabled=true --set tracing.ingress.enabled=true --set kiali.enabled=true > /root/istio-control-plane.yaml

On Remote:

helm template install/kubernetes/helm/istio-remote --namespace istio-system \
--name istio-remote \
--set global.remotePilotAddress=${PILOT_POD_IP} \
--set global.remotePolicyAddress=${POLICY_POD_IP} \
--set global.remoteTelemetryAddress=${TELEMETRY_POD_IP} \
--set global.remoteZipkinAddress=${ZIPKIN_POD_IP} > /root/istio-remote.yaml

Environment Its a private cloud, using kubeadm with 1 master and 1 node on each cluster. Both running CentOS 7.

Cluster state Cluster A:

NAME        STATUS   ROLES    AGE     VERSION   INTERNAL-IP    EXTERNAL-IP   OS-IMAGE                KERNEL-VERSION              CONTAINER-RUNTIME
kube01-01   Ready    master   6h32m   v1.13.1   172.17.10.51   <none>        CentOS Linux 7 (Core)   3.10.0-957.1.3.el7.x86_64   docker://1.13.1
kube01-02   Ready    <none>   6h31m   v1.13.1   172.17.10.52   <none>        CentOS Linux 7 (Core)   3.10.0-957.1.3.el7.x86_64   docker://1.13.1

NAME                                                    READY   STATUS      RESTARTS   AGE    IP           NODE        NOMINATED NODE   READINESS GATES
grafana-68886b9575-pw544                                1/1     Running     0          128m   10.51.0.5    kube01-01   <none>           <none>
istio-citadel-5687dd56-v2p5k                            1/1     Running     0          128m   10.51.1.9    kube01-02   <none>           <none>
istio-cleanup-secrets-master-latest-daily-hpmv9         0/1     Completed   0          128m   10.51.1.5    kube01-02   <none>           <none>
istio-egressgateway-84757ff994-ccklk                    1/1     Running     0          128m   10.51.0.4    kube01-01   <none>           <none>
istio-galley-7b8d6bcdc6-xtbpq                           1/1     Running     0          128m   10.51.1.13   kube01-02   <none>           <none>
istio-grafana-post-install-master-latest-daily-d9999    0/1     Completed   0          128m   10.51.0.2    kube01-01   <none>           <none>
istio-ingress-56b9b96fdb-p5v6g                          1/1     Running     0          128m   10.51.0.6    kube01-01   <none>           <none>
istio-ingressgateway-55b7dbcc65-nk72n                   1/1     Running     0          128m   10.51.1.6    kube01-02   <none>           <none>
istio-pilot-f56c6774b-xh85f                             2/2     Running     1          128m   10.51.0.9    kube01-01   <none>           <none>
istio-policy-6ccddfd88c-xqq8c                           2/2     Running     5          128m   10.51.1.7    kube01-02   <none>           <none>
istio-security-post-install-master-latest-daily-cw4pq   0/1     Completed   0          128m   10.51.0.3    kube01-01   <none>           <none>
istio-sidecar-injector-94cdb784-lvdtm                   1/1     Running     0          128m   10.51.1.14   kube01-02   <none>           <none>
istio-telemetry-8bf65698d-9z857                         2/2     Running     0          19m    10.51.0.81   kube01-01   <none>           <none>
istio-tracing-657b76bb5f-lhm2v                          1/1     Running     0          128m   10.51.1.11   kube01-02   <none>           <none>
kiali-6f5785c57b-h2894                                  1/1     Running     0          89m    10.51.0.77   kube01-01   <none>           <none>
prometheus-797f6564bb-bg7mm                             1/1     Running     0          128m   10.51.1.8    kube01-02   <none>           <none>
servicegraph-648456876f-ttm77                           1/1     Running     0          128m   10.51.1.10   kube01-02   <none>           <none>

Cluster B:

NAME        STATUS   ROLES    AGE     VERSION   INTERNAL-IP    EXTERNAL-IP   OS-IMAGE                KERNEL-VERSION              CONTAINER-RUNTIME
kube02-01   Ready    master   6h32m   v1.13.1   172.17.10.61   <none>        CentOS Linux 7 (Core)   3.10.0-957.1.3.el7.x86_64   docker://1.13.1
kube02-02   Ready    <none>   6h32m   v1.13.1   172.17.10.62   <none>        CentOS Linux 7 (Core)   3.10.0-957.1.3.el7.x86_64   docker://1.13.1

NAME                                              READY   STATUS      RESTARTS   AGE   IP          NODE        NOMINATED NODE   READINESS GATES
istio-citadel-58d5cb57-snfjk                      1/1     Running     0          48m   10.61.1.4   kube02-02   <none>           <none>
istio-cleanup-secrets-master-latest-daily-q8tsd   0/1     Completed   0          48m   10.61.1.3   kube02-02   <none>           <none>
istio-sidecar-injector-bcf8b9dc5-49fns            1/1     Running     0          48m   10.61.1.6   kube02-02   <none>           <none>

OTHER INFORMATION

Here are some pieces of information I figure might help:

Without strack trace:

2019-01-12T19:28:06.007672Z     debug   api     Dispatching Preprocess
2019-01-12T19:28:06.007748Z     debug   api     Dispatching Preprocess
2019-01-12T19:28:06.007901Z     debug   begin dispatch: destination='kubernetes:kubernetesenv.istio-system(kubernetesenv)'
2019-01-12T19:28:06.007996Z     debug   begin dispatch: destination='kubernetes:kubernetesenv.istio-system(kubernetesenv)'
2019-01-12T19:28:06.007987Z     debug   adapters        could not find pod for (uid: kubernetes://reviews-v3-5b994cb49d-6xhxz.default, key: default/reviews-v3-5b994cb49d-6xhxz)        {"adapter": "kubernetesenv.istio-system"}
2019-01-12T19:28:06.008305Z     debug   complete dispatch: destination='kubernetes:kubernetesenv.istio-system(kubernetesenv)' {err:<nil>}
2019-01-12T19:28:06.008391Z     debug   complete dispatch: destination='kubernetes:kubernetesenv.istio-system(kubernetesenv)' {err:<nil>}

With stack trace turned on:

2019-01-12T19:38:20.858882Z     debug   adapters        could not find pod for (uid: kubernetes://reviews-v3-5b994cb49d-6xhxz.default, key: default/reviews-v3-5b994cb49d-6xhxz)        {"adapter": "kubernetesenv.istio-system"}
istio.io/istio/pkg/log.(*Scope).emit
        /workspace/go/src/istio.io/istio/pkg/log/scope.go:281
istio.io/istio/pkg/log.(*Scope).Debug
        /workspace/go/src/istio.io/istio/pkg/log/scope.go:229
istio.io/istio/mixer/pkg/runtime/handler.logger.Debugf
        /workspace/go/src/istio.io/istio/mixer/pkg/runtime/handler/logger.go:66
istio.io/istio/mixer/adapter/kubernetesenv.(*handler).findPod
        /workspace/go/src/istio.io/istio/mixer/adapter/kubernetesenv/kubernetesenv.go:242
istio.io/istio/mixer/adapter/kubernetesenv.(*handler).GenerateKubernetesAttributes
        /workspace/go/src/istio.io/istio/mixer/adapter/kubernetesenv/kubernetesenv.go:211
istio.io/istio/mixer/template.glob..func4
        /workspace/go/src/istio.io/istio/mixer/template/template.gen.go:333
istio.io/istio/mixer/pkg/runtime/dispatcher.(*dispatchState).invokeHandler
        /workspace/go/src/istio.io/istio/mixer/pkg/runtime/dispatcher/dispatchstate.go:143
istio.io/istio/mixer/pkg/runtime/dispatcher.(*dispatchState).(istio.io/istio/mixer/pkg/runtime/dispatcher.invokeHandler)-fm
        /workspace/go/src/istio.io/istio/mixer/pkg/runtime/dispatcher/session.go:271
istio.io/istio/mixer/pkg/pool.(*GoroutinePool).AddWorkers.func1
        /workspace/go/src/istio.io/istio/mixer/pkg/pool/goroutine.go:82

Telemetry POD:

Name:               istio-telemetry-8bf65698d-9z857
Namespace:          istio-system
Priority:           0
PriorityClassName:  <none>
Node:               kube01-01/172.17.10.51
Start Time:         Sat, 12 Jan 2019 17:37:27 -0200
Labels:             app=telemetry
                    chart=mixer
                    heritage=Tiller
                    istio=mixer
                    istio-mixer-type=telemetry
                    pod-template-hash=8bf65698d
                    release=istio
                    version=1.1.0
Annotations:        scheduler.alpha.kubernetes.io/critical-pod:
                    sidecar.istio.io/inject: false
Status:             Running
IP:                 10.51.0.81
Controlled By:      ReplicaSet/istio-telemetry-8bf65698d
Containers:
  mixer:
    Container ID:  docker://23f034d425c27334155391160fee105e154e85ec42bba71f1a7346674bfc1641
    Image:         gcr.io/istio-release/mixer:master-latest-daily
    Image ID:      docker-pullable://gcr.io/istio-release/mixer@sha256:860d4a96f67104ba35bb6c9843b24aed6d9165d2965d011bff4c0afb0642d1d5
    Ports:         9093/TCP, 42422/TCP
    Host Ports:    0/TCP, 0/TCP
    Args:
      --monitoringPort=9093
      --address
      unix:///sock/mixer.socket
      --configStoreURL=mcp://istio-galley.istio-system.svc:9901
      --configDefaultNamespace=istio-system
      --trace_zipkin_url=http://zipkin:9411/api/v1/spans
    State:          Running
      Started:      Sat, 12 Jan 2019 17:37:30 -0200
    Ready:          True
    Restart Count:  0
    Requests:
      cpu:     10m
    Liveness:  http-get http://:9093/version delay=5s timeout=1s period=5s #success=1 #failure=3
    Environment:
      GODEBUG:  gctrace=2
    Mounts:
      /etc/certs from istio-certs (ro)
      /sock from uds-socket (rw)
      /var/run/secrets/kubernetes.io/serviceaccount from istio-mixer-service-account-token-tzvct (ro)
  istio-proxy:
    Container ID:  docker://afad1e72fddbb660176bbe1331e7ec5f674afaef42c68c41b323045e9933ac3b
    Image:         gcr.io/istio-release/proxyv2:master-latest-daily
    Image ID:      docker-pullable://gcr.io/istio-release/proxyv2@sha256:718563628a051e5f690c4939eb9f8af66c26f25106042f09065cb207385d176c
    Ports:         9091/TCP, 15004/TCP, 15090/TCP
    Host Ports:    0/TCP, 0/TCP, 0/TCP
    Args:
      proxy
      --serviceCluster
      istio-telemetry
      --templateFile
      /etc/istio/proxy/envoy_telemetry.yaml.tmpl
      --controlPlaneAuthPolicy
      NONE
    State:          Running
      Started:      Sat, 12 Jan 2019 17:37:30 -0200
    Ready:          True
    Restart Count:  0
    Requests:
      cpu:  10m
    Environment:
      POD_NAME:       istio-telemetry-8bf65698d-9z857 (v1:metadata.name)
      POD_NAMESPACE:  istio-system (v1:metadata.namespace)
      INSTANCE_IP:     (v1:status.podIP)
    Mounts:
      /etc/certs from istio-certs (ro)
      /sock from uds-socket (rw)
      /var/run/secrets/kubernetes.io/serviceaccount from istio-mixer-service-account-token-tzvct (ro)
Conditions:
  Type              Status
  Initialized       True
  Ready             True
  ContainersReady   True
  PodScheduled      True
Volumes:
  istio-certs:
    Type:        Secret (a volume populated by a Secret)
    SecretName:  istio.istio-mixer-service-account
    Optional:    true
  uds-socket:
    Type:    EmptyDir (a temporary directory that shares a pod's lifetime)
    Medium:
  istio-mixer-service-account-token-tzvct:
    Type:        Secret (a volume populated by a Secret)
    SecretName:  istio-mixer-service-account-token-tzvct
    Optional:    false
QoS Class:       Burstable
Node-Selectors:  <none>
Tolerations:     node.kubernetes.io/not-ready:NoExecute for 300s
                 node.kubernetes.io/unreachable:NoExecute for 300s
Events:
  Type    Reason     Age   From                Message
  ----    ------     ----  ----                -------
  Normal  Scheduled  17m   default-scheduler   Successfully assigned istio-system/istio-telemetry-8bf65698d-9z857 to kube01-01
  Normal  Pulled     17m   kubelet, kube01-01  Container image "gcr.io/istio-release/mixer:master-latest-daily" already present on machine
  Normal  Created    17m   kubelet, kube01-01  Created container
  Normal  Started    17m   kubelet, kube01-01  Started container
  Normal  Pulled     17m   kubelet, kube01-01  Container image "gcr.io/istio-release/proxyv2:master-latest-daily" already present on machine
  Normal  Created    17m   kubelet, kube01-01  Created container
  Normal  Started    17m   kubelet, kube01-01  Started container

Secrets on Control Plane:

NAME                                                 TYPE                                  DATA   AGE
clusterb                                             Opaque                                1      47m
default-token-k4xv6                                  kubernetes.io/service-account-token   3      131m
istio-ca-secret                                      istio.io/ca-root                      5      129m
istio-citadel-service-account-token-8zww5            kubernetes.io/service-account-token   3      131m
istio-cleanup-secrets-service-account-token-9hllg    kubernetes.io/service-account-token   3      131m
istio-egressgateway-service-account-token-2b987      kubernetes.io/service-account-token   3      131m
istio-galley-service-account-token-wn8jv             kubernetes.io/service-account-token   3      131m
istio-grafana-post-install-account-token-zw497       kubernetes.io/service-account-token   3      131m
istio-ingress-service-account-token-7jzhd            kubernetes.io/service-account-token   3      131m
istio-ingressgateway-service-account-token-2jjmb     kubernetes.io/service-account-token   3      131m
istio-mixer-service-account-token-tzvct              kubernetes.io/service-account-token   3      131m
istio-pilot-service-account-token-mf9g2              kubernetes.io/service-account-token   3      131m
istio-security-post-install-account-token-v5s62      kubernetes.io/service-account-token   3      131m
istio-sidecar-injector-service-account-token-mjj86   kubernetes.io/service-account-token   3      131m
istio.default                                        istio.io/key-and-cert                 3      129m
istio.istio-citadel-service-account                  istio.io/key-and-cert                 3      129m
istio.istio-cleanup-secrets-service-account          istio.io/key-and-cert                 3      129m
istio.istio-egressgateway-service-account            istio.io/key-and-cert                 3      129m
istio.istio-galley-service-account                   istio.io/key-and-cert                 3      129m
istio.istio-grafana-post-install-account             istio.io/key-and-cert                 3      129m
istio.istio-ingress-service-account                  istio.io/key-and-cert                 3      129m
istio.istio-ingressgateway-service-account           istio.io/key-and-cert                 3      129m
istio.istio-mixer-service-account                    istio.io/key-and-cert                 3      129m
istio.istio-pilot-service-account                    istio.io/key-and-cert                 3      129m
istio.istio-security-post-install-account            istio.io/key-and-cert                 3      129m
istio.istio-sidecar-injector-service-account         istio.io/key-and-cert                 3      129m
istio.kiali-service-account                          istio.io/key-and-cert                 3      129m
istio.prometheus                                     istio.io/key-and-cert                 3      129m
kiali                                                Opaque                                2      113m
kiali-service-account-token-kdq6q                    kubernetes.io/service-account-token   3      131m
prometheus-token-mg8tw                               kubernetes.io/service-account-token   3      131m

Secrets on Remote:

NAME                                                 TYPE                                  DATA   AGE
default-token-qxbb4                                  kubernetes.io/service-account-token   3      51m
istio-ca-secret                                      istio.io/ca-root                      5      50m
istio-citadel-service-account-token-bg9xm            kubernetes.io/service-account-token   3      51m
istio-cleanup-secrets-service-account-token-5g542    kubernetes.io/service-account-token   3      51m
istio-multi-token-jpdbr                              kubernetes.io/service-account-token   3      51m
istio-sidecar-injector-service-account-token-h8blp   kubernetes.io/service-account-token   3      51m
istio.default                                        istio.io/key-and-cert                 3      50m
istio.istio-citadel-service-account                  istio.io/key-and-cert                 3      50m
istio.istio-cleanup-secrets-service-account          istio.io/key-and-cert                 3      50m
istio.istio-multi                                    istio.io/key-and-cert                 3      50m
istio.istio-sidecar-injector-service-account         istio.io/key-and-cert                 3      50m

About this issue

  • Original URL
  • State: closed
  • Created 5 years ago
  • Comments: 15 (8 by maintainers)

Most upvoted comments

I spent quite a bit of time since my last comment investigating and here’s what I came up with. Note that I’m not an istio expert nor a kubernetes go client api expert, so I may be making some incorrect assumptions.

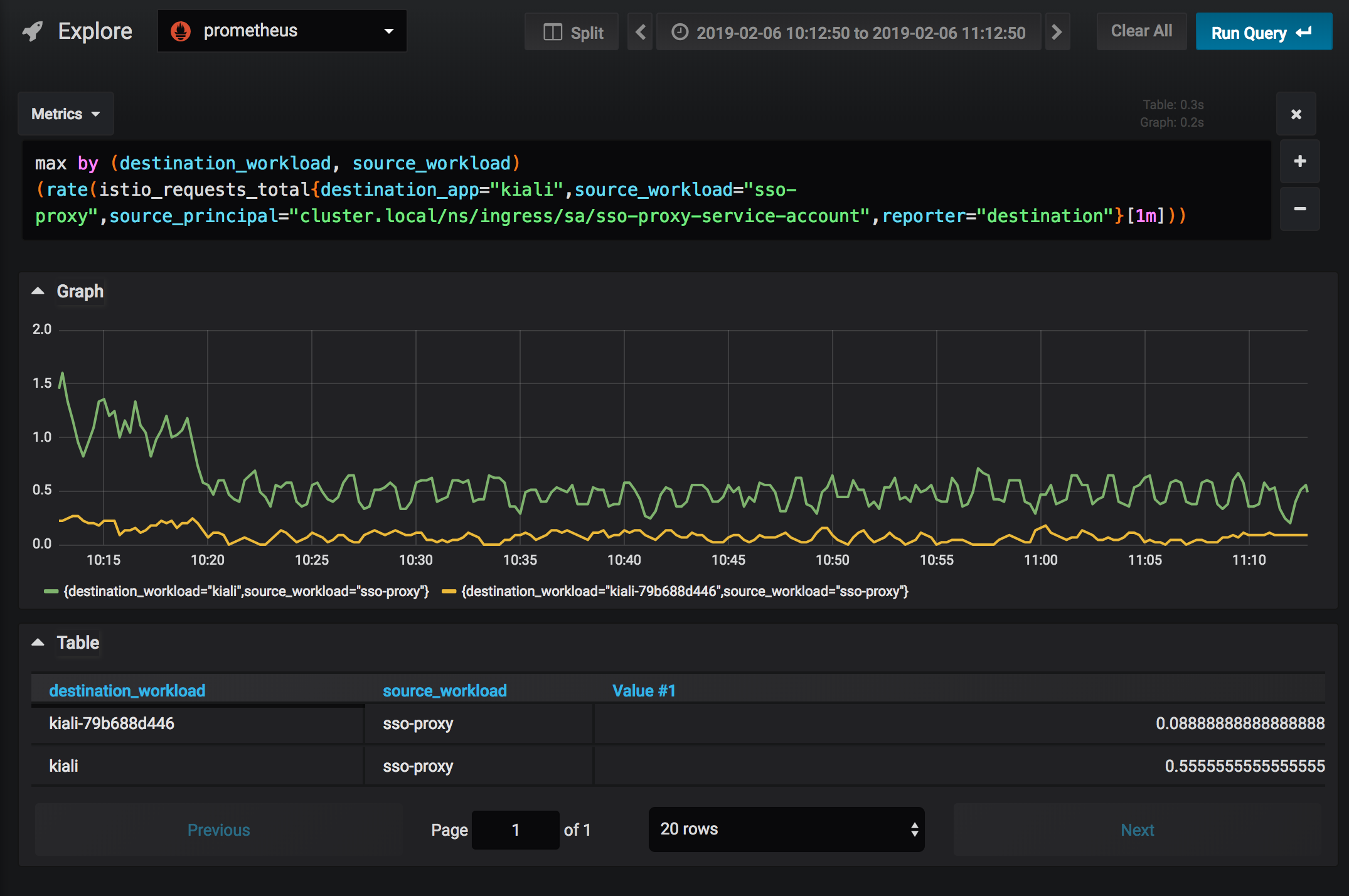

All metrics reported by mixer seem to report the replicaset as the workload ~10-20% of the time across all workloads. There does not seem to be any time correlation, i.e. it’s not like we see all of the deployment name for a period of time followed by all of the replicaset name for a period of time. Here’s an example for istio_requests_total:

screenshot 2019-02-06 12 16 26

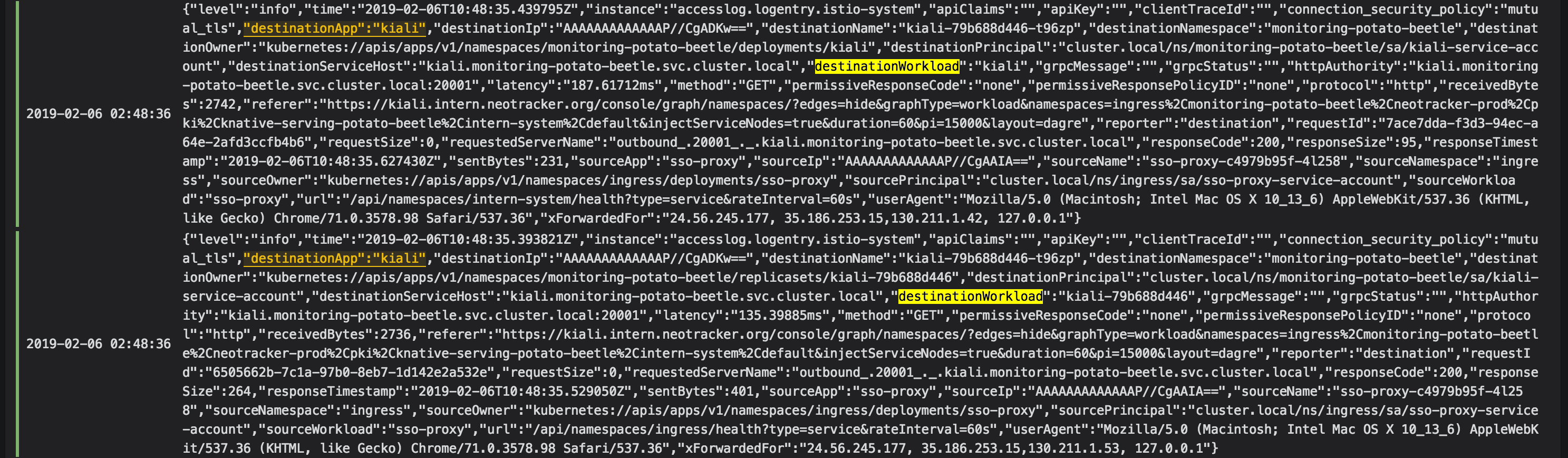

Looking at the access logs in istio-telemetry, we can see examples that occur within milliseconds of eachother reporting different workloads:

screenshot 2019-02-06 12 29 15

The entries above:

{"level":"info","time":"2019-02-06T10:48:35.439795Z","instance":"accesslog.logentry.istio-system","apiClaims":"","apiKey":"","clientTraceId":"","connection_security_policy":"mutual_tls","destinationApp":"kiali","destinationIp":"AAAAAAAAAAAAAP//CgADKw==","destinationName":"kiali-79b688d446-t96zp","destinationNamespace":"monitoring-potato-beetle","destinationOwner":"kubernetes://apis/apps/v1/namespaces/monitoring-potato-beetle/deployments/kiali","destinationPrincipal":"cluster.local/ns/monitoring-potato-beetle/sa/kiali-service-account","destinationServiceHost":"kiali.monitoring-potato-beetle.svc.cluster.local","destinationWorkload":"kiali","grpcMessage":"","grpcStatus":"","httpAuthority":"kiali.monitoring-potato-beetle.svc.cluster.local:20001","latency":"187.61712ms","method":"GET","permissiveResponseCode":"none","permissiveResponsePolicyID":"none","protocol":"http","receivedBytes":2742,"referer":"https://kiali.intern.neotracker.org/console/graph/namespaces/?edges=hide&graphType=workload&namespaces=ingress%2Cmonitoring-potato-beetle%2Cneotracker-prod%2Cpki%2Cknative-serving-potato-beetle%2Cintern-system%2Cdefault&injectServiceNodes=true&duration=60&pi=15000&layout=dagre","reporter":"destination","requestId":"7ace7dda-f3d3-94ec-a64e-2afd3ccfb4b6","requestSize":0,"requestedServerName":"outbound_.20001_._.kiali.monitoring-potato-beetle.svc.cluster.local","responseCode":200,"responseSize":95,"responseTimestamp":"2019-02-06T10:48:35.627430Z","sentBytes":231,"sourceApp":"sso-proxy","sourceIp":"AAAAAAAAAAAAAP//CgAAIA==","sourceName":"sso-proxy-c4979b95f-4l258","sourceNamespace":"ingress","sourceOwner":"kubernetes://apis/apps/v1/namespaces/ingress/deployments/sso-proxy","sourcePrincipal":"cluster.local/ns/ingress/sa/sso-proxy-service-account","sourceWorkload":"sso-proxy","url":"/api/namespaces/intern-system/health?type=service&rateInterval=60s","userAgent":"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_13_6) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/71.0.3578.98 Safari/537.36","xForwardedFor":"24.56.245.177, 35.186.253.15,130.211.1.42, 127.0.0.1"}

{"level":"info","time":"2019-02-06T10:48:35.393821Z","instance":"accesslog.logentry.istio-system","apiClaims":"","apiKey":"","clientTraceId":"","connection_security_policy":"mutual_tls","destinationApp":"kiali","destinationIp":"AAAAAAAAAAAAAP//CgADKw==","destinationName":"kiali-79b688d446-t96zp","destinationNamespace":"monitoring-potato-beetle","destinationOwner":"kubernetes://apis/apps/v1/namespaces/monitoring-potato-beetle/replicasets/kiali-79b688d446","destinationPrincipal":"cluster.local/ns/monitoring-potato-beetle/sa/kiali-service-account","destinationServiceHost":"kiali.monitoring-potato-beetle.svc.cluster.local","destinationWorkload":"kiali-79b688d446","grpcMessage":"","grpcStatus":"","httpAuthority":"kiali.monitoring-potato-beetle.svc.cluster.local:20001","latency":"135.39885ms","method":"GET","permissiveResponseCode":"none","permissiveResponsePolicyID":"none","protocol":"http","receivedBytes":2736,"referer":"https://kiali.intern.neotracker.org/console/graph/namespaces/?edges=hide&graphType=workload&namespaces=ingress%2Cmonitoring-potato-beetle%2Cneotracker-prod%2Cpki%2Cknative-serving-potato-beetle%2Cintern-system%2Cdefault&injectServiceNodes=true&duration=60&pi=15000&layout=dagre","reporter":"destination","requestId":"6505662b-7c1a-97b0-8eb7-1d142e2a532e","requestSize":0,"requestedServerName":"outbound_.20001_._.kiali.monitoring-potato-beetle.svc.cluster.local","responseCode":200,"responseSize":264,"responseTimestamp":"2019-02-06T10:48:35.529050Z","sentBytes":401,"sourceApp":"sso-proxy","sourceIp":"AAAAAAAAAAAAAP//CgAAIA==","sourceName":"sso-proxy-c4979b95f-4l258","sourceNamespace":"ingress","sourceOwner":"kubernetes://apis/apps/v1/namespaces/ingress/deployments/sso-proxy","sourcePrincipal":"cluster.local/ns/ingress/sa/sso-proxy-service-account","sourceWorkload":"sso-proxy","url":"/api/namespaces/ingress/health?type=service&rateInterval=60s","userAgent":"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_13_6) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/71.0.3578.98 Safari/537.36","xForwardedFor":"24.56.245.177, 35.186.253.15,130.211.1.53, 127.0.0.1"}

During the above time periods I have not updated the deployment or changed the kubernetes configuration in any way.

I have exactly one istio-telemetry pod running. I verified that there are only 2 cache controllers running by observing this log line appears exactly twice. I also verified that I see this line exactly once, corresponding to my remote cluster. I take this to mean that it’s configured correctly, i.e. I don’t have two kubernetesenv attribute instances configured. I am currently running release-1.1-20190130-09-16.

Looking at the code, it appears this might happen for a couple of reasons:

  1. if *ref.Controller: I’m not sure why this would ever be false assuming the owner reference is a deployment. Again, not familiar with the kubernetes go client, so I’m not sure.
  2. if !exists || err != nil: This one looked suspect to me because of the err != nil condition. I’m not sure under what conditions we might get an error, but this is probably where I’d log to see if something wonky was happening.

If you could provide or point me to instructions on how to build the image, I would be happy to debug further.

@gbaufake

+1
dicarlo2 on Feb 6, 2019

@gbaufake , basically I’ve created 2 clusters with kubeadm:

Cluster1:

apiVersion: kubeadm.k8s.io/v1alpha3
kind: InitConfiguration
bootstrapTokens:
- token: "9a08jv.ed1e54b5d916af84"
  description: "kubeadm bootstrap token"
  ttl: "0"
apiEndpoint:
  advertiseAddress: "172.17.10.51"
  bindPort: 6443
---
apiVersion: kubeadm.k8s.io/v1alpha3
kind: ClusterConfiguration
networking:
  serviceSubnet: "10.151.0.0/16"
  podSubnet: "10.51.0.0/16"
  dnsDomain: "cluster.local"
apiServerCertSANs:
- "172.17.10.51"
- "172.16.230.51"
clusterName: "clustera"

Cluster2:

apiVersion: kubeadm.k8s.io/v1alpha3
kind: InitConfiguration
bootstrapTokens:
- token: "9a08jv.ad1c52x5y946gf99"
  description: "kubeadm bootstrap token"
  ttl: "0"
apiEndpoint:
  advertiseAddress: "172.17.10.61"
  bindPort: 6443
---
apiVersion: kubeadm.k8s.io/v1alpha3
kind: ClusterConfiguration
networking:
  serviceSubnet: "10.161.0.0/16"
  podSubnet: "10.61.0.0/16"
  dnsDomain: "cluster.local"
apiServerCertSANs:
- "172.17.10.61"
- "172.16.230.61"
clusterName: "clusterb"

After that I’ve added the routes to POD and Service Network for each side:

Cluster1:

ip route add 10.61.0.0/16 via 172.17.10.61 dev eth1 # 172.17.10.61 -> cluster2 master node
ip route add 10.161.0.0/16 via 172.17.10.61 dev eth1 # 172.17.10.61 -> cluster2 master node

Cluster2:

ip route add 10.51.0.0/16 via 172.17.10.51 dev eth1 # 172.17.10.51 -> cluster1 master node
ip route add 10.151.0.0/16 via 172.17.10.51 dev eth1 # 172.17.10.51 -> cluster1 master node

On Cluster1:

helm template install/kubernetes/helm/istio --name istio --namespace istio-system --set tracing.enabled=true --set ingress.enabled=true --set gateways.enabled=true --set gateways.istio-ingressgateway.enabled=true --set gateways.istio-egressgateway.enabled=true --set sidecarInjectorWebhook.enabled=true --set galley.enabled=true --set mixer.enabled=true --set mixer.istio-policy.autoscaleEnabled=true --set mixer.istio-telemetry.autoscaleEnabled=true --set pilot.enabled=true --set telemetry-gateway.grafanaEnabled=true --set telemetry-gateway.prometheusEnabled=true --set grafana.enabled=true --set prometheus.enabled=true --set servicegraph.enabled=true --set tracing.ingress.enabled=true --set kiali.enabled=true > /root/istio-control-plane.yaml

applied the 3 crds files.

kubectl create namespace istio-system

kubectl apply -f /root/istio-control-plane.yaml

kubectl label namespace default istio-injection=enabled

On Cluster2:

helm template install/kubernetes/helm/istio-remote --namespace istio-system \
--name istio-remote \
--set global.remotePilotAddress=10.151.34.95 \
--set global.remotePolicyAddress=10.151.130.68 \
--set global.remoteTelemetryAddress=10.151.50.145 \
--set global.remoteZipkinAddress=10.151.45.24 > /root/istio-remote.yaml

apply the 3 crds files.

kubectl create namespace istio-system

kubectl apply -f /root/istio-remote.yaml

kubectl label namespace default istio-injection=enabled

export WORK_DIR=$(pwd)
CLUSTER_NAME=$(kubectl config view --minify=true -o "jsonpath={.clusters[].name}")
export KUBECFG_FILE=${WORK_DIR}/${CLUSTER_NAME}
SERVER=$(kubectl config view --minify=true -o "jsonpath={.clusters[].cluster.server}")
NAMESPACE=istio-system
SERVICE_ACCOUNT=istio-multi
SECRET_NAME=$(kubectl get sa ${SERVICE_ACCOUNT} -n ${NAMESPACE} -o jsonpath='{.secrets[].name}')
CA_DATA=$(kubectl get secret ${SECRET_NAME} -n ${NAMESPACE} -o "jsonpath={.data['ca\.crt']}")
TOKEN=$(kubectl get secret ${SECRET_NAME} -n ${NAMESPACE} -o "jsonpath={.data['token']}" | base64 --decode)

cat <<EOF > ${KUBECFG_FILE}
apiVersion: v1
clusters:
   - cluster:
       certificate-authority-data: ${CA_DATA}
       server: ${SERVER}
     name: ${CLUSTER_NAME}
contexts:
   - context:
       cluster: ${CLUSTER_NAME}
       user: ${CLUSTER_NAME}
     name: ${CLUSTER_NAME}
current-context: ${CLUSTER_NAME}
kind: Config
preferences: {}
users:
   - name: ${CLUSTER_NAME}
     user:
       token: ${TOKEN}
EOF

cat <<EOF > remote_cluster_env_vars
export CLUSTER_NAME=${CLUSTER_NAME}
export KUBECFG_FILE=${KUBECFG_FILE}
export NAMESPACE=${NAMESPACE}
EOF

On Cluster1:

source remote_cluster_env_vars
kubectl create secret generic ${CLUSTER_NAME} --from-file ${KUBECFG_FILE} -n ${NAMESPACE}
kubectl label secret ${CLUSTER_NAME} istio/multiCluster=true -n ${NAMESPACE}

After that, I’ve eddited istio-reader ClusterRole on Cluster2 and changed to apiGroups *, and added replicasets and replicationcontrollers to the resources. Also I’ve created the Kiali secret on the master. Discussion on those 2 steps here: https://discuss.istio.io/t/istio-multicluster/210/

Also, an important note, is that remotePilotAddress, remotePolicyAddress, remoteTelemetryAddress and remoteZipkinAddress that are used on istio-remote, are pointing to the ClusterIP address instead of the POD, that way I can have some level of high availability. Changes to the istio-remote.yaml were done before it was applied to reflect the ports and correct addresses if I am not wrong, to work with the ClusterIP Address instead of the POD IP.

If interested, I can provide access to the environment for further troubleshooting.

+1
feitnomore on Feb 6, 2019
Read more comments on GitHub
← istio: Multi-Cluster/Multi-Network - Cannot use a hostname-based gateway for east-west traffic
istio: Multiple virtualservices on the same host do not merge →
