ionic-framework: [beta 16] label doesn't align well with icons inside items
Bug Report
Ionic Info
@ionic/core@4.0.0-beta.16
Describe the Bug
Following #16182, the ion-label doesn’t align well with an ion-icon inside an ion-item anymore. It becomes very apparent, for example, when using an item within a card-header (see fiddle).
| Before (Beta 15) | After (Beta 16) |
|---|---|
| http://jsfiddle.net/simonhaenisch/7y4tdbvm/ | http://jsfiddle.net/simonhaenisch/gwm1t6rb/ |
![]() |
![]() |
I think it might be that it’s supposed to align with the bottom of the icon (which might come from the MD spec?), however it just looks off. Looking at the screenshots in #16182, it also doesn’t seem like it’s supposed to be that way (e. g. single-line item with the bluetooth icon).
Expected Behavior
It should look pretty 🦄
Additional Context
This style rule also breaks chips wrapped within icons because chips contain labels (see https://github.com/ionic-team/ionic/issues/16352#issuecomment-440857500).

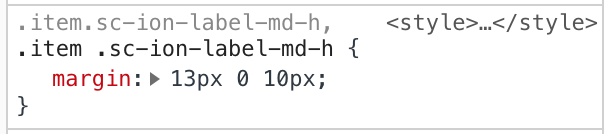

Current work-around is to overwrite it in my global stylesheet:
.item .sc-ion-label-md-h {
margin: 10px 0;
line-height: 1.2 !important;
}
About this issue
- Original URL
- State: closed
- Created 6 years ago
- Reactions: 3
- Comments: 21 (20 by maintainers)


@simonhaenisch Thanks for checking this out. I reverted the 16px changes – I decided I wanted to focus on this fix before updating the item per the MD spec.
So I added the
10pxtop change you suggested, but there still seemed to be a 1px offset. I ended up changing the line-height of the label to 18px (I believe it was at 19px originally).
