core: Warnings and errors with zigpy_znp

The problem

Recently upgraded to a zzh CC2652R Stick from a CC2531 (new host for HA as well so everything is set up new) and I am seeing warnings and errors in logs on every HA restart. I did not see these same errors with the CC2531.

What is version of Home Assistant Core has the issue?

2021.5.0b5

What was the last working version of Home Assistant Core?

No response

What type of installation are you running?

Home Assistant OS

Integration causing the issue

zha

Link to integration documentation on our website

https://www.home-assistant.io/integrations/zha/

Example YAML snippet

n/a - config flow

Anything in the logs that might be useful for us?

Logger: zigpy_znp.api
Source: /usr/local/lib/python3.8/site-packages/zigpy_znp/api.py:393
First occurred: 12:20:31 AM (2 occurrences)
Last logged: 12:20:31 AM

Received an unhandled command: ZDO.SrcRtgInd.Callback(DstAddr=0x7FD9, Relays=[])
Received an unhandled command: AF.IncomingMsg.Callback(GroupId=0x0000, ClusterId=6, SrcAddr=0x7FD9, SrcEndpoint=1, DstEndpoint=1, WasBroadcast=<Bool.false: 0>, LQI=72, SecurityUse=<Bool.false: 0>, TimeStamp=377188, TSN=0, Data=b'\x08\xA8\x0A\x00\x00\x10\x01', MacSrcAddr=0x7FD9, MsgResultRadius=29)


Logger: zigpy_znp.uart
Source: /usr/local/lib/python3.8/site-packages/zigpy_znp/uart.py:82
First occurred: 12:20:47 AM (1 occurrences)
Last logged: 12:20:47 AM

Received an exception while passing frame to API
Traceback (most recent call last):
  File "/usr/local/lib/python3.8/site-packages/zigpy_znp/uart.py", line 80, in data_received
    self._api.frame_received(frame.payload)
  File "/usr/local/lib/python3.8/site-packages/zigpy_znp/api.py", line 359, in frame_received
    command = command_cls.from_frame(frame)
  File "/usr/local/lib/python3.8/site-packages/zigpy_znp/types/commands.py", line 412, in from_frame
    params[param.name], data = param.type.deserialize(data)
  File "/usr/local/lib/python3.8/site-packages/zigpy_znp/types/basic.py", line 197, in deserialize
    item, data = cls._item_type.deserialize(data)
  File "/usr/local/lib/python3.8/site-packages/zigpy/types/basic.py", line 480, in deserialize
    item, data = cls._item_type.deserialize(data)
  File "/usr/local/lib/python3.8/site-packages/zigpy/types/basic.py", line 53, in deserialize
    raise ValueError(f"Data is too short to contain {cls._size} bytes")
ValueError: Data is too short to contain 1 bytes

Additional information

No response

About this issue

Original URL
State: closed
Created 3 years ago
Comments: 20 (8 by maintainers)

Commits related to this issue

Allow deserialization failures with some commands. See https://github.com/home-assistant/core/issues/50005 — committed to zigpy/zigpy-znp by puddly 3 years ago

Most upvoted comments

“Fixed” by https://github.com/zigpy/zigpy-znp/commit/aaf0c31fb3a6ded29e3c8e6036478a64d6011c84, which will be included in the next zigpy-znp release.

The ZDO parent announce response command sent by your bulb is nonsensical so there’s really nothing to be done other than make an exception and swallow the warning:

\x13\xDB  # NWK of your bulb: 0xDB13
\x84      # Status: NOT_SUPPORTED
\x01      # 1 ChildInfo entry follows
\x21      # Just a single byte?? Should be eight

puddly on May 29, 2021

These errors are gone thank you!

jes1417 on Aug 6, 2021

I appreciate the debugging help!

You can leave this issue open. Whenever the zigpy-znp==0.5.1 dependency update lands up in the next HA beta, I’ll just leave a comment. If you see the Received an exception while passing frame to API error in your log file again after that beta, it will have the extra data appended to the end of it of so you won’t need to mess with logging at all.

puddly on May 5, 2021

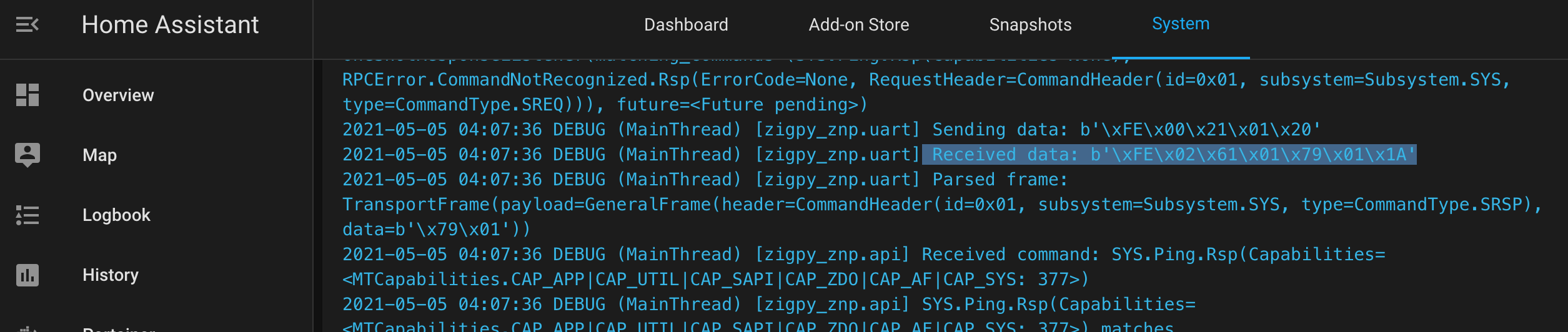

Here’s what I see on beta Home Assistant OS (2021.5.0b8) in VirtualBox with nothing else set up but ZHA:

My entire config is as follows:


# Configure a default setup of Home Assistant (frontend, api, etc)
default_config:

# Text to speech
tts:
  - platform: google_translate

group: !include groups.yaml
automation: !include automations.yaml
script: !include scripts.yaml
scene: !include scenes.yaml

logger:
  default: info
  logs:
    homeassistant.core: debug
    homeassistant.components.zha: debug
    zigpy: debug
    zigpy_znp: debug
    zigpy_znp.logger: debug

Like I said before, if it’s an intermittent startup error and it’s going to be too much of a hassle to get debug logging working properly to figure this out (for whatever reason), it’ll be easier to just wait until the next beta with the updated version of zigpy-znp that logs this error message to contain everything I need to see what the problem is (without having to enable this very verbose logging).

puddly on May 5, 2021
