core: Problem with onvif integration

The problem

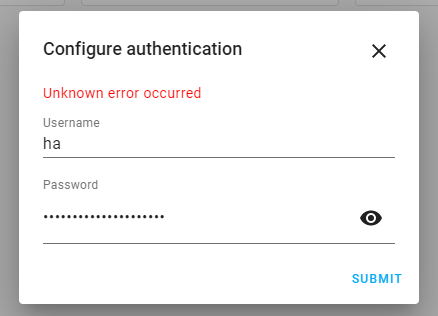

After installing the onvif integration in a venv, scanning my network finds my cameras, but upon entering password \ username it fails with unknown error

Environment

Home Assistant Core release with the issue: 0.110.1
Last working Home Assistant Core release (if known): None
Operating environment (Home Assistant/Supervised/Docker/venv): venv
Integration causing this issue: onvif
Link to integration documentation on our website:

Problem-relevant `configuration.yaml`

Traceback/Error logs

2020-05-23 20:22:25 ERROR (MainThread) [aiohttp.server] Error handling request
Traceback (most recent call last):
  File "/srv/homeassistant/lib/python3.7/site-packages/aiohttp/web_protocol.py", line 418, in start
    resp = await task
  File "/srv/homeassistant/lib/python3.7/site-packages/aiohttp/web_app.py", line 458, in _handle
    resp = await handler(request)
  File "/srv/homeassistant/lib/python3.7/site-packages/aiohttp/web_middlewares.py", line 119, in impl
    return await handler(request)
  File "/srv/homeassistant/lib/python3.7/site-packages/homeassistant/components/http/real_ip.py", line 39, in real_ip_middleware
    return await handler(request)
  File "/srv/homeassistant/lib/python3.7/site-packages/homeassistant/components/http/ban.py", line 73, in ban_middleware
    return await handler(request)
  File "/srv/homeassistant/lib/python3.7/site-packages/homeassistant/components/http/auth.py", line 127, in auth_middleware
    return await handler(request)
  File "/srv/homeassistant/lib/python3.7/site-packages/homeassistant/components/http/view.py", line 125, in handle
    result = await result
  File "/srv/homeassistant/lib/python3.7/site-packages/homeassistant/components/config/config_entries.py", line 145, in post
    return await super().post(request, flow_id)
  File "/srv/homeassistant/lib/python3.7/site-packages/homeassistant/components/http/data_validator.py", line 54, in wrapper
    result = await method(view, request, *args, **kwargs)
  File "/srv/homeassistant/lib/python3.7/site-packages/homeassistant/helpers/data_entry_flow.py", line 103, in post
    result = await self._flow_mgr.async_configure(flow_id, data)
  File "/srv/homeassistant/lib/python3.7/site-packages/homeassistant/data_entry_flow.py", line 153, in async_configure
    result = await self._async_handle_step(flow, cur_step["step_id"], user_input)
  File "/srv/homeassistant/lib/python3.7/site-packages/homeassistant/data_entry_flow.py", line 201, in _async_handle_step
    result: Dict = await getattr(flow, method)(user_input)
  File "/srv/homeassistant/lib/python3.7/site-packages/homeassistant/components/onvif/config_flow.py", line 170, in async_step_auth
    return await self.async_step_profiles()
  File "/srv/homeassistant/lib/python3.7/site-packages/homeassistant/components/onvif/config_flow.py", line 195, in async_step_profiles
    await device.update_xaddrs()
  File "/srv/homeassistant/lib/python3.7/site-packages/onvif/client.py", line 277, in update_xaddrs
    capabilities = await self.devicemgmt.GetCapabilities({"Category": "All"})
  File "/srv/homeassistant/lib/python3.7/site-packages/zeep/asyncio/bindings.py", line 20, in send
    return self.process_reply(client, operation_obj, response)
  File "/srv/homeassistant/lib/python3.7/site-packages/zeep/wsdl/bindings/soap.py", line 195, in process_reply
    return self.process_error(doc, operation)
  File "/srv/homeassistant/lib/python3.7/site-packages/zeep/wsdl/bindings/soap.py", line 322, in process_error
    detail=etree_to_string(doc),
zeep.exceptions.Fault: Unknown fault occured

Additional information

About this issue

Original URL
State: closed
Created 4 years ago
Comments: 39 (11 by maintainers)

Most upvoted comments

I succeeded to add my Dahua only after I added a different user than the admin in ONVIF camera configuration. I then used this user in homebridge integration

pcman75 on Nov 11, 2020

I have the same problem with Xiaomi flashed custom firmware https://github.com/roleoroleo/yi-hack-Allwinner

burillya on Jul 9, 2020

same here

ToXinE on Jan 31, 2022

Latest HA version and ONVIF still not working

aamarques on Dec 27, 2021

+1 for this problem

alco28 on Dec 23, 2021

I also have problems with the ONVIF integration.

-I have a docker installation. -I have a hikvision NVR

I’ve enabled the ONVIF on my NVR

Go to intergrations and select the ONVIF -The intergration finds my NVR device, and fill’s in the IP -I enter the username/password -I get a ‘unknown error occurred’ ,

-In the log’s;

`Log Details (ERROR) Logger: aiohttp.server Source: components/onvif/config_flow.py:201 First occurred: 9:45:12 AM (1 occurrences) Last logged: 9:45:12 AM

Error handling request Traceback (most recent call last): File “/usr/local/lib/python3.7/site-packages/aiohttp/web_protocol.py”, line 418, in start resp = await task File “/usr/local/lib/python3.7/site-packages/aiohttp/web_app.py”, line 458, in _handle resp = await handler(request) File “/usr/local/lib/python3.7/site-packages/aiohttp/web_middlewares.py”, line 119, in impl return await handler(request) File “/usr/src/homeassistant/homeassistant/components/http/real_ip.py”, line 39, in real_ip_middleware return await handler(request) File “/usr/src/homeassistant/homeassistant/components/http/ban.py”, line 73, in ban_middleware return await handler(request) File “/usr/src/homeassistant/homeassistant/components/http/auth.py”, line 127, in auth_middleware return await handler(request) File “/usr/src/homeassistant/homeassistant/components/http/view.py”, line 129, in handle result = await result File “/usr/src/homeassistant/homeassistant/components/config/config_entries.py”, line 145, in post return await super().post(request, flow_id) File “/usr/src/homeassistant/homeassistant/components/http/data_validator.py”, line 60, in wrapper result = await method(view, request, *args, **kwargs) File “/usr/src/homeassistant/homeassistant/helpers/data_entry_flow.py”, line 106, in post result = await self._flow_mgr.async_configure(flow_id, data) File “/usr/src/homeassistant/homeassistant/data_entry_flow.py”, line 153, in async_configure result = await self._async_handle_step(flow, cur_step[“step_id”], user_input) File “/usr/src/homeassistant/homeassistant/data_entry_flow.py”, line 201, in _async_handle_step result: Dict = await getattr(flow, method)(user_input) File “/usr/src/homeassistant/homeassistant/components/onvif/config_flow.py”, line 170, in async_step_auth return await self.async_step_profiles() File “/usr/src/homeassistant/homeassistant/components/onvif/config_flow.py”, line 201, in async_step_profiles await device.update_xaddrs() File “/usr/local/lib/python3.7/site-packages/onvif/client.py”, line 264, in update_xaddrs capabilities = await devicemgmt.GetCapabilities({“Category”: “All”}) File “/usr/local/lib/python3.7/site-packages/zeep/asyncio/bindings.py”, line 20, in send return self.process_reply(client, operation_obj, response) File “/usr/local/lib/python3.7/site-packages/zeep/wsdl/bindings/soap.py”, line 195, in process_reply return self.process_error(doc, operation) File “/usr/local/lib/python3.7/site-packages/zeep/wsdl/bindings/soap.py”, line 362, in process_error subcodes=subcodes, zeep.exceptions.Fault: An error was discovered processing the wsse:Security header. `

I have the exact same error.

dynamiik on Sep 27, 2020
