grpc: grpcio fails to install on Apple Silicon

I managed to get the grpcio Python package installed on Python 3.9.1 installed via Pyenv on a M1 macOS:

Python 3.9.1 (default, Jan  5 2021, 10:39:36)
[Clang 12.0.0 (clang-1200.0.32.28)] on darwin

Native arm64:

$ lipo -archs $(which python)
arm64

I had to set a few environment variables to get it to work:

GRPC_PYTHON_BUILD_SYSTEM_OPENSSL=1
GRPC_PYTHON_BUILD_SYSTEM_ZLIB=1

to make the installation process use the libraries I’ve already got on the system, and then the following to point it at OpenSSL installed via Homebrew:

CFLAGS="-I/opt/homebrew/opt/openssl/include"
LDFLAGS="-L/opt/homebrew/opt/openssl/lib"

Setting the environment variables as recommended by @Tenzer works perfectly for me, too! Thank you! I used it to install stable_baselines3 on my Apple Silicon M1 🙂

I simply set the environment variables first:

export GRPC_PYTHON_BUILD_SYSTEM_OPENSSL=1
export GRPC_PYTHON_BUILD_SYSTEM_ZLIB=1

Then installed the grpcio package with:

pip install grpcio

At the time of writing this installs and works with grpcio-1.35.0

@lidizheng @Tenzer Since it seems like this problem is not yet resolved I would offer help creating a PR, however I am completely new to this kind of stuff (pip install, setuptools etc.) and don’t really know where I would have to put the code. This is what I think would have to go somewhere according to your contributions:

import platform
import os
from distutils import util

if 'arm64' in platform.machine() and 'mac' in util.get_platform():
    os.environ["GRPC_PYTHON_BUILD_SYSTEM_OPENSSL"] = "1"
    os.environ["GRPC_PYTHON_BUILD_SYSTEM_ZLIB"] = "1"
else:
    pass

Maybe in setup.py around line 82? Of course the required import statements are there already.

My Setup

Device: Apple M1 MacBook Pro running macOS Big Sur 11.2 Python:

Python 3.9.1 | packaged by conda-forge | (default, Jan 26 2021, 01:30:54)
[Clang 11.0.1 ] on darwin

Let me know if there is any more info that could be helpful!

I also added the wheel generated by pip if that is helpful to anyone. grpcio-1.35.0-cp39-cp39-macosx_11_0_arm64.whl.zip

you can use system python3 (/usr/bin/python3)

mkdir grpctest
cd grpctest
/usr/bin/python3 -m pip install virtualenv
/usr/bin/python3 -m virtualenv venv
source venv/bin/activate __
arch -x86_64 pip install --upgrade pip setuptools
arch -x86_64 pip install grpcio
arch -x86_64 pip install grpcio-tools
touch test.proto
...
arch -x86_64 python -m grpc_tools.protoc -I. --python_out=. --grpc_python_out=. test.proto
touch main.py
arch -x86_64 python main.py

attention

arch -x86_64 should be used before the command

Hello, since Google is doing nothing about this, I decided to set up a periodic GitHub Actions workflow to provide daily builds of Apple Silicon wheels for Mac. It will automatically cut a new release the day a new grpcio version is released on PyPI.

In the releases page of this repo you can find and download the wheels for Python 3.8, 3.9, 3.10, 3.11. (Use at your own risk, these are not tested.) https://github.com/pietrodn/grpcio-mac-arm-build

Would it be fair to say that this issue is not resolved? Should there be another one opened, or this one perhaps? We’ve got OSS users that encounter this problem somewhat regularly

I just tried to install the library from the master branch with the fix included, but it still fails out of the box.

Is the version of BoringSSL and zlib referenced in this repository supposed to be working on ARM macOS? If not it might be better to try and detect when running on a ARM Mac (platform.machine() can do this) and set the equivalent of the following environment variables automatically:

GRPC_PYTHON_BUILD_SYSTEM_OPENSSL=1
GRPC_PYTHON_BUILD_SYSTEM_ZLIB=1

Does that sound reasonable? If so, I don’t mind trying to put a PR together to do that.

Running Python 3.8.8 within a miniforge conda (v4.10.3) environment: Setting the environment variables didn’t resolve the problem for me - each time pip install grpcio failed:

conda install grpcio directly worked

@gnossen I and my team has experienced gprcio source build failures many times and discovered that depending on the development stack configurations the required build flags are vastly different laptop by laptop. Just installing XCode with command line tools and latest homebrew did not solve the problem and sometimes we could not figure out what installation/configuration triggers such difference.

It would be nice if we have a concrete guide to how to set up the grpcio build environment on macOS and/or the pre-built binary wheel distribution for Apple Silicon.

I tried doing many of the above, and unfortunately all failed for me. Ended up getting it to work by following the steps here (but for grpcio) https://stackoverflow.com/questions/65564673/how-do-i-import-pandas-on-apple-m1-chip. Posting in case it’s helpful to anyone in the future.

This did not work for me either for grpcio==1.47.0, but it does for 1.44.0

@dgaedcke I don’t have a M1 machine. The answer is based on what I read.

Have you try to build your environment with emulated x86?

arch -x86_64 /bin/bash

Then you should be able to use x86 Python, and x86 grpcio binary wheel, no compilation needed.

Still having this problem after having tried the above. Also, the listed solutions are pretty involved workarounds. Is someone working on a more permanent fix?

Here’s what worked on my setup.

My configuration:

• MacBook Pro (16-inch, 2021), with M1 Pro
• macOS 12.3
• Homebrew installed into /opt/homebrew

What worked was a combination of @matanby’s comment and some CFLAGS / LDFLAGS options that worked in the past from my colleagues.

I verified and both are needed: removing either makes the compilation fail. Other flags and compilation options weren’t useful.

With this combination of things, grpcio correctly compiles on Python 3.8, 3.9, and 3.10 (installed via pyenv).

# Xcode tools made compilation crash
sudo xcode-select -s /Library/Developer/CommandLineTools
brew install pyenv  # pyenv shell setup omitted...

# Python must be compiled with these options!
CFLAGS="-I$(brew --prefix xz)/include" LDFLAGS="-L$(brew --prefix xz)/lib" pyenv install 3.10.3
pyenv global 3.10.3

# Install grpcio from source tarball
pip install -v https://files.pythonhosted.org/packages/65/75/8b706e1170e2c7b6242b1675259e47986bb4fc490f29387989a965972e6e/grpcio-1.44.0.tar.gz

@hunt3r Same issue, M1 Monterey, Python 3.9.10

Fixed it

Inside virtualenv:

export GRPC_PYTHON_BUILD_SYSTEM_OPENSSL=1
export GRPC_PYTHON_BUILD_SYSTEM_ZLIB=1

and then

pip install grpcio

It works

I was able to resolve this error via

> sudo rm -rf /Library/Developer/CommandLineTools
> sudo xcode-select -s /Applications/Xcode.app

Just simply export and install through pip package installer

>> export GRPC_PYTHON_BUILD_SYSTEM_OPENSSL=1
>> export GRPC_PYTHON_BUILD_SYSTEM_ZLIB=1

>> pip install grpcio

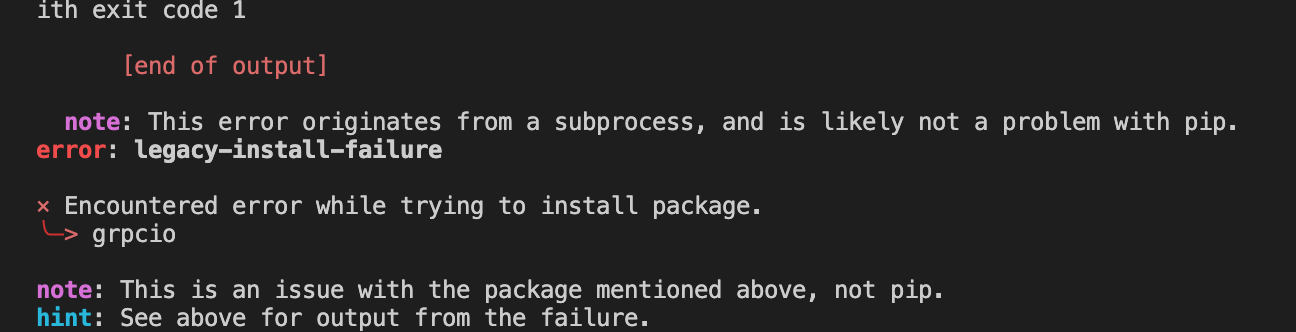

I am getting this error today it worked last night. I have tried all the above solution and still seem to get the same thing:

MacBook Pro (13-inch, M1, 2020) Chip M1

1.52.0 has been released with proper universal2 artifacts which support both x86 macs and M1/2 macs.

I ran into this (again) today so I came back to check out the bug.

@gnossen can you provide guidance on when a fix will make it into a release so pip users will no longer encounter this?

This worked for me (Python 3.9, Big Sur), native compiled, no need to add arch -x86_64 before pip command

export GRPC_PYTHON_BUILD_SYSTEM_OPENSSL=1
export GRPC_PYTHON_BUILD_SYSTEM_ZLIB=1

pip install grpcio

I got a successful build using @Tenzer 's solution, with addition of CFLAGS and LDFLAGS using brew --prefix protobuf, brew --prefix openssl, brew --prefix zlib, and setting the GRPC_PYTHON_BUILD_SYSTEM_* environment variables, with arm64 homebrew and Python 3.9.1 built via pyenv’s latest master.

I couldn’t easily get a build process working on my Monterey M1, but the binary worked.

Details:

Setting the two environment variables still left me with

Traceback (most recent call last):
  File "/Users/tom/code_tmp/clone/grpc/examples/python/helloworld/./greeter_server.py", line 19, in <module>
    import grpc
  File "/Users/tom/opt/anaconda3/envs/basemod/lib/python3.9/site-packages/grpc/__init__.py", line 22, in <module>
    from grpc import _compression
  File "/Users/tom/opt/anaconda3/envs/basemod/lib/python3.9/site-packages/grpc/_compression.py", line 15, in <module>
    from grpc._cython import cygrpc
ImportError: dlopen(/Users/tom/opt/anaconda3/envs/basemod/lib/python3.9/site-packages/grpc/_cython/cygrpc.cpython-39-darwin.so, 0x0002): symbol not found in flat namespace (_CFRelease)

when trying to import grpc.

Maybe “If we export magic variables from the conda recipe, keep conda libraries installed and install Cython, then” would have worked, but I don’t understand this enough to do it confidently (keep what installed how?). I haven’t read the whole thread.

conda install -c conda-forge grpcio gave me

(basemod) tom@MacBook-Pro helloworld % conda install grpcio -c conda-forge
Collecting package metadata (current_repodata.json): done
Solving environment: failed with initial frozen solve. Retrying with flexible solve.

# >>>>>>>>>>>>>>>>>>>>>> ERROR REPORT <<<<<<<<<<<<<<<<<<<<<<

    Traceback (most recent call last):
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/common/logic.py", line 125, in _convert
        return self.names[name]
    KeyError: 'conda-forge/osx-arm64::certifi-2022.6.15-py38h10201cd_0'

    During handling of the above exception, another exception occurred:

    Traceback (most recent call last):
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/exceptions.py", line 1114, in __call__
        return func(*args, **kwargs)
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/cli/main.py", line 86, in main_subshell
        exit_code = do_call(args, p)
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/cli/conda_argparse.py", line 90, in do_call
        return getattr(module, func_name)(args, parser)
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/cli/main_install.py", line 20, in execute
        install(args, parser, 'install')
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/cli/install.py", line 259, in install
        unlink_link_transaction = solver.solve_for_transaction(
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/core/solve.py", line 152, in solve_for_transaction
        unlink_precs, link_precs = self.solve_for_diff(update_modifier, deps_modifier,
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/core/solve.py", line 195, in solve_for_diff
        final_precs = self.solve_final_state(update_modifier, deps_modifier, prune, ignore_pinned,
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/core/solve.py", line 313, in solve_final_state
        ssc = self._add_specs(ssc)
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/core/solve.py", line 605, in _add_specs
        conflict_specs = ssc.r.get_conflicting_specs(tuple(concatv(
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/resolve.py", line 1109, in get_conflicting_specs
        C = r2.gen_clauses()
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/common/io.py", line 86, in decorated
        return f(*args, **kwds)
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/resolve.py", line 911, in gen_clauses
        nkey = C.Not(self.to_sat_name(prec))
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/common/logic.py", line 144, in Not
        return self._eval(self._clauses.Not, (x,), (), polarity, name)
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/common/logic.py", line 130, in _eval
        args = self._convert(args)
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/common/logic.py", line 120, in _convert
        return type(x)(map(self._convert, x))
      File "/Users/tom/opt/anaconda3/lib/python3.9/site-packages/conda/common/logic.py", line 127, in _convert
        raise ValueError("Unregistered SAT variable name: {}".format(name))
    ValueError: Unregistered SAT variable name: conda-forge/osx-arm64::certifi-2022.6.15-py38h10201cd_0

`$ /Users/tom/opt/anaconda3/bin/conda install grpcio -c conda-forge`

  environment variables:
                 CIO_TEST=<not set>
        CONDA_DEFAULT_ENV=basemod
                CONDA_EXE=/Users/tom/opt/anaconda3/bin/conda
             CONDA_PREFIX=/Users/tom/opt/anaconda3/envs/basemod
    CONDA_PROMPT_MODIFIER=(basemod)
         CONDA_PYTHON_EXE=/Users/tom/opt/anaconda3/bin/python
               CONDA_ROOT=/Users/tom/opt/anaconda3
              CONDA_SHLVL=1
           CURL_CA_BUNDLE=<not set>
                 INFOPATH=/opt/homebrew/share/info:
                  MANPATH=/Users/tom/.nvm/versions/node/v17.6.0/share/man:/Users/tom/software/gi
                          t-subrepo/man:/opt/homebrew/share/man::
                     PATH=/Users/tom/opt/anaconda3/bin:/Users/tom/opt/anaconda3/envs/basemod/bin
                          :/Users/tom/opt/anaconda3/condabin:/Users/tom/.nvm/versions/node/v17.6
                          .0/bin:/Users/tom/.poetry/bin:/opt/homebrew/opt/openssl@1.1/bin:/Users
                          /tom/software/git-subrepo/lib:/Users/tom/Library/Jupyter/kernels:/User
                          s/tom/Documents/code/mon/scripts:/Users/tom/.nimble/bin:/Users/tom/ins
                          tall/nim/bin:/Users/tom/Applications/Sublime Text.app/Contents/SharedS
                          upport/bin:/Users/tom/bin:/opt/homebrew/bin:/opt/homebrew/sbin:/usr/lo
                          cal/bin:/usr/bin:/bin:/usr/sbin:/sbin:/Applications/VMware Fusion Tech
                          Preview.app/Contents/Public:/usr/local/zfs/bin
       REQUESTS_CA_BUNDLE=<not set>
            SSL_CERT_FILE=<not set>

     active environment : basemod
    active env location : /Users/tom/opt/anaconda3/envs/basemod
            shell level : 1
       user config file : /Users/tom/.condarc
 populated config files : /Users/tom/.condarc
          conda version : 4.13.0
    conda-build version : 3.21.9
         python version : 3.9.12.final.0
       virtual packages : __osx=12.5.1=0
                          __unix=0=0
                          __archspec=1=arm64
       base environment : /Users/tom/opt/anaconda3  (writable)
      conda av data dir : /Users/tom/opt/anaconda3/etc/conda
  conda av metadata url : None
           channel URLs : https://conda.anaconda.org/conda-forge/osx-arm64
                          https://conda.anaconda.org/conda-forge/noarch
                          https://conda.anaconda.org/anaconda/osx-arm64
                          https://conda.anaconda.org/anaconda/noarch
          package cache : /Users/tom/opt/anaconda3/pkgs
                          /Users/tom/.conda/pkgs
       envs directories : /Users/tom/opt/anaconda3/envs
                          /Users/tom/.conda/envs
               platform : osx-arm64
             user-agent : conda/4.13.0 requests/2.27.1 CPython/3.9.12 Darwin/21.6.0 OSX/12.5.1
                UID:GID : 501:20
             netrc file : None
           offline mode : False

Installing the binary wheel from the latest artifact at https://github.com/pietrodn/grpcio-mac-arm-build/actions by downloading it and

pip uninstall grpcio
cd ~/Downloads/artifacts/
pip install ./grpcio-1.48.1-cp39-cp39-macosx_11_0_arm64.whl

worked a treat. Thank you so much!! ❤️

If anyone still encounters compilation errors when trying to pip install grpcio on a M1 Mac, and none of the above suggestions work, try this:

sudo xcode-select -s /Library/Developer/CommandLineTools

This solved the problem in my case.

Also, another piece of information that might be helpful in solving this: I was able to successfully install grpcio before I had installed xcode. Seems to me like there is a mismatch in the binary tools used for the compilation; the ones that come in /Library/Developer/CommandLineTools work file, while those that come bundled with xcode do not.

1.52.0 has been released with proper universal2 artifacts which support both x86 macs and M1/2 Macs.

1.52.0 is Yanked

Folks, I’m still having the issue and I believe this should be open until:

• everyone has a working release, OR
• there’s an easy local fix.

arch -x86_64 pip install grpcio==1.34.0

Thank you so much for this. Worked like a charm in my Macbook Pro M1 with Big Sur (11.4)

Yes, someone please respond … I’ve already burned over 2 days on this error!!

I’ve tried Homebrew w Py3.8, Py3.9 and Conda-miniforge with both as well I’ve tried bash arm64, bash x86, zsh arm64

I’ve even tried the Panda’s example above but it didn’t solve the problem for me…

How do I install and run this library?? The failure stacktrace is below:

import google.cloud.ndb as ndb File “/opt/homebrew/Caskroom/miniforge/base/envs/env/lib/python3.8/site-packages/google/cloud/ndb/init.py”, line 28, in <module> from google.cloud.ndb.client import Client File “/opt/homebrew/Caskroom/miniforge/base/envs/env/lib/python3.8/site-packages/google/cloud/ndb/client.py”, line 18, in <module> import grpc File “/opt/homebrew/Caskroom/miniforge/base/envs/env/lib/python3.8/site-packages/grpc/init.py”, line 23, in <module> from grpc._cython import cygrpc as _cygrpc ImportError: dlopen(/opt/homebrew/Caskroom/miniforge/base/envs/env/lib/python3.8/site-packages/grpc/_cython/cygrpc.cpython-38-darwin.so, 2): Symbol not found: _CFRelease Referenced from: /opt/homebrew/Caskroom/miniforge/base/envs/env/lib/python3.8/site-packages/grpc/_cython/cygrpc.cpython-38-darwin.so Expected in: flat namespace in /opt/homebrew/Caskroom/miniforge/base/envs/env/lib/python3.8/site-packages/grpc/_cython/cygrpc.cpython-38-darwin.so

@lidizheng so we are still facing this issue with grpc 1.48.1 on macOS 12 on M1.

The installation via pip install grpcio works, but after successful installation the resulting shared object cannot be loaded:

ImportError: dlopen(~/grpc/_cython/cygrpc.cpython-310-darwin.so, 0x0002): symbol not found in flat namespace '_CFRelease'

The wheel is not used during the installation, so the artefact is built on the local machine, but the results are busted.

If we export magic variables from the conda recipe, keep conda libraries installed and install Cython, then pip install grpcio produces a working artefact:

export GRPC_BUILD_WITH_BORING_SSL_ASM=""
export GRPC_PYTHON_BUILD_SYSTEM_ZLIB="True"
export GRPC_PYTHON_BUILD_SYSTEM_OPENSSL="True"
export GRPC_PYTHON_BUILD_SYSTEM_CARES="True"
export GRPC_PYTHON_USE_PREBUILT_GRPC_CORE=""
export GRPC_PYTHON_BUILD_WITH_CYTHON="True"
export GRPC_PYTHON_LDFLAGS=" -framework CoreFoundation"

With system libraries without conda provided libraries the installation fails.

We would really appreciate if you guys can manage to upload arm64 wheels and/or at least fix your installation process to produce working artefacts on M1 by default without dark conda recipe environment variable magic.

/cc @mm-ivanovig @marns93

It’s not quite a guide, but after lots of trial and error the invocation that worked for me was:

CC=/usr/bin/clang GRPC_BUILD_WITH_BORING_SSL_ASM="" GRPC_PYTHON_BUILD_SYSTEM_RE2=true GRPC_PYTHON_BUILD_SYSTEM_OPENSSL=true GRPC_PYTHON_BUILD_SYSTEM_ZLIB=true pip install grpcio==1.47.0

YMMV!

I was also not able to fix this problem. The installation would be successful but importing grpc would fail (shown below)

Python 3.9.12 | packaged by conda-forge | (main, Mar 24 2022, 23:25:14)
[Clang 12.0.1 ] on darwin
Type "help", "copyright", "credits" or "license" for more information.
(InteractiveConsole)
>>> import grpc
Traceback (most recent call last):
  File "<console>", line 1, in <module>
  File "/private/var/tmp/_bazel_serhat/27cfb29c86a835e3df3ccb992f3eed84/execroot/core/bazel-out/darwin_arm64-fastbuild/bin/src/python/core/main/shell.runfiles/pypi__39__grpcio_1_41_0/grpc/__init__.py", line 22, in <module>
    from grpc import _compression
  File "/private/var/tmp/_bazel_serhat/27cfb29c86a835e3df3ccb992f3eed84/execroot/intenseye/bazel-out/darwin_arm64-fastbuild/bin/src/python/core/main/shell.runfiles/pypi__39__grpcio_1_41_0/grpc/_compression.py", line 15, in <module>
    from grpc._cython import cygrpc
ImportError: dlopen(/private/var/tmp/_bazel_serhat/27cfb29c86a835e3df3ccb992f3eed84/execroot/core/bazel-out/darwin_arm64-fastbuild/bin/src/python/core/main/shell.runfiles/pypi__39__grpcio_1_41_0/grpc/_cython/cygrpc.cpython-39-darwin.so, 0x0002): symbol not found in flat namespace '_CFRelease'

However, installing from conda would be just fine, so I checked their instructions. I was missing some build flags via imports. The following export statements worked for me, and hope they would be helpful for you as well. Taken from here.

export GRPC_BUILD_WITH_BORING_SSL_ASM=""
export GRPC_PYTHON_BUILD_SYSTEM_ZLIB="True"
export GRPC_PYTHON_BUILD_SYSTEM_OPENSSL="True"
export GRPC_PYTHON_BUILD_SYSTEM_CARES="False"
export GRPC_PYTHON_USE_PREBUILT_GRPC_CORE=""
export GRPC_PYTHON_BUILD_WITH_CYTHON="True"
export GRPC_PYTHON_LDFLAGS=" -framework CoreFoundation"

It works for me.

export GRPC_PYTHON_BUILD_SYSTEM_OPENSSL=1
export GRPC_PYTHON_BUILD_SYSTEM_ZLIB=1

pip3 install firebase-admin

God bless you @Tenzer - it works now! I’ve wasted so much time googling the solution. Thank you so much. ❤️

1.51.3 has now been released with universal2 artifacts. I’ll leave this issue open for a couple more days in case there are further issues.

@techdragon ✅ Done! https://github.com/pietrodn/grpcio-mac-arm-build/releases

I lost a full day on this. Here’s how I managed to make it work.

If you install python while running in arm mode it won’t work. I’ve tried many Python versions with conda, pipenv, venv, Poetry.

You need to compile Python in x86_64 mode.

arch -x86_64 zsh
asdf install python 3.10.4

I use asdf but it should work with pyenv and similar tools.

I hope this helps.

none of the solutions above worked for me. It ended up being setuptools version. grpcio installation would fail with setuptools==60+ after changiing the env setuptools version to 57.5.0, grpcio installs fine.

Resolved install python 3.9.8 or superior 😄 🚀

Yeah I had to do it with Conda, a pyenv environment did not work for me. Feels weird but I got past the issue for now.

Also works with python 3.8.11 in a conda environment if followed the above steps!

It was a long long error about the wheel. I resolved it by removing this flag: GRPC_PYTHON_BUILD_SYSTEM_OPENSSL=1

For some reason it wanted to use another ssl library.

Thanks @Tenzer and @achimnol! This worked for me as well.

Note if the following issue occurs after those recommendations:

File "____/venv/lib/python3.9/site-packages/pkg_resources/_vendor/packaging/version.py", line 275, in __init__
    match = self._regex.search(version)
TypeError: expected string or bytes-like object

Edit version.py line 275 on your system to:

match = self._regex.search(str(version))

@levrik Yes, to confirm, 1.52.0 includes prebuilt universal2 artifacts which work on both x86-64 and arm64 macs. The release candidate is already uploaded and the official release is scheduled for later this week.

Of course the issue should be open, it is not fixed. I don’t understand the trend on GitHub to close issues before a fix has been created, it is not like the issue goes away just by marking the issue closed:( Now it is almost 2 years since the issue was created and nobody cares enough about this to actually do the work needed to fix it. It is really frustrating that an important package like this can not be installed by pip without problems.

On my Mac m1 12.6 python 3.10.6 I was not able to install 1.50.0 I simply gave up trying get it compiled 😦 and installed 1.46.3 with the following env vars set: GRPC_PYTHON_BUILD_SYSTEM_OPENSSL=1 GRPC_PYTHON_BUILD_SYSTEM_ZLIB=1 GRPC_BUILD_WITH_BORING_SSL_ASM= GRPC_PYTHON_BUILD_SYSTEM_CARES=True GRPC_PYTHON_USE_PREBUILT_GRPC_CORE= GRPC_PYTHON_BUILD_WITH_CYTHON=True GRPC_PYTHON_LDFLAGS= -framework CoreFoundation

Not sure if the env vars matter though

I had a similar issue with installing grpcio=1.47.0 but I used pipenv and Pipfile.lock What helped me - do uninstall pipenv previously installed with pip and install it again but with homebrew: brew install pipenv Then, pipenv could install grpcio without any problems

Just for reference…

If you need to install grpcio through poetry you need to force the installation of the source package. And to make the compilation work you need to set up the following envvars before poetry install:

export GRPC_PYTHON_BUILD_SYSTEM_ZLIB=1
export GRPC_PYTHON_BUILD_SYSTEM_OPENSSL=1

or directly with poetry install:

GRPC_PYTHON_BUILD_SYSTEM_ZLIB=1 GRPC_PYTHON_BUILD_SYSTEM_OPENSSL=1 poetry install

The content of pyproject.toml will need the following session to force the use of the source package in Apple M1 (arm64) architechture:

[tool.poetry.dependencies.grpcio]
python = "^3.10.0"
markers = "platform_machine == 'arm64'"
url = "{url-for-the-source-package}"  # eg. https://files.pythonhosted.org/packages/[...]/grpcio-1.46.1.tar.gz

I was also not able to fix this problem. The installation would be successful but importing grpc would fail (shown below)

Python 3.9.12 | packaged by conda-forge | (main, Mar 24 2022, 23:25:14)
[Clang 12.0.1 ] on darwin
Type "help", "copyright", "credits" or "license" for more information.
(InteractiveConsole)
>>> import grpc
Traceback (most recent call last):
  File "<console>", line 1, in <module>
  File "/private/var/tmp/_bazel_serhat/27cfb29c86a835e3df3ccb992f3eed84/execroot/core/bazel-out/darwin_arm64-fastbuild/bin/src/python/core/main/shell.runfiles/pypi__39__grpcio_1_41_0/grpc/__init__.py", line 22, in <module>
    from grpc import _compression
  File "/private/var/tmp/_bazel_serhat/27cfb29c86a835e3df3ccb992f3eed84/execroot/intenseye/bazel-out/darwin_arm64-fastbuild/bin/src/python/core/main/shell.runfiles/pypi__39__grpcio_1_41_0/grpc/_compression.py", line 15, in <module>
    from grpc._cython import cygrpc
ImportError: dlopen(/private/var/tmp/_bazel_serhat/27cfb29c86a835e3df3ccb992f3eed84/execroot/core/bazel-out/darwin_arm64-fastbuild/bin/src/python/core/main/shell.runfiles/pypi__39__grpcio_1_41_0/grpc/_cython/cygrpc.cpython-39-darwin.so, 0x0002): symbol not found in flat namespace '_CFRelease'

However, installing from conda would be just fine, so I checked their instructions. I was missing some build flags via imports. The following export statements worked for me, and hope they would be helpful for you as well. Taken from here.

export GRPC_BUILD_WITH_BORING_SSL_ASM=""
export GRPC_PYTHON_BUILD_SYSTEM_ZLIB="True"
export GRPC_PYTHON_BUILD_SYSTEM_OPENSSL="True"
export GRPC_PYTHON_BUILD_SYSTEM_CARES="False"
export GRPC_PYTHON_USE_PREBUILT_GRPC_CORE=""
export GRPC_PYTHON_BUILD_WITH_CYTHON="True"
export GRPC_PYTHON_LDFLAGS=" -framework CoreFoundation"

This works for me (M1 Air)

export GRPC_PYTHON_BUILD_SYSTEM_OPENSSL=1
export GRPC_PYTHON_BUILD_SYSTEM_ZLIB=1

And change the default CC to clang inorder to fix gcc: error: unrecognized command-line option '-stdlib=libc++' error

export CC=/usr/bin/clang
export CXX=/usr/bin/clang++

grpcio 1.38.1 is used to have the issue but it seems that it’s finally fixed in 1.39.0 \m/

@yoav-orca We currently doesn’t have ARM64 machines to produce binary wheels, but we are working on a plan.

Back to the build, the failure is not caused by the ASM optimization. Can you check the result of sysconfig.get_config_var('MACOSX_DEPLOYMENT_TARGET') on your Mac? It seems returning a number or some sort, which supposed to be a string (or bytes) of targeted macOS version.

EDIT: if none presented, you could try to set it to your macOS version, e.g. Big Sur is 11.0.
