site-kit-wp: Chip doesn't do anything when in the section

Bug Description

As per bug bash tickets: https://app.asana.com/0/1201438453642602/1201478352201031 https://app.asana.com/0/1201438453642602/1201453960164093 https://app.asana.com/0/1201438453642602/1201479361460033

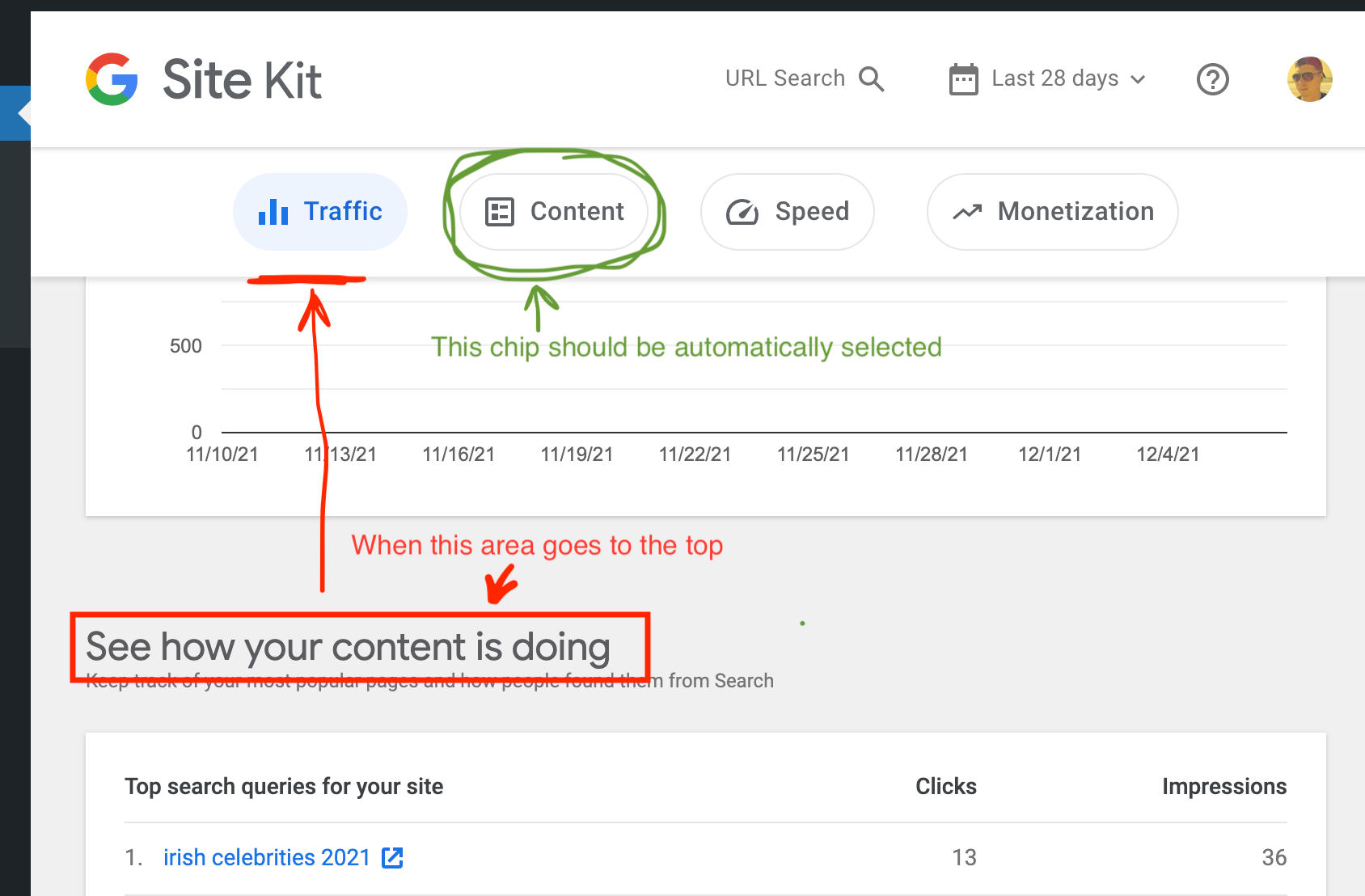

Upon initial dashboard load, clicking the ‘Traffic’ chip doesn’t do anything because the user is already in the Traffic section. If you scroll down the page after initial load and then click the Traffic chip, it does work. Perhaps the issue here is that the Traffic chip appears like it isn’t working because the user is already at that anchor on the page.

Potential suggestion to make the chips active when scrolling to make it clear to users what section they are in on the dashboard.

---

Do not alter or remove anything below. The following sections will be managed by moderators only.

Acceptance criteria

• The DashboardNavigation component is updated to use a custom implementation of chips instead of using the functionality from the @material/react-chips package. The updated component works as following:
  • The selected chip can’t be unselected
  • When the user clicks on a non-selected chip, the page scrolls to the correct location, the clicked chip becomes selected instead of the previously selected one, and the current URL hash changes to the newly selected chip anchor.
  • When the user scrolls the page, an appropriate chip becomes selected and the URL hash changes to the new anchor if the top of the corresponding area reaches the upper visible position of the widgets area (below the navigation bar).
  • When the user has scrolled to the very top of the page and the first area is still behind due to a notification banner, the first chip is selected anyway. In other words, if the first widget area is lower than the navigation chips, the first chip should be selected.

Implementation Brief

• Edit the DashboardNavigation component:
  • Update the selectedIds state variable to be a single string instead of an array and rename the variable to be just selectedId. Rename the companion setSelectedIds function to setSelectedId.
  • Update the handleSelect callback that should get “hash” from the .target.id property of the event argument passed to the callback function instead of the selections.
  • Replace the ChipSet element with a simple <div> using the same class name.
  • Update all Chip elements:
    • Add onClick={ handleSelect } property.
    • Add selected={ selectedId === ... } property.
  • Add a new useEffect hook that does the following:
    • Defines a new throttled function onScroll that finds the closest widget context area to the top and selects its id using the setSelectedId function.
      • To find the closes widget context area, loop through each area and get their top positions. The closest will be the one with the biggest negative value (closest to 0).

        let closest = undefined;
        let closestId = ANCHOR_ID_TRAFFIC;

        for ( const areaId of [ ANCHOR_ID_TRAFFIC, ANCHOR_ID_CONTENT, ... ] ) {
            const top = document.getElementById( areaId ).getBoundingClientRect().top;
            if ( top < 0 && ( closes === undefined || closest < top ) ) {
                closest = top;
                closestId = areadId;
            }
        }


        Also, don’t forget to subtract the height of all sticky elements in the header to make sure that chips update their position when their top borders go under sticky elements.
        • Or as an alternative, find the closest area whose top position is the closest to the bottom position of the DashboardNavigation element.
      • If there are no areas with a negative top position, then select the first area which is ANCHOR_ID_TRAFFIC.
      • Use the _.throttle function from the lodash library with 50 ms timeout to wrap the function:

        import throttle from 'lodash/throttle';
        const onScoll = throttle( () => { ... }, 50 );


    • Adds a new event listener for the scroll event using the onScroll function.
    • Returns an anonymous function that removes the previously defined scroll event listener.
• Edit assets/sass/components/global/_googlesitekit-dashboard-navigation.scss:
  • Set display: flex for the .googlesitekit-navigation class.
  • Update chip styles to display correctly after removing the ChipSet element.

Test Coverage

• Fix any failing tests.

QA Brief

• Go to the Site Kit dashboard
• Scroll the page to each section from top to bottom (Traffic, Content, Speed, and Monetization)
• Verify the appropriate chip is selected and the URL is updated with the hash
• Click the chips and verify the same
• Make sure everything works as expected

Changelog entry

• Update unified dashboard to update the active navigation chip on scroll.
