fastlane: Frameit with Arabic, Japanes, Korean or Thai texts fails.
New Issue Checklist
- [+] Updated fastlane to the latest version
- [+] I read the Contribution Guidelines
- [+] I read docs.fastlane.tools
- [+] I searched for existing GitHub issues
Issue Description
Using frameit with Japanes texts fails for some device sizes but works for others.
Complete output when running fastlane, including the stack trace and command used
bundle exec fastlane frameit

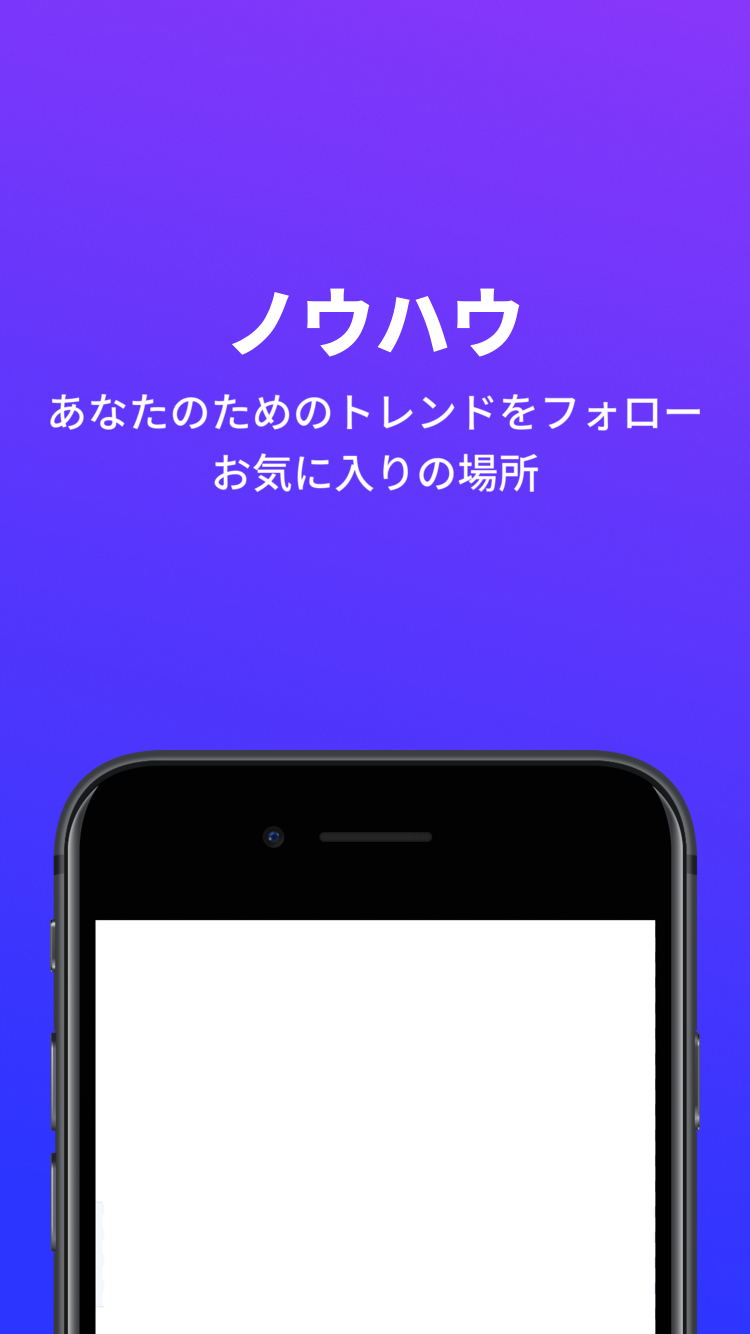

Bellow you can see two different outcomes: the first screenshot has the texts set correctly in the final image, the second one doesn’t.
[✔] 🚀
[12:18:57]: Using device frames version 'latest'
[✔] Framing screenshot './fastlane/screenshots/ja/iPhone 8-3-Trends.png'
[12:19:04]: Added frame: '/Users/{MY_USER}/Developer/iOS Projects/{MY_PROJECT}/fastlane/screenshots/ja/iPhone 8-3-Trends_framed.png'
[⠇] Framing screenshot './fastlane/screenshots/ja/iPhone 11 Pro-3-Trends.png' identify: geometry does not contain image `/var/folders/w3/pg8fvbf17v9cwkjm4d88vfzc0000gn/T/mini_magick20191107-89735-1j2e7qb.png' @ warning/attribute.c/GetImageBoundingBox/507.
[⠴] Framing screenshot './fastlane/screenshots/ja/iPhone 11 Pro-3-Trends.png' identify: geometry does not contain image `/var/folders/w3/pg8fvbf17v9cwkjm4d88vfzc0000gn/T/mini_magick20191107-89735-1z0znau.png' @ warning/attribute.c/GetImageBoundingBox/507.
[⠙] Framing screenshot './fastlane/screenshots/ja/iPhone 11 Pro-3-Trends.png' mogrify: geometry does not contain image `/var/folders/w3/pg8fvbf17v9cwkjm4d88vfzc0000gn/T/mini_magick20191107-89735-1j2e7qb.png' @ warning/transform.c/CropImage/643.
[⠇] Framing screenshot './fastlane/screenshots/ja/iPhone 11 Pro-3-Trends.png' mogrify: geometry does not contain image `/var/folders/w3/pg8fvbf17v9cwkjm4d88vfzc0000gn/T/mini_magick20191107-89735-1z0znau.png' @ warning/transform.c/CropImage/643.
[✔] Framing screenshot './fastlane/screenshots/ja/iPhone 11 Pro-3-Trends.png'
[12:19:20]: Added frame: '/Users/{MY_USER}/Developer/iOS Projects/{MY_PROJECT}/fastlane/screenshots/ja/iPhone 11 Pro-3-Trends_framed.png'
✅ fastlane environment ✅
Stack
| Key | Value |
|---|---|
| OS | 10.15.5 |
| Ruby | 2.6.3 |
| Bundler? | false |
| Git | git version 2.24.2 (Apple Git-127) |
| Installation Source | /usr/local/bin/fastlane |
| Host | Mac OS X 10.15.5 (19F101) |
| Ruby Lib Dir | /System/Library/Frameworks/Ruby.framework/Versions/2.6/usr/lib |
| OpenSSL Version | LibreSSL 2.8.3 |
| Is contained | false |
| Is homebrew | false |
| Is installed via Fabric.app | false |
| Xcode Path | /Applications/Xcode.app/Contents/Developer/ |
| Xcode Version | 11.4.1 |
System Locale
| Variable | Value | |
|---|---|---|
| LANG | en_US.UTF-8 | ✅ |
| LC_ALL | en_US.UTF-8 | ✅ |
| LANGUAGE |
fastlane files:
`./Fastfile`
ruby
This file contains the fastlane.tools configuration
You can find the documentation at https://docs.fastlane.tools
For a list of all available actions, check out
https://docs.fastlane.tools/actions
For a list of all available plugins, check out
https://docs.fastlane.tools/plugins/available-plugins
Uncomment the line if you want fastlane to automatically update itself
update_fastlane
default_platform(:ios)
platform :ios do desc “Generate new localized screenshots” lane :screenshots do capture_screenshots(workspace: “appname.xcworkspace", scheme: “appname”) end end
`./Appfile`
ruby app_identifier("com.example.appname”) # The bundle identifier of your app
apple_id(“[[APPLE_ID]]”) # Your Apple email address
For more information about the Appfile, see:
https://docs.fastlane.tools/advanced/#appfile
fastlane gems
| Gem | Version | Update-Status |
|---|---|---|
| fastlane | 2.149.1 | ✅ Up-To-Date |
Loaded fastlane plugins:
No plugins Loaded
Loaded gems
| Gem | Version |
|---|---|
| did_you_mean | 1.3.0 |
| slack-notifier | 2.3.2 |
| atomos | 0.1.3 |
| CFPropertyList | 2.3.6 |
| claide | 1.0.3 |
| colored2 | 3.1.2 |
| nanaimo | 0.2.6 |
| xcodeproj | 1.16.0 |
| rouge | 2.0.7 |
| xcpretty | 0.3.0 |
| terminal-notifier | 2.0.0 |
| unicode-display_width | 1.7.0 |
| terminal-table | 1.8.0 |
| plist | 3.5.0 |
| public_suffix | 2.0.5 |
| addressable | 2.7.0 |
| multipart-post | 2.0.0 |
| word_wrap | 1.0.0 |
| tty-screen | 0.8.0 |
| tty-cursor | 0.7.1 |
| tty-spinner | 0.9.3 |
| babosa | 1.0.3 |
| colored | 1.2 |
| highline | 1.7.10 |
| commander-fastlane | 4.4.6 |
| excon | 0.73.0 |
| faraday | 1.0.1 |
| unf_ext | 0.0.7.7 |
| unf | 0.1.4 |
| domain_name | 0.5.20190701 |
| http-cookie | 1.0.3 |
| faraday-cookie_jar | 0.0.6 |
| faraday_middleware | 1.0.0 |
| fastimage | 2.1.7 |
| gh_inspector | 1.1.3 |
| json | 2.1.0 |
| mini_magick | 4.10.1 |
| multi_xml | 0.6.0 |
| rubyzip | 1.3.0 |
| security | 0.1.3 |
| xcpretty-travis-formatter | 1.0.0 |
| dotenv | 2.7.5 |
| bundler | 2.1.4 |
| naturally | 2.2.0 |
| simctl | 1.6.8 |
| jwt | 2.1.0 |
| uber | 0.1.0 |
| declarative | 0.0.10 |
| declarative-option | 0.1.0 |
| representable | 3.0.4 |
| retriable | 3.1.2 |
| mini_mime | 1.0.2 |
| multi_json | 1.14.1 |
| signet | 0.14.0 |
| memoist | 0.16.2 |
| os | 1.1.0 |
| googleauth | 0.12.0 |
| httpclient | 2.8.3 |
| google-api-client | 0.38.0 |
| google-cloud-env | 1.3.2 |
| google-cloud-errors | 1.0.1 |
| google-cloud-core | 1.5.0 |
| digest-crc | 0.5.1 |
| google-cloud-storage | 1.26.2 |
| emoji_regex | 1.0.1 |
| jmespath | 1.4.0 |
| aws-partitions | 1.323.0 |
| aws-eventstream | 1.1.0 |
| aws-sigv4 | 1.1.4 |
| aws-sdk-core | 3.97.1 |
| aws-sdk-kms | 1.33.0 |
| aws-sdk-s3 | 1.67.1 |
| forwardable | 1.2.0 |
| logger | 1.3.0 |
| stringio | 0.0.2 |
| ipaddr | 1.2.2 |
| openssl | 2.1.2 |
| ostruct | 0.1.0 |
| strscan | 1.0.0 |
| date | 2.0.0 |
| fileutils | 1.1.0 |
| etc | 1.0.1 |
| io-console | 0.4.7 |
| zlib | 1.0.0 |
| libxml-ruby | 3.1.0 |
| rexml | 3.1.9 |
| psych | 3.1.0 |
| mutex_m | 0.1.0 |
| webrick | 1.4.2 |
generated on: 2020-06-14
About this issue
- Original URL
- State: closed
- Created 4 years ago
- Reactions: 2
- Comments: 20 (3 by maintainers)
I tried with many fonts. It never worked. @rogerluan
Having a similar issue with Korean and Japenese, I tried multiple fonts, and am not seeing any text rendered on any screen size for those languages.
Reopening upon request ☝️
Frameit use ImageMagick to draw text. I try to use ImageMagick to perform a more complex image operation and encounter the same problem about text and fonts.
I think it’s an issue from ImageMagick. Unlike many GUI image editor, ImageMagick won’t automatically load system fonts. On macOS, they are
/System/Library/Fonts,/Library/Fontand~/Library/Fonts.I haven’t dig deep into the source code of Frameit and don’t know if Frameit handles fonts properly. However, because it’s an issue originated from ImageMagick, I don’t think Frameit can solve the problem by itself.
ImageMagick/ImageMagick/issues/3110
There hasn’t been any activity on this issue recently. Due to the high number of incoming GitHub notifications, we have to clean some of the old issues, as many of them have already been resolved with the latest updates.
Please make sure to update to the latest
fastlaneversion and check if that solves the issue. Let us know if that works for you by adding a comment 👍Friendly reminder: contributions are always welcome! Check out CONTRIBUTING.md for more information on how to help with
fastlaneand feel free to tackle this issue yourself 💪It seems like you have not included the output of
fastlane envTo make it easier for us help you resolve this issue, please update the issue to include the output offastlane env👍
