expo: [expo-gl][Android][standalone] gl.texImage2D doesn't render image in Android standalone app if asset localUri path protocol is different from "file://"

I encountered yet another flavor of this issue today when I switched my project from managed to bare workflow.

In managed, standalone Android builds, my texture image asset.localUris look like "asset:///asset_images_myimagefile" and are handled by the copyAssetToCacheAsync() work-around I posed above.

Now, in bare Android builds, the same images resolve to asset.localUris that look like "assets_images_myimagefile". Note that there is no “asset:” prefix and the file format suffix (.png in my case) has been stripped.

Consequently, in https://github.com/expo/expo/blob/master/packages/expo-gl-cpp/cpp/UEXGL.cpp loadImage() fails to load the image into an OpenGL texture because it has no special-case handling for this new form of asset.localUri reference.

I worked around this problem by adding https://github.com/itinance/react-native-fs to my bare builds and using its readFileRes() function to copy the bytes of the drawable image into a local file (using expo-file-system writeAsStringAsync()), and then passing the “file://” URI into expo-gl’s texture loader.

Basically, the root problem seems to be an architectural issue where expo-asset has now added a bunch of different “flavors” of asset reference beyond just "file://", but the expo-gl stack has not been updated to handle any of these new ways to reference image files.

TypeScript is not alerting about this problem because the asset.localUri references are all just strings, which masks the fact that different formats need different, platform-specific handling in the texture loading code.

Here is our current workaround for this issue:

// bundled asset uri's become `asset://...` in production build, but expo-gl
// cannot handle them, https://github.com/expo/expo/issues/2693
// this workaround copies them to a known path files so we can use a regular
// `file://...` uri instead.
async function copyAssetToCacheAsync(assetModule, localFilename) {
  const localUri = `${FileSystem.cacheDirectory}asset_${localFilename}`;
  const fileInfo = await FileSystem.getInfoAsync(localUri, { size: false });
  if (!fileInfo.exists) {
    const asset = Asset.fromModule(assetModule);
    await asset.downloadAsync();
    console.log(`copyAssetToCacheAsync ${asset.localUri} -> ${localUri}`);
    await FileSystem.copyAsync({
      from: asset.localUri,
      to: localUri,
    });
  }
  return localUri;
}

All the assets needed will first go through this thing before I can render anything. then I’ll use the return value like

const uri = copyAssetToCacheAsync(require('...'), 'funny')`;
const funnyImg = {uri};

Lame, but works.

Hi everyone! @EvanBacon, you had an idea why is this bug happens. Maybe need to share it with @tsapeta ? It would be great to see this bug fix in SDK 32 😃

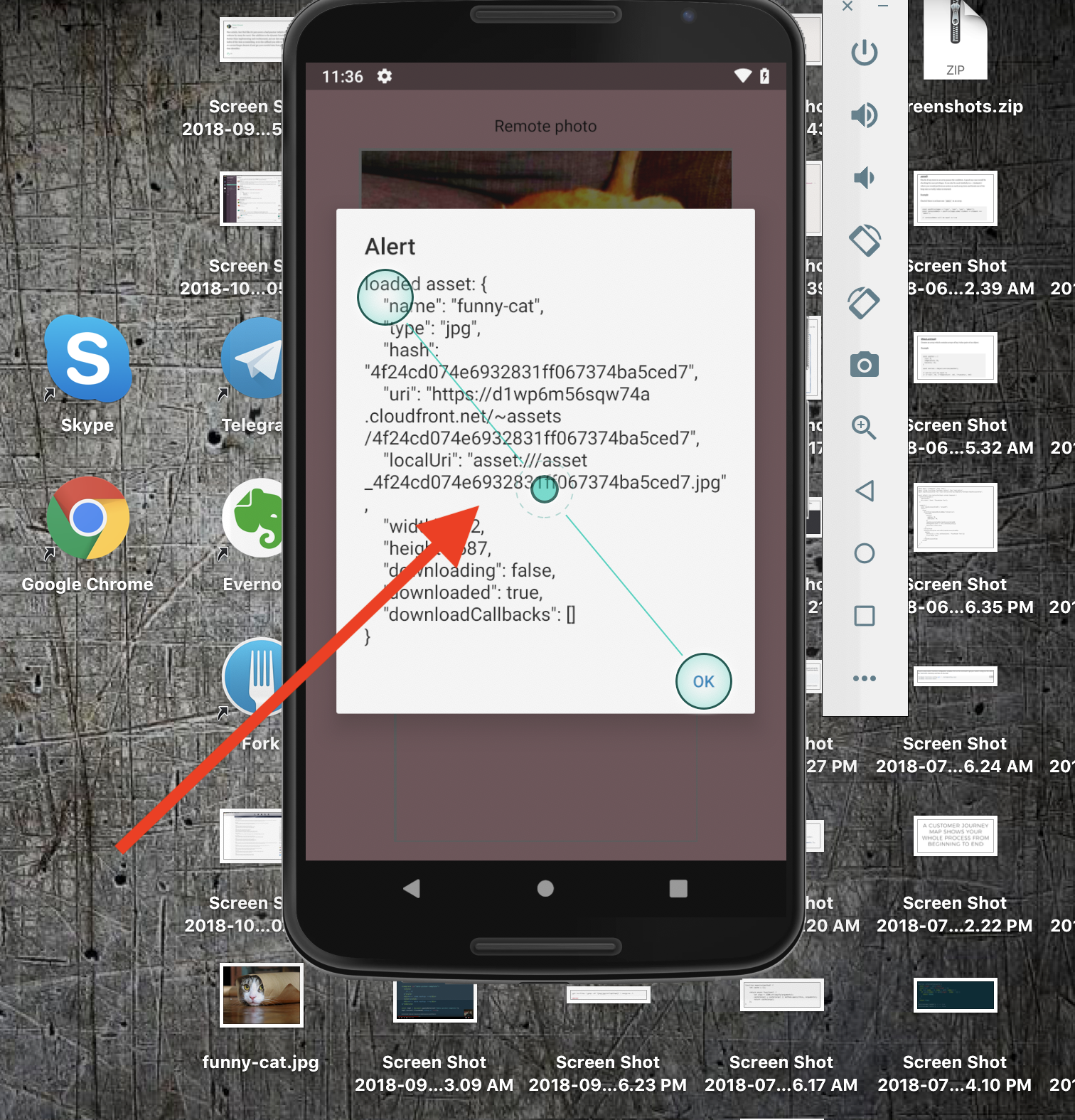

I’ve reopened this issue because the bug with not rendering image with path protocol different from file:// or https:// is still there. Please check my previous comment to see screenshots.

In Android standalone app when you try to use local bandled asset as source for gl.texImage2D it doesn’t work because source path is asset://. In our app we temporary fixed this by using remote assets as they have protocol https://, but it is not a production way as it slows down view rendering compared to using local assets and our app can no longer work offline.

The issue is reproducible in Expo v31. I will update the test repo to Expo v32 in next few days, test and write about result here.

@tsapeta can you please try to fix it?

why it has not been fixed for a while?

The bug is fixed. Not sure who fixed it, but thank you @tsapeta ! Our app works properly, but the test repo I created has another bug. The app starts without crashing, but the image is not rendered.

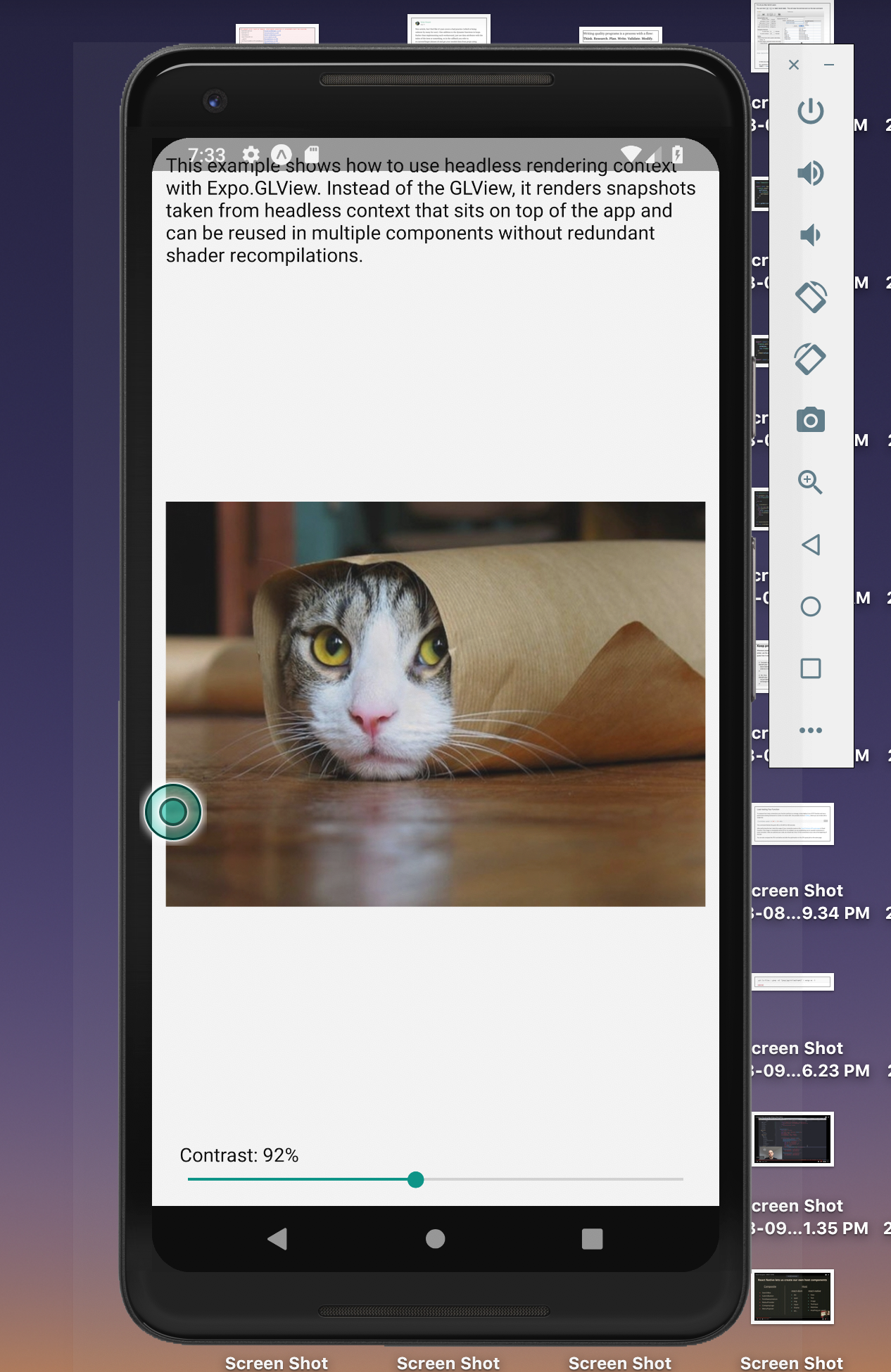

In development mode it looks like this

I guess it is another bug in the code of “Headless GL” example from Expo docs. This code I used for test repo. So be aware that “Headless GL” wont work in Android standalone app.

I am closing this issue. Thanks again!

ping @EvanBacon
