esp-idf: Unable to boot with Secure Boot and Encrypted Flash (IDFGH-2359)

Environment

• Development Kit: [ESP32-DEVKIT]

• Kit version (for WroverKit/PicoKit/): [v1|v2|v3|v4]

• IDF version : ESP-IDF v4.1-dev-1086-g93a8603c5-dirty

• Build System: Make

• Compiler version (run xtensa-esp32-elf-gcc --version to find it): xtensa-esp32-elf-gcc (crosstool-NG esp-2019r2) 8.2.0 Copyright © 2018 Free Software Foundation, Inc. This is free software; see the source for copying conditions. There is NO warranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

• Operating System: Linux(Fedora 30)

• Power Supply: USB

Problem Description

The problem is that on the terminal the ESP32 dev kit is continuously printing the following message after enabling secure boot and flash encryption and I do follow all the steps from #3548 still facing the issue as below

rst:0x10 (RTCWDT_RTC_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT) flash read err, 1000 ets_main.c 371 ets Jun 8 2016 00:22:57

//Detailed problem description goes here.

Expected Behavior

It should run blink example successfully with secure bootloader and encrypted flash

Actual Behavior

Steps to repropduce

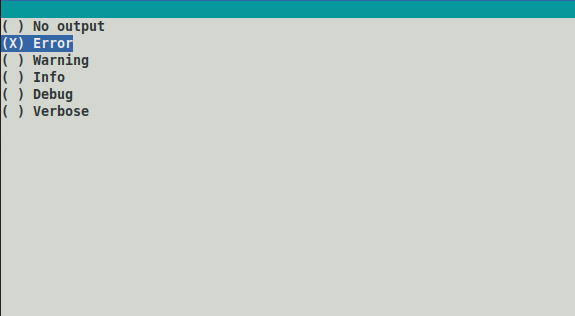

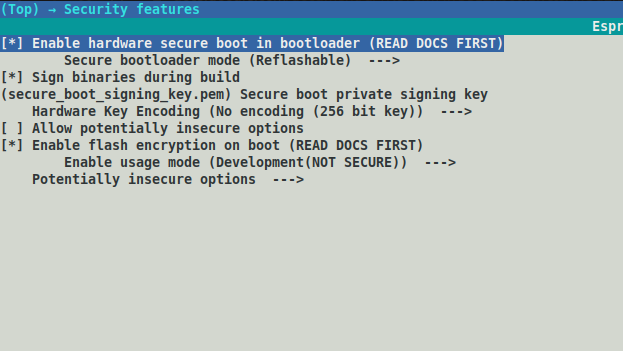

Below are the screenshots of menuconfig and commands to reproduce this issue //Detailed problem description goes here. I took blink example from IDF/examples Step1: On menuconfig>securtity options I have set as below

Step 2: creating .pem file openssl ecparam -name prime256v1 -genkey -noout -out my_secure_boot_signing_key.pem

Step 3: Digesting private key to bin file to flash to efuse and I have used below commands to produce bin files(Both produces same bin file with different names because the fact I’ve used to digest based on same pem file) espsecure.py digest_private_key --keyfile secure_boot_signing_key.pem --keylen 256 my_flash_encryption_key.bin espsecure.py digest_private_key --keyfile secure_boot_signing_key.pem --keylen 256 secure-bootloader-key.bin

Step 4: Burning keys to efuse espefuse.py --port /dev/ttyUSB0 burn_key flash_encryption my_flash_encryption_key.bin espefuse.py --port /dev/ttyUSB0 burn_key secure_boot secure-bootloader-key.bin

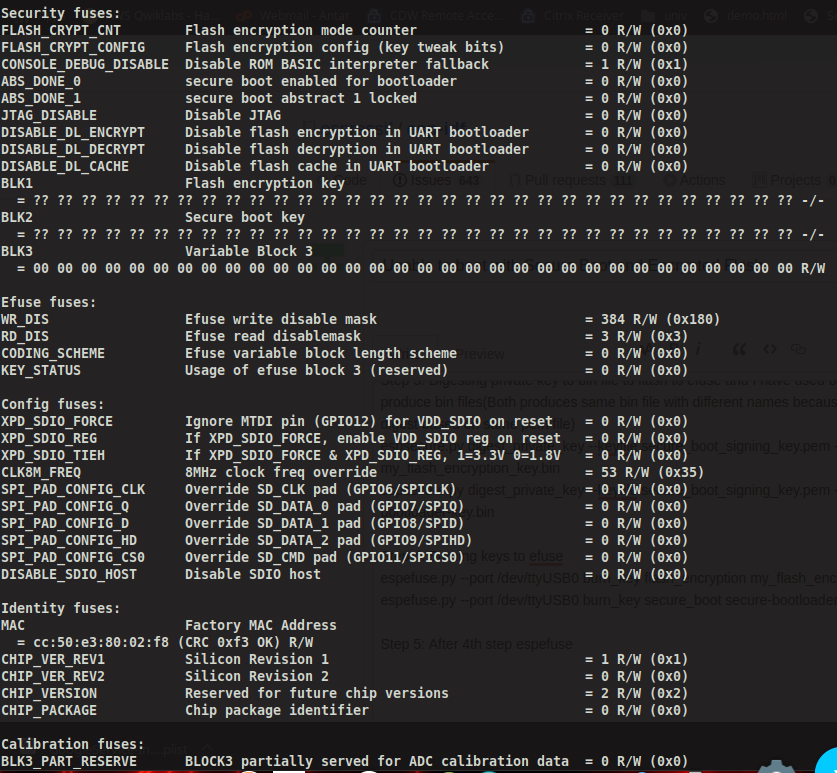

Step 5: After 4th step espefuse summary looks like below

Step 6: make bootloader && make partition_table && make -j4 (After this step bootloader.bin size:32.7kb and bootloader-reflash-digest.bin 36.9kb)

Step 7: Encrypting all bins with the my_flash_encryption_key.bin which was produced in step3 esptool.py --chip esp32 --port /dev/ttyUSB0 --baud 921600 --before default_reset --after hard_reset write_flash -z --flash_mode dio --flash_freq 40m --flash_size detect 0x1000 /build/bootloader/bootloader-encrypted.bin

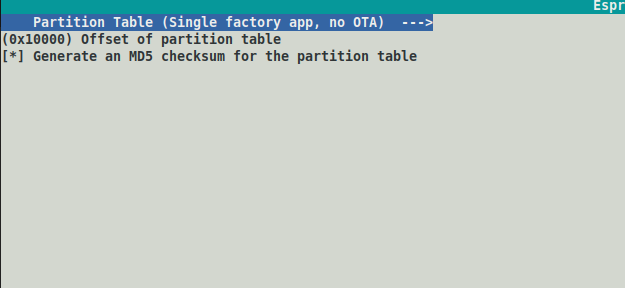

(In menuconfig i have setted parttion offset to 10,000,Inorder to prevent bootloader overirite the partition table which is by default 0x8000) esptool.py --port /dev/ttyUSB0 --baud 921000 write_flash 0x10000 build/partitions_singleapp-encrypted.bin

espsecure.py encrypt_flash_data --keyfile my_flash_encryption_key.bin --address 0x20000 -o build/blink-encrypted.bin build/blink.bin

Step 8: Now flashing each encrypted bin files to the esp flash.

esptool.py --chip esp32 --port /dev/ttyUSB0 --baud 921600 --before default_reset --after hard_reset write_flash -z --flash_mode dio --flash_freq 40m --flash_size detect 0x1000 /build/bootloader/bootloader-encrypted.bin

esptool.py --port /dev/ttyUSB0 --baud 921000 write_flash 0x10000 build/partitions_singleapp-encrypted.bin

esptool.py --port /dev/ttyUSB0 --baud 921000 write_flash 0x20000 build/app-encrypted.bin

Code to reproduce this issue

#include <stdio.h> #include “freertos/FreeRTOS.h” #include “freertos/task.h” #include “driver/gpio.h” #include “sdkconfig.h”

#define BLINK_GPIO CONFIG_BLINK_GPIO

void app_main(void) {

gpio_pad_select_gpio(BLINK_GPIO);
/* Set the GPIO as a push/pull output */
gpio_set_direction(BLINK_GPIO, GPIO_MODE_OUTPUT);
while(1) {
    /* Blink off (output low) */
printf("Turning off the LED\n");
    gpio_set_level(BLINK_GPIO, 0);
    vTaskDelay(1000 / portTICK_PERIOD_MS);
    /* Blink on (output high) */
printf("Turning on the LED\n");
    gpio_set_level(BLINK_GPIO, 1);
    vTaskDelay(1000 / portTICK_PERIOD_MS);
}

}

// If your code is longer than 30 lines, [GIST](https://gist.github.com) is preferred.

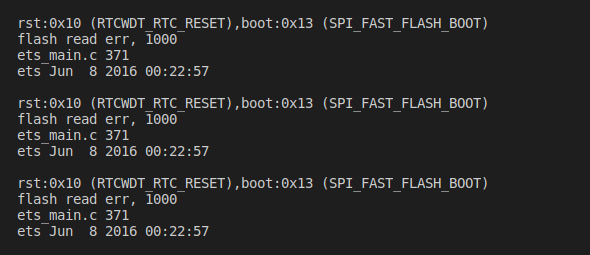

## Debug Logs
(https://user-images.githubusercontent.com/3605941/70848008-92c9a080-1e91-11ea-9781-85528d4d7223.png)

## Other items if possible
- [*] sdkconfig file (attach the sdkconfig file from your project folder)
- [*] elf file in the ``build`` folder (**note this may contain all the code details and symbols of your project.**)
- [ ] coredump (This provides stacks of tasks.)
[blink_elf_and_sdkconfig.zip](https://github.com/espressif/esp-idf/files/3963747/blink_elf_and_sdkconfig.zip)
