egui: BadMatch error in hello world example on X11

Hi,

I was trying to run the hello world example on master @ d01e4342, but it crashes with the following error:

$ RUST_LOG="debug" cargo run -p hello_world
2023-02-02T06:55:57.106982Z DEBUG eframe: Using the glow renderer
2023-02-02T06:55:57.126544Z DEBUG eframe::native::run: Entering the winit event loop (run_return)…
2023-02-02T06:55:57.127592Z  INFO winit::platform_impl::platform::x11::window: Guessed window scale factor: 1.25
2023-02-02T06:55:57.127614Z DEBUG winit::platform_impl::platform::x11::window: Calculated physical dimensions: 400x300
2023-02-02T06:55:57.148498Z DEBUG eframe::native::run: Exiting because of an error
2023-02-02T06:55:57.148530Z DEBUG eframe::native::run: Asking to exit event loop…
2023-02-02T06:55:57.148628Z DEBUG eframe::native::run: Received Event::LoopDestroyed - saving app state…
2023-02-02T06:55:57.148650Z DEBUG eframe::native::run: eframe window closed
Error: Glutin(Error { raw_code: Some(12297), raw_os_message: None, kind: BadMatch })

Note that this is not a panic, but an error that is handled. I’m not sure where exactly it’s coming from.

If I checkout 0.20.1, I get the same error but with a panic, with the following backtrace:

Backtrace

warning: .../egui/crates/eframe/Cargo.toml: unused manifest key: target.cfg(not(target_arch = "wasm32")).dependencies.glutin.es
    Finished dev [unoptimized + debuginfo] target(s) in 0.30s
     Running `.../egui/target/debug/hello_world`
2023-02-02T16:30:20.900462Z DEBUG eframe: Using the glow renderer
2023-02-02T16:30:20.925825Z DEBUG eframe::native::run: event_loop.run_return
2023-02-02T16:30:20.926185Z  INFO winit::platform_impl::platform::x11::window: Guessed window scale factor: 1.25
2023-02-02T16:30:20.926209Z DEBUG winit::platform_impl::platform::x11::window: Calculated physical dimensions: 400x300
thread 'main' panicked at 'failed to create opengl context: Error { raw_code: Some(12297), raw_os_message: None, kind: BadMatch }', crates/eframe/src/native/run.rs:405:18
stack backtrace:
   0:     0x5640f185d340 - std::backtrace_rs::backtrace::libunwind::trace::h32eb3e08e874dd27
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/../../backtrace/src/backtrace/libunwind.rs:93:5
   1:     0x5640f185d340 - std::backtrace_rs::backtrace::trace_unsynchronized::haa3f451d27bc11a5
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/../../backtrace/src/backtrace/mod.rs:66:5
   2:     0x5640f185d340 - std::sys_common::backtrace::_print_fmt::h5b94a01bb4289bb5
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/sys_common/backtrace.rs:66:5
   3:     0x5640f185d340 - <std::sys_common::backtrace::_print::DisplayBacktrace as core::fmt::Display>::fmt::hb070b7fa7e3175df
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/sys_common/backtrace.rs:45:22
   4:     0x5640f188320e - core::fmt::write::hd5207aebbb9a86e9
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/core/src/fmt/mod.rs:1202:17
   5:     0x5640f1858785 - std::io::Write::write_fmt::h3bd699bbd129ab8a
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/io/mod.rs:1679:15
   6:     0x5640f185eb73 - std::sys_common::backtrace::_print::h7a21be552fdf58da
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/sys_common/backtrace.rs:48:5
   7:     0x5640f185eb73 - std::sys_common::backtrace::print::ha85c41fe4dd80b13
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/sys_common/backtrace.rs:35:9
   8:     0x5640f185eb73 - std::panicking::default_hook::{{closure}}::h04cca40023d0eeca
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/panicking.rs:295:22
   9:     0x5640f185e85f - std::panicking::default_hook::haa3ca8c310ed5402
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/panicking.rs:314:9
  10:     0x5640f185f21a - std::panicking::rust_panic_with_hook::h7b190ce1a948faac
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/panicking.rs:698:17
  11:     0x5640f185f117 - std::panicking::begin_panic_handler::{{closure}}::hbafbfdc3e1b97f68
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/panicking.rs:588:13
  12:     0x5640f185d7ec - std::sys_common::backtrace::__rust_end_short_backtrace::hda93e5fef243b4c0
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/sys_common/backtrace.rs:138:18
  13:     0x5640f185ee32 - rust_begin_unwind
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/panicking.rs:584:5
  14:     0x5640f12ea0d3 - core::panicking::panic_fmt::h8d17ca1073d9a733
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/core/src/panicking.rs:142:14
  15:     0x5640f12ea223 - core::result::unwrap_failed::hfaddf24b248137d3
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/core/src/result.rs:1785:5
  16:     0x5640f13dd4a7 - core::result::Result<T,E>::expect::hc58268990c0ae4c7
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/core/src/result.rs:1064:23
  17:     0x5640f13abed8 - new
                               at .../egui/crates/eframe/src/native/run.rs:403:30
  18:     0x5640f13ac775 - eframe::native::run::glow_integration::GlowWinitApp::create_glutin_windowed_context::hf17efec70e663bfe
                               at .../egui/crates/eframe/src/native/run.rs:505:26
  19:     0x5640f13ac997 - init_run_state
                               at .../egui/crates/eframe/src/native/run.rs:521:35
  20:     0x5640f13ae5de - <eframe::native::run::glow_integration::GlowWinitApp as eframe::native::run::WinitApp>::on_event::he970e4ea984ce9e9
                               at .../egui/crates/eframe/src/native/run.rs:733:25
  21:     0x5640f13e1efc - {closure#0}<eframe::native::run::glow_integration::GlowWinitApp>
                               at .../egui/crates/eframe/src/native/run.rs:140:22
  22:     0x5640f13aa001 - winit::platform_impl::platform::sticky_exit_callback::he5c41562275ff371
                               at ~/.cargo/registry/src/github.com-1ecc6299db9ec823/winit-0.27.5/src/platform_impl/linux/mod.rs:849:9
  23:     0x5640f13c51ec - single_iteration<eframe::native::run::UserEvent, eframe::native::run::run_and_return::{closure_env#0}<eframe::native::run::glow_integration::GlowWinitApp>>
                               at ~/.cargo/registry/src/github.com-1ecc6299db9ec823/winit-0.27.5/src/platform_impl/linux/x11/mod.rs:339:17
  24:     0x5640f13c80da - run_return<eframe::native::run::UserEvent, eframe::native::run::run_and_return::{closure_env#0}<eframe::native::run::glow_integration::GlowWinitApp>>
                               at ~/.cargo/registry/src/github.com-1ecc6299db9ec823/winit-0.27.5/src/platform_impl/linux/x11/mod.rs:448:31
  25:     0x5640f13a89c5 - winit::platform_impl::platform::EventLoop<T>::run_return::h8cab03c98ec9f60d
                               at ~/.cargo/registry/src/github.com-1ecc6299db9ec823/winit-0.27.5/src/platform_impl/linux/mod.rs:748:56
  26:     0x5640f13773e9 - <winit::event_loop::EventLoop<T> as winit::platform::run_return::EventLoopExtRunReturn>::run_return::hc8ab4df115857b8c
                               at ~/.cargo/registry/src/github.com-1ecc6299db9ec823/winit-0.27.5/src/platform/run_return.rs:62:9
  27:     0x5640f13e18a8 - run_and_return<eframe::native::run::glow_integration::GlowWinitApp>
                               at .../egui/crates/eframe/src/native/run.rs:107:5
  28:     0x5640f13562b0 - eframe::native::run::glow_integration::run_glow::{{closure}}::h0f2f24a157b958c2
                               at .../egui/crates/eframe/src/native/run.rs:852:17
  29:     0x5640f13e11b5 - eframe::native::run::with_event_loop::{{closure}}::h28949685e088e7f4
                               at .../egui/crates/eframe/src/native/run.rs:96:9
  30:     0x5640f1400321 - try_with<core::cell::RefCell<core::option::Option<winit::event_loop::EventLoop<eframe::native::run::UserEvent>>>, eframe::native::run::with_event_loop::{closure_env#0}<eframe::native::run::glow_integration::run_glow::{closure_env#0}>, ()>
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/thread/local.rs:445:16
  31:     0x5640f13ffe23 - std::thread::local::LocalKey<T>::with::h9060f9cbc378ea93
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/thread/local.rs:421:9
  32:     0x5640f13e0f87 - eframe::native::run::with_event_loop::hb99eb8f191ffc5e8
                               at .../egui/crates/eframe/src/native/run.rs:89:5
  33:     0x5640f13aea1f - eframe::native::run::glow_integration::run_glow::h78d964c10ae45d5c
                               at .../egui/crates/eframe/src/native/run.rs:845:13
  34:     0x5640f1303f28 - run_native
                               at .../egui/crates/eframe/src/lib.rs:192:13
  35:     0x5640f12ebbd3 - main
                               at .../egui/examples/hello_world/src/main.rs:13:5
  36:     0x5640f12eb6fb - core::ops::function::FnOnce::call_once::h32ae0eb63ee25b06
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/core/src/ops/function.rs:248:5
  37:     0x5640f12ec83e - __rust_begin_short_backtrace<fn(), ()>
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/sys_common/backtrace.rs:122:18
  38:     0x5640f12ea941 - {closure#0}<()>
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/rt.rs:166:18
  39:     0x5640f185423f - core::ops::function::impls::<impl core::ops::function::FnOnce<A> for &F>::call_once::hb69be6e0857c6cfb
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/core/src/ops/function.rs:283:13
  40:     0x5640f185423f - std::panicking::try::do_call::h396dfc441ee9c786
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/panicking.rs:492:40
  41:     0x5640f185423f - std::panicking::try::h6cdda972d28b3a4f
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/panicking.rs:456:19
  42:     0x5640f185423f - std::panic::catch_unwind::h376039ec264e8ef9
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/panic.rs:137:14
  43:     0x5640f185423f - std::rt::lang_start_internal::{{closure}}::hc94720ca3d4cb727
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/rt.rs:148:48
  44:     0x5640f185423f - std::panicking::try::do_call::h2422fb95933fa2d5
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/panicking.rs:492:40
  45:     0x5640f185423f - std::panicking::try::h488286b5ec8333ff
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/panicking.rs:456:19
  46:     0x5640f185423f - std::panic::catch_unwind::h81636549836d2a25
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/panic.rs:137:14
  47:     0x5640f185423f - std::rt::lang_start_internal::h6ba1bb743c1e9df9
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/rt.rs:148:20
  48:     0x5640f12ea91a - std::rt::lang_start::h8487aa0f17e708f5
                               at /rustc/897e37553bba8b42751c67658967889d11ecd120/library/std/src/rt.rs:165:17
  49:     0x5640f12ebd51 - main
  50:     0x7f6072fb0083 - __libc_start_main
  51:     0x5640f12ea40e - _start
  52:                0x0 - <unknown>

I did a git bisect and found that the crash starts occurring at https://github.com/emilk/egui/commit/8eb687cf04dd2b68dfe467d142db6b8759425e16, before that it works.

I’m on Ubuntu 20.04.5 with X11 on an ancient Thinkpad. If I run the basic window example from glutin 0.30.0 (which works), it prints

Running on: GLX 1.4
Picked a config with 0 samples
Running on Mesa DRI Intel(R) HD Graphics (ILK)
OpenGL Version OpenGL ES 2.0 Mesa 21.2.6
Shaders version on OpenGL ES GLSL ES 1.0.16

I tried to run the hello-world example of glow, but I get some other error. I also tried to see if #2526 would fix this, but I get a different error there.

Here is the output of glxinfo:

glxinfo

name of display: :0
display: :0  screen: 0
direct rendering: Yes
server glx vendor string: SGI
server glx version string: 1.4
server glx extensions:
    GLX_ARB_create_context, GLX_ARB_create_context_no_error,
    GLX_ARB_create_context_profile, GLX_ARB_fbconfig_float,
    GLX_ARB_framebuffer_sRGB, GLX_ARB_multisample,
    GLX_EXT_create_context_es2_profile, GLX_EXT_create_context_es_profile,
    GLX_EXT_fbconfig_packed_float, GLX_EXT_framebuffer_sRGB,
    GLX_EXT_import_context, GLX_EXT_libglvnd, GLX_EXT_no_config_context,
    GLX_EXT_texture_from_pixmap, GLX_EXT_visual_info, GLX_EXT_visual_rating,
    GLX_INTEL_swap_event, GLX_MESA_copy_sub_buffer, GLX_OML_swap_method,
    GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_pbuffer,
    GLX_SGIX_visual_select_group, GLX_SGI_make_current_read,
    GLX_SGI_swap_control
client glx vendor string: Mesa Project and SGI
client glx version string: 1.4
client glx extensions:
    GLX_ARB_context_flush_control, GLX_ARB_create_context,
    GLX_ARB_create_context_no_error, GLX_ARB_create_context_profile,
    GLX_ARB_create_context_robustness, GLX_ARB_fbconfig_float,
    GLX_ARB_framebuffer_sRGB, GLX_ARB_get_proc_address, GLX_ARB_multisample,
    GLX_ATI_pixel_format_float, GLX_EXT_buffer_age,
    GLX_EXT_create_context_es2_profile, GLX_EXT_create_context_es_profile,
    GLX_EXT_fbconfig_packed_float, GLX_EXT_framebuffer_sRGB,
    GLX_EXT_import_context, GLX_EXT_no_config_context, GLX_EXT_swap_control,
    GLX_EXT_swap_control_tear, GLX_EXT_texture_from_pixmap,
    GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_INTEL_swap_event,
    GLX_MESA_copy_sub_buffer, GLX_MESA_multithread_makecurrent,
    GLX_MESA_query_renderer, GLX_MESA_swap_control, GLX_NV_float_buffer,
    GLX_OML_swap_method, GLX_OML_sync_control, GLX_SGIS_multisample,
    GLX_SGIX_fbconfig, GLX_SGIX_pbuffer, GLX_SGIX_visual_select_group,
    GLX_SGI_make_current_read, GLX_SGI_swap_control, GLX_SGI_video_sync
GLX version: 1.4
GLX extensions:
    GLX_ARB_create_context, GLX_ARB_create_context_no_error,
    GLX_ARB_create_context_profile, GLX_ARB_fbconfig_float,
    GLX_ARB_framebuffer_sRGB, GLX_ARB_get_proc_address, GLX_ARB_multisample,
    GLX_EXT_buffer_age, GLX_EXT_create_context_es2_profile,
    GLX_EXT_create_context_es_profile, GLX_EXT_fbconfig_packed_float,
    GLX_EXT_framebuffer_sRGB, GLX_EXT_import_context,
    GLX_EXT_no_config_context, GLX_EXT_swap_control,
    GLX_EXT_swap_control_tear, GLX_EXT_texture_from_pixmap,
    GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_INTEL_swap_event,
    GLX_MESA_copy_sub_buffer, GLX_MESA_query_renderer, GLX_MESA_swap_control,
    GLX_OML_swap_method, GLX_OML_sync_control, GLX_SGIS_multisample,
    GLX_SGIX_fbconfig, GLX_SGIX_pbuffer, GLX_SGIX_visual_select_group,
    GLX_SGI_make_current_read, GLX_SGI_swap_control, GLX_SGI_video_sync
Extended renderer info (GLX_MESA_query_renderer):
    Vendor: Intel Open Source Technology Center (0x8086)
    Device: Mesa DRI Intel(R) HD Graphics (ILK) (0x46)
    Version: 21.2.6
    Accelerated: yes
    Video memory: 1536MB
    Unified memory: yes
    Preferred profile: compat (0x2)
    Max core profile version: 0.0
    Max compat profile version: 2.1
    Max GLES1 profile version: 1.1
    Max GLES[23] profile version: 2.0
OpenGL vendor string: Intel Open Source Technology Center
OpenGL renderer string: Mesa DRI Intel(R) HD Graphics (ILK)
OpenGL version string: 2.1 Mesa 21.2.6
OpenGL shading language version string: 1.20
OpenGL extensions:
    GL_3DFX_texture_compression_FXT1, GL_AMD_seamless_cubemap_per_texture,
    GL_AMD_shader_trinary_minmax, GL_ANGLE_texture_compression_dxt3,
    GL_ANGLE_texture_compression_dxt5, GL_APPLE_object_purgeable,
    GL_APPLE_packed_pixels, GL_ARB_ES2_compatibility, GL_ARB_arrays_of_arrays,
    GL_ARB_buffer_storage, GL_ARB_clear_buffer_object, GL_ARB_clear_texture,
    GL_ARB_clip_control, GL_ARB_color_buffer_float,
    GL_ARB_compressed_texture_pixel_storage, GL_ARB_copy_buffer,
    GL_ARB_copy_image, GL_ARB_debug_output, GL_ARB_depth_buffer_float,
    GL_ARB_depth_clamp, GL_ARB_depth_texture, GL_ARB_draw_buffers,
    GL_ARB_draw_elements_base_vertex, GL_ARB_draw_instanced,
    GL_ARB_explicit_attrib_location, GL_ARB_explicit_uniform_location,
    GL_ARB_fragment_coord_conventions, GL_ARB_fragment_program,
    GL_ARB_fragment_program_shadow, GL_ARB_fragment_shader,
    GL_ARB_framebuffer_object, GL_ARB_framebuffer_sRGB,
    GL_ARB_get_program_binary, GL_ARB_get_texture_sub_image,
    GL_ARB_half_float_pixel, GL_ARB_half_float_vertex,
    GL_ARB_instanced_arrays, GL_ARB_internalformat_query,
    GL_ARB_internalformat_query2, GL_ARB_invalidate_subdata,
    GL_ARB_map_buffer_alignment, GL_ARB_map_buffer_range, GL_ARB_multi_bind,
    GL_ARB_multisample, GL_ARB_multitexture, GL_ARB_occlusion_query,
    GL_ARB_occlusion_query2, GL_ARB_parallel_shader_compile,
    GL_ARB_pixel_buffer_object, GL_ARB_point_parameters, GL_ARB_point_sprite,
    GL_ARB_polygon_offset_clamp, GL_ARB_program_interface_query,
    GL_ARB_provoking_vertex, GL_ARB_robustness, GL_ARB_sampler_objects,
    GL_ARB_seamless_cube_map, GL_ARB_seamless_cubemap_per_texture,
    GL_ARB_separate_shader_objects, GL_ARB_shader_bit_encoding,
    GL_ARB_shader_draw_parameters, GL_ARB_shader_group_vote,
    GL_ARB_shader_objects, GL_ARB_shader_texture_lod,
    GL_ARB_shading_language_100, GL_ARB_shading_language_include,
    GL_ARB_shading_language_packing, GL_ARB_shadow, GL_ARB_sync,
    GL_ARB_texture_barrier, GL_ARB_texture_border_clamp,
    GL_ARB_texture_compression, GL_ARB_texture_compression_rgtc,
    GL_ARB_texture_cube_map, GL_ARB_texture_env_add,
    GL_ARB_texture_env_combine, GL_ARB_texture_env_crossbar,
    GL_ARB_texture_env_dot3, GL_ARB_texture_filter_anisotropic,
    GL_ARB_texture_float, GL_ARB_texture_mirror_clamp_to_edge,
    GL_ARB_texture_mirrored_repeat, GL_ARB_texture_non_power_of_two,
    GL_ARB_texture_query_lod, GL_ARB_texture_rectangle, GL_ARB_texture_rg,
    GL_ARB_texture_rgb10_a2ui, GL_ARB_texture_storage, GL_ARB_texture_swizzle,
    GL_ARB_transpose_matrix, GL_ARB_vertex_array_bgra,
    GL_ARB_vertex_array_object, GL_ARB_vertex_attrib_binding,
    GL_ARB_vertex_buffer_object, GL_ARB_vertex_program, GL_ARB_vertex_shader,
    GL_ARB_vertex_type_10f_11f_11f_rev, GL_ARB_vertex_type_2_10_10_10_rev,
    GL_ARB_window_pos, GL_ATI_blend_equation_separate, GL_ATI_draw_buffers,
    GL_ATI_separate_stencil, GL_ATI_texture_env_combine3,
    GL_ATI_texture_float, GL_EXT_EGL_image_storage, GL_EXT_EGL_sync,
    GL_EXT_abgr, GL_EXT_bgra, GL_EXT_blend_color,
    GL_EXT_blend_equation_separate, GL_EXT_blend_func_separate,
    GL_EXT_blend_minmax, GL_EXT_blend_subtract, GL_EXT_compiled_vertex_array,
    GL_EXT_copy_texture, GL_EXT_demote_to_helper_invocation,
    GL_EXT_direct_state_access, GL_EXT_draw_buffers2, GL_EXT_draw_instanced,
    GL_EXT_draw_range_elements, GL_EXT_fog_coord, GL_EXT_framebuffer_blit,
    GL_EXT_framebuffer_object, GL_EXT_framebuffer_sRGB,
    GL_EXT_gpu_program_parameters, GL_EXT_multi_draw_arrays,
    GL_EXT_packed_depth_stencil, GL_EXT_packed_float, GL_EXT_packed_pixels,
    GL_EXT_pixel_buffer_object, GL_EXT_point_parameters,
    GL_EXT_polygon_offset_clamp, GL_EXT_provoking_vertex,
    GL_EXT_rescale_normal, GL_EXT_secondary_color,
    GL_EXT_separate_specular_color,
    GL_EXT_shader_framebuffer_fetch_non_coherent, GL_EXT_shadow_funcs,
    GL_EXT_stencil_two_side, GL_EXT_stencil_wrap, GL_EXT_subtexture,
    GL_EXT_texture, GL_EXT_texture3D, GL_EXT_texture_array,
    GL_EXT_texture_compression_dxt1, GL_EXT_texture_compression_rgtc,
    GL_EXT_texture_compression_s3tc, GL_EXT_texture_cube_map,
    GL_EXT_texture_edge_clamp, GL_EXT_texture_env_add,
    GL_EXT_texture_env_combine, GL_EXT_texture_env_dot3,
    GL_EXT_texture_filter_anisotropic, GL_EXT_texture_integer,
    GL_EXT_texture_lod_bias, GL_EXT_texture_object, GL_EXT_texture_rectangle,
    GL_EXT_texture_sRGB, GL_EXT_texture_sRGB_R8, GL_EXT_texture_sRGB_decode,
    GL_EXT_texture_shared_exponent, GL_EXT_texture_snorm,
    GL_EXT_texture_swizzle, GL_EXT_timer_query, GL_EXT_vertex_array,
    GL_EXT_vertex_array_bgra, GL_IBM_multimode_draw_arrays,
    GL_IBM_rasterpos_clip, GL_IBM_texture_mirrored_repeat,
    GL_INGR_blend_func_separate, GL_KHR_blend_equation_advanced,
    GL_KHR_context_flush_control, GL_KHR_debug, GL_KHR_no_error,
    GL_KHR_parallel_shader_compile, GL_KHR_robustness, GL_MESA_pack_invert,
    GL_MESA_texture_signed_rgba, GL_MESA_window_pos, GL_NV_blend_square,
    GL_NV_conditional_render, GL_NV_depth_clamp, GL_NV_fog_distance,
    GL_NV_half_float, GL_NV_light_max_exponent, GL_NV_packed_depth_stencil,
    GL_NV_primitive_restart, GL_NV_texgen_reflection, GL_NV_texture_barrier,
    GL_NV_texture_env_combine4, GL_NV_texture_rectangle, GL_OES_EGL_image,
    GL_OES_read_format, GL_S3_s3tc, GL_SGIS_generate_mipmap,
    GL_SGIS_texture_border_clamp, GL_SGIS_texture_edge_clamp,
    GL_SGIS_texture_lod, GL_SUN_multi_draw_arrays

OpenGL ES profile version string: OpenGL ES 2.0 Mesa 21.2.6
OpenGL ES profile shading language version string: OpenGL ES GLSL ES 1.0.16
OpenGL ES profile extensions:
    GL_ANGLE_pack_reverse_row_order, GL_ANGLE_texture_compression_dxt3,
    GL_ANGLE_texture_compression_dxt5, GL_APPLE_texture_max_level,
    GL_EXT_blend_minmax, GL_EXT_clip_control, GL_EXT_color_buffer_half_float,
    GL_EXT_compressed_ETC1_RGB8_sub_texture,
    GL_EXT_demote_to_helper_invocation, GL_EXT_depth_clamp,
    GL_EXT_discard_framebuffer, GL_EXT_draw_buffers,
    GL_EXT_draw_elements_base_vertex, GL_EXT_draw_instanced,
    GL_EXT_frag_depth, GL_EXT_map_buffer_range, GL_EXT_multi_draw_arrays,
    GL_EXT_occlusion_query_boolean, GL_EXT_polygon_offset_clamp,
    GL_EXT_read_format_bgra, GL_EXT_robustness,
    GL_EXT_separate_shader_objects,
    GL_EXT_shader_framebuffer_fetch_non_coherent, GL_EXT_texture_border_clamp,
    GL_EXT_texture_compression_dxt1, GL_EXT_texture_compression_s3tc,
    GL_EXT_texture_compression_s3tc_srgb, GL_EXT_texture_filter_anisotropic,
    GL_EXT_texture_format_BGRA8888, GL_EXT_texture_rg,
    GL_EXT_texture_type_2_10_10_10_REV, GL_EXT_unpack_subimage,
    GL_KHR_blend_equation_advanced, GL_KHR_context_flush_control,
    GL_KHR_debug, GL_KHR_no_error, GL_KHR_parallel_shader_compile,
    GL_KHR_robustness, GL_MESA_bgra, GL_NV_conditional_render,
    GL_NV_draw_buffers, GL_NV_fbo_color_attachments,
    GL_NV_pixel_buffer_object, GL_NV_read_buffer, GL_NV_read_depth,
    GL_NV_read_depth_stencil, GL_NV_read_stencil, GL_OES_EGL_image,
    GL_OES_EGL_image_external, GL_OES_EGL_sync,
    GL_OES_compressed_ETC1_RGB8_texture, GL_OES_depth24, GL_OES_depth_texture,
    GL_OES_draw_elements_base_vertex, GL_OES_element_index_uint,
    GL_OES_fbo_render_mipmap, GL_OES_get_program_binary, GL_OES_mapbuffer,
    GL_OES_packed_depth_stencil, GL_OES_required_internalformat,
    GL_OES_rgb8_rgba8, GL_OES_standard_derivatives, GL_OES_stencil8,
    GL_OES_surfaceless_context, GL_OES_texture_3D,
    GL_OES_texture_border_clamp, GL_OES_texture_float,
    GL_OES_texture_float_linear, GL_OES_texture_half_float,
    GL_OES_texture_half_float_linear, GL_OES_texture_npot,
    GL_OES_vertex_array_object, GL_OES_vertex_half_float

58 GLX Visuals
    visual  x   bf lv rg d st  colorbuffer  sr ax dp st accumbuffer  ms  cav
  id dep cl sp  sz l  ci b ro  r  g  b  a F gb bf th cl  r  g  b  a ns b eat
----------------------------------------------------------------------------
0x021 24 tc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x022 24 dc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x0ef 24 tc  0  32  0 r  y .   8  8  8  8 .  .  0  0  0  0  0  0  0  0 0 None
0x0f0 24 tc  0  32  0 r  . .   8  8  8  8 .  .  0  0  0  0  0  0  0  0 0 None
0x0f1 24 tc  0  32  0 r  . .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x0f2 24 tc  0  24  0 r  y .   8  8  8  0 .  .  0  0  0  0  0  0  0  0 0 None
0x0f3 24 tc  0  24  0 r  . .   8  8  8  0 .  .  0  0  0  0  0  0  0  0 0 None
0x0f4 24 tc  0  24  0 r  y .   8  8  8  0 .  .  0 24  8  0  0  0  0  0 0 None
0x0f5 24 tc  0  24  0 r  . .   8  8  8  0 .  .  0 24  8  0  0  0  0  0 0 None
0x0f6 24 tc  0  32  0 r  y .   8  8  8  8 .  s  0  0  0  0  0  0  0  0 0 None
0x0f7 24 tc  0  32  0 r  . .   8  8  8  8 .  s  0  0  0  0  0  0  0  0 0 None
0x0f8 24 tc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x0f9 24 tc  0  32  0 r  . .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x0fa 24 tc  0  24  0 r  y .   8  8  8  0 .  s  0  0  0  0  0  0  0  0 0 None
0x0fb 24 tc  0  24  0 r  . .   8  8  8  0 .  s  0  0  0  0  0  0  0  0 0 None
0x0fc 24 tc  0  24  0 r  y .   8  8  8  0 .  s  0 24  8  0  0  0  0  0 0 None
0x0fd 24 tc  0  24  0 r  . .   8  8  8  0 .  s  0 24  8  0  0  0  0  0 0 None
0x0fe 24 tc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x0ff 24 tc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8 16 16 16 16  0 0 Slow
0x100 24 tc  0  24  0 r  y .   8  8  8  0 .  .  0 24  8  0  0  0  0  0 0 None
0x101 24 tc  0  24  0 r  y .   8  8  8  0 .  .  0 24  8 16 16 16 16  0 0 Slow
0x102 24 tc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x103 24 tc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8 16 16 16 16  0 0 Slow
0x104 24 tc  0  24  0 r  y .   8  8  8  0 .  s  0 24  8  0  0  0  0  0 0 None
0x105 24 tc  0  24  0 r  y .   8  8  8  0 .  s  0 24  8 16 16 16 16  0 0 Slow
0x106 24 dc  0  32  0 r  y .   8  8  8  8 .  .  0  0  0  0  0  0  0  0 0 None
0x107 24 dc  0  32  0 r  . .   8  8  8  8 .  .  0  0  0  0  0  0  0  0 0 None
0x108 24 dc  0  32  0 r  . .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x109 24 dc  0  24  0 r  y .   8  8  8  0 .  .  0  0  0  0  0  0  0  0 0 None
0x10a 24 dc  0  24  0 r  . .   8  8  8  0 .  .  0  0  0  0  0  0  0  0 0 None
0x10b 24 dc  0  24  0 r  y .   8  8  8  0 .  .  0 24  8  0  0  0  0  0 0 None
0x10c 24 dc  0  24  0 r  . .   8  8  8  0 .  .  0 24  8  0  0  0  0  0 0 None
0x10d 24 dc  0  32  0 r  y .   8  8  8  8 .  s  0  0  0  0  0  0  0  0 0 None
0x10e 24 dc  0  32  0 r  . .   8  8  8  8 .  s  0  0  0  0  0  0  0  0 0 None
0x10f 24 dc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x110 24 dc  0  32  0 r  . .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x111 24 dc  0  24  0 r  y .   8  8  8  0 .  s  0  0  0  0  0  0  0  0 0 None
0x112 24 dc  0  24  0 r  . .   8  8  8  0 .  s  0  0  0  0  0  0  0  0 0 None
0x113 24 dc  0  24  0 r  y .   8  8  8  0 .  s  0 24  8  0  0  0  0  0 0 None
0x114 24 dc  0  24  0 r  . .   8  8  8  0 .  s  0 24  8  0  0  0  0  0 0 None
0x115 24 dc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x116 24 dc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8 16 16 16 16  0 0 Slow
0x117 24 dc  0  24  0 r  y .   8  8  8  0 .  .  0 24  8  0  0  0  0  0 0 None
0x118 24 dc  0  24  0 r  y .   8  8  8  0 .  .  0 24  8 16 16 16 16  0 0 Slow
0x119 24 dc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x11a 24 dc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8 16 16 16 16  0 0 Slow
0x11b 24 dc  0  24  0 r  y .   8  8  8  0 .  s  0 24  8  0  0  0  0  0 0 None
0x11c 24 dc  0  24  0 r  y .   8  8  8  0 .  s  0 24  8 16 16 16 16  0 0 Slow
0x0ac 32 tc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x11d 32 tc  0  32  0 r  y .   8  8  8  8 .  .  0  0  0  0  0  0  0  0 0 None
0x11e 32 tc  0  32  0 r  . .   8  8  8  8 .  .  0  0  0  0  0  0  0  0 0 None
0x11f 32 tc  0  32  0 r  . .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x120 32 tc  0  32  0 r  y .   8  8  8  8 .  s  0  0  0  0  0  0  0  0 0 None
0x121 32 tc  0  32  0 r  . .   8  8  8  8 .  s  0  0  0  0  0  0  0  0 0 None
0x122 32 tc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x123 32 tc  0  32  0 r  . .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x124 32 tc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x125 32 tc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None

66 GLXFBConfigs:
    visual  x   bf lv rg d st  colorbuffer  sr ax dp st accumbuffer  ms  cav
  id dep cl sp  sz l  ci b ro  r  g  b  a F gb bf th cl  r  g  b  a ns b eat
----------------------------------------------------------------------------
0x0ad  0 tc  0  16  0 r  y .   5  6  5  0 .  .  0  0  0  0  0  0  0  0 0 None
0x0ae  0 tc  0  16  0 r  . .   5  6  5  0 .  .  0  0  0  0  0  0  0  0 0 None
0x0af 24 tc  0  32  0 r  y .   8  8  8  8 .  .  0  0  0  0  0  0  0  0 0 None
0x0b0 24 tc  0  32  0 r  . .   8  8  8  8 .  .  0  0  0  0  0  0  0  0 0 None
0x0b1 24 tc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x0b2 24 tc  0  32  0 r  . .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x0b3 24 tc  0  24  0 r  y .   8  8  8  0 .  .  0  0  0  0  0  0  0  0 0 None
0x0b4 24 tc  0  24  0 r  . .   8  8  8  0 .  .  0  0  0  0  0  0  0  0 0 None
0x0b5 24 tc  0  24  0 r  y .   8  8  8  0 .  .  0 24  8  0  0  0  0  0 0 None
0x0b6 24 tc  0  24  0 r  . .   8  8  8  0 .  .  0 24  8  0  0  0  0  0 0 None
0x0b7 24 tc  0  32  0 r  y .   8  8  8  8 .  s  0  0  0  0  0  0  0  0 0 None
0x0b8 24 tc  0  32  0 r  . .   8  8  8  8 .  s  0  0  0  0  0  0  0  0 0 None
0x0b9 24 tc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x0ba 24 tc  0  32  0 r  . .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x0bb 24 tc  0  24  0 r  y .   8  8  8  0 .  s  0  0  0  0  0  0  0  0 0 None
0x0bc 24 tc  0  24  0 r  . .   8  8  8  0 .  s  0  0  0  0  0  0  0  0 0 None
0x0bd 24 tc  0  24  0 r  y .   8  8  8  0 .  s  0 24  8  0  0  0  0  0 0 None
0x0be 24 tc  0  24  0 r  . .   8  8  8  0 .  s  0 24  8  0  0  0  0  0 0 None
0x0bf  0 tc  0  16  0 r  y .   5  6  5  0 .  .  0  0  0  0  0  0  0  0 0 None
0x0c0  0 tc  0  16  0 r  y .   5  6  5  0 .  .  0  0  0 16 16 16 16  0 0 Slow
0x0c1 24 tc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x0c2 24 tc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8 16 16 16 16  0 0 Slow
0x0c3 24 tc  0  24  0 r  y .   8  8  8  0 .  .  0 24  8  0  0  0  0  0 0 None
0x0c4 24 tc  0  24  0 r  y .   8  8  8  0 .  .  0 24  8 16 16 16 16  0 0 Slow
0x0c5 24 tc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x0c6 24 tc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8 16 16 16 16  0 0 Slow
0x0c7 24 tc  0  24  0 r  y .   8  8  8  0 .  s  0 24  8  0  0  0  0  0 0 None
0x0c8 24 tc  0  24  0 r  y .   8  8  8  0 .  s  0 24  8 16 16 16 16  0 0 Slow
0x0c9  0 dc  0  16  0 r  y .   5  6  5  0 .  .  0  0  0  0  0  0  0  0 0 None
0x0ca  0 dc  0  16  0 r  . .   5  6  5  0 .  .  0  0  0  0  0  0  0  0 0 None
0x0cb 24 dc  0  32  0 r  y .   8  8  8  8 .  .  0  0  0  0  0  0  0  0 0 None
0x0cc 24 dc  0  32  0 r  . .   8  8  8  8 .  .  0  0  0  0  0  0  0  0 0 None
0x0cd 24 dc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x0ce 24 dc  0  32  0 r  . .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x0cf 24 dc  0  24  0 r  y .   8  8  8  0 .  .  0  0  0  0  0  0  0  0 0 None
0x0d0 24 dc  0  24  0 r  . .   8  8  8  0 .  .  0  0  0  0  0  0  0  0 0 None
0x0d1 24 dc  0  24  0 r  y .   8  8  8  0 .  .  0 24  8  0  0  0  0  0 0 None
0x0d2 24 dc  0  24  0 r  . .   8  8  8  0 .  .  0 24  8  0  0  0  0  0 0 None
0x0d3 24 dc  0  32  0 r  y .   8  8  8  8 .  s  0  0  0  0  0  0  0  0 0 None
0x0d4 24 dc  0  32  0 r  . .   8  8  8  8 .  s  0  0  0  0  0  0  0  0 0 None
0x0d5 24 dc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x0d6 24 dc  0  32  0 r  . .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x0d7 24 dc  0  24  0 r  y .   8  8  8  0 .  s  0  0  0  0  0  0  0  0 0 None
0x0d8 24 dc  0  24  0 r  . .   8  8  8  0 .  s  0  0  0  0  0  0  0  0 0 None
0x0d9 24 dc  0  24  0 r  y .   8  8  8  0 .  s  0 24  8  0  0  0  0  0 0 None
0x0da 24 dc  0  24  0 r  . .   8  8  8  0 .  s  0 24  8  0  0  0  0  0 0 None
0x0db  0 dc  0  16  0 r  y .   5  6  5  0 .  .  0  0  0  0  0  0  0  0 0 None
0x0dc  0 dc  0  16  0 r  y .   5  6  5  0 .  .  0  0  0 16 16 16 16  0 0 Slow
0x0dd 24 dc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x0de 24 dc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8 16 16 16 16  0 0 Slow
0x0df 24 dc  0  24  0 r  y .   8  8  8  0 .  .  0 24  8  0  0  0  0  0 0 None
0x0e0 24 dc  0  24  0 r  y .   8  8  8  0 .  .  0 24  8 16 16 16 16  0 0 Slow
0x0e1 24 dc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x0e2 24 dc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8 16 16 16 16  0 0 Slow
0x0e3 24 dc  0  24  0 r  y .   8  8  8  0 .  s  0 24  8  0  0  0  0  0 0 None
0x0e4 24 dc  0  24  0 r  y .   8  8  8  0 .  s  0 24  8 16 16 16 16  0 0 Slow
0x0e5 32 tc  0  32  0 r  y .   8  8  8  8 .  .  0  0  0  0  0  0  0  0 0 None
0x0e6 32 tc  0  32  0 r  . .   8  8  8  8 .  .  0  0  0  0  0  0  0  0 0 None
0x0e7 32 tc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x0e8 32 tc  0  32  0 r  . .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x0e9 32 tc  0  32  0 r  y .   8  8  8  8 .  s  0  0  0  0  0  0  0  0 0 None
0x0ea 32 tc  0  32  0 r  . .   8  8  8  8 .  s  0  0  0  0  0  0  0  0 0 None
0x0eb 32 tc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x0ec 32 tc  0  32  0 r  . .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None
0x0ed 32 tc  0  32  0 r  y .   8  8  8  8 .  .  0 24  8  0  0  0  0  0 0 None
0x0ee 32 tc  0  32  0 r  y .   8  8  8  8 .  s  0 24  8  0  0  0  0  0 0 None

I’m a total noob wrt graphics, so I don’t really know what’s going on. Is there something I can do to investigate this further?

About this issue

Original URL
State: closed
Created a year ago
Comments: 29 (9 by maintainers)

Commits related to this issue

glx: rework error handling With GLX the error handling is done by the drivers by getting the error hook from the Xlib and manually invoking. So this PR changes handling to account for that, by wrappi... — committed to kchibisov/glutin by kchibisov a year ago
glx: rework error handling With GLX the error handling is done by the drivers by getting the error hook from the Xlib and manually invoking. So this PR changes handling to account for that, by wrappi... — committed to kchibisov/glutin by kchibisov a year ago
glx: rework error handling With GLX the error handling is done by the drivers by getting the error hook from the Xlib and manually invoking. So this PR changes handling to account for that, by wrap... — committed to rust-windowing/glutin by kchibisov a year ago

Most upvoted comments

The glutin 0.30.5 is out, so this could be closed.

kchibisov on Feb 11, 2023

Using that patch, it works! Now the error is caught like in 0.30.3, and it prints ... due to error: [a7] GLXBadFBConfig.

Thanks a million.

mgunyho on Feb 11, 2023

Just so you won’t waste your time, I’ll post a patch shortly handling your issues.

kchibisov on Feb 11, 2023

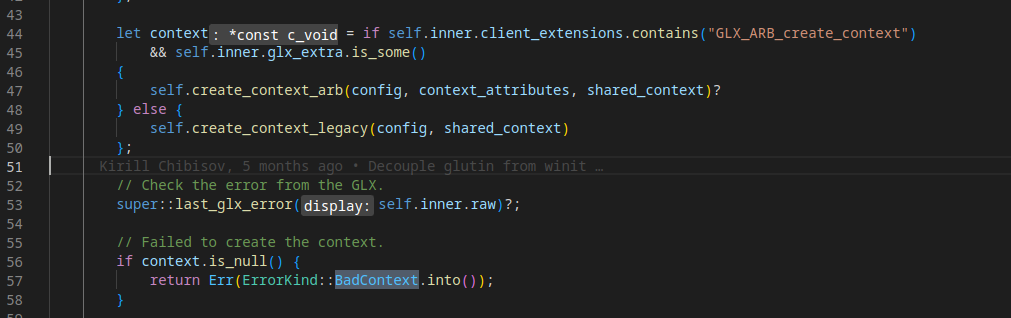

this is the code for context creation

glutin code

a check is made for latest x11 error at line 53
if there’s no error and the context is still null at line 56, we get a BadContext error (“argument does not name a valid context”)

in 30.4 xtrace log, after trying to create context, winit’s x11 error callback is called and it logs this

2023-02-10T08:03:27.788826Z ERROR winit::platform_impl::platform: X11 error: XError { // this is not detected by glutin 30.4's error checking.
    description: "GLXBadFBConfig",
    error_code: 167,
    request_code: 152,
    minor_code: 0,
}
// but glutin didn't receive the BadFbConfig err at line 53 -> it continued to BadContext err msg instead at line 57
2023-02-10T08:12:52.373429Z  WARN eframe::native::run::glow_integration: failed ... due to error: argument does not name a valid context

in 30.3, winit’s x11 callback is not triggered at all. so, glutin detects the error properly from queue

// no x11 callback triggered after trying to create context. and line 53 actually catches the error
2023-02-10T08:12:52.373429Z  WARN eframe::native::run::glow_integration: failed  .. due to error: [a7] GLXBadFBConfig
// and never reaches line 56 check. so, no BadContext error msg

In both cases, fallback context creation succeeds. all is good. but inside eframe, we now need to create a surface for the window

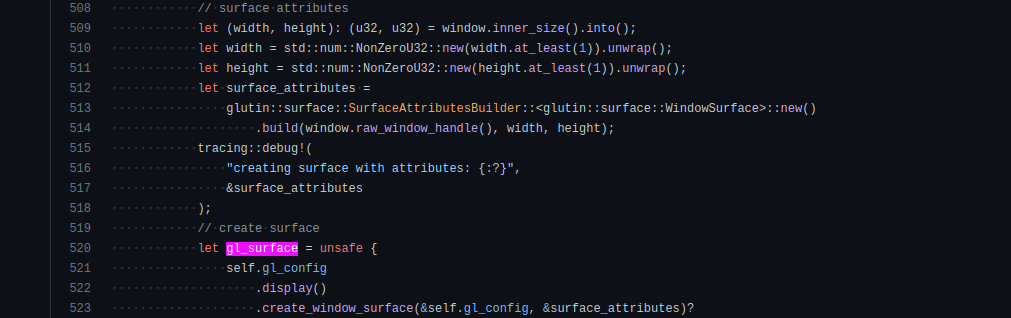

before creating surface, we call window.inner_size() to prepare surface attributes. In glutin 30.3 everything is fine. But in 30.4, GLXBadFBConfig (logged by winit x11 callback) stays inside the msg queue of winit and this is caught inside the window.inner_size() fn.

the problem is inside that last_glx_error function and how we are setting winit x11 error callbacks. atleast this log confirms that error is received on time, but for some reason, it is detected by winit and not glutin.

coderedart on Feb 11, 2023

Sorry, I should have read your description more carefully 🤦

emilk on Feb 8, 2023
