xtext: Domainmodel example: endless loop while opening the Association Hierarchy view

Step to reproduce:

Import the DomainModel Example shipped with the Xtext framework.
In the runtime Eclipse, create a java project with the following test.dmodel file:

import java.util.List

entity Blog {
	title: String
	posts: List<Post>

	op addPost(Post post) : void {}
	op getPosts() : List<Post> {}
}

entity HasAuthor {
	author: String

	op getAuthor() { author }
	op setAuthor() : void {}
}

entity Post extends HasAuthor {
	title: String
	content: String
	comments: List<Comment>
}

entity Comment extends HasAuthor {
	content: String
}

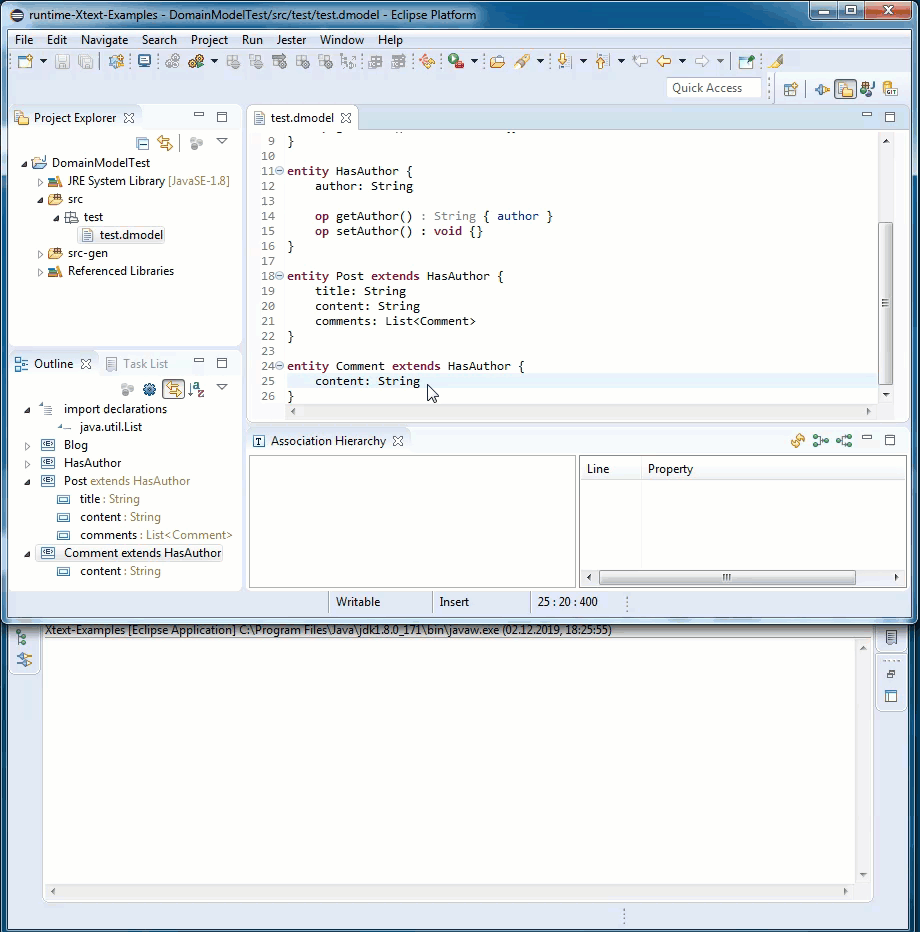

Place the cursor into the Comment entity and try to open the Association Hierarchy view. The following error appears in the console of the host eclipse:

	at com.google.inject.internal.util.$CustomConcurrentHashMap$ComputingImpl.get(CustomConcurrentHashMap.java:2041)
	at com.google.inject.internal.FailableCache.get(FailableCache.java:50)
	at com.google.inject.internal.MembersInjectorStore.get(MembersInjectorStore.java:65)
	at com.google.inject.internal.ConstructorInjectorStore.createConstructor(ConstructorInjectorStore.java:73)
	at com.google.inject.internal.ConstructorInjectorStore.access$000(ConstructorInjectorStore.java:28)
	at com.google.inject.internal.ConstructorInjectorStore$1.create(ConstructorInjectorStore.java:36)
	at com.google.inject.internal.ConstructorInjectorStore$1.create(ConstructorInjectorStore.java:32)
	at com.google.inject.internal.FailableCache$1.apply(FailableCache.java:39)
	at com.google.inject.internal.util.$MapMaker$StrategyImpl.compute(MapMaker.java:549)
	at com.google.inject.internal.util.$MapMaker$StrategyImpl.compute(MapMaker.java:419)
	at com.google.inject.internal.util.$CustomConcurrentHashMap$ComputingImpl.get(CustomConcurrentHashMap.java:2041)
	at com.google.inject.internal.FailableCache.get(FailableCache.java:50)
	at com.google.inject.internal.ConstructorInjectorStore.get(ConstructorInjectorStore.java:49)
	at com.google.inject.internal.ConstructorBindingImpl.initialize(ConstructorBindingImpl.java:125)
	at com.google.inject.internal.InjectorImpl.initializeJitBinding(InjectorImpl.java:521)
	at com.google.inject.internal.InjectorImpl.createJustInTimeBinding(InjectorImpl.java:847)
	at com.google.inject.internal.InjectorImpl.createJustInTimeBindingRecursive(InjectorImpl.java:772)
	at com.google.inject.internal.InjectorImpl.getJustInTimeBinding(InjectorImpl.java:256)
	at com.google.inject.internal.InjectorImpl.getBindingOrThrow(InjectorImpl.java:205)
	at com.google.inject.internal.InjectorImpl.createImplementedByBinding(InjectorImpl.java:732)
	at com.google.inject.internal.InjectorImpl.createUninitializedBinding(InjectorImpl.java:618)
	at com.google.inject.internal.InjectorImpl.createJustInTimeBinding(InjectorImpl.java:845)
	at com.google.inject.internal.InjectorImpl.createJustInTimeBindingRecursive(InjectorImpl.java:772)
	at com.google.inject.internal.InjectorImpl.getJustInTimeBinding(InjectorImpl.java:256)
	at com.google.inject.internal.InjectorImpl.getBindingOrThrow(InjectorImpl.java:205)
	at com.google.inject.internal.InjectorImpl.getInternalFactory(InjectorImpl.java:853)
	at com.google.inject.internal.SingleFieldInjector.<init>(SingleFieldInjector.java:41)
	at com.google.inject.internal.MembersInjectorStore.getInjectors(MembersInjectorStore.java:125)
	at com.google.inject.internal.MembersInjectorStore.createWithListeners(MembersInjectorStore.java:95)
	at com.google.inject.internal.MembersInjectorStore.access$000(MembersInjectorStore.java:34)
	at com.google.inject.internal.MembersInjectorStore$1.create(MembersInjectorStore.java:42)
	at com.google.inject.internal.MembersInjectorStore$1.create(MembersInjectorStore.java:39)
	at com.google.inject.internal.FailableCache$1.apply(FailableCache.java:39)
	at com.google.inject.internal.util.$MapMaker$StrategyImpl.compute(MapMaker.java:549)
	at com.google.inject.internal.util.$MapMaker$StrategyImpl.compute(MapMaker.java:419)
	at com.google.inject.internal.util.$CustomConcurrentHashMap$ComputingImpl.get(CustomConcurrentHashMap.java:2041)
	at com.google.inject.internal.FailableCache.get(FailableCache.java:50)
	at com.google.inject.internal.MembersInjectorStore.get(MembersInjectorStore.java:65)
	at com.google.inject.internal.ConstructorInjectorStore.createConstructor(ConstructorInjectorStore.java:73)
	at com.google.inject.internal.ConstructorInjectorStore.access$000(ConstructorInjectorStore.java:28)
	at com.google.inject.internal.ConstructorInjectorStore$1.create(ConstructorInjectorStore.java:36)
	at com.google.inject.internal.ConstructorInjectorStore$1.create(ConstructorInjectorStore.java:32)
	at com.google.inject.internal.FailableCache$1.apply(FailableCache.java:39)
	at com.google.inject.internal.util.$MapMaker$StrategyImpl.compute(MapMaker.java:549)
	at com.google.inject.internal.util.$MapMaker$StrategyImpl.compute(MapMaker.java:419)
	at com.google.inject.internal.util.$CustomConcurrentHashMap$ComputingImpl.get(CustomConcurrentHashMap.java:2041)
	at com.google.inject.internal.FailableCache.get(FailableCache.java:50)
	at com.google.inject.internal.ConstructorInjectorStore.get(ConstructorInjectorStore.java:49)
	at com.google.inject.internal.ConstructorBindingImpl.initialize(ConstructorBindingImpl.java:125)
	at com.google.inject.internal.InjectorImpl.initializeJitBinding(InjectorImpl.java:521)
	at com.google.inject.internal.InjectorImpl.createJustInTimeBinding(InjectorImpl.java:847)
	at com.google.inject.internal.InjectorImpl.createJustInTimeBindingRecursive(InjectorImpl.java:772)
	at com.google.inject.internal.InjectorImpl.getJustInTimeBinding(InjectorImpl.java:256)
	at com.google.inject.internal.InjectorImpl.getBindingOrThrow(InjectorImpl.java:205)
	at com.google.inject.internal.InjectorImpl.getInternalFactory(InjectorImpl.java:853)
	at com.google.inject.internal.SingleFieldInjector.<init>(SingleFieldInjector.java:41)
	at com.google.inject.internal.MembersInjectorStore.getInjectors(MembersInjectorStore.java:125)
	at com.google.inject.internal.MembersInjectorStore.createWithListeners(MembersInjectorStore.java:95)
	at com.google.inject.internal.MembersInjectorStore.access$000(MembersInjectorStore.java:34)
	at com.google.inject.internal.MembersInjectorStore$1.create(MembersInjectorStore.java:42)
	at com.google.inject.internal.MembersInjectorStore$1.create(MembersInjectorStore.java:39)
	at com.google.inject.internal.FailableCache$1.apply(FailableCache.java:39)
	at com.google.inject.internal.util.$MapMaker$StrategyImpl.compute(MapMaker.java:549)
	at com.google.inject.internal.util.$MapMaker$StrategyImpl.compute(MapMaker.java:419)
	at com.google.inject.internal.util.$CustomConcurrentHashMap$ComputingImpl.get(CustomConcurrentHashMap.java:2041)
	at com.google.inject.internal.FailableCache.get(FailableCache.java:50)
	at com.google.inject.internal.MembersInjectorStore.get(MembersInjectorStore.java:65)
	at com.google.inject.internal.ConstructorInjectorStore.createConstructor(ConstructorInjectorStore.java:73)
	at com.google.inject.internal.ConstructorInjectorStore.access$000(ConstructorInjectorStore.java:28)
	at com.google.inject.internal.ConstructorInjectorStore$1.create(ConstructorInjectorStore.java:36)
	at com.google.inject.internal.ConstructorInjectorStore$1.create(ConstructorInjectorStore.java:32)
	at com.google.inject.internal.FailableCache$1.apply(FailableCache.java:39)
	at com.google.inject.internal.util.$MapMaker$StrategyImpl.compute(MapMaker.java:549)
	at com.google.inject.internal.util.$MapMaker$StrategyImpl.compute(MapMaker.java:419)
	at com.google.inject.internal.util.$CustomConcurrentHashMap$ComputingImpl.get(CustomConcurrentHashMap.java:2041)
	at com.google.inject.internal.FailableCache.get(FailableCache.java:50)
	at com.google.inject.internal.ConstructorInjectorStore.get(ConstructorInjectorStore.java:49)
	at com.google.inject.internal.ConstructorBindingImpl.initialize(ConstructorBindingImpl.java:125)
	at com.google.inject.internal.InjectorImpl.initializeJitBinding(InjectorImpl.java:521)
	at com.google.inject.internal.InjectorImpl.createJustInTimeBinding(InjectorImpl.java:847)
	at com.google.inject.internal.InjectorImpl.createJustInTimeBindingRecursive(InjectorImpl.java:772)
	at com.google.inject.internal.InjectorImpl.getJustInTimeBinding(InjectorImpl.java:256)
	at com.google.inject.internal.InjectorImpl.getBindingOrThrow(InjectorImpl.java:205)
	at com.google.inject.internal.InjectorImpl.getInternalFactory(InjectorImpl.java:853)
	at com.google.inject.internal.SingleFieldInjector.<init>(SingleFieldInjector.java:41)
	at com.google.inject.internal.MembersInjectorStore.getInjectors(MembersInjectorStore.java:125)
	at com.google.inject.internal.MembersInjectorStore.createWithListeners(MembersInjectorStore.java:95)
	at com.google.inject.internal.MembersInjectorStore.access$000(MembersInjectorStore.java:34)
	at com.google.inject.internal.MembersInjectorStore$1.create(MembersInjectorStore.java:42)
	at com.google.inject.internal.MembersInjectorStore$1.create(MembersInjectorStore.java:39)
	at com.google.inject.internal.FailableCache$1.apply(FailableCache.java:39)
	at com.google.inject.internal.util.$MapMaker$StrategyImpl.compute(MapMaker.java:549)
	at com.google.inject.internal.util.$MapMaker$StrategyImpl.compute(MapMaker.java:419)
	at com.google.inject.internal.util.$CustomConcurrentHashMap$ComputingImpl.get(CustomConcurrentHashMap.java:2041)
	at com.google.inject.internal.FailableCache.get(FailableCache.java:50)
	at com.google.inject.internal.MembersInjectorStore.get(MembersInjectorStore.java:65)
	at com.google.inject.internal.ConstructorInjectorStore.createConstructor(ConstructorInjectorStore.java:73)
	at com.google.inject.internal.ConstructorInjectorStore.access$000(ConstructorInjectorStore.java:28)
	at com.google.inject.internal.ConstructorInjectorStore$1.create(ConstructorInjectorStore.java:36)
	at com.google.inject.internal.ConstructorInjectorStore$1.create(ConstructorInjectorStore.java:32)

Seems there is a problem with the Guice Bindings.

About this issue

Original URL
State: open
Created 5 years ago
Comments: 18 (18 by maintainers)

Most upvoted comments

when chaning the code to

class OpenAssociationHierarchyHandler extends AbstractOpenHierarchyHandler {

	static val HIERARCHY_VIEW_PART_ID = 'org.eclipse.xtext.example.domainmodel.ui.editor.AssociationHierarchy'

	@Inject
	extension IGlobalServiceProvider

	@Inject
	EditorResourceAccess resourceAccess

	@Inject
	AssociationHierarchyBuilder b;

	override protected getHierarchyViewPartID() {
		HIERARCHY_VIEW_PART_ID
	}

	override protected createHierarchyBuilder(EObject target) {
		val xtextCallHierarchyBuilder = b

it works fine

the current

SharedCommonTypesResourceServiceProvider(DefaultResourceServiceProvider).get(Class<T>) line: 74
IGlobalServiceProvider$ResourceServiceProviderImpl.findService(URI, Class<T>) line: 53
IGlobalServiceProvider$ResourceServiceProviderImpl.findService(EObject, Class<T>) line: 64
OpenAssociationHierarchyHandler.xtend line: 36
AbstractOpenHierarchyHandler.xtend line: 49

leads to gazilliions of missing bindings e.g. for TypesFactory ands IScopeProvider

cdietrich on Dec 10, 2019
