deconz-rest-plugin: Yooksmart (Yoolax) D10110 roller shade - Lift percentage is reported incorrectly (reversed)

Describe the bug

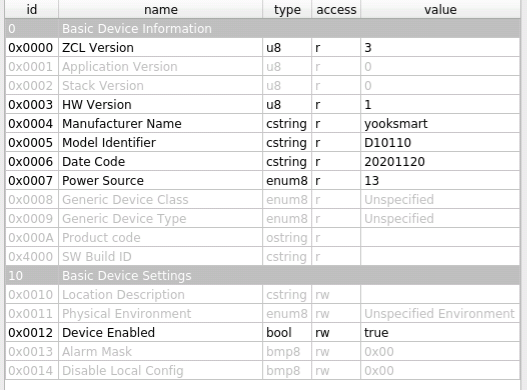

Screen Shot 2021-11-04 at 3 50 12 PM

This roller shade ๐Ÿ‘†(Amazon link) is having its lift percentage incorrectly reported by the REST API. The value reported is opposite of the expected value.

Fully open should be "lift": 0, but is reported as "lift": 100. Fully closed should be "lift": 100, but is reported as "lift": 0. 10% closed should be "lift": 10, but is reported as "lift": 90. 90% closed should be "lift": 90, but is reported as "lift": 11.

Controls all work as expected, just the lift is reported incorrectly.

Steps to reproduce the behavior

Control the device. Query the REST API. Review the JSON. Observe the โ€œliftโ€ value is opposite of the expected value.

Expected behavior

Correct reporting of lift percentage from the REST APi.

Screenshots

Fully Open:

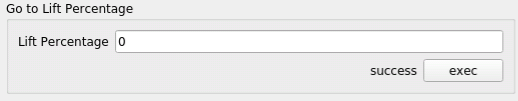

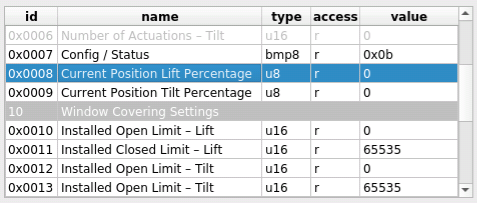

Screen Shot 2021-11-04 at 3 55 09 PM Screen Shot 2021-11-04 at 3 45 36 PM

{
  "etag": "ce361ccec9fddea1596987b92a95aab0",
  "hascolor": false,
  "lastannounced": null,
  "lastseen": "2021-11-04T20:45Z",
  "manufacturername": "yooksmart",
  "modelid": "D10110",
  "name": "South Window Shade",
  "state": {
    "bri": 254,
    "lift": 100,
    "on": true,
    "open": false,
    "reachable": true
  },
  "swversion": "20201120",
  "type": "Window covering device",
  "uniqueid": "8c:f6:81:ff:fe:de:c1:a1-01"
}

Fully Closed:

Screen Shot 2021-11-04 at 3 55 28 PM Screen Shot 2021-11-04 at 3 47 30 PM

{
  "etag": "f4d78394e3c2e0dbab8f4ba4f57579f7",
  "hascolor": false,
  "lastannounced": null,
  "lastseen": "2021-11-04T20:47Z",
  "manufacturername": "yooksmart",
  "modelid": "D10110",
  "name": "South Window Shade",
  "state": {
    "bri": 0,
    "lift": 0,
    "on": false,
    "open": true,
    "reachable": true
  },
  "swversion": "20201120",
  "type": "Window covering device",
  "uniqueid": "8c:f6:81:ff:fe:de:c1:a1-01"
}

10% Closed:

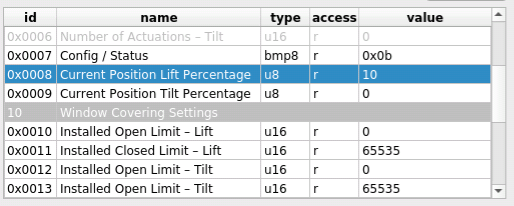

Screen Shot 2021-11-04 at 3 57 24 PM Screen Shot 2021-11-04 at 3 58 27 PM

{
  "etag": "32def84048c1357f2881c21f477bef28",
  "hascolor": false,
  "lastannounced": null,
  "lastseen": "2021-11-04T20:58Z",
  "manufacturername": "yooksmart",
  "modelid": "D10110",
  "name": "South Window Shade",
  "state": {
    "bri": 228,
    "lift": 90,
    "on": true,
    "open": true,
    "reachable": true
  },
  "swversion": "20201120",
  "type": "Window covering device",
  "uniqueid": "8c:f6:81:ff:fe:de:c1:a1-01"
}

90% Closed:

Screen Shot 2021-11-04 at 4 00 36 PM Screen Shot 2021-11-04 at 4 00 59 PM

{
  "etag": "ef5470b21f8f7eb00fe317d9a0097007",
  "hascolor": false,
  "lastannounced": null,
  "lastseen": "2021-11-04T21:00Z",
  "manufacturername": "yooksmart",
  "modelid": "D10110",
  "name": "South Window Shade",
  "state": {
    "bri": 27,
    "lift": 11,
    "on": true,
    "open": true,
    "reachable": true
  },
  "swversion": "20201120",
  "type": "Window covering device",
  "uniqueid": "8c:f6:81:ff:fe:de:c1:a1-01"
}

Environment

  • Host system: Raspberry Pi
  • Running method: Raspbian
  • Firmware version: 26400500
  • deCONZ version: (2.13.01)
  • Device: RaspBee I
  • Is there any other USB or serial devices connected to the host system? USB mouse and keyboard

deCONZ Logs

Additional context

About this issue

  • Original URL
  • State: closed
  • Created 3 years ago
  • Comments: 57

Most upvoted comments

Yep was the state/bri by defaut for bulbs, your device donโ€™t use the Cluster 0x0008

and for state/bri the expression is Item.val = 255 - Attr.val * 254 / 100

In reality this is deprecated, we need to avoid bri and on and use only lift and open. But it s for test, will remove it later.

I did not have to reverse the motors, the standalone/delivered remote/motors are working as delivered from manufacturer. I have 18 of them in the house. I will fire up deconz today to confirm they were not delivered in a reverse configuration.

Please also check if you have the โ€œTuya specific Clusterโ€.

Makes sense.

Lets wait what @Smanar brings to the table ๐Ÿ˜ƒ
