docker-elk: Kibana SSL problem to expose

Hi,

I am trying to expose Kibana to subdomain like watchlog.example.com via Cloudflare but I don’t know why it doesn’t works.

This is what Cloudflare shows: Error 525 SSL handshake failed

Here is my docker-compose.yml

  kibana:
    build:
      context: kibana/
      args:
        ELASTIC_VERSION: ${ELASTIC_VERSION}
    volumes:
      - ./kibana/config/kibana.yml:/usr/share/kibana/config/kibana.yml:ro,Z
      # (!) CA certificate. Generate using instructions from tls/README.md.
      - ./tls/kibana/elasticsearch-ca.pem:/usr/share/kibana/config/elasticsearch-ca.pem:ro,z
    ports:
      - "443:5601"
    environment:
      KIBANA_SYSTEM_PASSWORD: ${KIBANA_SYSTEM_PASSWORD:-}
    networks:
      - elk
    depends_on:
      - elasticsearch

and my kibana.yml

server.name: kibana
server.host: 0.0.0.0
elasticsearch.hosts: [ "https://elasticsearch:9200" ]
monitoring.ui.container.elasticsearch.enabled: true

## X-Pack security credentials
#
elasticsearch.username: kibana_system
elasticsearch.password: ${KIBANA_SYSTEM_PASSWORD}

##
## TLS configuration
## See instructions from README to enable.
##
elasticsearch.ssl.certificateAuthorities: [ "config/elasticsearch-ca.pem" ]
## Communications between Kibana and Elasticsearch
## see https://www.elastic.co/guide/en/kibana/current/configuring-tls.html#configuring-tls-kib-es
#
elasticsearch.ssl.certificateAuthorities: [ "config/elasticsearch-ca.pem" ]

Am I missing something ?

About this issue

Original URL
State: closed
Created 2 years ago
Comments: 15

Most upvoted comments

For posterity, there is now a new section inside tls/README.md which explains how to enable TLS in the Kibana server (between web browsers and Kibana), as well as a sample certificate and key which Kibana is pre-configured to use when TLS is enabled.

antoineco on Jun 26, 2022

@antoineco I tried everything from scratch and now it works (chmod 777 instead of o+rw)! Your tuto should be integrated somewhere on the documentation!

Thank you so much

LonnyX on Jun 23, 2022

Did you cd to the tls directory before issuing the commands?

yes of course, I also tried to create the “tls” folder inside the elasticsearch container (which did not exists) and chmod it to 777 but still the same error…

You can see here: https://imgur.com/WCTQl9s

LonnyX on Jun 23, 2022

Indeed, the tooling is inside the Elasticsearch container. You don’t need to execute commands on the running Elasticsearch instance though, you can simply run a temporary container on the side just to generate your certificates, then mount those certificates inside the Kibana container.

An example of this approach can be seen in tls/README.md. More specifically, the procedure is very similar to what’s described in the Elasticsearch HTTP certificate and CA PEM certificate section.

Demo

$ cd tls/

Generate the archive containing a new certificate and key:

$ docker run -ti --rm \
  -v ${PWD}:/usr/share/elasticsearch/tls \
  docker.elastic.co/elasticsearch/elasticsearch:8.2.3 \
  bin/elasticsearch-certutil cert --pem --ca tls/ca/ca.p12 --dns watchlog.example.com

(When prompted where to write certificates, provide the following path: tls/kibana-https.zip. The corresponding file will be available in the tls/ directory of the docker-elk repo, since the repo’s directory is mounted as a volume during the runtime of the container.)

Enter password for CA (tls/ca/ca.p12) : <leave blank>
Please enter the desired output file [certificate-bundle.zip]: tls/kibana-https.zip

Unzip the certificate and key:

$ sudo unzip kibana-https.zip
Archive:  kibana-https.zip
   creating: instance/
  inflating: instance/instance.crt
  inflating: instance/instance.key

Move the certificate and key:

$ sudo mv -v instance/instance.* kibana/
renamed 'instance/instance.crt' -> 'kibana/instance.crt'
renamed 'instance/instance.key' -> 'kibana/instance.key'

Verify that the certificate has the expected Subject Alternative Name:

$ openssl x509 -in instance/instance.crt -text -noout
Certificate:
    Data:
        Version: 3 (0x2)
...
        Issuer: CN = Elastic Certificate Tool Autogenerated CA
        Validity
            Not Before: Jun 23 12:16:44 2022 GMT
            Not After : Jun 22 12:16:44 2025 GMT
        Subject: CN = instance
...
        X509v3 extensions:
...
            X509v3 Subject Alternative Name:
                DNS:watchlog.example.com
...

Edit the Compose file to mount the certificate and key:

  kibana:
#...
    volumes:
      - ./kibana/config/kibana.yml:/usr/share/kibana/config/kibana.yml:ro,Z
      # (!) CA certificate. Generate using instructions from tls/README.md.
      - ./tls/kibana/elasticsearch-ca.pem:/usr/share/kibana/config/elasticsearch-ca.pem:ro,z
      - ./tls/kibana/instance.crt:/usr/share/kibana/config/instance.crt:ro,z
      - ./tls/kibana/instance.key:/usr/share/kibana/config/instance.key:ro,z

Edit the Kibana configuration to enable TLS:

# kibana.yml

server.ssl.enabled: true
server.ssl.certificate: config/instance.crt
server.ssl.key: config/instance.key

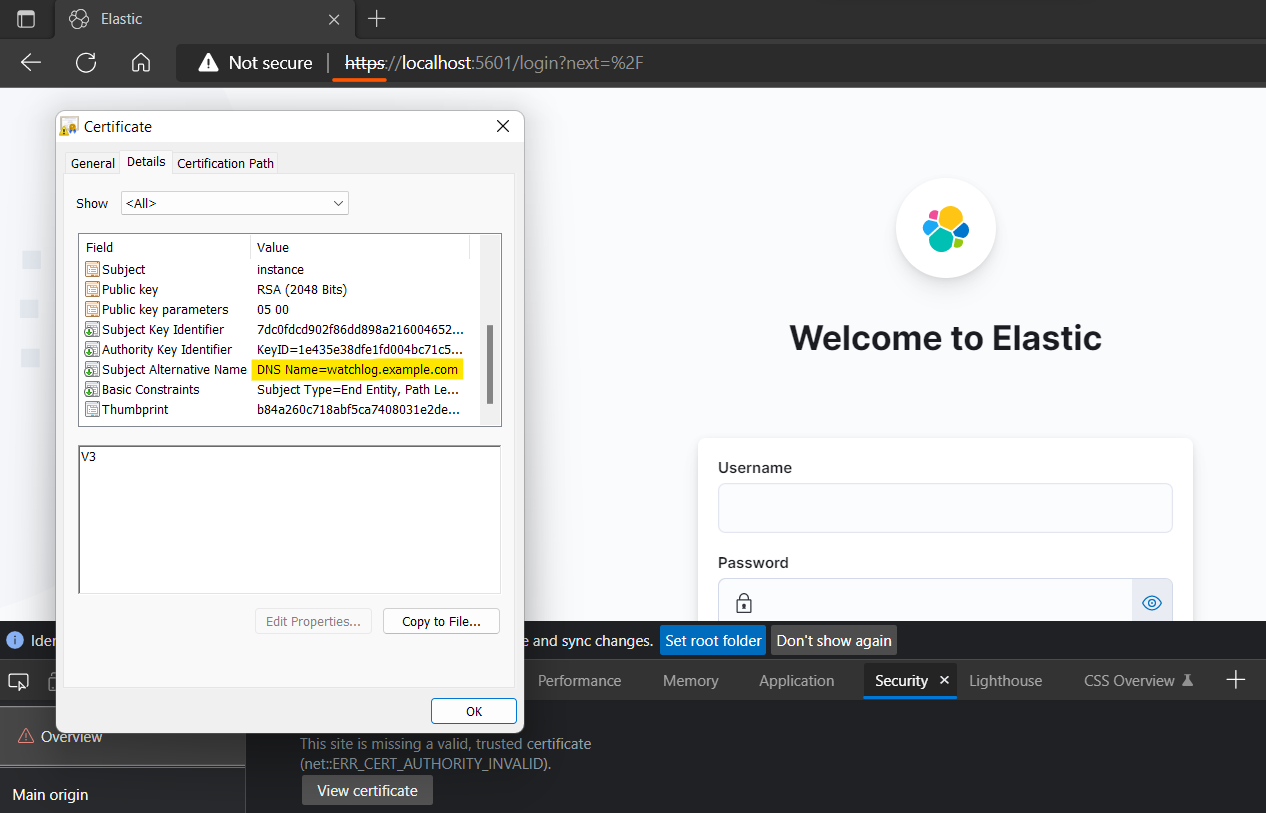

Restart Kibana, and access it over HTTPS (you will need to ignore warnings because your browser won’t trust docker-elk’s CA):

antoineco on Jun 23, 2022
