desktop: Detect merge conflicts before a merge

Goal: As a user and consumer, when I am considering merging another branch into my own and before merging, I want to:

know whether I’ll get into a conflict
be warned on how bad the conflict will be so that I can choose the best time to merge and be mentally prepared for it.

Background

Built upon the Compare Branch feature that’s about to land in 1.2. This is demonstrated in the initial mockups as a message below the merge button, like this:

Implementation-wise, this is how we will accomplish the goal:

know whether I’ll get into a conflict = test merging another branch without actually performing the merge
be warned on how bad the conflict will be = display a number of files that will be conflicted if the user decides to proceed

Interactive Example

I’m going to use https://github.com/desktop/desktop/pull/3675 as an example here, because this currently has a merge conflict.

Web Editor Flow

Here’s what you see when you view the pull request:

If we try and resolve this conflict in the editor, we see that it’s just one file and one conflicted change:

Current Compare Branch Flow

There’s no indicator when you compare to master that you’re gonna have a bad time:

When you merge master into the PR branch, you’ll see this error:

And when you switch to the Commit tab you’ll see there’s our conflicted file to resolve:

Command Line Example

If you use git merge --no-commit [other-branch] to test this, it will still apply the result to the index - requiring a git merge --abort to undo the test merge. So how can we do this in Git without actually performing the merge?

The classic Windows version of Desktop used libgit2sharp to detect any merge conflicts, and as we’re not interested in adding additional dependencies we need to figure out how to do this using git.git. Thankfully we have git merge-tree.

git merge-tree takes three arguments. In order:

<base-tree> - this is a common ancestor to both branches
<branch1> - this is the target branch for the merge (“ours” in Git terminology)
<branch2> - this is the source branch for the merge (“theirs” in Git terminology)

For the example in #3675, we can work out the base-tree SHA like this:

$ git merge-base pr/3675 master
c46391569aa99773c99bf8028753ba225df0678d

Then we can execute git merge-tree:

$ git merge-tree c46391569aa99773c99bf8028753ba225df0678d pr/3675 master
merged
  result 100644 41d8e9e745215d5ba5f382f949f6f4167ace4754 .github/ISSUE_TEMPLATE.md
  our    100644 65c8c0a5f5c37299d369ce4811128ae829368d2d .github/ISSUE_TEMPLATE.md
@@ -2,7 +2,7 @@
 First and foremost, we’d like to thank you for taking the time to contribute to our project. Before submitting your issue, please follow these steps:

 1. Familiarize yourself with our contributing guide:
-	* https://github.com/desktop/desktop/blob/master/CONTRIBUTING.md#contributing-to-github-desktop
+	* https://github.com/desktop/desktop/blob/master/.github/CONTRIBUTING.md#contributing-to-github-desktop
 2. Check if your issue (and sometimes workaround) is in the known-issues doc:
 	* https://github.com/desktop/desktop/blob/master/docs/known-issues.md
 3. Make sure your issue isn’t a duplicate of another issue
merged
  result 100644 16f2723406e57be8ea6ac3501f148e5c89b6442f app/package.json
  our    100644 d7ae9a501991fb77213d5228ec2232d8882e8457 app/package.json
@@ -3,7 +3,7 @@
...

Git emits the merge result to stdout, and it’s a format that seems pretty easy to parse:

the first line is the a keyword representing the result - merged, added in remote, removed in remote, changed in both seem to be the potential values (there might be others)
then one or more lines, indented by two spaces, containing the file mode, blob and paths to the contents representing the merge result

  base   100644 3f546193411ef428c7563a87efa8645326e8ee37 yarn.lock
  our    100644 a77184dc2241173e769e2be6feccb7248aec4fb2 yarn.lock
  their  100644 fd340f7005ceda34a5d8c6dc7dce20bf35b0253a yarn.lock

Lastly, the unified diff of the merge result

Our conflicted file looks like this in the output from git merge-tree:

changed in both
  base   100644 78eb74f896151b4acefbb48dfbb920cd79aefc6e package.json
  our    100644 e821187bff2cd846836ef3f8fdffe86703f92251 package.json
  their  100644 643893279bcbef680b0cb3e1f3835702f4fe05bf package.json
@@ -13,6 +13,7 @@
     "test:setup": "ts-node -P script/tsconfig.json script/test-setup.ts",
     "test:review": "ts-node -P script/tsconfig.json script/test-review.ts",
     "postinstall": "cd app && yarn install --force && cd .. && git submodule update --recursive --init && yarn compile:tslint",
+<<<<<<< .our
     "start": "cross-env NODE_ENV=development ts-node -P script/tsconfig.json script/start.ts",
     "start:prod": "cross-env NODE_ENV=production ts-node -P script/tsconfig.json script/start.ts",
     "debug": "cross-env NODE_ENV=development ts-node -P script/tsconfig.json script/debug.ts",
@@ -20,6 +21,14 @@
     "compile:prod": "cross-env NODE_ENV=production parallel-webpack --config app/webpack.production.ts",
     "build:dev": "yarn compile:dev && cross-env NODE_ENV=development ts-node -P script/tsconfig.json script/build.ts",
     "build:prod": "yarn compile:prod && cross-env NODE_ENV=production ts-node -P script/tsconfig.json script/build.ts",
+=======
+    "start": "cross-env NODE_ENV=development node script/start",
+    "start:prod": "cross-env NODE_ENV=production node script/start",
+    "compile:dev": "cross-env NODE_ENV=development parallel-webpack --config app/webpack.development.js",
+    "compile:prod": "cross-env NODE_ENV=production parallel-webpack --config app/webpack.production.js",
+    "build:dev": "yarn compile:dev && cross-env NODE_ENV=development ts-node script/build.ts",
+    "build:prod": "yarn compile:prod && cross-env NODE_ENV=production ts-node script/build.ts",
+>>>>>>> .their
     "package": "ts-node -P script/tsconfig.json script/package.ts",
     "generate-octicons": "ts-node -P script/tsconfig.json script/generate-octicons.ts",
     "clean:tslint": "rimraf tslint-rules/*.js",
@@ -99,7 +108,7 @@
     "tslint-microsoft-contrib": "^5.0.3",
     "tslint-react": "^3.5.1",
     "typescript": "^2.8.1",
-    "typescript-eslint-parser": "^14.0.0",
+    "typescript-eslint-parser": "^15.0.0",
     "webpack": "^3.10.0",
     "webpack-bundle-analyzer": "^2.11.1",
     "webpack-dev-middleware": "^2.0.3",

What’s useful here is that we can see the merge conflict markers inline, which is the same output as you get when you do a git merge master into pr/3675.

For reference, a different changed in both entry which was auto-merged looks like this:

changed in both
  base   100644 3f546193411ef428c7563a87efa8645326e8ee37 yarn.lock
  our    100644 a77184dc2241173e769e2be6feccb7248aec4fb2 yarn.lock
  their  100644 fd340f7005ceda34a5d8c6dc7dce20bf35b0253a yarn.lock
@@ -7267,9 +7267,9 @@
   version "0.0.6"
   resolved "https://registry.yarnpkg.com/typedarray/-/typedarray-0.0.6.tgz#867ac74e3864187b1d3d47d996a78ec5c8830777"

-typescript-eslint-parser@^14.0.0:
-  version "14.0.0"
-  resolved "https://registry.yarnpkg.com/typescript-eslint-parser/-/typescript-eslint-parser-14.0.0.tgz#c90a8f541c1d96e5c55e2807c61d154e788520f9"
+typescript-eslint-parser@^15.0.0:
+  version "15.0.0"
+  resolved "https://registry.yarnpkg.com/typescript-eslint-parser/-/typescript-eslint-parser-15.0.0.tgz#882fd3d7aabffbab0a7f98d2a59fb9a989c2b37f"
   dependencies:
     lodash.unescape "4.0.1"
     semver "5.5.0"

By streaming the output from Git into a parser, I think we can cheaply aggregate the number of files that have changed, as well as which files are conflicted, without having to actually perform the merge and update the index.

Task List (TBC)

build a merge result parser that can read the results from git merge-tree and generate a summary to emulate merging
build the Git infrastructure to generate the merge result between two branches
execute merge test in AppStore when branch selected and has ahead commits to merge
add UI to Compare tab for displaying the merge conflict result (if found)
incorporate analytics - #5550

inform help-docs on user-facing updates
update marketing page screenshots and add feature page
update blog post for GitHub blog

About this issue

Original URL
State: closed
Created 6 years ago
Reactions: 11
Comments: 24 (23 by maintainers)

Most upvoted comments

@donokuda Agreed about reusing the styles for the three “normal” cases (and excluding “Update from default branch”):

Regular merging via compare branch flow
Branch > Merge into current branch
Merging via NDDB

I accidentally found myself in a design rabbit hole when I went to make examples of each potential state while incorporating the new text, but here’s how I was thinking we could show the loading / merge-ability states:

I love these, they’re really good. Only minor nit would be to downcase “check” in “Pending Check.”

Re: the clickability of the merge button in your previous comment, it sounds like there is actually utility in being able to click “Merge” anyway. That the clicking the button triggers the conflict, which introduces the ways to resolve those conflicts in your chosen way (for example, by hopping over to Atom and using the conflict resolution tool there).

billygriffin on Aug 28, 2018

We could also make this a non-issue by ensuring the Compare To Branch list is only populated with branches that are reachable from your current branch. I’m not sure what’s involved here to compute that list, and a quick glance at git branch didn’t show a simple flag to use.

Similar to what @j-f1 suggested and your idea, would preventing merging all together help in the meantime? We can consider introducing another state for situations where you’re unable to merge two branches together:

donokuda on Aug 31, 2018

Does the use get any benefit by being able to click merge if there are conflicts present? I feel like the answer might be no, but I’m not sure about that.

I think it’s okay for people to be able to click merge since we’re warning them of conflicts ahead of time.

Are there any thoughts on adjusting the Merge button color based on ✅ or ⚠️? (ex: a pretty green vs. a pretty red/maroon)

I’d be interested in doing something like this. Making the entire button red might feel a little jarring and scary, but dotcom does a similar treatment for destructive actions:

donokuda on Aug 28, 2018

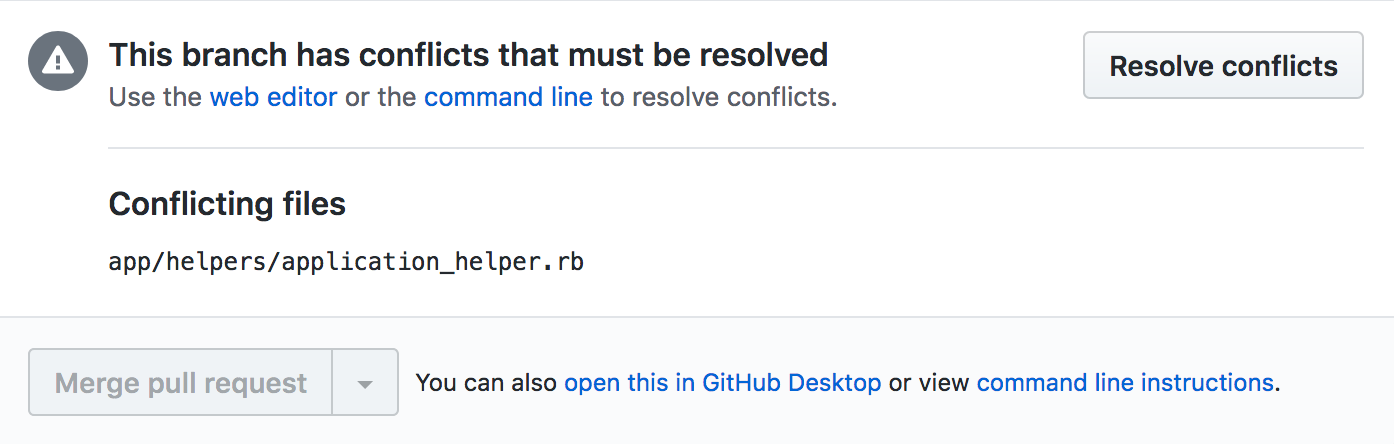

Here’s the web UI for that case @nerdneha @desktop/design.

Does the user get any benefit by being able to click merge if there are conflicts present? I feel like the answer might be no, but I’m not sure about that. Would love thoughts on whether having it greyed out like dotcom would be a reasonable approach for us too until we have a better story to tell on handling of conflicts when they actually occur.

billygriffin on Aug 28, 2018

@billygriffin no, this should only fire when the user is interacting with the compare tab to change branches (or whatever flows we decide to settle on for this) so it should be constrained to that action.

shiftkey on Aug 27, 2018

I might be missing some context but why would there be a loading spinner in between?

This was me looking at the time required for the underlying Git operations where the branches diverge by 20k commits or so on Windows:

On slower machines we shouldn’t assume this check will finish immediately, so I was thinking about how to show “we’re checking things”. I’m sure there’s other chronic bottlenecks like “omg there’s conflicts in every file” to consider as part of this flow.

I’m going to chat with @donokuda about the intended experience for these workflows and update back here

👍

shiftkey on Aug 27, 2018

Going to rework the prototype before opening a PR, but wanted to add a note here about the UX.

This is how it currently looks when we combine the merge commit hint with the message about what this merge will do to the repository:

This is making the area rather busy, and I have a suggestion to combine these two messages to keep things simple:

The “clean merge” message essentially becomes ✅This will merge XY commits from [branch] into [branch], and the “conflicts detected” becomes ⚠️ There will be X conflicts after merging [branch] into [branch], with a loading spinner in between.

This helps keep the context focus on what the next action will be, but I’m open to other ideas around how we’re using this area to communicate information.

shiftkey on Aug 14, 2018

I’ve pushed up the parsing-merge-tree-result branch that shows what the heavy lifting of merge conflict detection might look like. Testing it on a Windows 7 VM, these are the timings for one of the chronic cases from VSCode

The timings on this are pretty interesting, and are a good guide for “slow” merge conflict detection:

getMergeBase needs to be done to figure out the common ancestor between the two refs, but if this method returns one of the known refs it means this branch is only behind, or only ahead, so it can probably be done as a fast-forward merge (but we don’t do that currently). We can probably skip this check if we already have the ahead/behind count and we know it’s an ahead-only or behind-only branch.
mergeTree what we have when a ref is both ahead and behind the other ref, and is the work required by Git to identify whether there are any merge conflicts that the user needs to do
parseMergeResult is the new code to parse the output from Git and identify whether there are any conflicts that the user will have to work with

If we continue down this path, the UX should definitely support being executed and updated asynchronously.

shiftkey on Jul 12, 2018

@billygriffin I’ve switched this label to user-research based on our discussion today

shiftkey on Jul 9, 2018
