frigate: [Support]: ffmpeg sent a broken frame. memoryview assignment: lvalue and rvalue have different structures

Describe the problem you are having

I’ve searched thru google along w/ many of the issues posted here, pretty much tried everything in the past few days and still can’t get Frigate to pass initially stage of ffmpeg

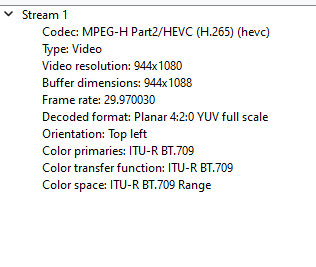

Codec info image

Version

0.9.4-26AE608

Frigate config file

mqtt:
  host: 10.0.19.5
  user: *****
  password: ******!
  client_id: frigate

cameras:
  frontdoor:
    ffmpeg:
      inputs:
        - path: rtsp://*****:*****@10.0.29.3/user=*****&password=*****&channel=1&stream=1.sdp?
          roles:
            - detect

      hwaccel_args:
            - -hwaccels
            - vaapi
            - -hwaccel_device
            - /dev/dri/renderD128
            - -hwaccel_output_format
            - yuv420p

      input_args:
        - -avoid_negative_ts
        - make_zero
        - -fflags
        - +genpts+discardcorrupt
        - -rtsp_transport
        - tcp
        - -stimeout
        - '5000000'
        - -use_wallclock_as_timestamps
        - '1'
        - -c:v
        - hevc_cuvid

      output_args:
        detect: -f rawvideo -pix_fmt yuv420p
detect:
  width: 352
  height: 240
  fps: 5
  enabled: True
  max_disappeared: 25

logger:
  logs:
    frigate.event: debug
    frigate.mqtt: error

Relevant log output

[s6-init] making user provided files available at /var/run/s6/etc...exited 0.
[s6-init] ensuring user provided files have correct perms...exited 0.
[fix-attrs.d] applying ownership & permissions fixes...
[fix-attrs.d] done.
[cont-init.d] executing container initialization scripts...
[cont-init.d] done.
[services.d] starting services
[services.d] done.
[2022-02-07 16:27:32] frigate.app                    INFO    : Starting Frigate (0.9.4-26ae608)
[2022-02-07 16:27:32] frigate.app                    INFO    : Creating directory: /tmp/cache
Starting migrations
[2022-02-07 16:27:32] peewee_migrate                 INFO    : Starting migrations
There is nothing to migrate
[2022-02-07 16:27:32] peewee_migrate                 INFO    : There is nothing to migrate
[2022-02-07 16:27:32] ws4py                          INFO    : Using epoll
[2022-02-07 16:27:32] detector.cpu                   INFO    : Starting detection process: 219
[2022-02-07 16:27:32] frigate.edgetpu                WARNING : CPU detectors are not recommended and should only be used for testing or for trial purposes.
[2022-02-07 16:27:32] frigate.app                    INFO    : Output process started: 220
[2022-02-07 16:27:32] frigate.app                    INFO    : Camera processor started for frontdoor: 228
[2022-02-07 16:27:32] frigate.app                    INFO    : Capture process started for frontdoor: 231
[2022-02-07 16:27:32] ws4py                          INFO    : Using epoll
[2022-02-07 16:27:32] frigate.video                  INFO    : frontdoor: ffmpeg sent a broken frame. memoryview assignment: lvalue and rvalue have different structures
[2022-02-07 16:27:32] frigate.video                  INFO    : frontdoor: ffmpeg process is not running. exiting capture thread...

FFprobe output from your camera

Not sure how to get this info

Frigate stats

Not sure how to get this info

Operating system

HassOS

Install method

HassOS Addon

Coral version

CPU (no coral)

Network connection

Wired

Camera make and model

Heimvision 245

Any other information that may be helpful

No response

About this issue

  • Original URL
  • State: closed
  • Created 2 years ago
  • Comments: 17 (4 by maintainers)

Most upvoted comments

OK, finally got it to work by adding low_delay and -flags to input_args, not sure what all that mean πŸ˜ƒ . Next step is to add other functions such as clips, record, etc. and to get CPU down. Will keep you posted

input_args: - -avoid_negative_ts - make_zero - -flags - low_delay - -fflags - +genpts+discardcorrupt - -rtsp_transport - tcp - -stimeout - β€˜5000000’ - -use_wallclock_as_timestamps - β€˜1’
