backstage: 🐛 Bug Report: Installing the ADR Plugin

📜 Description

There are a few things happening with this (these?) bug(s). I followed all the instructions here to install the backend plugin, and then the instructions here to install the front end application, and although I didn’t see it mentioned I also installed the adr-common plugin due to dependencies.

First thing we noticed is that the annotation with a relative path doesn’t seem to work. When reviewing the logs we noticed that an annotation of backstage.io/adr-location: docs/adrs and an annotation of backstage.io/source-location: url:https://github.com/{ORG}/{REPO} was producing an api call that omitted the {REPO} and did not point to the tree url. An example of the call would be GET /api/adr/list?url=https%3A%2F%2Fgithub.com%2F{ORG}%2Fdocs%2Fadrs or effectively a url of https://github.com/{ORG}/docs/adrs. We fixed this error by supplying a full url of backstage.io/adr-location: https://github.com/{ORG}/{REPO}/tree/main/docs/adrs, however, based on the docs it seems like the original version should be possible.

Next, when going to the ADR tab of an entity we’re getting the following error Routable extension component with mount point routeRef{type=absolute,id=adr} was not discovered in the app element tree. Routable extension components may not be rendered by other components and must be directly available as an element within the App provider component.. No where in the docs does it say to add anything to the App router, but we gave it a try to see what happens. Initially, pulling up the tab did list out the ADRs, however when you click on any of the adrs it crashes with an Entity context not available error. Unfortunately, there’s no element that can be passed to the root level routes, when adding <Route path="/adrs" element={<EntityAdrContent />} /> to the App.tsx file it fails because it’s expecting entity context.

Finally, this plugin doesn’t appear to support this tutorial for authenticating api requests in the backend. When we add the authMiddleware to the handler we get consistent unauthorized requests back. I really don’t know if this is a major issue or not, we left it off for testing, but does seem like a thing to bring up.

I’m probably doing something wrong here, but my code matches the tutorial.

👍 Expected behavior

Plugin README installation tutorial should work as expected.

👎 Actual Behavior with Screenshots

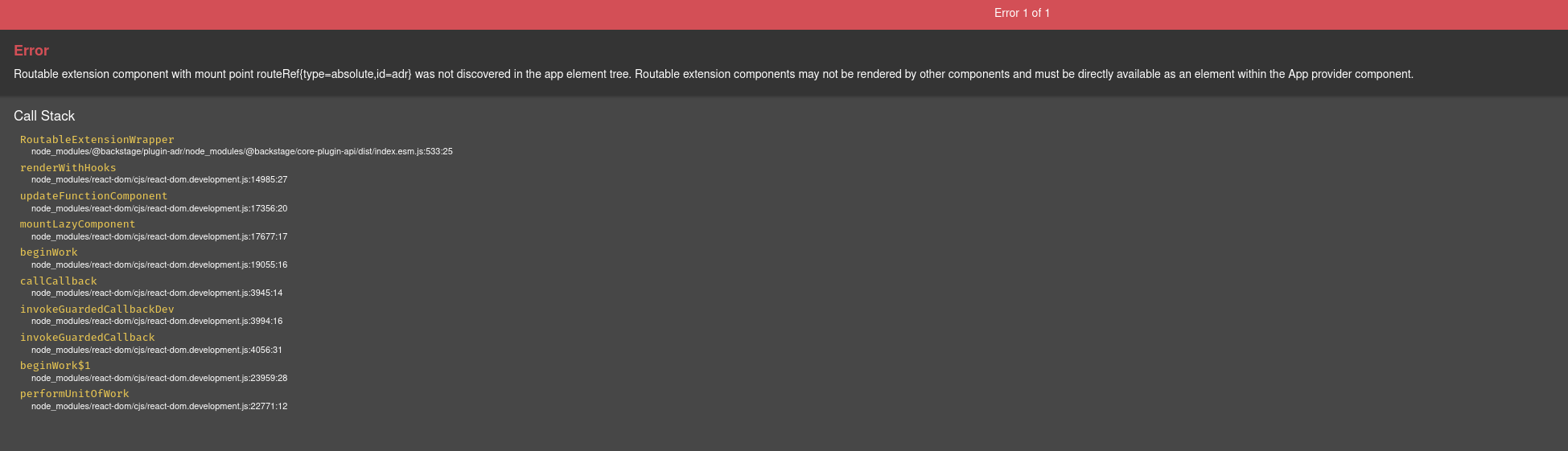

Errors with displaying the plugin:

👟 Reproduction steps

Follow the README installation instructions for the adr and adr-backend plugins

📃 Provide the context for the Bug.

We want to start displaying ADRs, but we can’t at the moment.

🖥️ Your Environment

OS:   Linux 5.19.0-38-generic - linux/x64
node: v18.12.1
yarn: 1.22.19
cli:  0.22.2 (installed)
backstage:  1.11.0

Dependencies:
  @backstage/app-defaults                               1.2.0
  @backstage/backend-app-api                            0.4.0, 0.4.1
  @backstage/backend-common                             0.18.2, 0.18.3
  @backstage/backend-dev-utils                          0.1.0, 0.1.1
  @backstage/backend-plugin-api                         0.4.0, 0.5.0
  @backstage/backend-tasks                              0.4.3, 0.5.0
  @backstage/catalog-client                             0.9.0, 1.3.1, 1.4.0
  @backstage/catalog-model                              0.13.0, 1.2.0, 1.2.1
  @backstage/cli-common                                 0.1.11, 0.1.12
  @backstage/cli                                        0.22.2, 0.22.3
  @backstage/config-loader                              1.1.8, 1.1.9
  @backstage/config                                     0.1.15, 1.0.6, 1.0.7
  @backstage/core-api                                   0.2.23
  @backstage/core-app-api                               1.5.0
  @backstage/core-components                            0.11.2, 0.12.4, 0.12.5, 0.9.5
  @backstage/core-plugin-api                            0.1.13, 0.8.0, 1.4.0, 1.5.0
  @backstage/core                                       0.7.14
  @backstage/dev-utils                                  1.0.12
  @backstage/errors                                     0.1.5, 0.2.2, 1.1.4, 1.1.5
  @backstage/eslint-plugin                              0.1.0, 0.1.1
  @backstage/integration-aws-node                       0.1.1, 0.1.2
  @backstage/integration-react                          0.1.25, 1.1.10, 1.1.11
  @backstage/integration                                0.8.0, 1.4.2, 1.4.3
  @backstage/plugin-adr-backend                         0.3.1
  @backstage/plugin-adr-common                          0.2.7
  @backstage/plugin-adr                                 0.4.1
  @backstage/plugin-analytics-module-ga                 0.1.26
  @backstage/plugin-api-docs                            0.9.0
  @backstage/plugin-app-backend                         0.3.42
  @backstage/plugin-auth-backend                        0.18.0
  @backstage/plugin-auth-node                           0.2.11, 0.2.12
  @backstage/plugin-catalog-backend-module-github       0.2.5
  @backstage/plugin-catalog-backend-module-openapi      0.1.8
  @backstage/plugin-catalog-backend                     1.7.2
  @backstage/plugin-catalog-common                      1.0.11, 1.0.12
  @backstage/plugin-catalog-graph                       0.2.27
  @backstage/plugin-catalog-import                      0.9.5
  @backstage/plugin-catalog-node                        1.3.3
  @backstage/plugin-catalog-react                       0.9.0, 1.3.0, 1.4.0
  @backstage/plugin-catalog                             1.8.0
  @backstage/plugin-entity-feedback-backend             0.1.0
  @backstage/plugin-entity-feedback-common              0.1.0
  @backstage/plugin-entity-feedback                     0.1.0
  @backstage/plugin-entity-validation                   0.1.0
  @backstage/plugin-events-node                         0.2.3
  @backstage/plugin-github-actions                      0.5.15
  @backstage/plugin-github-issues                       0.2.4
  @backstage/plugin-home                                0.4.31
  @backstage/plugin-org                                 0.6.5
  @backstage/plugin-permission-common                   0.5.3, 0.6.4, 0.7.3, 0.7.4
  @backstage/plugin-permission-node                     0.7.5, 0.7.6
  @backstage/plugin-permission-react                    0.3.4, 0.4.10, 0.4.11
  @backstage/plugin-proxy-backend                       0.2.36
  @backstage/plugin-scaffolder-backend                  1.11.0
  @backstage/plugin-scaffolder-common                   1.2.5
  @backstage/plugin-scaffolder-node                     0.1.0
  @backstage/plugin-scaffolder-react                    1.1.0
  @backstage/plugin-scaffolder                          1.11.0
  @backstage/plugin-search-backend-module-elasticsearch 1.1.3
  @backstage/plugin-search-backend-module-pg            0.5.3
  @backstage/plugin-search-backend-node                 1.1.3
  @backstage/plugin-search-backend                      1.2.3
  @backstage/plugin-search-common                       0.3.4, 1.2.1, 1.2.2
  @backstage/plugin-search-react                        1.5.0, 1.5.1
  @backstage/plugin-search                              1.1.0
  @backstage/plugin-shortcuts                           0.3.7
  @backstage/plugin-stack-overflow                      0.1.11
  @backstage/plugin-tech-radar                          0.6.1
  @backstage/plugin-techdocs-addons-test-utils          1.0.10
  @backstage/plugin-techdocs-backend                    1.5.3
  @backstage/plugin-techdocs-module-addons-contrib      1.0.10
  @backstage/plugin-techdocs-node                       1.5.0
  @backstage/plugin-techdocs-react                      1.1.3
  @backstage/plugin-techdocs                            1.5.0
  @backstage/plugin-user-settings                       0.7.0
  @backstage/release-manifests                          0.0.8
  @backstage/search-common                              0.3.4
  @backstage/test-utils                                 1.2.5
  @backstage/theme                                      0.2.17, 0.2.18
  @backstage/types                                      0.1.3, 1.0.2
  @backstage/version-bridge                             0.1.2, 1.0.3
Done in 0.74s.

👀 Have you spent some time to check if this bug has been raised before?

• I checked and didn’t find similar issue

🏢 Have you read the Code of Conduct?

• I have read the Code of Conduct

Are you willing to submit PR?

No, I don’t have time to work on this right now
