We are facing the same issue.

To Reproduce

We are installing the Azure App Gateway Ingress Controller as following:

# install azure ad pod identities
./kubernetes-d/linux-amd64/helm repo add aad-pod-identity https://raw.githubusercontent.com/Azure/aad-pod-identity/master/charts
./kubernetes-d/linux-amd64/helm repo update
./kubernetes-d/linux-amd64/helm upgrade --install aad-pod-identity aad-pod-identity/aad-pod-identity --atomic
# install azure app gateway ingress controller
./kubernetes-d/linux-amd64/helm repo add application-gateway-kubernetes-ingress https://appgwingress.blob.core.windows.net/ingress-azure-helm-package/
./kubernetes-d/linux-amd64/helm repo update
# manipulating config.yaml
./kubernetes-d/linux-amd64/helm upgrade -f=./app-gw-ingress/helm-config.yaml --install ingress-azure application-gateway-kubernetes-ingress/ingress-azure --version=$appgwChartVersion --namespace=default --atomic

The applied helm-chart values:

# Specify aks cluster related information. THIS IS BEING DEPRECATED.
# aksClusterConfiguration:
#   apiServerAddress: AKS_API_SERVER_ADDRESS

# The values.yaml file is important to templates.
# This file contains the default values for a chart.
# These values may be overridden during helm install or helm upgrade.
replicaCount: 1

# Verbosity level of the App Gateway Ingress Controller
verbosityLevel: 3

image:
  repository: mcr.microsoft.com/azure-application-gateway/kubernetes-ingress
  tag: 0.7.1
  pullPolicy: Always


# kubernetes:
#     # Namespace(s) AGIC watches; Leaving this blank watches all namespaces;
#     # Accepts one or many comma-separated values
#     watchNamespace:
#     # Port for AGIC's HTTP API endpoint
#     httpServicePort: 8124


################################################################################
# Specify which application gateway the ingress controller will manage
#
appgw:
  subscriptionId: SUBSCRIPTION_ID
  resourceGroup: RESOURCE_GROUP_NAME
  name: APP_GW_NAME

################################################################################
# Specify the authentication with Azure Resource Manager
#
# Two authentication methods are available:
# - Option 1: AAD-Pod-Identity (https://github.com/Azure/aad-pod-identity)
armAuth:
  type: aadPodIdentity
  identityResourceID: ARM_AUTH_RESOURCE_ID
  identityClientID: ARM_AUTH_CLIENT_ID
# - Option 2: ServicePrincipal as a kubernetes secret
# armAuth:
#   type: servicePrincipal
#
#   # Generate this value with:
#   #   az ad sp create-for-rbac --subscription <subscription-uuid> --sdk-auth | base64 -w0
#   secretJSON: <base64-encoded-JSON-blob>

################################################################################
# Specify if the cluster is RBAC enabled or not
rbac:
  enabled: true # true/false

nodeSelector: {}

Describe the bug

• azure-app-gateway-ingress-controller pod stuck in crashLoopBackOff
• kubectl describe of the pod shows the Liveness and Readiness probe failing in the same manner as described by the author in the first post

Current workaround

We currently worked around by manually editing the deployment of the azure-app-gateway-ingress-controller and removing the Readiness and Liveness probes there. Afterwards the azure-app-gateway-ingress-controller pod is able to spin up correctly and stays stable in the Running status. kubectl edit deployment azure-app-gateway-ingress-controller -> remove the complete Readiness and Liveness section, so that it looks somehow like this:

# Please edit the object below. Lines beginning with a '#' will be ignored,
# and an empty file will abort the edit. If an error occurs while saving this file will be
# reopened with the relevant failures.
#
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: "3"
  creationTimestamp: "2019-11-18T16:34:42Z"
  generation: 3
  labels:
    app: ingress-azure
    chart: ingress-azure-1.0.0
    heritage: Tiller
    release: ingress-azure
  name: ingress-azure
  namespace: default
  resourceVersion: "425992"
  selfLink: /apis/apps/v1/namespaces/default/deployments/ingress-azure
  uid: f357ad89-67ac-49f4-8f12-3041b3d10081
spec:
  progressDeadlineSeconds: 600
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app: ingress-azure
      release: ingress-azure
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      annotations:
        prometheus.io/port: "8123"
        prometheus.io/scrape: "true"
      creationTimestamp: null
      labels:
        aadpodidbinding: ingress-azure
        app: ingress-azure
        release: ingress-azure
    spec:
      containers:
      - env:
        - name: AZURE_CONTEXT_LOCATION
          value: /etc/appgw/azure.json
        - name: AGIC_POD_NAME
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.name
        - name: AGIC_POD_NAMESPACE
          valueFrom:
            fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
        envFrom:
        - configMapRef:
            name: ingress-azure
        image: mcr.microsoft.com/azure-application-gateway/kubernetes-ingress:0.7.1
        imagePullPolicy: Always
        name: ingress-azure
        resources: {}
        terminationMessagePath: /dev/termination-log
        terminationMessagePolicy: File
        volumeMounts:
        - mountPath: /etc/appgw/azure.json
          name: azure
      dnsPolicy: ClusterFirst
      restartPolicy: Always
      schedulerName: default-scheduler
      securityContext: {}
      serviceAccount: ingress-azure
      serviceAccountName: ingress-azure
      terminationGracePeriodSeconds: 30
      volumes:
      - hostPath:
          path: /etc/kubernetes/azure.json
          type: File
        name: azure
status:
  availableReplicas: 1
  conditions:
  - lastTransitionTime: "2019-11-20T08:27:25Z"
    lastUpdateTime: "2019-11-20T08:27:25Z"
    message: Deployment has minimum availability.
    reason: MinimumReplicasAvailable
    status: "True"
    type: Available
  - lastTransitionTime: "2019-11-20T08:27:21Z"
    lastUpdateTime: "2019-11-20T08:27:25Z"
    message: ReplicaSet "ingress-azure-78d4c6c4d6" has successfully progressed.
    reason: NewReplicaSetAvailable
    status: "True"
    type: Progressing
  observedGeneration: 3
  readyReplicas: 1
  replicas: 1
  updatedReplicas: 1

Further Question

Is it somehow possible to archive a running azure-app-gateway-ingress-controller without the need of manually editing the deployment of it after it was deployed with the helm-chart?

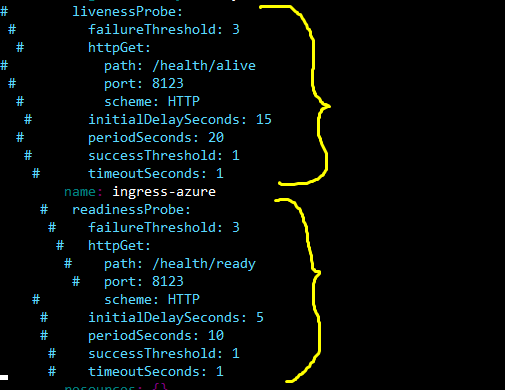

The workaround to remove Liveness Probe and Readiness Probe from the Deployment, as suggested by @gitflo1, seems to be doing the trick.

Blocks removed from AGIC’s Deployment:

Causes the running AGIC pod to be replaced by another new one, as expected.

Checking the new pod logs:

$ kubectl log deadly-ibex-ingress-azure-c97797d69-btp8f

log is DEPRECATED and will be removed in a future version. Use logs instead.
ERROR: logging before flag.Parse: I1121 16:20:29.990455       1 main.go:302] Using verbosity level 3 from environment variable APPGW_VERBOSITY_LEVEL
I1121 16:20:30.028429       1 environment.go:168] KUBERNETES_WATCHNAMESPACE is not set. Watching all available namespaces.
I1121 16:20:30.028470       1 main.go:132] App Gateway Details: Subscription: <SubID>, Resource Group: <RG-Name>, Name: <AppGw-Name>
I1121 16:20:30.028494       1 auth.go:90] Creating authorizer from Azure Managed Service Identity
I1121 16:20:30.499006       1 main.go:179] Ingress Controller will observe all namespaces.
I1121 16:20:30.531956       1 context.go:129] k8s context run started
I1121 16:20:30.532008       1 context.go:168] Waiting for initial cache sync
I1121 16:20:30.632318       1 context.go:176] Initial cache sync done
I1121 16:20:30.632344       1 context.go:177] k8s context run finished
I1121 16:20:30.632487       1 worker.go:35] Worker started
I1121 16:20:30.632747       1 httpserver.go:57] Starting API Server on :8123
I1121 16:20:30.791415       1 mutate_app_gateway.go:154] BEGIN AppGateway deployment
I1121 16:20:31.198186       1 mutate_app_gateway.go:182] Applied App Gateway config in 406.740784ms
I1121 16:20:31.198218       1 mutate_app_gateway.go:198] cache: Updated with latest applied config.
I1121 16:20:31.198685       1 mutate_app_gateway.go:203] END AppGateway deployment

AGIC pod is able to reach Application Gateway now, and update its properties…

Same issue here, because the Liveness probe failed

@akshaysngupta thank you for resolving this issue with the RC 1.0.1-rc1. I just tested the RC helm-chart version on our prior failing AKS clusters and the issue was resolved.

@gitflo1 Thanks for asking.

1. No, not yet. I am yet to test it myself before I can be fully confident.
2. Yes, we will publish a release candidate after this PR is merged.

this is new issue, as we already deployed in last weeks at least 4 o 5 AKS clusters with AGIC lattest version 1.0.0, and pods started running successfully.-
